Culina UBINTD60SV User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

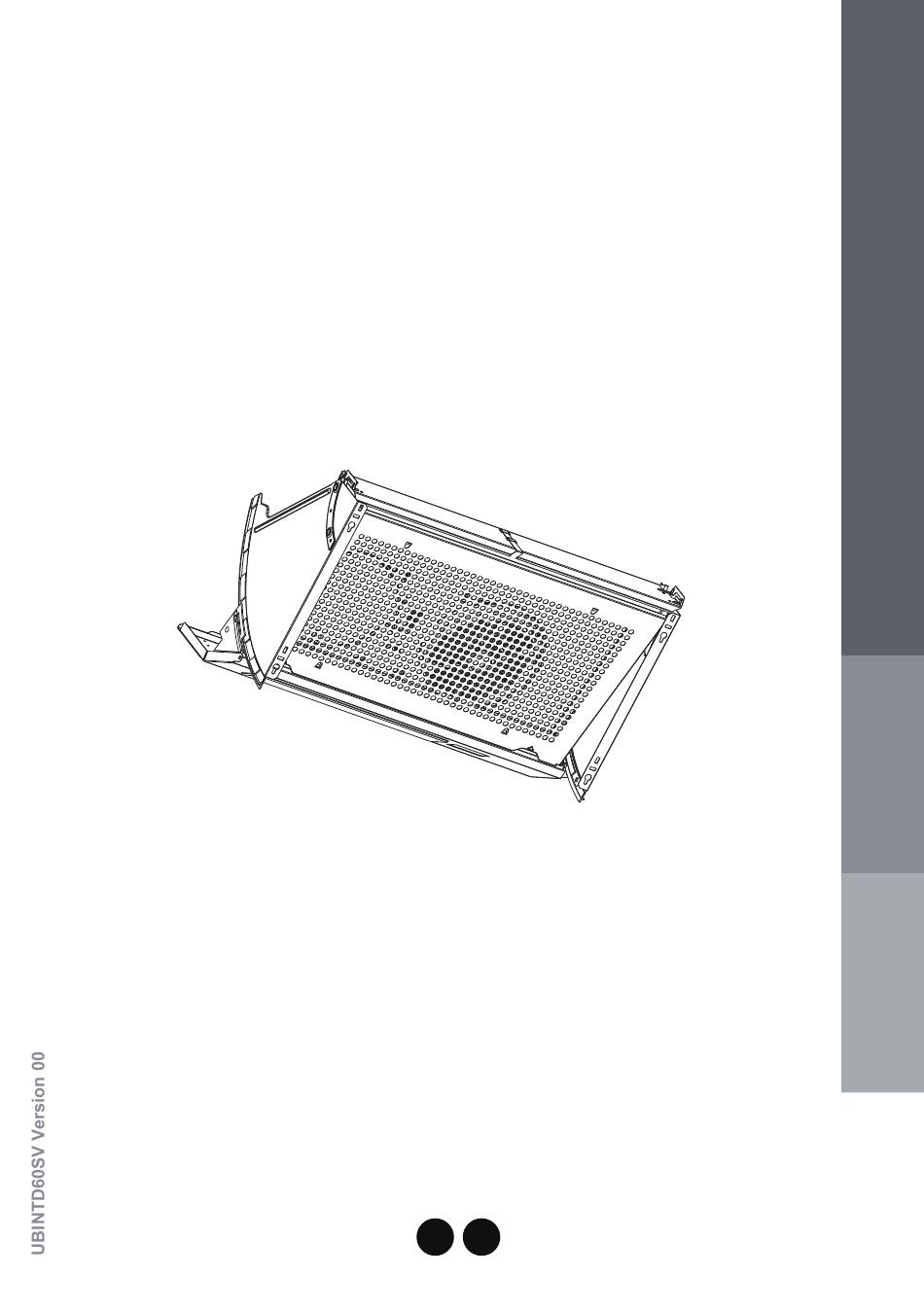

USER MANUAL
GB
IE
IE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UBINTD60SV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Culina UBINTD60SV

Summary of Contents for Culina UBINTD60SV

  • Page 1 USER MANUAL...
  • Page 2 [01] x 1 [02] x 1 [04] x 1 [03] x 1 [05] x 1 [06] x 1 [08] x 4 [07] x 16 (ST4 x 8mm) (ST4 x 14mm) Cooker hood...

  • Page 3: Table Of Contents

    Let's get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started... Safety Before you start more detail... Product functions Switching on/off Care and maintenance Troubleshooting Recycling and disposal Technical and legal information Appendix Installation...

  • Page 4: Safety

    Safety These instructions are for your safety. Please read through them thoroughly prior to installation and retain them for future reference. • All installation work must be carried out by a competent person or qualified electrician. • This appliance must be installed correctly by a suitably qualified person, strictly following the manufacturer’s instructions.
  • Page 5 Safety 8 and supervised. Keep the appliance and its cord out of reach of children less than 8 years. Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules. An all-pole disconnection switch having a contact separation of at least 3mm in all poles should be connected in fixed wiring.
  • Page 6 Safety Please dispose of the packing material carefully. Do not use flammable sprays in close vicinity to the appliance. We also recommend that great care be taken during use and cleaning. Read the cleaning and maintenance sections for this appliance carefully. A steam cleaner is not to be used.
  • Page 7 Safety involves no risk of damage. Switch off the electricity supply to the hood and reconnect after one minute. To avoid the risk of fire, clean the metal filter regularly and closely watch and regulate pans containing hot oil. Do not use the hood if it shows signs of damage or imperfection.

  • Page 8: Before You Start

    Before you start Things to check before you start To avoid the risks that are always present when you use an electrical appliance it is important that this cooker hood is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.
  • Page 9 Before you start Accessories not supplied Extraction Recirculation Ø120mm ATFILT1 (UK & IE) VENT PACK (UK & IE) CARBON FILTER ORDERING HOTLINE 0344 800 1128 (UK) 014475261 (IE)

  • Page 10: In More Detail

    Operation Product functions • This appliance extracts the air of the kitchen to remove the odours and keep an optimum level of air quality inside the room, it also allows you to illuminate the cooking area. Switching on/off • Switch on the appliance at the switched fused connection unit. The appliance is ready for use.

  • Page 11: Care And Maintenance

    Care and maintenance Aluminium and active charcoal filters replacement 1 MONTH MAX.65˚C Aluminium filters: To avoid fires, clean thoroughly once a month or whenever the display pilot light lights up (if fitted). To do so, remove the filters and soak in hot water and detergent for an hour.

  • Page 12: Troubleshooting

    Troubleshooting Troubleshooting Fault Cause Solution Excessive The appliance is not Take down the appliance and vibration. installed properly on the check it is properly fixed. brackets. The fan blade is Switch off the appliance. Repair damaged. to be carried out by qualified service personnel only.

  • Page 13: Recycling And Disposal

    Recycling and disposal Technical and legal information Recycling and disposal Environmental protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. The symbol on the product or its packaging indicates that this product cannot be treated as normal household waste.

  • Page 14: Technical And Legal Information

    Technical and legal information Wiring All installation work must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate. WARNING: THIS APPLIANCE MUST NOT BE EARTHED. Mains Supply could be connected to the Mains Voltage by Direct Connection DOUBLE POLE SWITCHED FUSED SPUR OUTLET...
  • Page 15 Technical and legal information Technical and legal information The Manufacturer declines all liability for damage caused to persons and objects due to incorrect or improper installation of the appliance. Electrical Requirements Any permanent electrical installation must comply with the latest I.E.E. regulations and local electricity company regulations.
  • Page 16 Installation Carbon filter Carbon filter Vent pack Vent pack Ø120mm Ø120mm DUCTED OPTION RECIRCULATION OPTION You can choose two type of installation: - Ducted option - Recirculation option This appliance is for installation on a wall only. Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards...
  • Page 17 DIM.A MIN.750mm (GAS) MIN 650mm (Electric) Warning: Caution! Before drilling it is extremely important to check the wall for hidden pipes, electrical cables etc using an appropriate detection device.
  • Page 18 [07] x 2 Fit screws on the two side boards of the cupboards. The distance between the screw and the cooking surface should no less than 1040mm. [02] x 1 [03] x 1 Fit the fan-shaped door frames on the cooker hood.
  • Page 19 [04] x 1 [06] x 1 Hang the cooker hood on the screws between the two cupboards.
  • Page 20 [07] x 2 Push the fan-shaped door frames to the end, in order to make the outer edges of the door frames at the same vertical level as the outer edge of the cupboards. Then mark the positions where you install the lower screws. Drill the upper hole and fix the screws.
  • Page 21 m in m ax 38 5 70 0 Choose the appropriate hood front panel according above shown. Pull out the movable fan-shaped door frames by the plastic handle. Mark the panel with the hole positions as shown.
  • Page 22 [07] x 12 Fix the fan-shaped door frames on the door with screws. You can according to actual conditions to screw all screws. Make sure the frames are symmetrical. The two screws on both sides of the cooker hood can adjust the sliding of the door, according to the weight of the door.
  • Page 23 Replace the filter. [05] x 1 [08] x 4 Install the adjusting plate, in order to cover the gap between the wall and the bottom of the cooker hood.
  • Page 24 15-A VENT PACK Ø120mm Fix the VENT PACK (Not supplide). Only for ducted option. 16-B Only for recirculation option.
  • Page 25 Appendix... Information for EU66 (A)Information of the cooker Hood Symbo l Valu e Unit Model identification UBINTD60SV Annual Energy Consumption kWh/a 33.3 hood Time increase factor Fluid Dynamic Efficiency 11.9 hood Energy Efficiency Index 71.8 hood Measured air flow rate at best 128.5...
  • Page 28 Apelson Appliances UK Limited Unit 3 Normandy Landings Pope St Castleford WF6 2AG...
