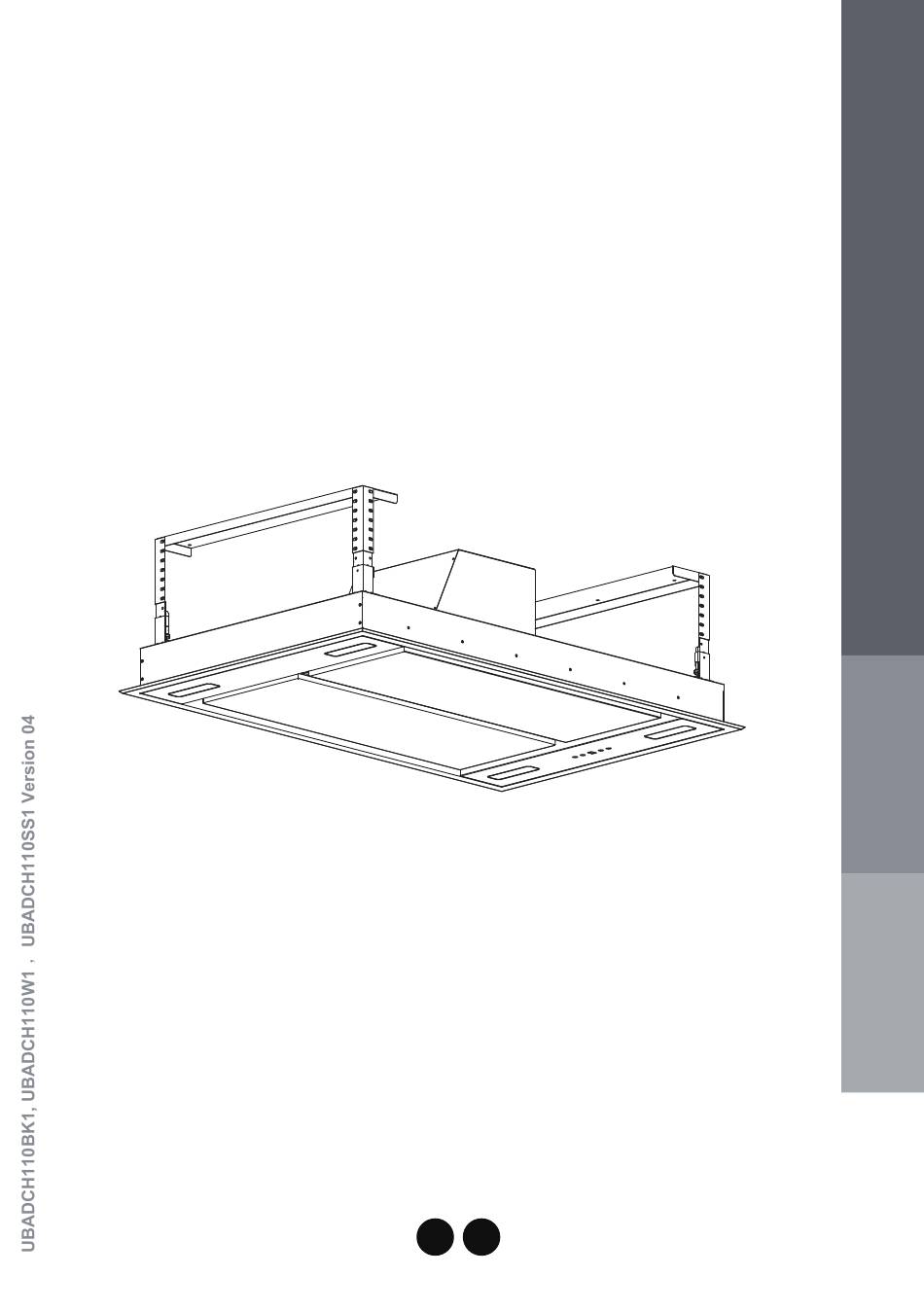

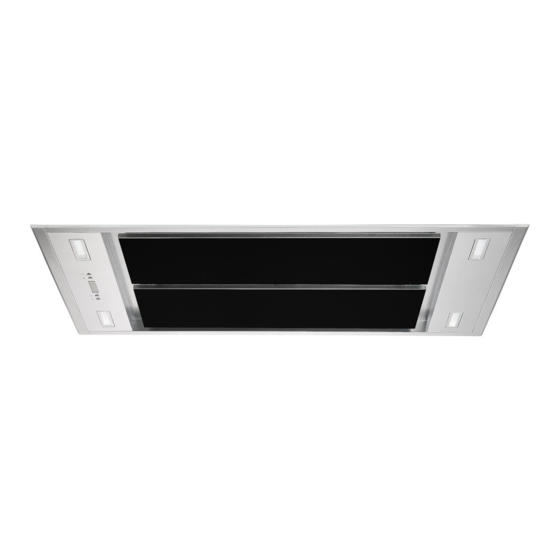

  • Page 1 USER MANUAL CEILING HOOD...
  • Page 2 [01] x 1 [02] x 4 [03] x 2 [04] x 8 [07] x 14 (M6 x 60mm) [05] x 1 VENT PACK Ø150mm [08] x 40 [09] x 40 [06] x 1 [10] x 48 (φ4 x 10mm)

  • Page 3: Table Of Contents

    Let's get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started... Safety Before you start more detail... Product functions Switching on/off Care and maintenance Troubleshooting Recycling and disposal Technical and legal information Appendix Installation...

  • Page 4: Safety

    Safety These instructions are for your safety. Please read through them thoroughly prior to installation and retain them for future reference. • All installation work must be carried out by a competent person or qualified electrician. • This appliance must be installed correctly by a suitably qualified person, strictly following the manufacturer’s instructions.
  • Page 5 Safety 8 and supervised. Keep the appliance and its cord out of reach of children less than 8 years. Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules. An all-pole disconnection switch having a contact separation of at least 3mm in all poles should be connected in fixed wiring.
  • Page 6 Safety Please dispose of the packing material carefully. Do not use flammable sprays in close vicinity to the appliance. We also recommend that great care be taken during use and cleaning. Read the cleaning and maintenance sections for this appliance carefully. A steam cleaner is not to be used.
  • Page 7 Safety involves no risk of damage. Switch off the electricity supply to the hood and reconnect after one minute. To avoid the risk of fire, clean the metal filter regularly and closely watch and regulate pans containing hot oil. Do not use the hood if it shows signs of damage or imperfection.

  • Page 8: Before You Start

    Before you start Things to check before you start To avoid the risks that are always present when you use an electrical appliance it is important that this cooker hood is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.
  • Page 9 Before you start Accessories supplied Recirculation CARBON FILTER ORDERING HOTLINE 0344 800 1128 (UK) ATFILT1 (UK & IE) 014475261 (IE)

  • Page 10: In More Detail

    Operation Product functions • This appliance extracts the air of the kitchen to remove the odours and keep an optimum level of air quality inside the room, it also allows you to illuminate the cooking area. Switching on/off • Switch on the appliance at the switched fused connection unit. The appliance is ready for use.
  • Page 11 Operation Remote control Lighting On/off button of the light. Turning on / Increasing motor speed 1st press, Low speed. 2nd press, Medium speed. 3rd press High speed. Turning off / Decreasing motor speed Press it then the motor begins shift to a lower speed and the LCD screen display the speed level.

  • Page 12: Care And Maintenance

    Care and maintenance Active charcoal filter replacement Warning Always switch off the electricity supply before carrying out maintenance work on the hood. In the event of a FUSE fault, contact customer services. Close Op en NOTE: Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous.
  • Page 13 Care and maintenance Aluminium and active charcoal filters replacement 1 MONTH MAX.65˚C Aluminium filters: To avoid fires, clean thoroughly once a month or whenever the display pilot light lights up (if fitted). To do so, remove the filters and soak in hot water and detergent for an hour.

  • Page 14: Troubleshooting

    Troubleshooting Troubleshooting Fault Cause Solution Excessive The appliance is not Take down the appliance and vibration. installed properly on the check it is properly fixed. brackets. The fan blade is Switch off the appliance. Repair damaged. to be carried out by qualified service personnel only.

  • Page 15: Recycling And Disposal

    Recycling and disposal Technical and legal information Recycling and disposal Environmental protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. The symbol on the product or its packaging indicates that this product cannot be treated as normal household waste.

  • Page 16: Technical And Legal Information

    Technical and legal information Wiring All installation work must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate. WARNING: THIS APPLIANCE MUST BE EARTHED. Mains Supply could be connected to the Mains Voltage by Direct Connection DOUBLE POLE SWITCHED FUSED SPUR OUTLET...
  • Page 17 Technical and legal information Technical and legal information The Manufacturer declines all liability for damage caused to persons and objects due to incorrect or improper installation of the appliance. Electrical Requirements Any permanent electrical installation must comply with the latest I.E.E. regulations and local electricity company regulations.
  • Page 18 Installation VENT PACK Ø150mm VENT PACK Ø150mm DUCTED OPTION RECIRCULATION OPTION You can choose two type of installation: - Ducted option - Recirculation option Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards...
  • Page 19 Ceiling Ceiling decorative board (Removable) Max. 150cm Ceiling decorative board opening Gas hobs Min. 75cm size: 1055 x 655mm Electric hobs Min. 65cm Caution! Before drilling it is extremely important to check the ceiling for hidden pipes, electrical cables etc. using an appropriate detection device. Ensure the ceiling and fixings used can support the weight of this appliance! If in doubt, consult a structural engineer for advice.
  • Page 20 Optional I 8mm holes [07] x 14 WARNING: Use only the same size of fittings and mounting screws as recommended in this instruction manual. Failure to follow these instructions may result in electrical hazards. Mark and drill fourteen holes 8 mm in diameter according to the dimensions shown above. Secure the top mounting plate to the ceiling using the rawl bolts, nuts and washers supplied.
  • Page 21 Optional II WARNING: Use only the same size of fittings and mounting screws as recommended in this instruction manual. Failure to follow these instructions may result in electrical hazards. Caution! This appliance is heavy. Before mounting the cooker hood ensure that the ceiling is capable of supporting the weight of the appliance.
  • Page 22 [03] x 2 Fix the two hanging board on the wooden ceiling. Remove these .aluminium filters.
  • Page 23 Optional Change the direction of the outlet if need. Unscrew the screws of removable decorative plate, then take down it. Unscrewing the 8 pcs screws from hood body, then take down the motor housing, can choose the direction of the outlet.
  • Page 24 [05] x 1 Ø150mm [06] x 1 Install the vent pack using cable ties. Ensure the external vent outlet has some form of backdraft shutter i.e. gravity flaps to prevent air blowing back into the room. [08] [09] [10] Total length of the angle iron C=A-B [04] Install one or two angle iron according to actual demand, then use 16pcs or 32pcs M4*10 screws and M4 nut with gasket to connect the angle iron into the adjustable angle iron bracket.
  • Page 25 [10] x 8 Connect the 4 adjustable angle code unit with the housing. [08] x 8 [09] x 8 [10] x 8 Lift up the housing, use 8 pcs screws and M4 nuts with gasket to fix the housing onto the 2 hanging board, meanwhile.
  • Page 26 Adjustable screw Safety screw Screwing the safety screw tightly after the level position and height is suitable. For recirculating option refer to Care and maintenance section. Note: For electrical connection see Technical and legal information section.

  • Page 27: Appendix

    Appendix... Information for EU66 (A)Information of the cooker Hood Symbo l Valu e Unit UBADCH110BK1 UBADCH110W1 Model identification UBADCH110SS1 Annual Energy Consumption kWh/a 62.7 hood Time increase factor Fluid Dynamic Efficiency 34.0 hood Energy Efficiency Index 50.1 hood Measured air flow rate at best 523.3...
