Valcom PagePro VIP-204A Quick Start Manual page 3

BROWN
WHITE/BROWN
GREEN
WHITE/GREEN
ORANGE
WHITE/ORANGE
BLUE
WHITE/BLUE
Status Indicator Lights
The VIP-204A has 3 status indication lights on
the front panel:
STATUS: Flashes during normal operation and
solid during system startup.
Green LED: (Link) Indicates Ethernet connection
when illuminated.
Yellow LED: (Activity) Indicator flashes to
indicate network activity.
Operation
Provides paging from SIP connection or from
another Valcom VIP unit. Interface to customer
telephone system can be via SIP registration,
FXO port (with VIP-811), or FXS port (with
VIP-821). Unit can also be accessed from a
VIP-801 connected to a page port or a Valcom
page control.

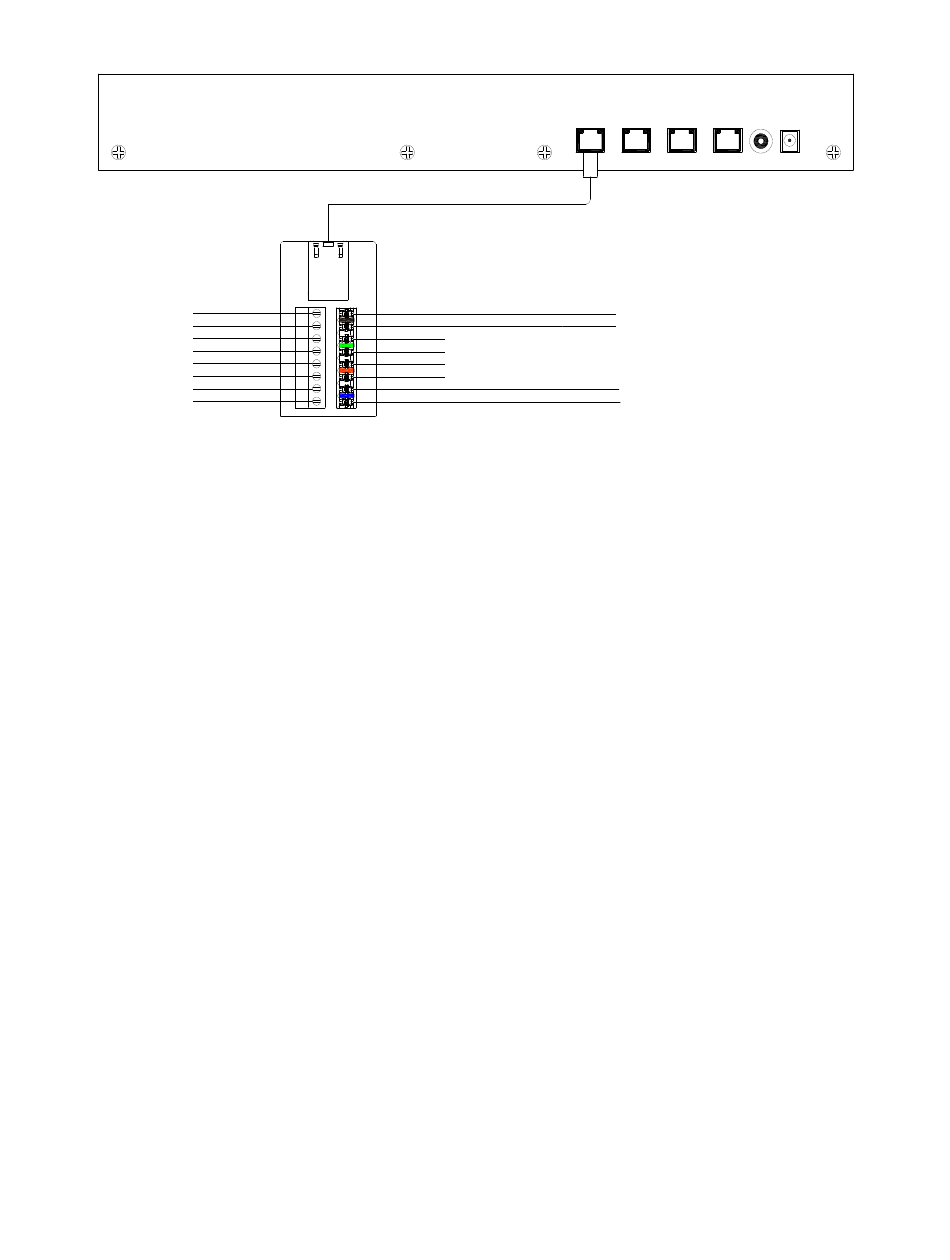

VIP-204A (REAR VIEW)
RJ-45 PATCH CABLE
RJ45
BROWN
BROWN
GREEN
ORANGE
BLUE
BLUE
VM-186
VIP-204A Audio/Relay Connections (one per channel)
PORT 1 PORT 2
AUDIO OUTPUT (TO SPEAKERS)
N/O RELAY OUTPUT
Setup
Information specific to your application will need
to be programmed into the VIP-204A. The PC
used for programming should be connected to
the same subnet as the VIP-204A.
Setup will be done using the IP Solutions Setup
Tool. Download the latest version of the free IP
Solutions Setup Tool from the web site at
www.valcom.com/vipsetuptool.
TECHNICAL ASSISTANCE
Assistance in troubleshooting is available from
the factory. Call (540) 563-2000 and press 1 for
Technical Support or via email at
support@valcom.com.
Valcom equipment is not field repairable.
Valcom, Inc. maintains service facilities in
Roanoke, VA. Should repairs be necessary,
attach a tag to the unit clearly stating your
company name, address, phone number, contact
person and the nature of the problem. Send the
unit to:
Repair & Return Dept.
5614 Hollins Road
Roanoke, Va. 24019-5056
3
PORT 3 PORT4
AUX +24VDC
IN
