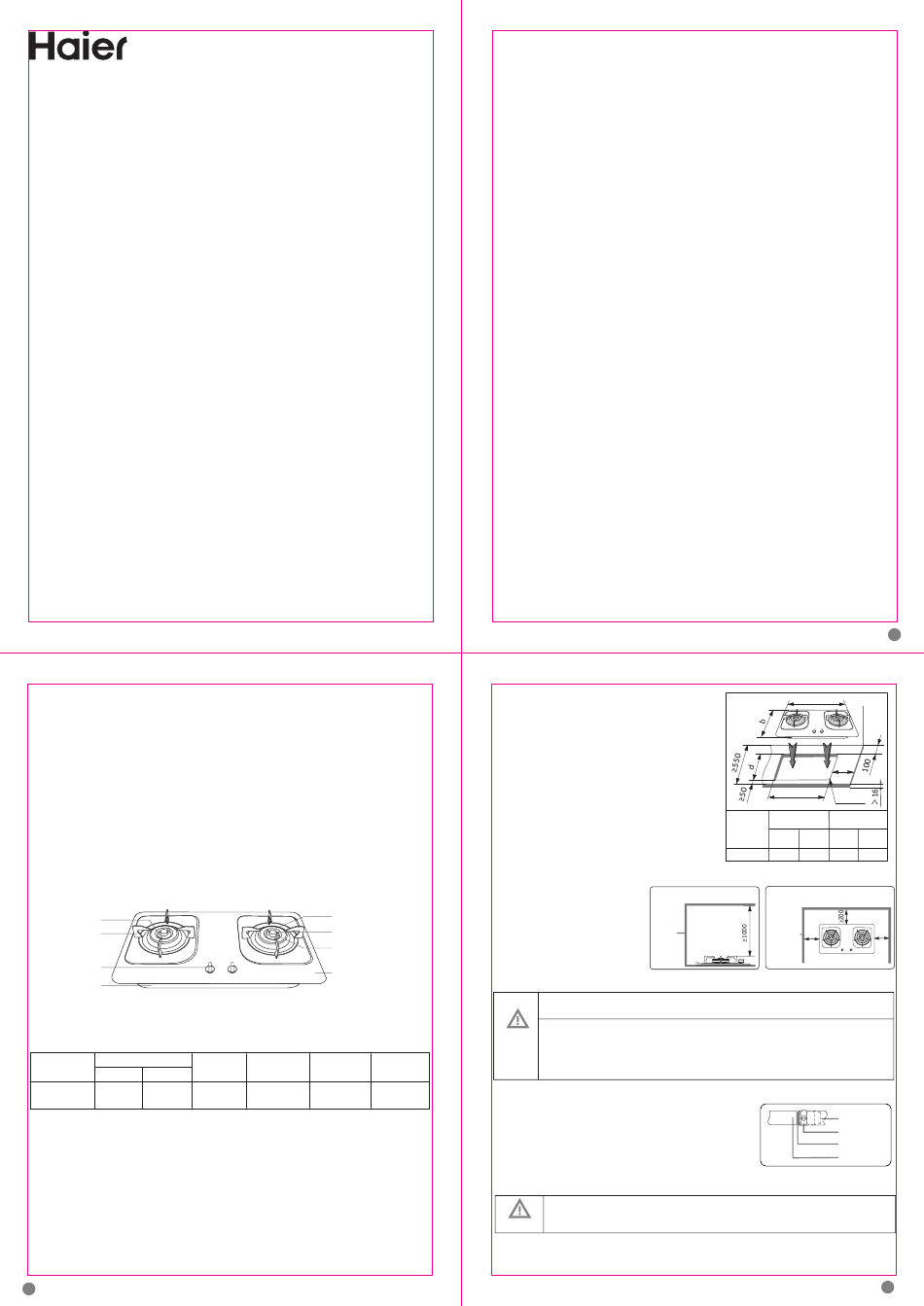

Haier JZT/Y-QB230 Installation And User Instructions

HOUSEHOLD GAS HOB
INSTALLATION AND USER INSTRUCTIONS
JZT/Y-QB230
Note: Do not use the hob until you have read the instruction manual.
Even if you have used a gas hob before, it is important that you read these instructions thoroughly
before using the appliance, paying particular attention to the installation and safety instructions. If you
have any problems installing, operating or cooking with your hob, please check through these
instructions to ensure all of them have been adhered to.
WARNING! For your own safety, make sure that these instructions on installation, use and
maintenance are followed.
Please keep these instructions in a safe place for future reference.
Should the appliance be sold or transferred, please pass on these instructions to the new owner.
1. INTRODUCTION
◆Product features
● Accidental flameout protection design
In case of an accidental flameout due to air, overflow, accidental flameout protection function will
start to automatically cut off internal gas access of gas hob and avoid mass gas leakage to ensure
user safety.
● Glass panel hob applies tempered glass with explosion-proof mesh, which is safe, durable and
easy to clean.
◆ Part name
Ignition porcelain needle
pot rack
knob
hob shell
Note: the picture is the appearance sketch of the product and the specific appearance and color are
subject to the purchased product.
2. TECHNICAL DATA
Rated heat load (kW)
Applicable
Type
gas type
Left burner Right burner
JZT/Y-QB230
3.8 3.8
3. INSTALLATION INSTRUCTIONS
◆ Installation method
● When the gas hob is embedded in the cooktop, please follow the steps 1-5 to install.
When the gas hob is put on the cooktop, please follow the steps 4-5 to install.
1. Please choose the cabinet with table thickness greater than 16mm, width not less than 550mm;
Note: The cabinet countertops should be made of fire, high temperature-resistant, thermocycling-
resistant material. The coating layer and plywood on the cabinet must be fire-resistant and glued
together to avoid deformation or surface detachment.
2. According to the hole-digging size and requirements in the instruction, dig holes in the
corresponding position of the table with fillet radius around the holes less than 50mm;
2
Cod:
Outer-ring fire cover
inner-ring fire cover
thermocouple
cooktop
Size(mm)
Rated pressure
Net Weight /
Length × Width
(Pa)
Gross Weight(kg)
× Height
LPG 2800 730×410×135
SAFETY INSTRUCTIONS
Make sure that this instruction booklet is read thoroughly and
understood before attempting to install or operate this hob.
The instructions are provided in the interest of your safety.
GAS SAFETY REGULATIONS AND USE OF YOUR HOB
1. Please carefully read the nameplate of the gas hob you purchased
and make sure the type of gas specified on the nameplate matches
the type of gas you are currently using.
2. It is recommended to check the connections of gas hob for air
tightness at least once a year and replace the gas-dedicated
connecting pipe.
3. In the use process of gas hob, note ventilation, open the window or
turn on the ventilation fan on a regular basis to ensure fresh air
convection and ventilation.
4. In case of a leakage, avoid all the acts and sources of fire that
cause gas explosion, immediately close the gas valve and open the
windows and doors for ventilation.
5. It is a legal requirement that all gas appliances are installed by
qualified personnel only in accordance with current legislation. It is
your responsibility to ensure compliance with the law.
6. Repairs or servicing of this product must only be carried out by an
authorised service agent using approved parts.
7. No attempt must be made to modify this appliance under any
circumstances.
8. Cooking appliances can become very hot in use – please keep
children and pets away from them.
9. Do not allow children to operate or play with any part of the
appliance.
10.Do not use unstable pans and ensure that the handle is positioned
away from the edge of the worktop.
11. In the interest of hygiene and safety, please ensure the hob is
kept clean.
12. This appliance is designed for domestic cooking only.
Commercial use will invalidate the warranty.
13. Do not cover the hob or place combustible materials on or near
the surface even when the hob is not in use.
14. Do not fill deep fat frying containers more than one third full of oil
and NEVER leave unattended.
15. Before cleaning the hob, switch off at the mains.
16. When cooking is finished, switch off all controls and allow to
cool.
17. These appliances are not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
18. If the supply cable is damaged, it must be replaced by the
authorised service agent or qualified person only.
19. Do not immerse the appliance or the power cable into water or
any other liquid.
3. gas hob fitted with a battery is installed in the hole
of the table;
4. Refer to the connection method and connect the
gas hob and gas source with the gas special
connecting pipe. If the rubber pipe is used, please
use the pipe clamp to fix it firmly and avoid turning
the gas pipe joint;
5. After installation, carry out gas leakage detection,
apply soap water on the connection parts, open the
indoor gas valve and carefully observe whether there
is a bubble. If bubbles are generated, immediately
close the indoor gas main valve, and adjust the
intake connection according to the connection
method. If there is no bubble, please refer to the
instruction manual for ignition commissioning; after
commissioning, make sure that the indoor gas main
valve is closed.
● Gas hobs should strictly follow the
dimensions specified the diagram and
keep the distance from combustible
materials. If it's surrounded by
fire-resistant materials, it's not subject
to the requirements; if a range hood is
installed above, it should be
650-700mm away from the hob
(specific installation requirements of
range hood refer to its instruction
manual).
Do not install the gas hob above poorly ventilated ovens, refrigerators, freezers,
dishwashers, sterilizer, or other types of kitchen appliances.
At least 100mm vacant space shall be reserved below the bottom of hob after the gas hob
is embedded into cabinet and all items are prohibited to be stored in the vacant space. To
Note
ensure good ventilation and cooling of the gas hob, open 2 openings of about 50mm in
diameter on the back or side of the cabinet to the atmosphere to avoid the explosion
caused by the accumulation of unburned gas mixture. If the cabinet is not perforated, take
ventilation measures.
10.5/12.0
◆Connection method
● Gas-dedicated rubber hose
If you select the gas-dedicated rubber hose (length should not
exceed 1.5m) with diameter of 9.5mm, please connect the
rubber hose to the intake joint of red marking of gas hob and fix
it firmly with pipe clamps. The rubber hose used should meet
the relevant safety standards within service period.
After the installation, make sure the gas connecting pipe is not twisted, squeezed, bent
and is not in touch with any movable part of the cabinet, such as drawers, rails, etc .;
Note avoid high temperature area.
a
单位:mm
c
Overall dimensions Cooktop hole size
Type
a(mm) b(mm) c(mm) d(mm)
730 410
JZT/Y-QB230
Unit: mm Unit: mm
combustibles
combustibles
≥ 200
1
150
<R50
620 345
≥ 200
Rubber hose
Pipe clamp
Red line
Intake joint
3
