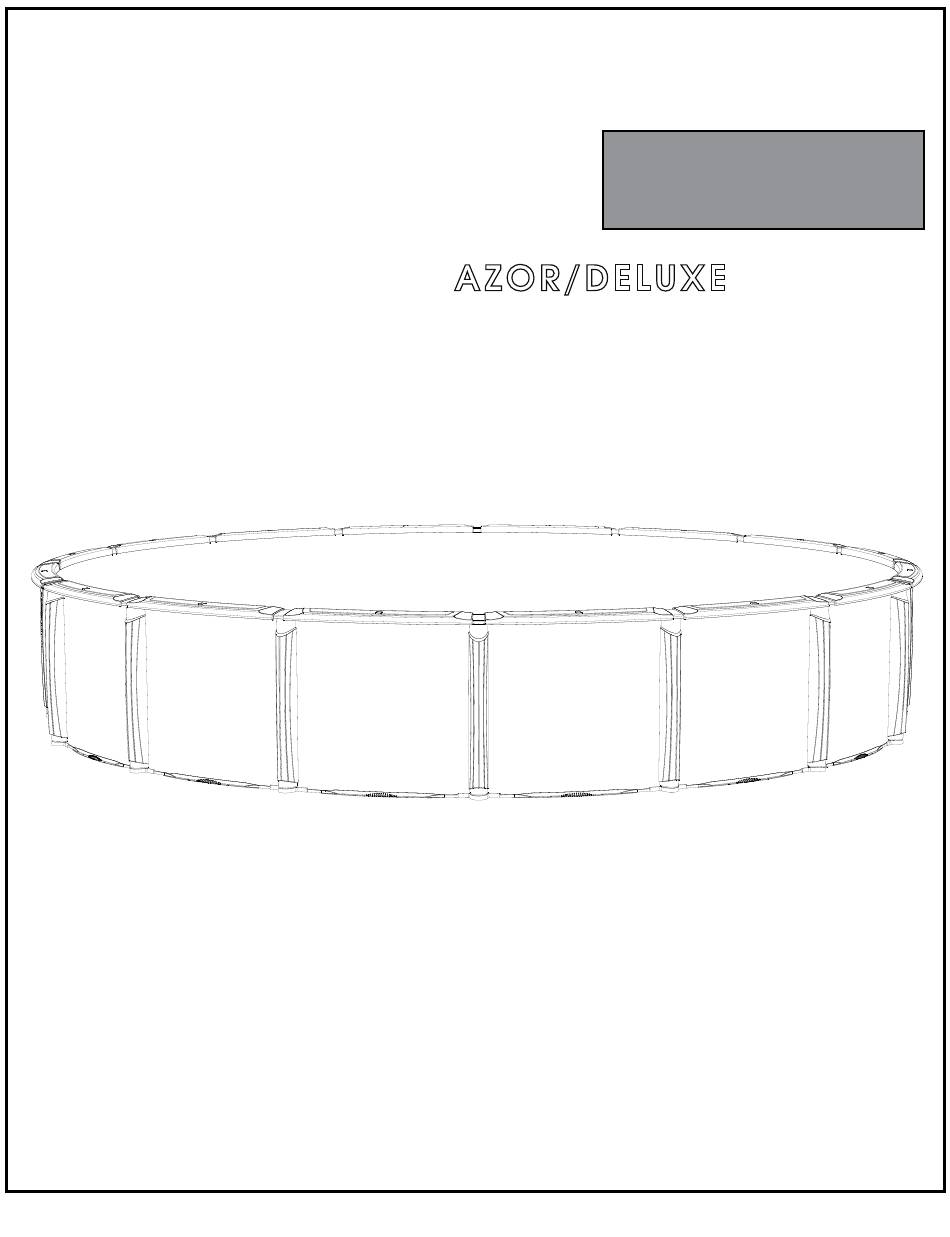

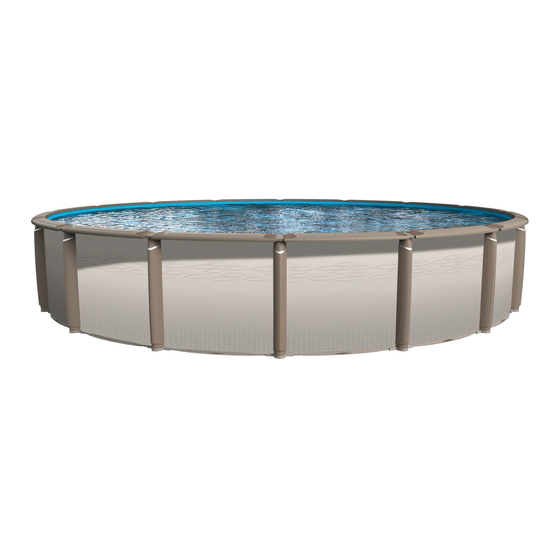

- Page 1 V35037 A ZO R / D E LU X E AZ OR POOL MODEL INSTALLATION MANUAL - ROUND POOLS G:\RnD\01-Projets\Révélation\Revelation 24' iso 2D.3dm 11.13...
- Page 3 ABOVE GROUND POOL SAFETY PLEASE READ BEFORE INSTALLATION FAILURE TO HEED THESE WARNINGS CAN RESULT IN PERMANENT INJURY, WARNING PARALYSIS FROM A BROKEN NECK, ELECTROCUTION OR DROWNING. THIS POOL IS NOT DESIGNED FOR DIVING OR JUMPING! DANGEROUS INJURY CAN RESULT, SHALLOW WATER! Your pool contains a large quantity of water, and is deep enough to present inherent dangers to life and health unless the follow- ing safety rules are strictly observed.
- Page 5 1. The Terrain Pay special attention to choosing the right location for your pool: (Image 1) (Images 2a & 2b) (Image 2a) (Image 2c) Important Note: Ground preparation is one of the most important steps in the installation process. A proper foundation will ensure the rest of the pool assembly goes smoothly and that no problems will occur when the pool is filled with water.
-
Page 6: Things To Avoid
2. Things to Avoid Do not locate your pool near or on any of the following (Images 3a to 3c) 3. Plan Ahead Important Note: When locating the centre of the pool, be sure to take into consideration any structures (deck, patio, house) or relevant items (change rooms, gazebo, etc.) that the pool may need to line up with and ensure that the pool is in the most visual pleasing location for your property. - Page 7 4. Tools Needed List of required materials No Diving or Jumping. Observe all Safety Rules...
- Page 8 Azor RRR PAZO-54RRRRRRI10 Round No Diving or Jumping. Observe all Safety Rules...
- Page 9 Product: Description: Azor Round Product Code: PAZO-54RRRRRRI10 Revised Sept 2013 Quantity required for installation (by pool size) Index # Description Part # Length Top ledge CG761-001-R Upright CG861-002-54 54'' Top ledge cover (Left) CC761-006-G 55,312 Top ledge cover (Right) CC761-006-D...
- Page 10 1. Mark out the Area (Image 1) (Image 2) 2. Remove the sod (Image 3) Important Note: Your pool must be perfectly level. Take the time you need to be sure your foundation is perfecty level. No Diving or Jumping. Observe all Safety Rules...
- Page 11 3. Make the are flat and level (Image 4) (Image 5) (Image 6) Important Note: Use the optical level to ensure that the ground is perfectly flat and level. No Diving or Jumping. Observe all Safety Rules...
- Page 12 (Image 7) tamping tool. (Image 8) (Image 8) (Image 9) Important Note: The outer 24” (60cm) of the circle must be perfectly flat. The bottom edge of the pool must rest flat on the ground and have no gaps under it. Take the time you need to be sure this area is perfectly flat and level.
- Page 13 DO NOT SKIP THIS STEP! (Image 10) No Diving or Jumping. Observe all Safety Rules...
- Page 14 4. Patio Stones (Optional) Please contact your dealer for more information about using patio stones. sunk must be flush with the ground Important Note: Make sure the patio stones are perfectly level and flush with the ground. All patio blocks must be flush with the ground, solid and level with each other in all directions.
- Page 15 No Diving or Jumping. Observe all Safety Rules 1-11...
- Page 17 3. Make the are flat and level (Image 4) (Image 5) (Image 6) Important Note: Use the optical level to ensure that the ground is perfectly flat and level. No Diving or Jumping. Observe all Safety Rules 1-13...
- Page 18 (Image 7) tamping tool. (Image 8) (Image 8) (Image 9) Important Note: The outer 24” (60cm) of the circle must be perfectly flat. The bottom edge of the pool must rest flat on the ground and have no gaps under it. Take the time you need to be sure this area is perfectly flat and level.
- Page 19 DO NOT SKIP THIS STEP! (Image 10) No Diving or Jumping. Observe all Safety Rules 1-15...
- Page 20 4. Patio Stones (Optional) Please contact your dealer for more information about using patio stones. sunk must be flush with the ground Important Note: Make sure the patio stones are perfectly level and flush with the ground. All patio blocks must be flush with the ground, solid and level with each other in all directions.
- Page 21 No Diving or Jumping. Observe all Safety Rules 1-17...
- Page 23 GENERAL INSTRUCTIONS - ROUND POOLS ASSEMBLING THE POOL BASE A. LAY OUT THE BOTTOM PLATES AND BOTTOM RAILS 1. Lay out bottom plates Place the bottom plates equally spaced around the perimeter of your foundation. If you are using the optional patio stones, depending on your model place one bottom plate on each stone.
- Page 25 GENERAL INSTRUCTIONS - ROUND POOLS ASSEMBLING THE POOL WALL A. SETTING UP THE POOL WALL 1. Preparing for the wall installation Bring the following items into the middle of the pool foundation before you start uncoiling the pool wall: plywood, some extra sand or fine dirt to make the cove and a ladder to climb out after the wall is as- sembled.
- Page 26 GENERAL INSTRUCTIONS - ROUND POOLS ASSEMBLING THE POOL WALL A. SETTING UP THE POOL WALL We also suggest installing vinyl-covered hooks and rope to hold the wall steady. Ideally the help of sev- eral people should be solicited to hold the wall in place.
- Page 27 GENERAL INSTRUCTIONS - ROUND POOLS ASSEMBLING THE POOL WALL A. CONT. SETTING UP THE POOL WALL 3. Join the ends of the pool wall Line up the holes in the two ends of the pool wall. (Image 5) Now that you have installed the wall you can be faced with three scenarios.
- Page 28 GENERAL INSTRUCTIONS - ROUND POOLS ASSEMBLING THE POOL WALL A. CONT. SETTING UP THE POOL WALL To fasten the wall joint, overlap the two steel bars, one on the inside and the other on the outside. Tighten the mechanical screws on the inside and the nuts on the outside.
- Page 29 GENERAL INSTRUCTIONS - ROUND POOLS ASSEMBLING THE POOL WALL B. ASSEMBLING THE COVE 1. Make the cove If you are using sand, bank the sand against the wall to form a cove of 3” to 6” (7.5cm to 15cm) high and 8”...
- Page 30 GENERAL INSTRUCTIONS - ROUND POOLS ASSEMBLING THE POOL WALL B. CONT. ASSEMBLING THE COVE A vacuum cleaner can later be used to remove the air from between the liner and the wall. This technique enables you to remove folds in the liner. However the following precautions should be taken: Do not use an industrial vacuum cleaner which could be too powerful.
-
Page 31: Important Note
GENERAL INSTRUCTIONS - ROUND POOLS ASSEMBLING THE POOL WALL C. INSTALL THE POOL LINER 1. Set the liner in place Open the carton. Do not use anything sharp to open the carton. Unpack and unfold the liner and spread it out in the sun to warm it up. - Page 32 GENERAL INSTRUCTIONS - ROUND POOLS ASSEMBLING THE POOL WALL C. CONT. INSTALL THE POOL LINER 2. Fasten the liner in place (OVERLAP ONLY) Starting at the liner wall seam, hang the liner over the wall making sure that the seam is straight up and down, perpendicular to the floor.
- Page 33 GENERAL INSTRUCTIONS - ROUND POOLS ASSEMBLING THE POOL WALL C. CONT. INSTALL THE POOL LINER After all the wrinkles in the liner are removed, trim any extra length of plastic coping so there is no overlap. (Image 20) Roll up any excess liner hanging below the plastic coping and tape it in place near the top of the pool wall.
- Page 34 GENERAL INSTRUCTIONS - ROUND POOLS ASSEMBLING THE POOL WALL C. CONT. INSTALL THE POOL LINER 4. Fasten the liner in place (HUNG/J or V-BEAD LINER ONLY) With a V-Bead liner you will not use the plastic coping strips that are packed in the parts carton of your pool.
- Page 35 GENERAL INSTRUCTIONS - ROUND POOLS ASSEMBLING THE POOL WALL C. CONT. INSTALL THE POOL LINER 3. Fasten the liner in place (BEADLOCK/SNAPBEAD LINER ONLY) With a snap bead liner you will not use the plastic coping strips that are packed in the parts carton of many pools.
- Page 37 GENERAL INSTRUCTIONS - ROUND POOLS ASSEMBLING THE POOL FRAME A. INSTALLATION OF THE UPRIGHTS 1. Install the uprights The wall joint is hidden behind the upright on most pools. This assures that the skimmer and skimmer return holes are not obstructed. Insert an upright into the bottom plate.
- Page 38 GENERAL INSTRUCTIONS - ROUND POOLS ASSEMBLING THE POOL FRAME B. INSTALLATION OF THE STABILIZERS AND TOP PLATES 1. Install stabilizers and top plates Install the stabilizer on the wall while ensuring to leave a gap between each end. You must insert the stabilizer inside the vertical tabs that are at the top of the upright.
- Page 39 GENERAL INSTRUCTIONS - ROUND POOLS ASSEMBLING THE POOL FRAME C. INSTALLATION OF TOP LEDGE AND LEDGE COVERS 1. Install top ledge and ledge covers Place top ledges on the wall. Align the holes on the top ledges with those on the top plates. Make sure the space left between each top ledge is uniform all around and that the space in question can be covered by a ledge cover.
- Page 40 GENERAL INSTRUCTIONS - ROUND POOLS ASSEMBLING THE POOL FRAME C. CONT. INSTALLATION OF TOP LEDGE AND LEDGE COVERS You must now install the top ledge covers (one on the left side and one on the right side of each top ledge).
-
Page 41: Important Safety Information
GENERAL INSTRUCTIONS - ROUND POOLS ASSEMBLING THE POOL FRAME D. FILL YOUR POOL WITH WATER 1. Finish filling the pool Turn off the vacuum and carefully remove it from the pool. Fill the pool with water to 2” (5cm) below the lowest opening. - Page 43 POOL MAINTENANCE MAINTAINING YOUR POOL POOL MAINTENANCE Keep your pool wall and frame clean. Always wash away any deposits of pool chemicals which land on the frame of your pool. Wash periodically with a mild soap solution (no abrasives). At least once a year use a clear non-yellowing household wax on all metal components.
-
Page 44: Pool Maintenance
POOL MAINTENANCE WINTERIZING YOUR POOL WINTERIZING YOUR POOL Along with the cool nights of autumn comes the end of the swimming season. During the winter your pool is subject to more stress than in the summer, and any breakage that is caused by incorrect winter procedures is not subject to any warranty with this company. -
Page 45: Winterizing Instructions
POOL MAINTENANCE WINTERIZING YOUR POOL WINTERIZING INSTRUCTIONS For areas where water freezes make sure to follow these instructions before the water is frozen, otherwise do not touch the frozen water, this may damage the pool. Towards the end of the summer season or around mid-August, check for leaks by verifying if the pool’s water level is stable. - Page 46 POOL MAINTENANCE WINTERIZING YOUR POOL WINTERIZING INSTRUCTIONS CONTINUED If using an autumn cover, make sure to place a ball underneath so that rainwater falls into the pool. An accumulation of too much water on the cover could place pressure on the pool, causing damage and invalidating the guarantee. It is strongly recommended that you remove the autumn cover once the leaves have fallen off the trees, before the autumn cold sets in.
- Page 47 POOL MAINTENANCE SPRINGTIME CLEANING OF YOUR POOL PREPARING YOUR POOL IN THE SPRING At the end of winter, allow the ice in the pool to thaw completely. When the temperature reaches approximately 10 °C (50 °F), you have to restart your filtration system, since algae and bacterial form more quickly as it gets warmer.
- Page 48 POOL MAINTENANCE SPRINGTIME CLEANING OF YOUR POOL PREPARING YOUR POOL IN THE SPRING CONTINUED When the pH and alkaline levels are ideal, apply a shock-treatment or chlorinate your water. Let it filter for 24 hours and again verify both the pH and free chlorine l evels. NOTE: Add chemical products to your pool after sunset, as sunlight rapidly destroys chlorine.
