Summary of Contents for Piscine Solide MAGNUS RTR

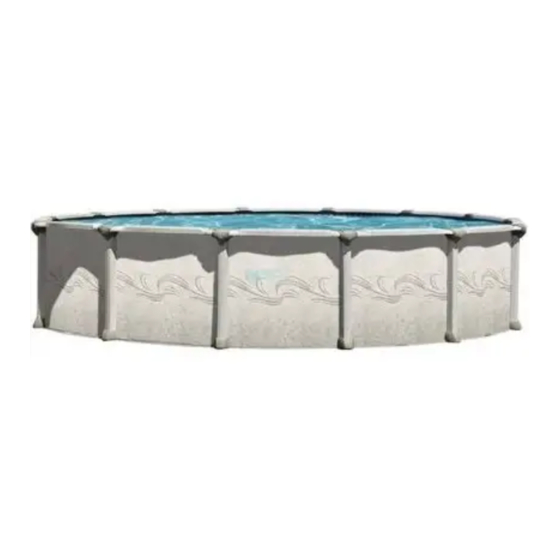

- Page 1 V35041 M AGNUS R T R POOL MODEL INSTALLATION MANUAL - ROUND POOLS 11.13...
- Page 3 Above Ground Pool SAfety PleASe reAd before inStAllAtion Failure to heed these warnings can result in permanent injury, warning paralysis From a broken neck, electrocution or drowning. this pool is not designed For diving or jumping! dangerous injury can result, shallow water! your pool contains a large quantity of water, and is deep enough to present inherent dangers to life and health unless the follow- ing safety rules are strictly observed.
- Page 5 GENERAL INSTRUCTIONS - ROUND POOLS Section GROUND PREPARATION Read all instructions completely before you begin. A. DETERMINE THE LOCATION OF YOUR POOL 1. The Terrain Pay special attention to choosing the right location for your pool: • Choose a large area, as flat and level as possible and well drained.
- Page 6 GENERAL INSTRUCTIONS - ROUND POOLS Section GROUND PREPARATION A. CONT. DETERMINE THE LOCATION OF YOUR POOL 2. Things to Avoid Do not locate your pool near or on any of the following (Images 5-7) • Overhanging tree branches. • Overhead wires and clotheslines. •...
- Page 7 GENERAL INSTRUCTIONS - ROUND POOLS Section GROUND PREPARATION A. CONT. DETERMINE THE LOCATION OF YOUR POOL 4. Tools Needed List of required materials • Straight wood plank • Material that provides a permanent base (ex. Crushed stone) • Fine sand (void of debris) •...
- Page 8 GENERAL INSTRUCTIONS - ROUND POOLS Section GROUND PREPARATION PARTS LISTING - EXPLODED VIEW Magnus RTR PMAG-54RSRSRSB10 Round No Diving or Jumping. Observe all Safety Rules...
- Page 9 GENERAL INSTRUCTIONS - ROUND POOLS Section GROUND PREPARATION PARTS LISTING - CONTENT Product Description : Magnus Round Revised Sept 2013 Product Code : PMAG-54RSRSRSB10 Quantity required for installation (by pool size) Index# Description Parts # Length Top ledge AR744-001-R Upright ART811-R12954M 53,750'' Top plate...
- Page 10 GENERAL INSTRUCTIONS - ROUND POOLS Section GROUND PREPARATION B. PREPARE THE FOUNDATION OF YOUR POOL 1. Mark out the Area Drive a peg into the ground at the centre of the area where you want your pool. (Image 1) Use a length of string tied between the peg and a can of spray paint, and mark a circle on the ground (a tape measure can also be used).
- Page 11 GENERAL INSTRUCTIONS - ROUND POOLS Section GROUND PREPARATION B. CONT. PREPARE THE FOUNDATION OF YOUR POOL 3. Make the are flat and level Replace the centre peg with a flat-topped stake, at least 1” (25 mm) square and 6” (15 cm) long. Drive it down flush with the ground surface.
- Page 12 GENERAL INSTRUCTIONS - ROUND POOLS Section GROUND PREPARATION B. CONT. PREPARE THE FOUNDATION OF YOUR POOL Be prepared to hire earth moving equipment if you need to level a large area. Remember, your pool must be level across the diameter of the pool. (Image 7) Small dips and hollows may be filled in, but the soil must be hard-packed and well compacted with a...
- Page 13 GENERAL INSTRUCTIONS - ROUND POOLS Section GROUND PREPARATION B. CONT. PREPARE THE FOUNDATION OF YOUR POOL Go over the entire perimeter of the pool to ensure that at every 3“ the surface is completely level. Lay out the bottom rails and bottom plates around the circle.
- Page 14 GENERAL INSTRUCTIONS - ROUND POOLS Section GROUND PREPARATION B. CONT. PREPARE THE FOUNDATION OF YOUR POOL 4. Patio Stones (Optional) Please contact your dealer for more information about using patio stones. Concrete patio stones may be placed at the base of each upright of your pool.
- Page 15 GENERAL INSTRUCTIONS - ROUND POOLS Section GROUND PREPARATION ROUND FOOTPRINT - For - PZEN-52/54 SSPSPSB10/11/19 No Diving or Jumping. Observe all Safety Rules 1-11...
- Page 16 GENERAL INSTRUCTIONS - ROUND POOLS Section GROUND PREPARATION ROUND FOOTPRINT - For - PZEN-52/54RSPSPSB10 1-12 No Diving or Jumping. Observe all Safety Rules...
- Page 17 GENERAL INSTRUCTIONS - ROUND POOLS Section GROUND PREPARATION ROUND FOOTPRINT - For - PZEN-52RSRARSB11 No Diving or Jumping. Observe all Safety Rules 1-13...
- Page 19 GENERAL INSTRUCTIONS - ROUND POOLS Section ASSEMBLING THE POOL BASE A. LAY OUT THE BOTTOM PLATES AND BOTTOM RAILS 1. Lay out bottom plates Place the bottom plates equally spaced around the perimeter of your foundation. If you are using the optional patio stones, depending on your model place one bottom plate on each stone.
- Page 21 GENERAL INSTRUCTIONS - ROUND POOLS Section ASSEMBLING THE POOL WALL A. SETTING UP THE POOL WALL Do not attempt to install the pool wall in the wind, wait for a calm day. It takes at least 3 people to install the pool wall. 1.
- Page 22 GENERAL INSTRUCTIONS - ROUND POOLS Section ASSEMBLING THE POOL WALL A. SETTING UP THE POOL WALL We also suggest installing vinyl-covered hooks and rope to hold the wall steady. Ideally the help of sev- eral people should be solicited to hold the wall in place.
- Page 23 GENERAL INSTRUCTIONS - ROUND POOLS Section Section ASSEMBLING THE POOL WALL A. CONT. SETTING UP THE POOL WALL 3. Join the ends of the pool wall Line up the holes in the two ends of the pool wall. (Image 5) Now that you have installed the wall you can be faced with three scenarios.
- Page 24 GENERAL INSTRUCTIONS - ROUND POOLS Section ASSEMBLING THE POOL WALL A. CONT. SETTING UP THE POOL WALL To fasten the wall joint, overlap the two steel bars, one on the inside and the other on the outside. Tighten the mechanical screws on the inside and the nuts on the outside.
- Page 25 GENERAL INSTRUCTIONS - ROUND POOLS Section ASSEMBLING THE POOL WALL B. ASSEMBLING THE COVE 1. Make the cove If you are using sand, bank the sand against the wall to form a cove of 3” to 6” (7.5cm to 15cm) high and 8”...
- Page 26 GENERAL INSTRUCTIONS - ROUND POOLS Section ASSEMBLING THE POOL WALL B. CONT. ASSEMBLING THE COVE A vacuum cleaner can later be used to remove the air from between the liner and the wall. This technique enables you to remove folds in the liner. However the following precautions should be taken: Do not use an industrial vacuum cleaner which could be too powerful.
- Page 27 GENERAL INSTRUCTIONS - ROUND POOLS Section ASSEMBLING THE POOL WALL C. INSTALL THE POOL LINER 1. Set the liner in place Open the carton. Do not use anything sharp to open the carton. Unpack and unfold the liner and spread it out in the sun to warm it up.
- Page 28 GENERAL INSTRUCTIONS - ROUND POOLS Section ASSEMBLING THE POOL WALL C. CONT. INSTALL THE POOL LINER Please ensure to follow instructions that match the type of liner you may have. 2. Fasten the liner in place (OVERLAP ONLY) Starting at the liner wall seam, hang the liner over the wall making sure that the seam is straight up and down, perpendicular to the floor.
- Page 29 GENERAL INSTRUCTIONS - ROUND POOLS Section ASSEMBLING THE POOL WALL C. CONT. INSTALL THE POOL LINER After all the wrinkles in the liner are removed, trim any extra length of plastic coping so there is no overlap. (Image 20) Roll up any excess liner hanging below the plastic coping and tape it in place near the top of the pool wall.
- Page 30 GENERAL INSTRUCTIONS - ROUND POOLS Section ASSEMBLING THE POOL WALL C. CONT. INSTALL THE POOL LINER 4. Fasten the liner in place (HUNG/J or V-BEAD LINER ONLY) With a V-Bead liner you will not use the plastic coping strips that are packed in the parts carton of your pool.
- Page 31 GENERAL INSTRUCTIONS - ROUND POOLS Section ASSEMBLING THE POOL WALL C. CONT. INSTALL THE POOL LINER 3. Fasten the liner in place (BEADLOCK/SNAPBEAD LINER ONLY) With a snap bead liner you will not use the plastic coping strips that are packed in the parts carton of many pools.
- Page 33 GENERAL INSTRUCTIONS - ROUND POOLS Section ASSEMBLING THE POOL FRAME A. INSTALLATION OF THE UPRIGHTS 1. Install the uprights NOTE: Depending on your pool model you may have steel or resin bottom plates. The wall joint is hidden behind the upright on most pools.
- Page 34 GENERAL INSTRUCTIONS - ROUND POOLS ASSEMBLING THE POOL FRAME A. INSTALLATION OF THE UPRIGHTS 2. Install the footcovers (NOT INCLUDED in Magnus Pool) If your model contains the optional footcover, attach with self-tapping screw. ( Image 5) Install the nishing plug. ( Image 6) Proceed with the installation of the uprights.
- Page 35 GENERAL INSTRUCTIONS - ROUND POOLS Section ASSEMBLING THE POOL FRAME B. INSTALLATION OF THE STABILIZERS AND TOP PLATES 1. Install stabilizers and top plates NOTE: Depending on your pool model you may have steel or resin top plates. Install the stabilizer on the wall while ensuring to leave a gap between each end.
- Page 36 GENERAL INSTRUCTIONS - ROUND POOLS Section ASSEMBLING THE POOL FRAME C. INSTALLATION OF TOP LEDGE AND LEDGE COVERS 1. Install top ledge NOTE: Depending on your pool model you may have steel or resin top ledge. Place top ledges on the wall. Align the holes on the top ledges with those on the top plates.
- Page 37 GENERAL INSTRUCTIONS - ROUND POOLS Section ASSEMBLING THE POOL FRAME C. INSTALLATION OF TOP LEDGE AND LEDGE COVERS 2. Install ledge covers NOTE: Depending on your pool model you may have steel or resin top ledge. Place interior ledge cover onto the top plate and attach with a slef-tapping screw.
- Page 38 GENERAL INSTRUCTIONS - ROUND POOLS Section ASSEMBLING THE POOL FRAME C. INSTALLATION OF TOP LEDGE AND LEDGE COVERS Attach the exterior ledge cover to the upright using a self-tapping screw. ( Image 18) Install the finishing plug on the ledge cover. Image 19) No Diving or Jumping.
-
Page 39: Important Safety Information
GENERAL INSTRUCTIONS - ROUND POOLS Section ASSEMBLING THE POOL FRAME D. FILL YOUR POOL WITH WATER 1. Finish filling the pool Turn off the vacuum and carefully remove it from the pool. Fill the pool with water to 2” (5cm) below the lowest opening.
