- Page 1 FLAME C-1U KNOB RECORDER MANUAL Version 1.00...
- Page 2 MANUAL FLAME C-1U KNOBRECORDER V1.00 Contents 1. Short description ..............3 2. Hardware / Connections ............. 3 2.1 Connection to the modular system (Doepfer bus) 2.2 Module overview 2.3 Module backside 3. Handling ................3.1 Manual mode (Stop) 3.2 Record 3.3 Play back...
- Page 3 1. Short description The C-1U module is a one-channel module for recording and playing back movements of con- trollers. Those can be recorded with the potentiometer knob. The movements will be output as control voltage. The record time amounts to one minute maximal.

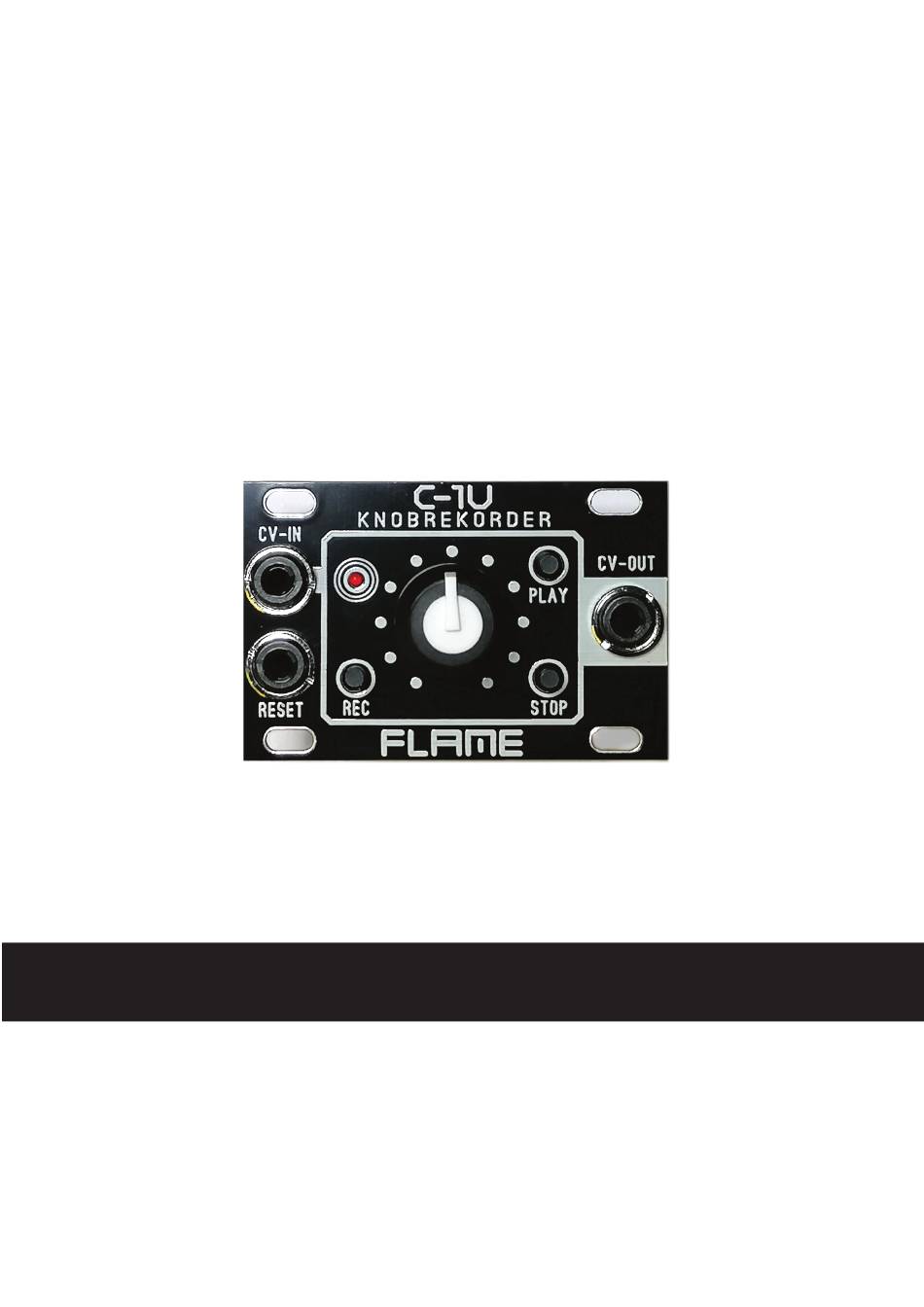

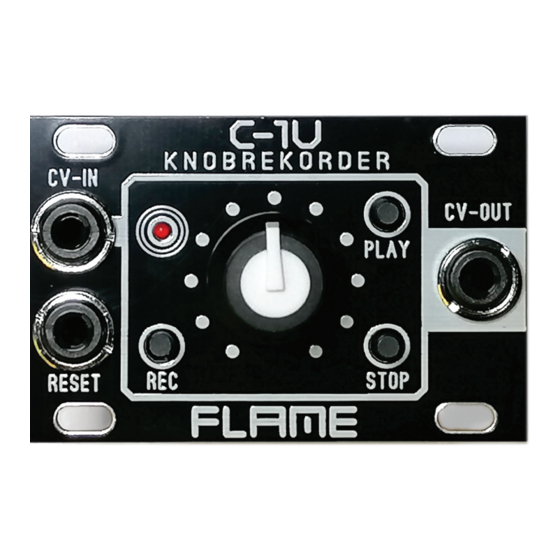

- Page 4 2.2 Modul overview Key RECORD LED Modi Key PLAY Key STOP Knob CV, Speed or Offset CV input (0..10V , +/-5V) CV output (0..10V, +/-5V) Input RESET (0/5V)
- Page 5 Insert the backup battery before connecting the unit to your modular rack The C-1U KNOBREKORDER uses a standard 3v lithium backup battery, type CR2032. Insert the provided battery or a comparable battery into the battery compartment as shown below. The battery is needed to keep recordings and settings stored when the Eurorack case is turned off.
- Page 6 3. Handling 3.1 Manual mode (Stop) After power on the module stands in STOP mode. The LED are off. With the pot you can adjust an output voltage between 0 and +10V. Track can alternatively output and record a voltage app- lied to the CV input.
- Page 7 3.4 Play functions (Speed and Offset) You can use two switchable functions in Play mode: - SPEED (the speed of the play back) and - OFFSET (shifting the CV output up or down). Toggle between both functions while you hold down the button STOP and then you press the button PLAY.
- Page 8 - electric damage caused by improper connecting (wrong power supply/ jacks/ MIDI connections/ voltage problems). If you have any complaints please contact your dealer or send an e-mail to: service@flame-instruments.de 4.3 Terms of production conformity: CE, RoHS, UL 4.4 Disposal The device is produced with RoHS-conformity (subject to the regulations of the European Union) and is free of hazardous substances (like mercury, plumb, cadmium and hexavalent chrome).
