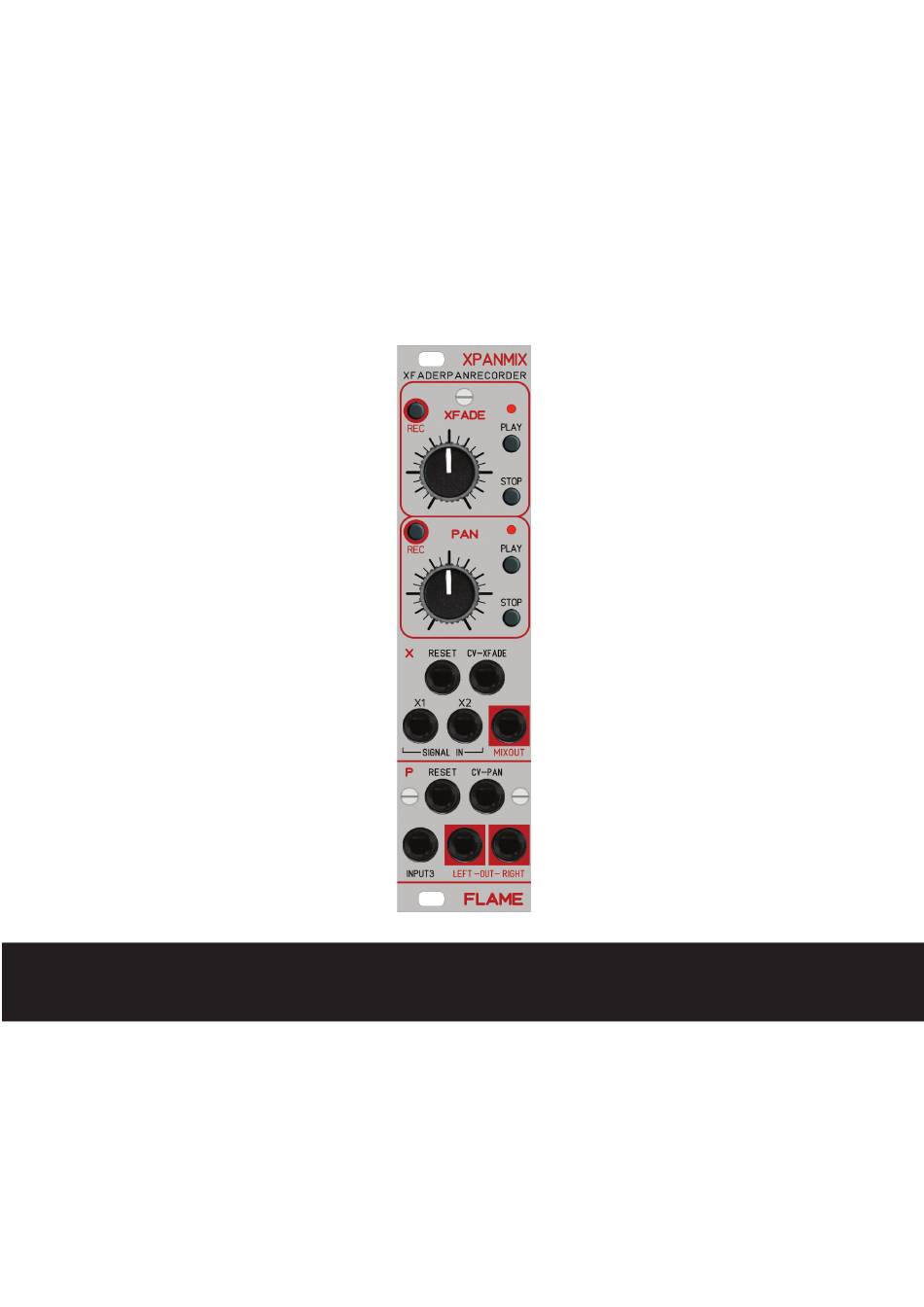

- Page 1 FLAME XPANMIX RECORDER MANUAL Version 1.00...
- Page 2 MANUAL FLAME XPANMIX Version 1.00 Contents 1. Short description ..............3 2. Hardware / Connections ............. 3 2.1 Connection to the modular system (Doepfer bus) 2.2 Module overview 2.3 Audio signal flow schemes 2.4 Module backside 3. Handling ................3.1 Manual mix mode (Stop) 3.2 Record...
- Page 3 1. Short description The "XPANMIX" module is a combination of an XFADER and a PANNING mixer recorder. In the upper part of the module is the XFADER with two inputs to one output. In the lower part of the module is the PANNING mixer with one input to two left/right outputs. The inputs are designed for audio or CV sources in the voltage range of +-5v (audio modular level).

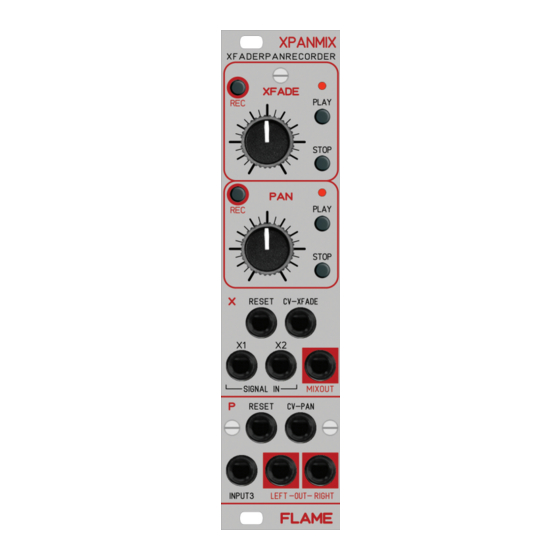

- Page 4 2.2 Modul overview Key RECORD Display Modi Key PLAY Key STOP Mix Ruler Inputs RESET (0/5V) Inputs Audio/CV (+/-5V) CV MIX inputs (+/-5V) Outputs Audio/CV (+/-5V) 2.3 Audio signal flow schemes...
- Page 5 2.4 Module backside There are two slide switches on the underside of the module for setting the input sensitivity of the XFader inputs. The AUDIO switch position means that the input can be used as an audio input with +6dB amplification for external line levels. In this case the input cannot be used as a CV input. In the other switch position, the module processes CV or audio levels of +/-5v (modular level).
- Page 6 3. Handling 3.1 Manual mix mode (Stop) After switching on, the module is in STOP mode. All LEDs are off. You can mix the signals manu- ally with the respective control XFADE or PAN. If XFADE is fully left, the signal from input X1 appears at the MIXOUT output;...
- Page 7 3.4 Play back function Speed With the ruler you can change the speed of the play back. Turn the pot over the middle position to activate the speed function. In ruler position Zero you have the half speed and in ruler posi- tion maximal you have the fourth speed.
- Page 8 - electric damage caused by improper connecting (wrong power supply/ jacks/ MIDI connections/ voltage problems). If you have any complaints please contact your dealer or send an e-mail to: service@flame-instruments.de 4.3 Terms of production conformity: CE, RoHS, UL 4.4 Disposal The device is produced with RoHS-conformity (subject to the regulations of the European Union) and is free of hazardous substances (like mercury, plumb, cadmium and hexavalent chrome).
