FLAME
µMM - MIDI-TRS-B MERGER/THRU
MANUAL
Version 1.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the mMM and is the answer not in the manual?

Questions and answers

Related Manuals for Flame mMM

Summary of Contents for Flame mMM

  • Page 1 FLAME µMM - MIDI-TRS-B MERGER/THRU MANUAL Version 1.00...

  • Page 2: Table Of Contents

    Manual FLAME µMM Version 1.00 Contents 1. Short description..............2. Hardware / connections............4 2.1 Connection to the modular system (Doepfer bus) 2.2 Module overview 3. Description ..............3.1 Merger 3.2 Thru-Box 3.3 TRS A / Converter 3.4 LED Functions 4.

  • Page 3: Short Description

    1. Short description The “µMM” combines a MIDI merger, two independent THRU distributors and a TRS-A/B con- verter in just a small 4HP module. All sockets on the module are in MIDI-TRS-B format. The basis of the MIDI merger with three inputs and three outputs is a small, powerful ARM pro- cessor with sufficient buffer memory.

  • Page 4: Hardware / Connections

    2. Hardware / connections 2.1 Connection to the euro rack modular system (Doepfer bus) The module is delivered with a connected ribbon cable for the Doepfer bus. The red lead marks -12 volt. Connecting the module please note the right polarity! If the module is poled accidentally wrong safety diodes avoid the immediate destruction of the module but further damages cannot be excepted.

  • Page 5: Module Overview

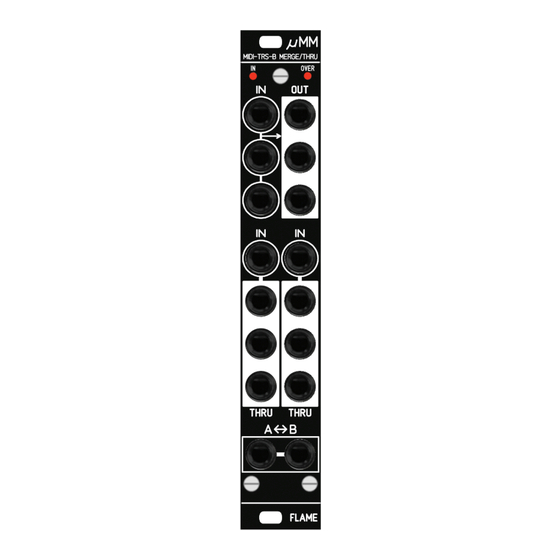

    2.2 Module overview LED Merger Data Input LED Merger Data Overload 3x MERGER Input 3x MERGER Output THRU-Box-1 Input THRU-Box-1 Outputs THRU-Box-2 Input THRU-Box-2 Outputs TRS-A zu TRS-B Converter (passiv)

  • Page 6: Description

    3. Description 3.1 MIDI Merger The µMM module has three MIDI inputs and three MIDI out ports, so that you can mix the data from several MIDI devices together and access it again at up to three outputs. All MIDI data, except “Active sensing”, can be forwarded.

  • Page 7: Trs A / Converter

    3.3 MIDI-TRS A / B Converter A simple stereo audio cable can be used to directly connect two MIDI-TRS sockets (TIP and RING are not swapped). The lowest functional group now provides a simple passive MIDI TRS A / B con- verter.
  • Page 8 - electric damage caused by improper connecting (wrong power supply/ jacks/ MIDI connections/ voltage problems). If you have any complaints please contact your dealer or send an e-mail to: service@flame-instruments.de 4.3 Terms of production conformity: CE, RoHS, UL 4.4 Disposal The device is produced with RoHS-conformity (subject to the regulations of the European Union) and is free of hazardous substances (like mercury, plumb, cadmium and hexavalent chrome).
