  • Page 1 FLAME AUTOMIX RECORDER MANUAL Version 1.00...

  • Page 2: Table Of Contents

    MANUAL FLAME AUTOMIX Version 1.00 Contents 1. Short description ..............3 2. Hardware / Connections ............. 3 2.1 Connection to the modular system (Doepfer bus) 2.2 Module overview 2.3 Module backside 3. Handling ................3.1 Manual mix mode (Stop) 3.2 Record 3.3 Play back...

  • Page 3: Short Description

    1. Short description The "AUTOMIX" module is a compact three-channel mixer for audio or CV sources in the volta- ge range of + -5v (audio modular level). The mix level of each track can be adjusted and recorded using the track's mix pot. The recor- ding time per track is over one minute.

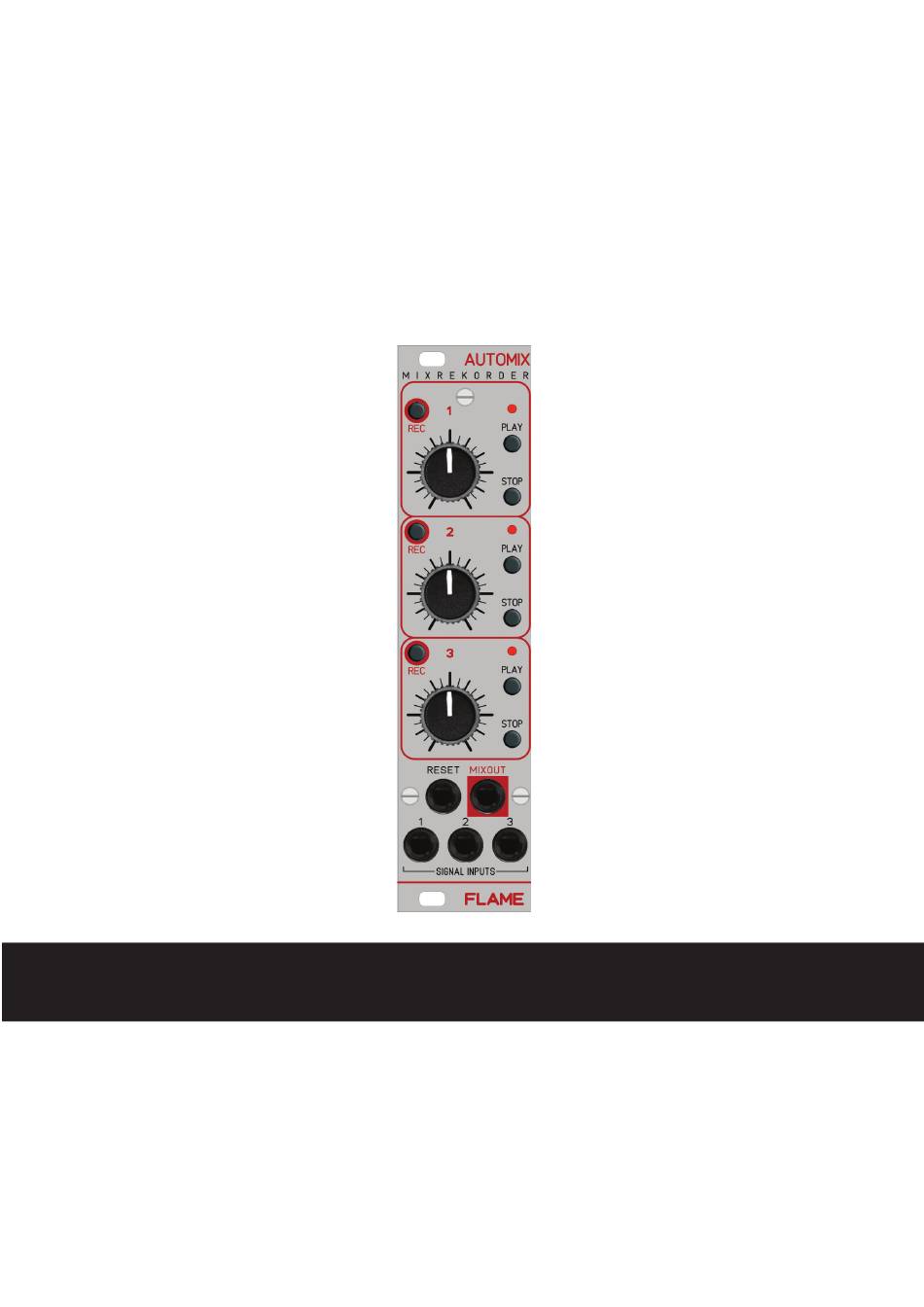

  • Page 4 2.2 Modul overview Key RECORD Mode LED Key PLAY Key STOP Pots for Mix or Speed Trigger input RESET (0/5v) Audio/CV inputs of tracks 1-3 (+/-5v) Mix output (+/-5v)

  • Page 5: Module Backside

    Insert the backup battery before connecting the unit to your modular rack The AUTOMIX module uses a standard 3v lithium backup battery, type CR2032. Insert the provided battery or a comparable battery into the battery compartment as shown below. The battery is needed to keep recordings and settings stored when the Eurorack case is turned off.

  • Page 6: Handling

    3. Handling 3.1 Manual mix mode (Stop) After switching on, the module is in STOP mode. All LEDs are off. With the respective slider of the track, you can now adjust the mix level of the applied signal, which is then applied to the MIX output.

  • Page 7: External Reset

    3.4 Play back function Speed With the ruler you can change the speed of the play back. Turn the pot over the middle position to activate the speed function. In ruler position Zero you have the half speed and in ruler posi- tion maximal you have the fourth speed.

  • Page 8: Technical Details

    - electric damage caused by improper connecting (wrong power supply/ jacks/ MIDI connections/ voltage problems). If you have any complaints please contact your dealer or send an e-mail to: service@flame-instruments.de 4.3 Terms of production conformity: CE, RoHS, UL 4.4 Disposal The device is produced with RoHS-conformity (subject to the regulations of the European Union) and is free of hazardous substances (like mercury, plumb, cadmium and hexavalent chrome).
