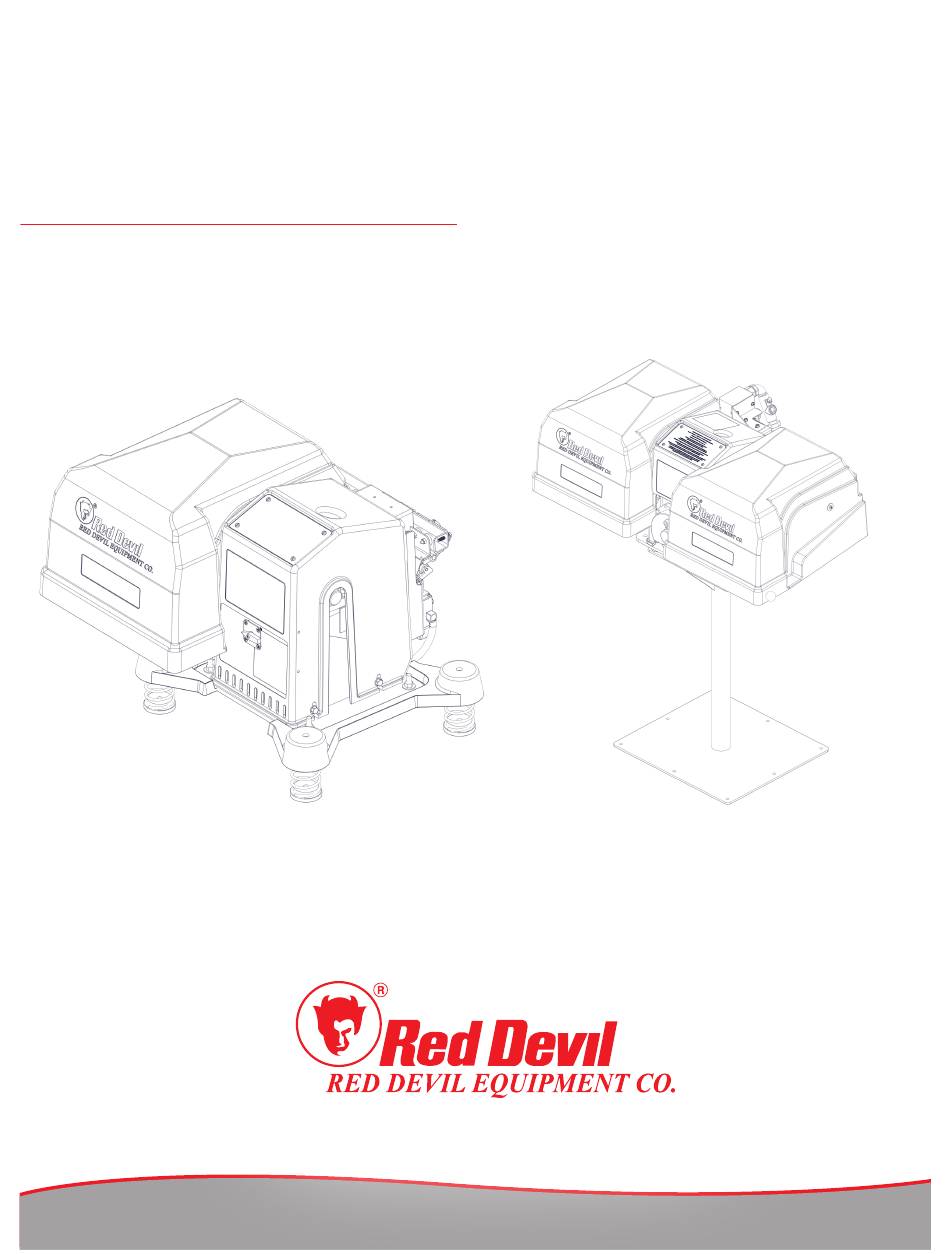

Owner's Manual:
Owner's Manual:
1400 & 1410 Air & Explosion
1400 & 1410 Air & Explosion
One-Gallon Shaker
Models 1400-A1, 1410-A1, 1400-X1
1410-A1 on Counter Base
1400-X1 on Pedestal Base
(5153-00)
(5152-00)
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1400-A1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RED DEVIL 1400-A1

  • Page 1 Owner’s Manual: Owner’s Manual: 1400 & 1410 Air & Explosion 1400 & 1410 Air & Explosion One-Gallon Shaker Models 1400-A1, 1410-A1, 1400-X1 1410-A1 on Counter Base 1400-X1 on Pedestal Base (5153-00) (5152-00) www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015...
  • Page 2: Table Of Contents

    1787021 REV H Owner’s Manual:1400 & 1410 ECO 16-0082 Air & Explosion Feb 2021 Table of Contents Table of Contents 1. 1. Safety Information Safety Information 8. 8. Exploded Views Exploded Views 15 15 1.1 Safety Precaution Labels 8.1 Drive System 1400 - X1 1.2 Safety Precaution Summary 8.2 Transmission Assembly 8.3 Drive System 1400 &...
  • Page 3: Safety Information

    1787021 REV H Owner’s Manual:1400 & 1410 ECO 16-0082 Feb 2021 Air & Explosion 1. Safety Information 1. Safety Information Review this owner’s manual and read all warning labels on the machine prior to use. The three main safety notifications used in this manual and on the warning labels are WARNING, CAUTION and NOTICE.
  • Page 4: Safety Precaution Labels

    1787021 REV H Owner’s Manual:1400 & 1410 ECO 16-0082 Air & Explosion Feb 2021 Safety Information, Continued.. 1.1 Safety Precaution labels 1.1 Safety Precaution labels CAUTION WARNING ADVERTENCIA AIR SUPPLY NOT TO EXCEED 150 PSI MINIMUM AIR SUPPLY AVERTISSEMENT REQUIREMENT IS 80 PSI EL SUMINISTRO DE AIRE NO DEBE EXCEDER LOS 150 PSI - Machine must be properly grounded before use;...
  • Page 5: Safety Precaution Summary

    1787021 REV H Owner’s Manual:1400 & 1410 ECO 16-0082 Feb 2021 Air & Explosion Safety Information, Continued.. 1.2 Safety Precaution Summary 1.2 Safety Precaution Summary WARNING! CAUTION! BE SURE that the remote power switch is Keep work area free clutter installed by a qualified electrician.
  • Page 6: Introduction

    2.2 Specifications 2.1 Application 2.1 Application Unit Size • 1400-A1 W 41.63 in. (105.74 cm) D 32.25 in. Congratulations on your purchase of the (75.26 cm) H 31.50 in. (80.01 cm) Classic Shaker. This machine is designed to • 1410-A1, W 27.88 in. (70.81 cm) D 29.63 in.
  • Page 7: Specifictations Continued

    1787021 REV H Owner’s Manual:1400 & 1410 ECO 16-0082 Feb 2021 Air & Explosion 2.2 Specifications Continued 2.2 Specifications Continued Twin Gallon Twin Gallon 1410-A1 No Timer 1400-X1 120V / 60Hz No Timer www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015...
  • Page 8: Assemble & Test

    Contact Red Devil Equipment Co. / Radia for replacement VHB pads. Assembly and Test, Continued..
  • Page 9: Valve Cap Removal

    1787021 REV H Owner’s Manual:1400 & 1410 ECO 16-0082 Feb 2021 Air & Explosion Assembly and Test, Continued.. 3.4 Valve Cap Removal 3.4 Valve Cap Removal 1. Insert the studs of the suction cups (A) up through the eight holes in the bottom of the base (B). 1.
  • Page 10: Operation

    1787021 REV H Owner’s Manual:1400 & 1410 ECO 16-0082 Air & Explosion Feb 2021 4. Operation 4. Operation 5. Care & Maintenance 5. Care & Maintenance 4.1 Install a Pail and Mix 4.1 Install a Pail and Mix WARNING! Avoid serious personal injury. Always turn the power off before performing 1.
  • Page 11: Maintenance (Air Models)

    1787021 REV H Owner’s Manual:1400 & 1410 ECO 16-0082 Feb 2021 Air & Explosion 5.4 Maintenance (Air Models) CAUTION - ALWAYS SHUT OFF THE AIR SUPPLY LINE AND BLEED THE AIR PRESSURE FROM THE MIXER BEFORE SERVICING! Drain the filter of accumulated water as often as required.
  • Page 12: Troubleshooting

    Mixer does not shut off when Contact Devil Equipment Faulty Limit Switch/Air Switch guards are lifted Customer Care Machine is not on a Red Devil Contact Devil Equipment Equipment Co. approved base Customer Care to order a base Mixer walking Floor is not smooth Anchor base to the floor, see section 3.5...
  • Page 13 1787021 REV H Owner’s Manual:1400 & 1410 ECO 16-0082 Feb 2021 Air & Explosion 7. Wiring Diagrams 7. Wiring Diagrams 7.1 1400-X1 Model Wiring Diagram 7.1 1400-X1 Model Wiring Diagram www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015...
  • Page 14 1787021 REV H Owner’s Manual:1400 & 1410 ECO 16-0082 Air & Explosion Feb 2021 ...Wiring Diagrams, Continued 7.3 1400 & 1410-A1 Pneumatic Schematic 7.3 1400 & 1410-A1 Pneumatic Schematic www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015...
  • Page 15: Exploded Views

    1787021 REV H Owner’s Manual:1400 & 1410 ECO 16-0082 Feb 2021 Air & Explosion 8. Exploded Views 8. Exploded Views 8.1 Drive System 8.1 Drive System 1400-X1 1400-X1 PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY Exploded Views, Continued..
  • Page 16: Transmission Assembly

    1787021 REV H Owner’s Manual:1400 & 1410 ECO 16-0082 Air & Explosion Feb 2021 ...Exploded Views, Continued 8.2 Transmission Assembly 8.2 Transmission Assembly PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY Exploded Views, Continued.. www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015...
  • Page 17: Drive System 1400 & 1410-A1

    1787021 REV H Owner’s Manual:1400 & 1410 ECO 16-0082 Feb 2021 Air & Explosion ...Exploded Views, Continued 8.3 Drive System 1400 & 1410-A1 8.3 Drive System 1400 & 1410-A1 To Air Limit Switch To Air Limit Switch Description Description 8621200 BASE WELDMENT, 54XX 16 9780732 ELBOW, HOSE, .25 MNPT X .25 BARB 6785060 TRANSMISSION ASSEMBLY - 1400 17 9786121 HOSE, AIR, VALVE TO MOTOR - 14XX-A1...
  • Page 18: Air Assembly

    1787021 REV H Owner’s Manual:1400 & 1410 ECO 16-0082 Air & Explosion Feb 2021 ...Exploded Views, Continued 8.4 Air Assembly 8.4 Air Assembly Exploded Views, Continued.. www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015...
  • Page 19: Clamp Assembly, Left

    1787021 REV H Owner’s Manual:1400 & 1410 ECO 16-0082 Feb 2021 Air & Explosion ...Exploded Views, Continued 8.5 Clamp Assembly, Left 8.5 Clamp Assembly, Left Description Description 9784822 CLAMP JAW, LEFT FRONT - 54XX 9140200 Key, Woodru No 404 9784821 CLAMP JAW, LEFT REAR - 54XX 9690800 SCREW, HEX 3_8-16 X 2.00 9188100 HANDLE, CLAMP, 5400 10 9780402 Washer 3_8 split lock...
  • Page 20: Camp Assembly, Right

    1787021 REV H Owner’s Manual:1400 & 1410 ECO 16-0082 Air & Explosion Feb 2021 ...Exploded Views, Continued 8.6 Clamp Assembly Right 8.6 Clamp Assembly Right Description Description 9784820 CLAMP JAW, RIGHT FRONT - 54XX 9140200 Key, Woodru No 404 9784819 CLAMP JAW, RIGHT REAR - 54XX 9690800 SCREW, HEX 3_8-16 X 2.00 9188100 HANDLE, CLAMP, 5400 10 9161100 Washer, Flat 3_8 USS...
  • Page 21: Enclosure Assembly

    1787021 REV H Owner’s Manual:1400 & 1410 ECO 16-0082 Feb 2021 Air & Explosion ...Exploded Views, Continued 8.7 Enclosure Assembly 8.7 Enclosure Assembly (1400-X1) (1400-X1) * 14XX-A1 Models ID Description ID Description 9785042 Enclosure, Explosion Proof - 14XX 9781840 Nut, Keps #8-32 9785592 SCREW, TYPE F 5_16-18 X 1.25 9781812 WELL NUT, #10-32 9781672 BUSHING - 1400...
  • Page 22: Clamp Cover Assembly

    1787021 REV H Owner’s Manual:1400 & 1410 ECO 16-0082 Air & Explosion Feb 2021 ...Exploded Views, Continued 8.5 Clamp Cover Assembly 8.5 Clamp Cover Assembly (1400-X1 & A1) (1400-X1 & A1) PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY Exploded Views, Continued..
  • Page 23: Electrical Assembly 1400-X1

    1787021 REV H Owner’s Manual:1400 & 1410 ECO 16-0082 Feb 2021 Air & Explosion ...Exploded Views, Continued 8.9 Electrical Assembly 8.9 Electrical Assembly (1400-X1) (1400-X1) Description Description 9785160 MOUNT, CONDUIT CLAMP - 1400-X1 17 5784065-Switch, Limit Explosion Proof - 20A Rating 9784069 NIPPLE, 1_2 NPT X 2.50 18 9785157 MOUNT, LIMIT SWITCH - 1400-X1 9782429 union, .5 npt...
  • Page 24: Counter Base 5153-00

    1787021 REV H Owner’s Manual:1400 & 1410 ECO 16-0082 Air & Explosion Feb 2021 ...Exploded Views, Continued 8.10 Counter Base 8.10 Counter Base (5153-00) (5153-00) ID Description ID Description 9389500 Nut, Hex 3_8-16 9190300 Foot, Rubber 9161100 Washer, Flat 3_8 USS 9190800 CARRIAGE BOLT 3_8-16 X 1.50 9616500 Counter Base 9190400 Spring...
  • Page 25: Pedestal Base 5152-00

    1787021 REV H Owner’s Manual:1400 & 1410 ECO 16-0082 Feb 2021 Air & Explosion ...Exploded Views, Continued 8.11 Pedestal Base 8.11 Pedestal Base (5152-00) (5152-00) PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY Exploded Views, Continued.. www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015...
  • Page 26: Ordering

    1787021 REV H Owner’s Manual:1400 & 1410 ECO 16-0082 Air & Explosion Feb 2021 9. Ordering 9. Ordering Replacement Parts Replacement Parts HOW TO ORDER REPLACEMENT PARTS Replacement parts can be ordered from Radia by telephone, fax, or email: RADIA 800-221-1083 763-533-2969 763-533-0015 (FAX)
  • Page 27: Warranty

    10. Warranty Equipment Covered Under This Warranty Equipment Covered Under This Warranty Models 1400-A1, 1410-A1, 1400-X1 Radia warrants equipment manufactured by it and bearing its name to be free from defects in material and workmanship. EXCEPT FOR THE WARRANTY SET FORTH HEREIN, RADIA MAKES NO WARRANTY WHATSOEVER WITH RESPECT TO THE EQUIPMENT, INCLUDING ANY (a) WARRANTY OF MERCHANTABILITY;...
  • Page 28: Notes

    1787021 REV H Owner’s Manual:1400 & 1410 ECO 16-0082 Air & Explosion Feb 2021 11. Notes 11. Notes www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015...
  • Page 29 1787021 REV H Owner’s Manual:1400 & 1410 ECO 16-0082 Feb 2021 Air & Explosion www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015...
  • Page 30 1787021 REV H Owner’s Manual:1400 & 1410 ECO 16-0082 Air & Explosion Feb 2021 www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015...
  • Page 31 1787021 REV H ECO 16-0082 Owner’s Manual:1400 & 1410 Feb 2021 For sales or service, please contact For sales or service, please contact RADIA Attn: Customer Service Department 14900 21st Ave N Plymouth, Mn 55447 U.S. Telephone: 800.221.1083 International Telephone: 763.533.2969 Fax: 763.533.0015...
