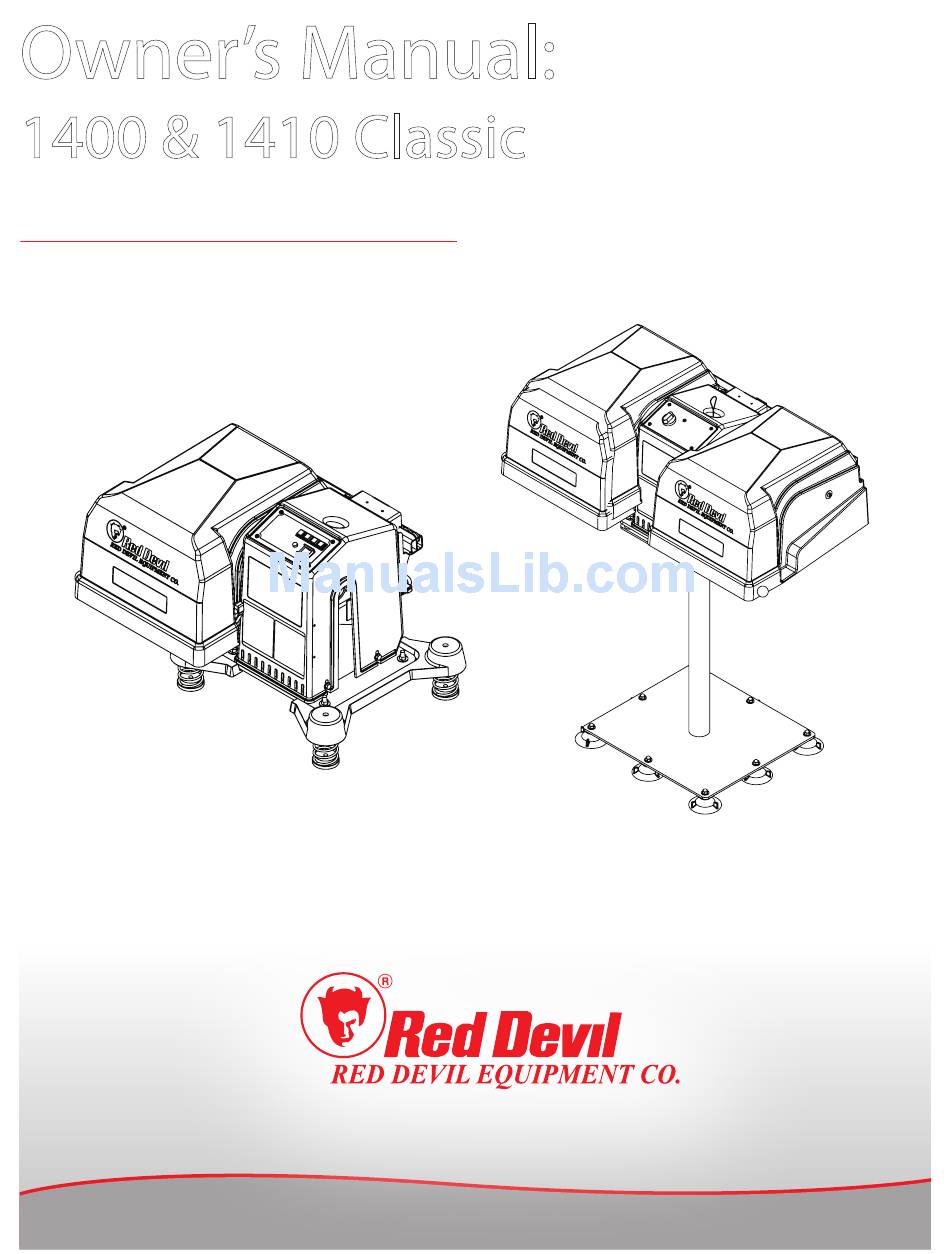

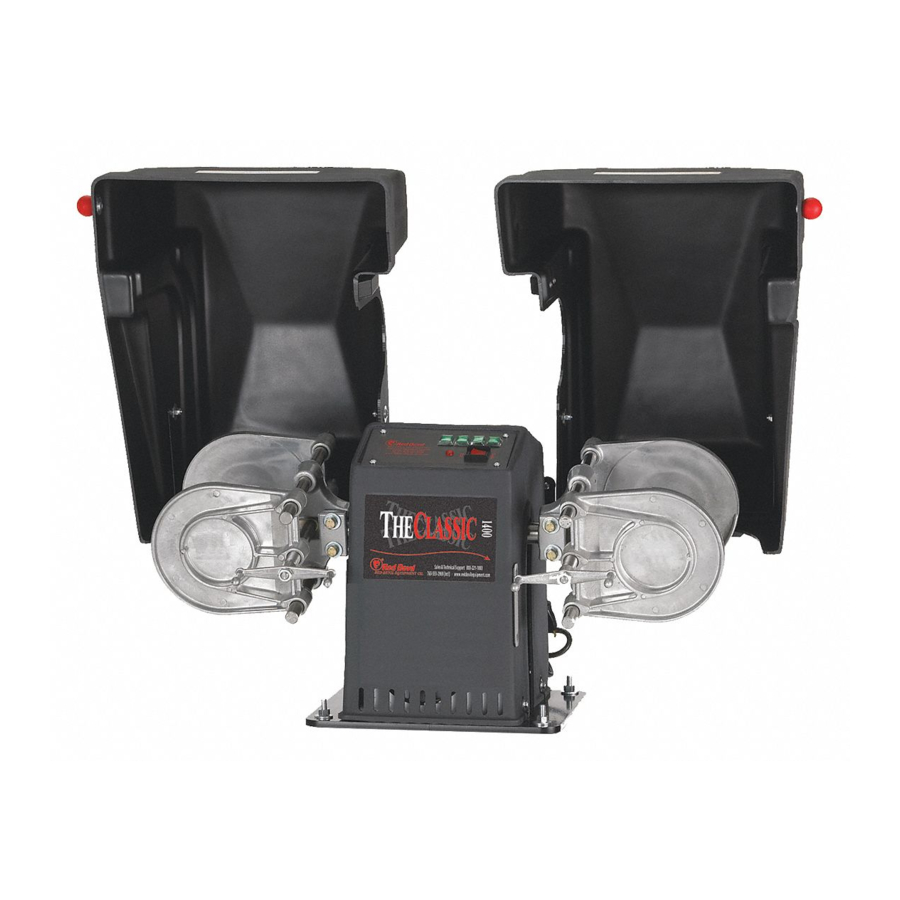

- Page 1 Owner’s Manual: 1400 & 1410 Classic One-Gallon Shaker Models 1400, 1410-PB, 1410-00, 1410-OH, 1400-OH-E5, 1400-00-N 1410 on Counter Base 1400 on Pedestal Base (5153-00) (5151-00) www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015...
-
Page 2: Table Of Contents
5.2 Mainenance Trouble Shooting Wiring Diagram 7.1 1400/1410 - PB Models 7.2 1400/1410 - 00 and -OH Models 7.3 1400/1410 - 00-N, -OH-N Models 7.4 Internal Motor wiring for 120V/60 Hz and 220V / 50 Hz Models www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015... -
Page 3: Safety Information
1785069 Rev Y Owner’s Manual:1400 & 1410 ECO 18-0034 July 2018 1. Saftey Information Review this owner’s manual and read all warning labels on the machine prior to use. The three main safety notifications used in this manual and on the warning labels are WARNING, CAUTION and NOTICE. -
Page 4: Safety Precaution Labels
1785069 Rev Y Owner’s Manual:1400 & 1410 ECO 18-0034 July 2018 Safety Information, Continued.. 1.1 Safety Precaution labels AVERTISSEMENT CAUTION PRECAUCIÓN LES PARTIES EN MOUVEMENT À MOVING PARTS INSIDE PIEZAS MÓVILES ADENTRO L'INTERIEUR DE LA MACHINE - Ne pas mettre en service si le... -
Page 5: Saftey Precaution Summary
1785069 Rev Y Owner’s Manual:1400 & 1410 ECO 18-0034 July 2018 Safety Information, Continued.. 1.2 Safety Precaution Summary WARNING! Review product label, Material Saftey Data Sheet, and HMIS rating of material prior to mixing to determine potential hazards. DO NOT attempt to replace any damaged electrical wire components. -
Page 6: Introduction
31.5 in. (80.01 cm) separately. Shipping Weight: Understand your machine's features and • 1400-00, 1400-PB, and 1400-OH: 191 lb. (86.6 proper operation to take full advantage of its capabilities. • 1410-00, 1410-PB, and 1400-OH: 160 lb. (72.6 Read this entire manual completely before operating the machine. -
Page 7: Specifications
1410-PB 120V/60 Hz 6 Min Pushbutton Timer 1410-00 120V/60Hz 15 Min Mech Timer 1410-0H 120V/60Hz 1 Hour Mech Timer 1400-0H 120V/50Hz 1 Hour Mech Timer 1400-00-N 120V/60Hz 15 Min Mech Timer Mounted on Countertop or Pedestal Base. www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015... -
Page 8: Control Panel Pushbutton Timer
1785069 Rev Y Owner’s Manual:1400 & 1410 ECO 18-0034 July 2018 ... Introduction, Continued 2.3 Control Panel Pushbutton 2.3 Control PanelMechanical Timer Timer • Timer Selection (A-D): Select the desired Turn the dial to the appropriate mix time. The machine starts to mix when the time is mix time. -
Page 9: Assemble & Test
1785069 Rev Y Owner’s Manual:1400 & 1410 ECO 18-0034 July 2018 3. Assemble and Test 3.1 Prepare for Use IMPORTANT: Before attempting to operate the machine: 1. Remove all packing material. 2. Assemble the base. 3.2 Assemble the Countertop Base 1. -
Page 10: Connect To Power
1785069 Rev Y Owner’s Manual:1400 & 1410 ECO 18-0034 July 2018 Assembly and Test, Continued.. 3.4 Connect to Power Set the mixer on the upper plate of the base, on top of the rubber bumpers (F) 1. Follow the electrical intrusctions described in sections 1.2 &... -
Page 11: Test Operation
1785069 Rev Y Owner’s Manual:1400 & 1410 ECO 18-0034 July 2018 3.5 Test Operation 1. If the pedestal unit walks (moves) during operation the floor may be rough or uneven. Anchor the base to the floor as follows: a. Tilt the mixer and base backward until you can insert a 2' x 4' board under the base. -
Page 12: Operation
3. If mixing with only one clamp on a Model • Occasionally apply a thin film of oil to the 1400, install an empty can (or a piece of 2” x 4” clamp screws. board) in the other clamp. 4. If your model has a pushbutton timer, close the clamp guard, then: a. -
Page 13: Troubleshooting
1785069 Rev Y Owner’s Manual:1400 & 1410 ECO 18-0034 July 2018 6. Troubleshooting PROBLEM CAUSE REMEDY Connect to power source Not connected to power source Have a qualified electrician replace Loose or broken wire or repair the wire connection connection... -
Page 14: Wiring Diagram
1785069 Rev Y Owner’s Manual:1400 & 1410 ECO 18-0034 July 2018 7. Wiring Diagrams 7.1 1400/1410 - PB Models 5783815 LIMIT SWITCH 5782584 GREEN PUSHBUTTTONS MOTOR KIT (90 SEC) (45 SEC) (360 SEC) (180 SEC) 6784902 -110V, 60Hz 5782877 YELLOW... -
Page 15: 1400/1410 - 00 And -Oh Models
1785069 Rev Y Owner’s Manual:1400 & 1410 ECO 18-0034 July 2018 ...Wiring Diagrams, Continued 7.1 1400/1410 - 00 and 0H Models 15 MINUTE DIAL TIMER 5782184 5783815 1 HOUR DIAL TIMER 5758710 LIMIT SWITCH 5785064 CABLE HARNESS 5785070 SWITCH HARNESS... -
Page 16: 1400/1410 - 00-N, -Oh-N Models
1785069 Rev Y Owner’s Manual:1400 & 1410 ECO 18-0034 July 2018 ...Wiring Diagrams, Continued 7.1 1400-00-N 15 MINUTE DIAL TIMER 5782184 MOTOR KIT 6784902 - 110V, 60HZ 9780543 WIRE NUT 5180300 MOTOR CORD POWER CORD 5180200 - 110V, 60HZ MACHINES Wiring Diagrams, Continued.. -
Page 17: Internal Motor Wiring For 120V/60 Hz And 220V / 50 Hz Models
1785069 Rev Y Owner’s Manual:1400 & 1410 ECO 18-0034 July 2018 ...Wiring Diagrams, Continued 7.4 Internal Motor Wiring for 120V/60 Hz and 220V / 50 Hz Models Motor Voltage Connections for 120 and 220 V Lead 120V 220V Brown Line In-------------- White 2 Ungrounded Line Black 5 www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015... -
Page 18: Exploded Views
8621200 BASE WELDMENT, 54XX 13 9780402 Washer 3_8 split lock 6784902 MOTOR, AC, 1_3 HP, DUAL RATED 14 6785273 TRANSMISSION ASSEMBLY - 1400 9561700 Screw Hex 5_16 X 1 15 6785085 TRANSMISSION ASSY - 1410 17 9622600 CAP, SCHRADER VALVE, NYLON - 54XX... -
Page 19: Transmission Assembly
1785069 Rev Y Owner’s Manual:1400 & 1410 ECO 18-0034 July 2018 ...Exploded Views, Continued 8.2 Transmission Assembly * 1400-PB & 1400 -00-N ** 1410 MODELS Description Description 9786258 MACHINING, BEARING HOUSING - 14XX 10 9622800 VALVE, TIRE 6808900 ASSY, CRANKSHAFT - 54XX 11 9622600 CAP, SCHRADER VALVE, NYLON - 54XX 9124700 KEY, WOODRUFF, NO. -
Page 20: Clamp Assembly, Left
1785069 Rev Y Owner’s Manual:1400 & 1410 ECO 18-0034 July 2018 ...Exploded Views, Continued 8.2 Clamp Assembly, Left Description Description 9784822 CLAMP JAW, LEFT FRONT - 54XX 9140200 Key, Woodru No 404 9784821 CLAMP JAW, LEFT REAR - 54XX 9690800 SCREW, HEX 3_8-16 X 2.00... -
Page 21: Camp Assembly, Right
1785069 Rev Y Owner’s Manual:1400 & 1410 ECO 18-0034 July 2018 ...Exploded Views, Continued 8.4 Clamp Assembly Right Description Description 9784820 CLAMP JAW, RIGHT FRONT - 54XX 9140200 Key, Woodru No 404 9784819 CLAMP JAW, RIGHT REAR - 54XX 9690800 SCREW, HEX 3_8-16 X 2.00... -
Page 22: Enclousre Assembly
9785040 Enclosure, Clamp Cover - 14XX 9785592 SCREW, TYPE F 5_16-18 X 1.25 9781812 WELL NUT, #10-32 9781672 BUSHING - 1400 9785073 STRIKE PLATE, CLAMP COVER - 14XX 9781840 Nut, Keps #8-32 PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY Exploded Views, Continued.. -
Page 23: Clamp Cover Assembly
8.6 Clamp Cover Assembly * 1400 Models only ** 1410 Models only Description Description 9785063 HINGE TUBE WELDMENT - 1400 14 9785126 Nut #8-32 Nylon Lock 5783815 Switch, Limit 1hp 15 9785129 washer, fender #8 x .625 9784922 WASHER, FLAT #8... -
Page 24: Electrical Assembly Pb
1785069 Rev Y Owner’s Manual:1400 & 1410 ECO 18-0034 July 2018 ...Exploded Views, Continued 8.7 Electrical Assembly PB ID Description ID Description 5782584 PUSH BUTTON, GREEN 5782445 POWER SWITCH 5782448 Operation Lamp, Neon 9782843 Pushbutton Timer Plate 9781813 Screw, Pan Head 10-32 X 1.00... -
Page 25: Electrical Assembly Oo
1785069 Rev Y Owner’s Manual:1400 & 1410 ECO 18-0034 July 2018 ...Exploded Views, Continued 8.8 Electrical Assembly OO ID Description ID Description 9756960 Knob 5782184 TIMER, 15 MINUTE 9784198 Screw, Pan hd thd forming #4 x .38 9760537 Screw, Truss Head, 8_32 X 50 9781813 Screw, Pan Head 10-32 X 1.00... -
Page 26: Electrical Assembly Oh
1785069 Rev Y Owner’s Manual:1400 & 1410 ECO 18-0034 July 2018 ...Exploded Views, Continued 8.9 Electrical Assembly OH ID Description ID Description 9756960 Knob 5758710 TIMER, 60 MINUTE 9784198 Screw, Pan hd thd forming #4 x .38 9760537 Screw, Truss Head, 8_32 X 50 9781813 Screw, Pan Head 10-32 X 1.00... -
Page 27: Counter Base
1785069 Rev Y Owner’s Manual:1400 & 1410 ECO 18-0034 July 2018 ...Exploded Views, Continued 8.10 Counter Base (5153-00) ID Description ID Description 9389500 Nut, Hex 3_8-16 9190300 Foot, Rubber 9161100 Washer, Flat 3_8 USS 9190800 CARRIAGE BOLT 3_8-16 X 1.50... -
Page 28: Pesestal Base
1785069 Rev Y Owner’s Manual:1400 & 1410 ECO 18-0034 July 2018 ...Exploded Views, Continued 8.11 Pedestal Base (5151-00) ID Description ID Description 9782610 Top Plate, Pedestal Base 9161100 Washer, Flat 3_8 USS 9324700 Foot, Suction Cup 9327500 Rubber feet 9436300 NUT, ACORN CAP 5_16-18... -
Page 29: Ordering
1785069 Rev Y Owner’s Manual:1400 & 1410 ECO 18-0034 July 2018 9. Ordering Replacment Parts HOW TO ORDER REPLACEMENT PARTS Replacement parts can be ordered from Radia by telephone, fax, or email: RADIA 800-221-1083 763-533-2969 763-533-0015 (FAX) orders@radiaproducts.com If you need help in determining the proper part(s) to order, please call Customer Care. -
Page 30: Warranty
July 2018 10. Warranty Equipment Covered Under This Warranty Models 1400 and 1410-PB, 1400 and 1410-OO, 1400 and 1410-OH, 1400-OH-E5N, 1400-OO-N, and 1400-OH-N Warranty Radia warrants equipment manufactured by it and bearing its name to be free from defects in material and workmanship. -
Page 31: Notes
1785069 Rev Y Owner’s Manual:1400 & 1410 ECO 18-0034 July 2018 11. Notes www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015... - Page 32 1785069 Rev Y Owner’s Manual:1400 & 1410 ECO 18-0034 July 2018 For sales or service, please contact RADIA Attn: Customer Service Department 14900 21st Ave N Plymouth, Mn 55447 U.S. Telephone: 800.221.1083 International Telephone: 763.533.2969 Fax: 763.833.0015 E-mail: info@radiaproducts.com www.radiaproducts.com For instructional "How To"...
