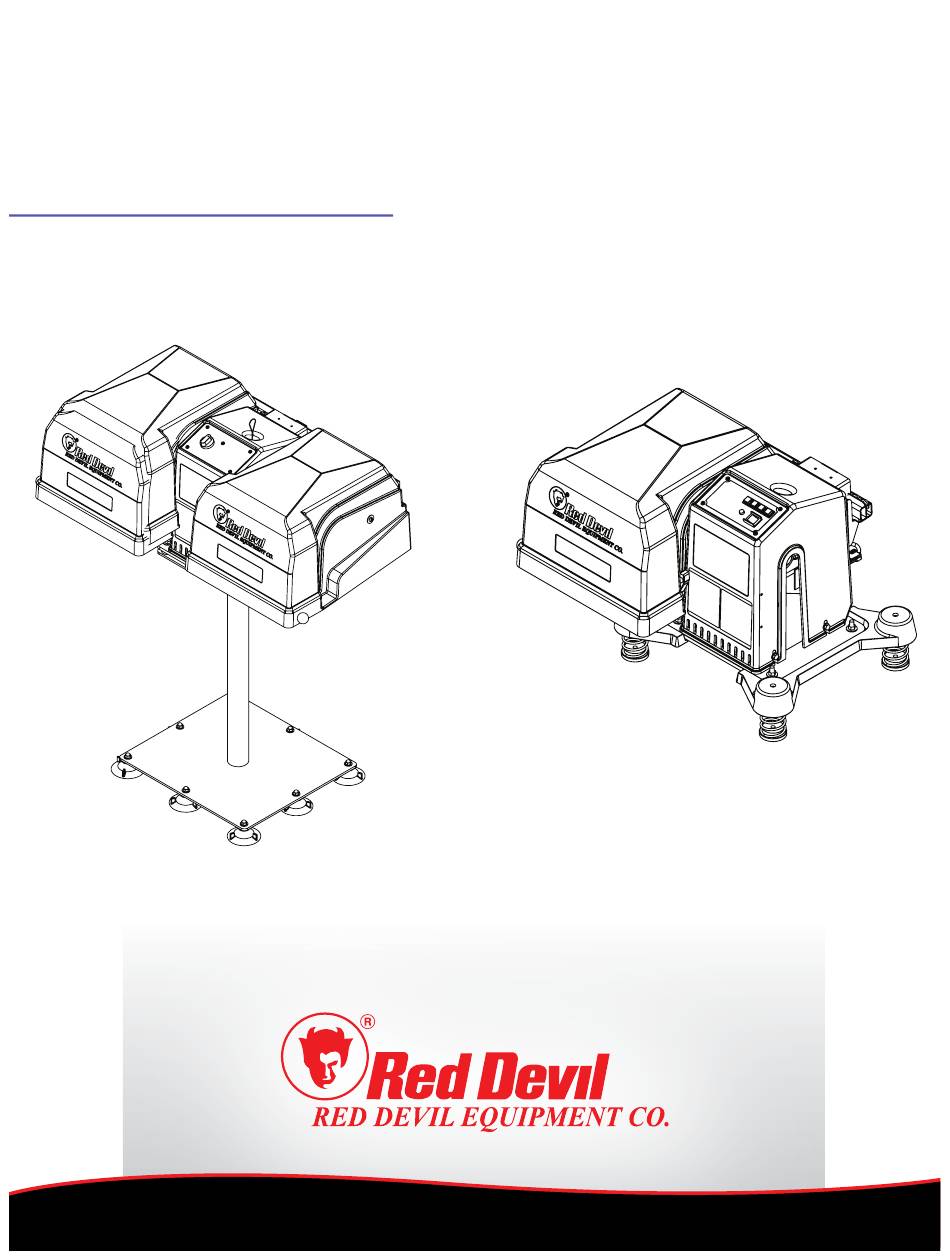

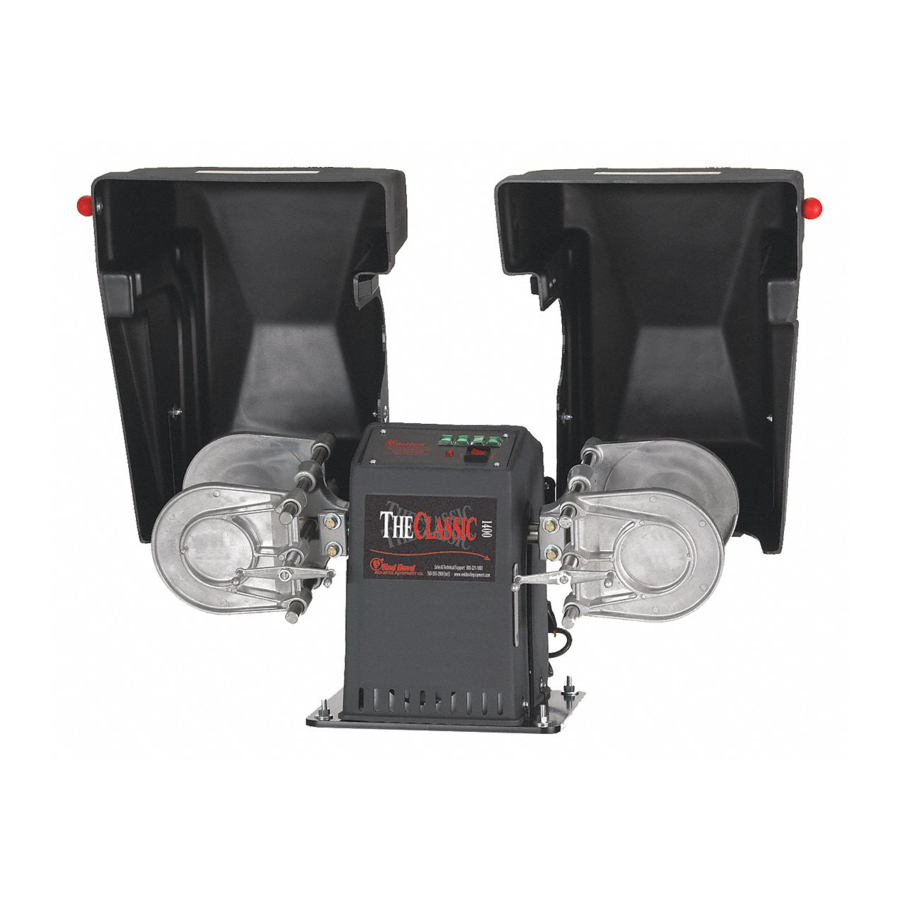

- Page 1 Owner’s Manual: 1400 & 1410 Classic One-Gallon Shaker 1400 and 1410-PB, 1400 and 1410-00, 1400 and 1410-0H, 1400-0H-E5, 1400-00-N, models 1410 on Counter Base (5153-00) 1400 on Pedestal Base (5151-00)
-
Page 2: Table Of Contents
1785069 Rev X Owner’s Manual: 1400 and 1410 ECO 15-0005 May 2015 Classic Shaker ABLE OF ONTENTS 8. Exploded Views 1. Safety Information 1.1 Safety Precaution Labels 8.1 Drive System 8.2 Transmission Assembly 1.2 Safety Precaution Summary 8.3 Clamp Assembly, Left 2. -
Page 3: Safety Information
1785069 Rev X Owner’s Manual: 1400 and 1410 ECO 15-0005 May 2015 Classic Shaker 1. S AFETY NFORMATION Review this owner’s manual and read all warning labels on the machine prior to use. The three main safety notifications used in this manual and on the warning labels are WARNING, CAUTION and NOTICE. -
Page 4: Safety Precaution Labels
1785069 Rev X Owner’s Manual: 1400 and 1410 ECO 15-0005 May 2015 Classic Shaker ...Safety Information, continued 1.1 Safety Precaution Labels Part No. 1785065 WARNING -This machine is not explosion proof rated. -Review product label, Material Safety Data Sheet, and HMIS rating of materials and exposures prior to mixing to determine potential hazards. -
Page 5: Safety Precaution Summary
1785069 Rev X Owner’s Manual: 1400 and 1410 ECO 15-0005 May 2015 Classic Shaker ...Safety Information, continued 1.2 Safety Precaution Summary WARNING! To avoid electric shock, don’t get the timer, control panel, or wiring wet. DO NOT attempt to replace any damaged electrical wire or components. -
Page 6: Introduction
Understand your machine's features and proper Shipping Weight: operation to take full advantage of its capabilities. • 1400-00, 1400-PB, and 1400-OH: 191 lb. (86.6 Read this entire manual completely before operating the machine. Practice installing and • 1410-00, 1410-PB, and 1400-OH: 160 lb. (72.6 removing a container before mixing for the first time. - Page 7 1785069 Rev X Owner’s Manual: 1400 and 1410 ECO 15-0005 May 2015 Classic Shaker ...Introduction, continued 2.2 Specifi cations 31 1/2" 1" 62" 6" 20 13/16" 12 1/2" 41 5/8" 32 1/2" Twin Gallon 1400-PB 120V / 60 Hz 6 Min Pushbutton Timer...
-
Page 8: Control Panel - Pushbutton Timer
1785069 Rev X Owner’s Manual: 1400 and 1410 ECO 15-0005 May 2015 Classic Shaker ...Introduction, continued 2.3 Control Panel - 2.3 Control Panel - Pushbutton Timer Mechanical Timer • Timer Selection (A-D): Select the desired mix Turn the dial to the appropriate mix time. The time. -
Page 9: Assemble & Test
1785069 Rev X Owner’s Manual: 1400 and 1410 ECO 15-0005 May 2015 Classic Shaker 3. A SSEMBLE AND 3.1 Prepare for Use 3.3 Assemble the Pedestal IMPORTANT: Before attempting to operate the Base (See Section 8.11) machine: 1. Insert the studs of the suction cups (A) up 1. -
Page 10: Connect To Power
1785069 Rev X Owner’s Manual: 1400 and 1410 ECO 15-0005 May 2015 Classic Shaker ...assembly and test, continued 3.4 Connect to Power 5. Set the mixer on the upper plate of the base, on 1. Follow the electrical instructions described top of the rubber bumpers (F). -
Page 11: Test Operation
1785069 Rev X Owner’s Manual: 1400 and 1410 ECO 15-0005 May 2015 Classic Shaker 3.5 Test Operation 1. If the pedestal unit walks (moves) during operation the floor may be rough or uneven. Anchor the base to the floor as follows: a. -
Page 12: Operation
• Whenever the guide rods feel dry, wipe a little 3. If mixing with only one clamp on a Model 1400, oil over them with a rag. install an empty can (or a piece of 2” x 4” board) in •... -
Page 13: Troubleshooting
Machine does not shut off Contact Devil Equipment Faulty limit switch when guards are lifted Customer Care Machine is not on a Red Devil Contact Devil Equipment Equipment Co. approved base Customer Care to order a base Mixer walking Floor is not smooth Anchor base to the floor, see section 3.5... -
Page 14: Wiring Diagrams
1785069 Rev X Owner’s Manual: 1400 and 1410 ECO 15-0005 May 2015 Classic Shaker 7. W IRING IAGRAMS 7.1 1400/1410 -PB Models 5783815 LIMIT SWITCH 5782584 GREEN PUSHBUTTTONS MOTOR KIT (90 SEC) (45 SEC) (360 SEC) (180 SEC) 6784902 -110V, 60Hz... -
Page 15: 1400/1410 - 00 And -0H Models
1785069 Rev X Owner’s Manual: 1400 and 1410 ECO 15-0005 May 2015 Classic Shaker ...Wiring Diagrams, continued 7.2 1400/1410 -00 and -OH Models 15 MINUTE DIAL TIMER 5782184 5783815 1 HOUR DIAL TIMER 5758710 LIMIT SWITCH 5785064 CABLE HARNESS 5785070... -
Page 16: 1400/1410 -00-N, -0H-N Models
1785069 Rev X Owner’s Manual: 1400 and 1410 ECO 15-0005 May 2015 Classic Shaker ...Wiring Diagrams, continued 7.3 1400-00-N 15 MINUTE DIAL TIMER 5782184 MOTOR KIT 6784902 - 110V, 60HZ 9780543 WIRE NUT 5180300 MOTOR CORD POWER CORD 5180200 - 110V, 60HZ MACHINES... -
Page 17: Internal Motor Wiring For 120V/ 60 Hz And 220V / 50 Hz Models
1785069 Rev X Owner’s Manual: 1400 and 1410 ECO 15-0005 May 2015 Classic Shaker ...Wiring Diagrams, continued 7.4 Internal Motor Wiring for 120V/ 60 Hz and 220V / 50 Hz Models Motor Voltage Connections for 120 and 220 V Lead... -
Page 18: Exploded Views
8621200 BASE WELDMENT, 54XX 13 9780402 Washer 3_8 split lock 5782161 MOTOR, AC, 1_3 HP, DUAL RATED 14 6785060 TRANSMISSION ASSEMBLY - 1400 9561700 Screw Hex 5_16 X 1 15 6785085 TRANSMISSION ASSY - 1410 9760521 Washer 5_16 Lock, Split 16 6786142 TRANSMISSION ASSY-1400PB &... -
Page 19: Transmission Assembly
1785069 Rev X Owner’s Manual: 1400 and 1410 ECO 15-0005 May 2015 Classic Shaker ...Exploded Views, continued 8.2 Transmission Assembly * 1400-PB & 1400 -00-N ** 1410 MODELS Description Description 9786258 MACHINING, BEARING HOUSING - 14XX 10 9622800 VALVE, TIRE... -
Page 20: Clamp Assembly, Left
1785069 Rev X Owner’s Manual: 1400 and 1410 ECO 15-0005 May 2015 Classic Shaker ...Exploded Views, continued 8.3 Clamp Assembly, Left Description Description 9784822 CLAMP JAW, LEFT FRONT - 54XX 9140200 Key, Woodru No 404 9784821 CLAMP JAW, LEFT REAR - 54XX 9690800 SCREW, HEX 3_8-16 X 2.00... -
Page 21: Clamp Assembly, Right
1785069 Rev X Owner’s Manual: 1400 and 1410 ECO 15-0005 May 2015 Classic Shaker ...Exploded Views, continued 8.4 Clamp Assembly, Right Description Description 9784820 CLAMP JAW, RIGHT FRONT - 54XX 9140200 Key, Woodru No 404 9784819 CLAMP JAW, RIGHT REAR - 54XX 9690800 SCREW, HEX 3_8-16 X 2.00... -
Page 22: Enclosure Assembly
1785069 Rev X Owner’s Manual: 1400 and 1410 ECO 15-0005 May 2015 Classic Shaker ...Exploded Views, continued 8.5 Enclosure Assembly ID Description ID Description 9785040 Enclosure, Clamp Cover - 14XX 9785592 SCREW, TYPE F 5_16-18 X 1.25 9781812 WELL NUT, #10-32... -
Page 23: Clamp Cover Assembly
8.6 Clamp Cover Assembly * 1400 Models only ** 1410 Models only Description Description 9785063 HINGE TUBE WELDMENT - 1400 14 9785126 Nut #8-32 Nylon Lock 5783815 Switch, Limit 1hp 15 9785129 washer, fender #8 x .625 9784922 WASHER, FLAT #8... -
Page 24: Electrical Assembly Pb
1785069 Rev X Owner’s Manual: 1400 and 1410 ECO 15-0005 May 2015 Classic Shaker ...Exploded Views, continued 8.7 Electrical Assembly PB ID Description ID Description 5782584 PUSH BUTTON, GREEN 5782445 POWER SWITCH 5782448 Operation Lamp, Neon 9782843 Pushbutton Timer Plate 9781813 Screw, Pan Head 10-32 X 1.00... -
Page 25: Electrical Assembly Oo
1785069 Rev X Owner’s Manual: 1400 and 1410 ECO 15-0005 May 2015 Classic Shaker ...Exploded Views, continued 8.8 Electrical Assembly OO ID Description ID Description 9756960 Knob 5782184 TIMER, 15 MINUTE 9784198 Screw, Pan hd thd forming #4 x .38 9760537 Screw, Truss Head, 8_32 X 50 9781813 Screw, Pan Head 10-32 X 1.00... -
Page 26: Electrical Assembly Oh
1785069 Rev X Owner’s Manual: 1400 and 1410 ECO 15-0005 May 2015 Classic Shaker ...Exploded Views, continued 8.9 Electrical Assembly OH ID Description ID Description 9756960 Knob 5758710 TIMER, 60 MINUTE 9784198 Screw, Pan hd thd forming #4 x .38 9760537 Screw, Truss Head, 8_32 X 50 9781813 Screw, Pan Head 10-32 X 1.00... -
Page 27: Counter Base
1785069 Rev X Owner’s Manual: 1400 and 1410 ECO 15-0005 May 2015 Classic Shaker ...Exploded Views, continued 8.10 Counter Base (5153-00) ID Description ID Description 9389500 Nut, Hex 3_8-16 9190300 Foot, Rubber 9161100 Washer, Flat 3_8 USS 9190800 CARRIAGE BOLT 3_8-16 X 1.50... -
Page 28: Pedestal Base
1785069 Rev X Owner’s Manual: 1400 and 1410 ECO 15-0005 May 2015 Classic Shaker ...Exploded Views, continued 8.11 Pedestal Base (5151-00) ID Description ID Description 9782610 Top Plate, Pedestal Base 9161100 Washer, Flat 3_8 USS 9324700 Foot, Suction Cup 9327500 Rubber feet... -
Page 29: Ordering
While your machine is under warranty, do not attempt on-site repair or parts replacement without first contacting Red Devil Equipment Co. (to protect your warranty). After the warranty expires, replacement parts and recommendations for on-site servicing are available from Red Devil Equipment Co. Please Customer Care for assistance.
