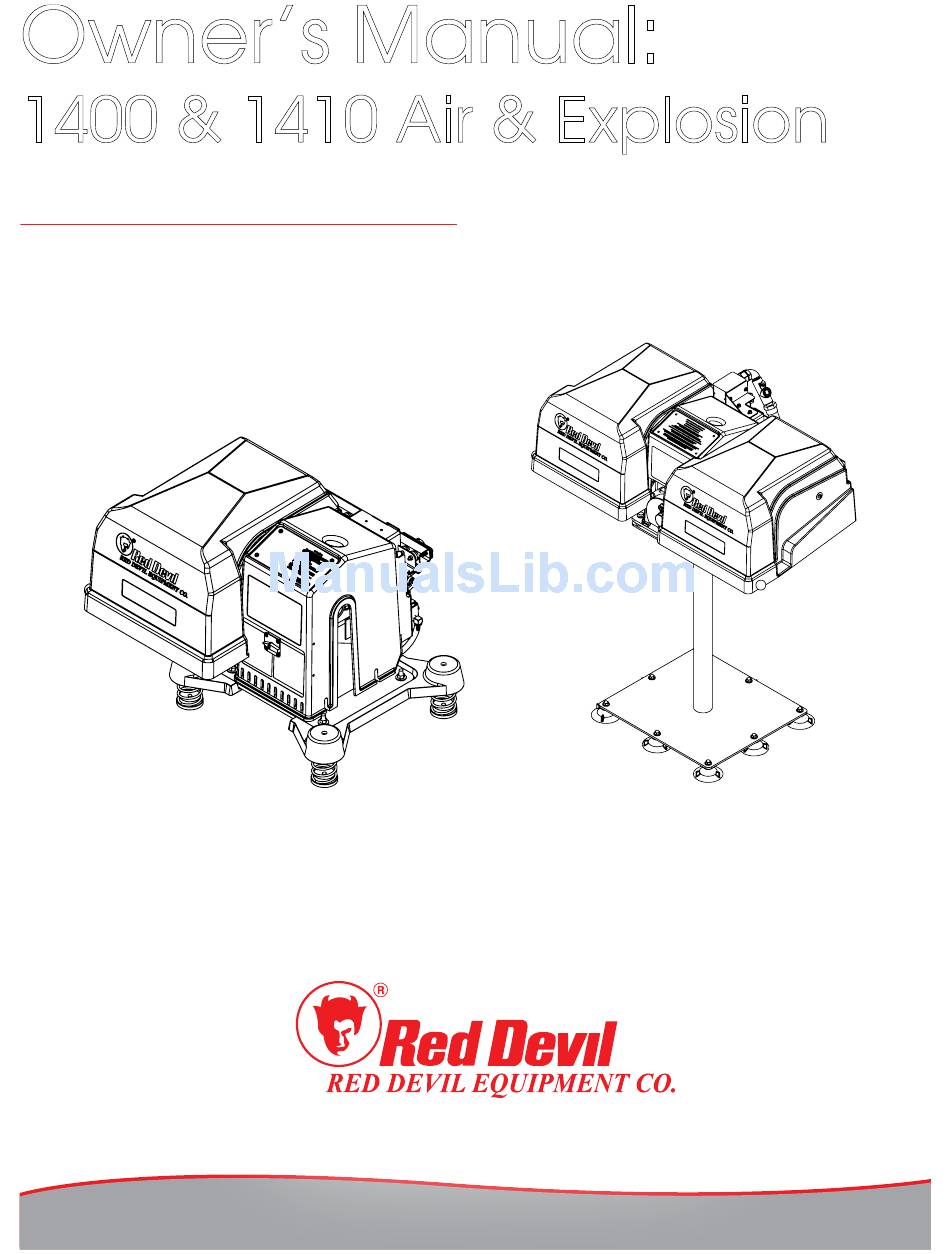

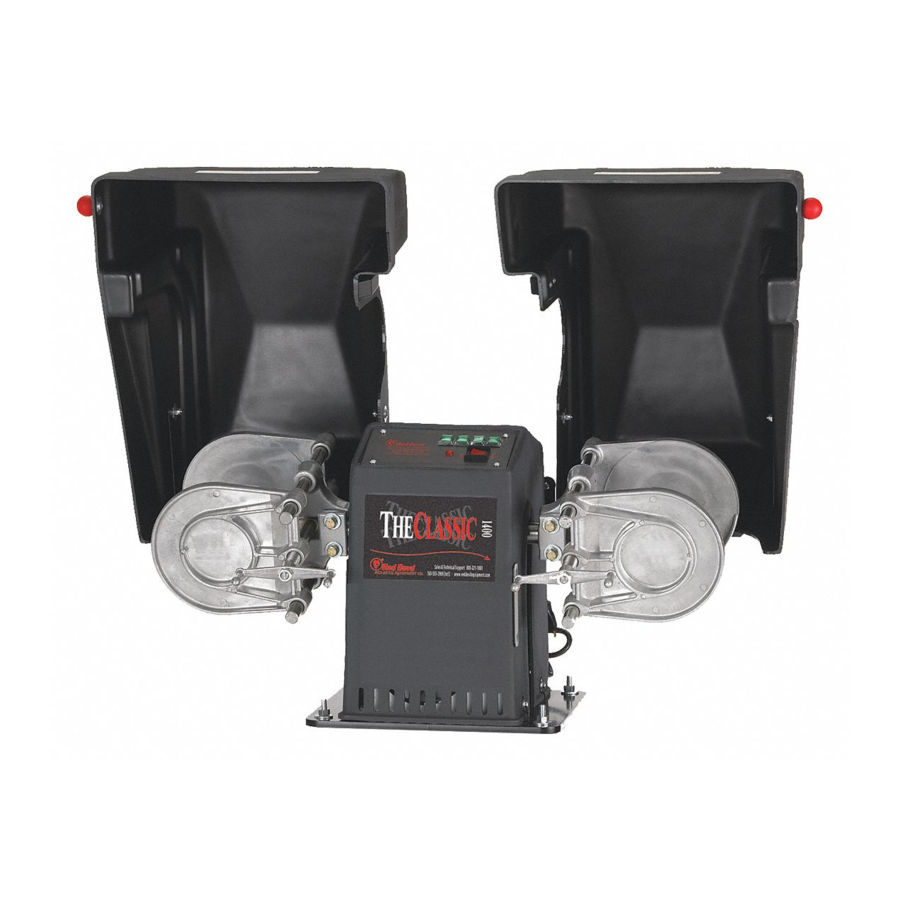

- Page 1 Owner’s Manual: 1400 & 1410 Air & Explosion One-Gallon Shaker Models 1400, 1410-A1, 1400-X1 1410-A1 on Counter Base 1400-X1 on Pedestal Base (5153-00) (5151-00) www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015...
-
Page 2: Table Of Contents
Safety Information Exploded Views 1.1 Safety Precaution Labels 8.1 Drive System 1400 - X1 1.2 Saftey Precaution Summary 8.2 Transmission Assembly 8.3 Drive System 1400 & 1410 - A1 Introduction 8.4 Air Assembly 2.1 Application 8.5 Clamp Assembly, Left 2.2 Specifications 8.6 Camp Assembly, Right... -
Page 3: Safety Information
Owner’s Manual:1400 & 1410 1787021 REV D ECO 16-0082 Air & Explosion May 2017 1. Saftey Information Review this owner’s manual and read all warning labels on the machine prior to use. The three main safety notifications used in this manual and on the warning labels are WARNING, CAUTION and NOTICE. -
Page 4: Safety Precaution Labels
- La maquinaria debe ser apoyada correctamente en el suelo antes de usar, Part No. 1780668 el no apoyarla puede casuar choque elêctrico y daños. 1400 & 1410 -A1 only -Desconecte la energía antes de dar mantenimiento, limpiar o quitar caulquier cubierta, y siga los procedimientos de bloqueo/etiquetado del manual, Fallar en desconectar puede causar choque eléctrico y daños. -
Page 5: Saftey Precaution Summary
Owner’s Manual:1400 & 1410 1787021 REV D ECO 16-0082 Air & Explosion May 2017 Safety Information, Continued.. 1.2 Safety Precaution Summary CAUTION! WARNING! BE SURE that the remote power switch is Keep the work area free of clutter and installed by a qualified electrician. Refer electrical cords. -
Page 6: Introduction
Sizes Mixed: 1 gal., 1 qt., 1 pt. time. Keep this manual for future reference. Always follow all safety instructions! 1400 & 1410-A1 Mounted on either Pedestal or Counter Top bases. 1400-X1 Mounted on pedestal base only 20 13/16" 35"... - Page 7 Air & Explosion May 2017 2.2 Specifications Conitued 31 1/2" 62" 1" 6" 20 13/16" 12 1/2" 41 5/8" 32 1/2" Twin Gallon 1410-A1 No Timer 1400-X1 120V / 60Hz No Timer www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015...
-
Page 8: Assemble & Test
3. Hand tighten first, then tighten the nuts one (See Section 8.10) complete turn with a wrench. NOT FOR USE WITH 1400-X1 4. Align the openings of the rubber bumpers (F) over those on the upper plate of the 1. Attach both base castings (A) to the mixer, base (E). -
Page 9: Connect To Power
Owner’s Manual:1400 & 1410 1787021 REV D ECO 16-0082 Air & Explosion May 2017 Assembly and Test, Continued.. 5. Set the mixer on the upper plate of the base, on top of the rubber bumpers (F). 6. Secure the mixer to the base using the four 3.4 Connect to Power... -
Page 10: Test Operation
Owner’s Manual:1400 & 1410 1787021 REV D ECO 16-0082 Air & Explosion May 2017 Assembly and Test, Continued.. 3.5 Test Operation 8. If the pedestal unit walks (moves) during operation the floor may be rough or uneven. Anchor the base to the floor as follows: a. -
Page 11: Operation
• Do not use abrasives to clean machine clamp.. surfaces. Doing so may damage the 3. If mixing with only one clamp on a Model 1400, appearance of the machine. install an empty can (or a piece of 2” x 4” board) •... -
Page 12: Maintenance (Air Models)
Owner’s Manual:1400 & 1410 1787021 REV D ECO 16-0082 Air & Explosion May 2017 5.4 Maintenance (Air Models) CAUTION - ALWAYS SHUT OFF THE AIR SUPPLY LINE AND BLEED THE AIR PRESSURE FROM THE MIXER BEFORE SERVICING! 1. Drain the filter of accumulated water as often as required. -
Page 13: Troubleshooting
Mixer does not shut off when Contact Devil Equipment Faulty Limit Switch/Air Switch guards are lifted Customer Care Machine is not on a Red Devil Contact Devil Equipment Equipment Co. approved base Customer Care to order a base Mixer walking Floor is not smooth Anchor base to the floor, see section 3.5... -
Page 14: Wiring Diagram
Owner’s Manual:1400 & 1410 1787021 REV D ECO 16-0082 Air & Explosion May 2017 7. Wiring Diagrams 7.1 1400-X1 Model Wiring Diagram www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015... -
Page 15: Pneumatic Schematic
Owner’s Manual:1400 & 1410 1787021 REV D ECO 16-0082 Air & Explosion May 2017 ...Wiring Diagrams, Continued 7.3 1400 & 1410-A1 Pneumatic Schematic www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015... -
Page 16: Exploded Views
10 9782995 WASHER, FLAT, 1_2 X 1.06 OD 11 9785406 Tensioner, Pulley 12 9783951 Nut, 3_8-16 Jam Nylon Lock 13 6785060 TRANSMISSION ASSEMBLY - 1400 14 6785085 TRANSMISSION ASSY - 1410 15 9160500 belt, v 16 9785062 HINGE BRACKET, TRANS RIGHT - 14XX 17 9780402 Washer 3_8 split lock 18 9780886 SCREW HEX 3_8-16 X 1.00... -
Page 17: Transmission Assembly
Owner’s Manual:1400 & 1410 1787021 REV D ECO 16-0082 Air & Explosion May 2017 ...Exploded Views, Continued 8.2 Transmission Assembly *1410 - A1 Description Description 9786258 MACHINING, BEARING HOUSING - 14XX 10 9622800 VALVE, TIRE 6808900 ASSY, CRANKSHAFT - 54XX 11 9622600 CAP, SCHRADER VALVE, NYLON - 54XX 9124700 KEY, WOODRUFF, NO. -
Page 18: Drive System 1400 & 1410-A1
Manual:1400 & 1410 1787021 REV D ECO 16-0082 Air & Explosion May 2017 ...Exploded Views, Continued 8.3 Drive System 1400 & 1410-A1 To Air Limit Switch To Air Limit Switch Description Description 8621200 BASE WELDMENT, 54XX 16 9780732 ELBOW, HOSE, .25 MNPT X .25 BARB... -
Page 19: Air Assembly
Owner’s Manual:1400 & 1410 1787021 REV D ECO 16-0082 Air & Explosion May 2017 ...Exploded Views, Continued 8.4 Air Assembly To Plant Air To Plant Air Between 80 and 200 PSI Between 80 and 200 PSI 10 CFM Minimum 10 CFM Minimum... -
Page 20: Clamp Assembly, Left
Owner’s Manual:1400 & 1410 1787021 REV D ECO 16-0082 Air & Explosion May 2017 ...Exploded Views, Continued 8.5 Clamp Assembly, Left Description Description 9784822 CLAMP JAW, LEFT FRONT - 54XX 9140200 Key, Woodru No 404 9784821 CLAMP JAW, LEFT REAR - 54XX 9690800 SCREW, HEX 3_8-16 X 2.00... -
Page 21: Camp Assembly, Right
Owner’s Manual:1400 & 1410 1787021 REV D ECO 16-0082 Air & Explosion May 2017 ...Exploded Views, Continued 8.6 Clamp Assembly Right Description Description 9784820 CLAMP JAW, RIGHT FRONT - 54XX 9140200 Key, Woodru No 404 9784819 CLAMP JAW, RIGHT REAR - 54XX 9690800 SCREW, HEX 3_8-16 X 2.00... -
Page 22: Enclousre Assembly
9781840 Nut, Keps #8-32 9785592 SCREW, TYPE F 5_16-18 X 1.25 9781812 WELL NUT, #10-32 9781672 BUSHING - 1400 9785041 Enclosure, Air 9785073 STRIKE PLATE, CLAMP COVER - 14XX PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY Exploded Views, Continued.. -
Page 23: Clamp Cover Assembly
*1400 Models Only **1410 Models Only Description Description 9785063 HINGE TUBE WELDMENT - 1400 9785067 TENSION BLOCK, CLAMP COVER - 14XX 9785068 STUD PLATE, CLAMP COVER - 14XX 10 9785059 Screw, Truss Hd Sheet Metal #8 X .75 9785002 CLAMP COVER, LEFT 11 9784555 SCREW, HEX SEMS 1_4-20 X .75... -
Page 24: Electrical Assembly 1400-X1
9785160 MOUNT, CONDUIT CLAMP - 1400-X1 17 5784065-Switch, Limit Explosion Proof - 20A Rating 9784069 NIPPLE, 1_2 NPT X 2.50 18 9785157 MOUNT, LIMIT SWITCH - 1400-X1 9782429 union, .5 npt 19 9785158 ACTUATOR, LIMIT SWITCH - 1400-X1 9785153 CONDUIT BODY, L - .50 NPT 20 9161100 Washer, Flat 3_8 USS 9784985 NIPPLE, 1_2 NPT X 4.00... -
Page 25: Counter Base 5153-00
Owner’s Manual:1400 & 1410 1787021 REV D ECO 16-0082 Air & Explosion May 2017 ...Exploded Views, Continued 8.10 Counter Base (5153-00) ID Description ID Description 9389500 Nut, Hex 3_8-16 9190300 Foot, Rubber 9161100 Washer, Flat 3_8 USS 9190800 CARRIAGE BOLT 3_8-16 X 1.50... - Page 26 Owner’s Manual:1400 & 1410 1787021 REV D ECO 16-0082 Air & Explosion May 2017 ...Exploded Views, Continued 8.11 Pedestal Base (5151-00) ID Description ID Description 9782610 Top Plate, Pedestal Base 9161100 Washer, Flat 3_8 USS 9324700 Foot, Suction Cup 9327500 Rubber feet...
-
Page 27: Ordering
Owner’s Manual:1400 & 1410 1787021 REV D ECO 16-0082 Air & Explosion May 2017 9. Ordering Replacment Parts HOW TO ORDER REPLACEMENT PARTS Replacement parts can be ordered from Radia by telephone, fax, or email: RADIA 800-221-1083 763-533-2969 763-533-0015 (FAX) orders@radiaproducts.com... -
Page 28: Warranty
May 2017 10. Warranty Equipment Covered Under This Warranty Models 1400 and 1410-A1, 1400-X1 Radia warrants equipment manufactured by it and bearing its name to be free from defects in material and workmanship. EXCEPT FOR THE WARRANTY SET FORTH HEREIN, RADIA MAKES NO WARRANTY WHATSOEVER WITH RESPECT TO THE EQUIPMENT, INCLUDING ANY (a) WARRANTY OF MERCHANTABILITY;... -
Page 29: Notes
Owner’s Manual:1400 & 1410 1787021 REV D ECO 16-0082 Air & Explosion May 2017 11. Notes www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015... - Page 30 Owner’s Manual:1400 & 1410 1787021 REV D ECO 16-0082 Air & Explosion May 2017 www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015...
- Page 31 Owner’s Manual:1400 & 1410 1787021 REV D ECO 16-0082 Air & Explosion May 2017 www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015...
- Page 32 1787021 REV D Owner’s Manual:1400 & 1410 ECO 16-0082 May 2017 For sales or service, please contact RADIA Attn: Customer Service Department 14900 21st Ave N Plymouth, Mn 55447 U.S. Telephone: 800.221.1083 International Telephone: 763.533.2969 Fax: 763.533.0015 E-mail: info@radiaproducts.com www.radiaproducts.com For instructional "How To"...
