Instruction Manual
GX600D VHF DSC Marine Radio
Supplied with:
GX600D radio
Mounting bracket
Gimbal Knobs
Microphone
Microphone clip
DC lead
Screw pack
Instruction manual
Advertisement
Related Manuals for GME GX600D
Summary of Contents for GME GX600D

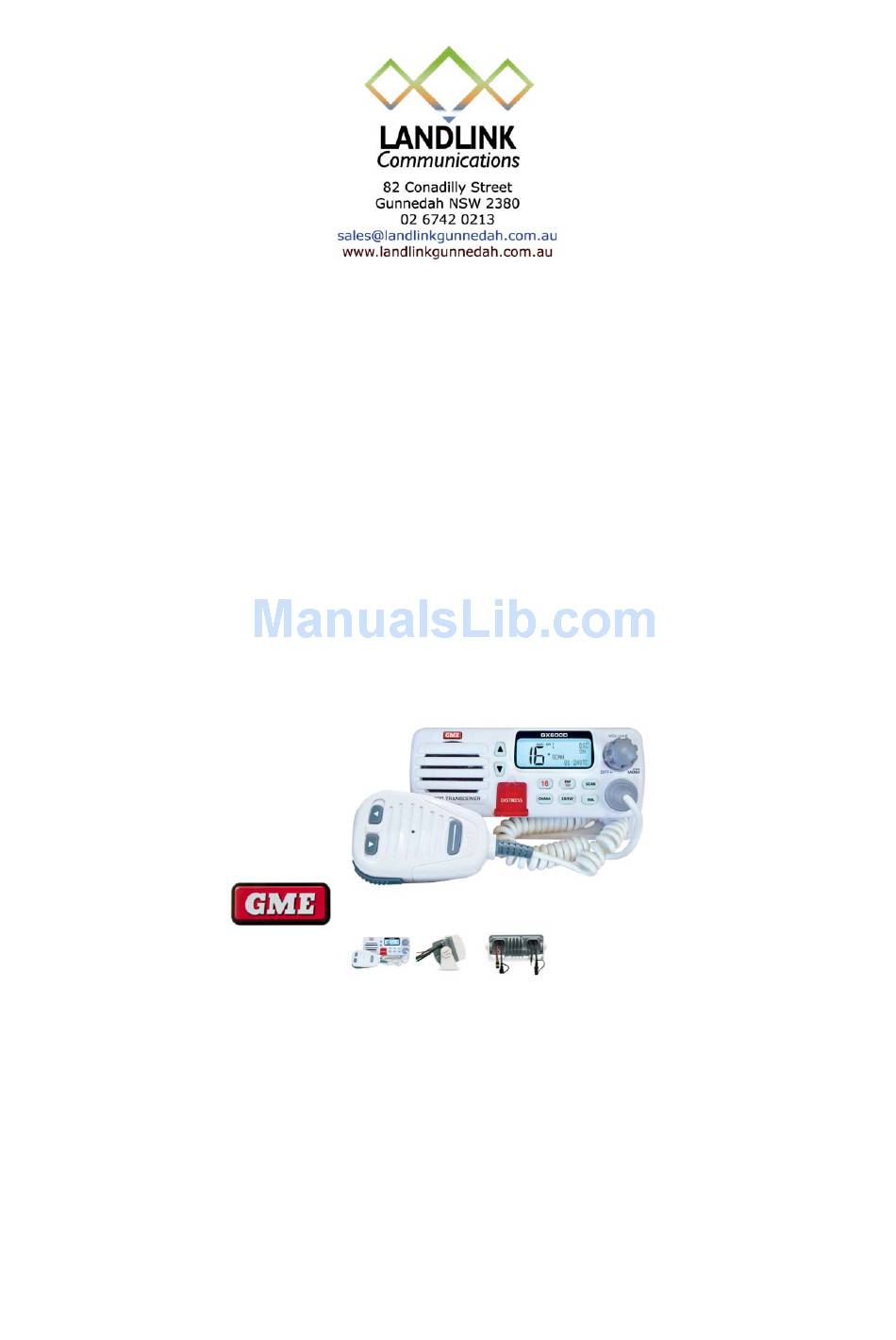

- Page 1 GX600D VHF DSC Marine Radio Supplied with: GX600D radio Mounting bracket Gimbal Knobs Microphone Microphone clip DC lead Screw pack Instruction manual...
- Page 2 GX600D VHF DSC Marine Radio Flexibility has been the focus in the design of the GX600D, with its impressive compact size, IP67 rating, colour choice and range of mounting options which set the GX600D apart from other DSC radios. In many areas of the world, Europe and the USA in particular, all fixed mount VHF radios now are required to include a basic DSC capability.
- Page 3 Compliance AS/NZS4415.1.2003 Frequency Range 155 - 165 MHz Channel Spacing 25 kHz Modulation Channel Sets International/USA/Canada Private - 20 channels USA weather channels Supply Voltage 12 Volt nominal 10.5 - 15.6 Volt max. range Negative Earth Frequency Stability ±1.5 kHz over environment extremes Scan Speed 100 ms/channel (10 channels/sec) TRANSMITTER...
- Page 4 Power Output High: 25 Watts max. Low: 1 Watt max. Spurious Emissions <-75 dBc Frequency Deviation ± 5 kHz max. + 20 dB limiting @1 kHz Frequency Response + 6 dB per octave; 300 Hz - 3 kHz; +1 - 3 dB Demodulated S/N >50 dB weighted Current Consumption...
- Page 5 Spurious Rejection >75 dB Intermodulation Rejection >73 dB Adjacent Channel Rejection >75 dB Blocking Rejection >100 dB RF Bandwidth <4 MHz Switching Bandwidth >10 MHz Frequency Response -6 dB per octave de-emphasis; 300 Hz - 3 kHz; +1 - 3 dB Audio Output Power 4 Watts average into external 4 Ohm speaker 2 Watts average into internal speaker...
-
Page 6: Dcs Receiver
DCS RECEIVER IF Frequencies 1st: 38.85 MHz 2nd: 455 kHz (Note: all DSC limits are for 10e-2 BER) Sensitivity -120 dBm Spurious Rejection >75 dB Intermodulation Rejection >73 dB Adjacent Channel Rejection >75 dB Blocking Rejection >100 dB MECHANICAL Dimensions 164 (W) x 65 (H) x 77 (D) mm Flush Mounting Depth 45 mm min. -
Page 7: External Connections
ENVIRONMENTAL Temperature Range -10˚C to +55˚C Vibration MIL STD 810E; procedure I 3.4.8 Solar Radiation Case UV stabilised Water and Dust Resistance IP67 excluding external cabling Compass Safe Distance 300 mm EXTERNAL CONNECTIONS Microphone 6 pin socket DC Supply 2 pin blade socket External Speaker 3.5 mm phono line socket Remote Head... - Page 8 ...
