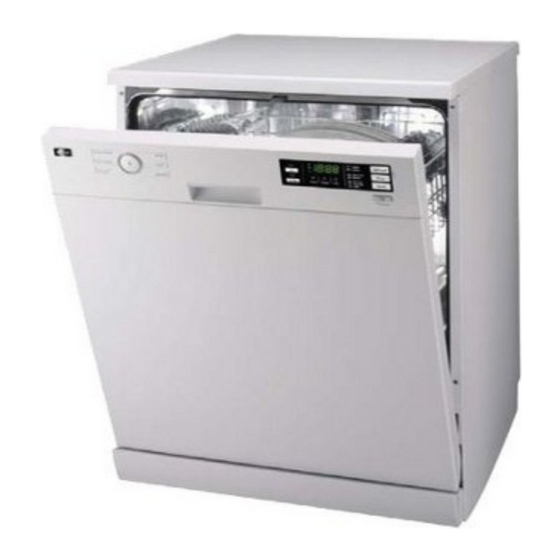

- Page 1 DISHWASHER OWNER'S MANUAL MODEL : LD-4324W(S,M,L,T,B,D,A)H LD-4324W(S,M,L,T,B,D,A)HB LD-4324W(S,M,L,T,B,D,A)HU Please read this manual carefully before operating your dishwasher. Retain it for future reference.
-
Page 2: Table Of Contents
ONTENTS SAFETY AND CAUTION INSTALLATION INSTRUCTIONS PARTS NAME FUNCTION OF CONTROL BUTTON BEFORE USING FOR THE FIRST TIME HOW TO USE AND OPERATE OPERATING SEQUENCE PROGRAM USER MAINTENANCE INSTRUCTIONS TROUBLE SHOOTING GUIDE SPECIFICATION... -
Page 3: Safety And Caution
AFETY AND CAUTION IMPORTANT SAFETY INSTRUCTIONS WARNING - When using your dishwasher, follow basic precautions, including the following: • Please read this manual carefully before using ■ During use the dishwasher for the first time. • Only suitable household utensils should be •... - Page 4 AFETY AND CAUTION concerning the Power Cord CAUTION Most appliances recommend they be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain. Do not overload wall outlets.
-
Page 5: Installation Instructions
NSTALLATION INSTRUCTIONS WARNING A qualified electrician/plumber or competent person should carry out any electrical/plumbing work required to install this appliance. Step 1 : Step 2 : PREPARE CUPBOARD OPENING PREPARATION FOR ELECTICAL WIRING CAUTION This dishwasher is designed to fit the size shown as below. - Page 6 NSTALLATION INSTRUCTIONS Step 3 : Step 4 : PREPARING THE DISHWASHER INSTALLING THE FOR INSTALLATION DISHWASHER IN CUPBOARD Lay the dishwasher on its back. Before sliding the dishwasher into the cupboard opening, all necessary height Adjust the legs to the required height and balancing adjustments should be as shown in below figure.
- Page 7 NSTALLATION INSTRUCTIONS Step 5 : ■ When the drain hose is connected to a separate standpipe, it is essential that an DRAIN LINE CONNECTION airtight connection be made. Refer to Fig.B If the end of drain hose does not fit to the drain line, use a rubber connector(not supplied) that is resistant to heat and detergent.
- Page 8 NSTALLATION INSTRUCTIONS Step 8 : Step 6 : HOW TO LEVEL THE DISHWASHER WATER SUPPLY CONNECTION Connect the water supply hose to the After installing the dishwasher, you may water tap as shown.(Some models notice a slight sticking of the door to the consist of an inlet valve and hose.) dishwasher, when you open or close the door.
-
Page 9: Parts Name
ARTS NAME 1. Control Panel 11. Upper Rack 2. Door Handle 12. Cutlery Basket 3. Front Cover 13. Detergent And Rinse Aid Dispenser 4. Lower Cover 14. Vapor Vent Cover 5. Display Window 15. Upper Spray Arm 6. Power Button 16. -
Page 10: Function Of Control Button
UNCTION OF CONTROL BUTTON ① ① Program ① ① Program • When you want to select program, press this button. ② ② UV • If you want to sterilize the dishes, press UV button. • After drying cycle, sterilizer will be performed by UV lamp. ③... - Page 11 ② ② UV ③ ③ Indicator ④ ④ Time Left ⑤ ⑤ Beep On/Off ⑥ ⑥ Rinse ⑦ ⑦ Half Load ⑪ ⑪ Delay Start ⑩ ⑩ Spray ⑨ ⑨ Power ⑧ ⑧ Child Lock ⑥ ⑥ Rinse • Repeated pressing of the Rinse button will select Extra Hot, Rinse+, Extra Hot & Rinse+. •...
-
Page 12: Before Using For The First Time
EFORE USING FOR THE FIRST TIME TOTAL HARDNESS TEST <Hardness test strip> Procedure Hardness range Water Immerse all reaction zones of the test strip in mmol/l mg/l quality ° ° ° the measurement sample for approx. 1 sec (Ca+Mg) (not in running water!). Ⅰ... - Page 13 EFORE USING FOR THE FIRST TIME 2. Salt Filling This model has a water softener to soften hard water. Please read these notes carefully for correct operation. In order to provide satisfactory rinsing results, the dishwasher requires soft water, i.e., containing little or no lime, otherwise water stains will be left behind on the dishes and interior containers.
-
Page 14: How To Use And Operate
OW TO USE AND OPERATE 1. Loading your Dishwasher � Loading examples (Energy test) For better washing performance, always load the dishwasher according to the instructions. Before loading items into the dishwasher clean off large particles of food, in particular insoluble items such as bones, pips, etc. - Page 15 OW TO USE AND OPERATE � Loading examples (Energy test) � How to use Fold-down dividers at the upper rack can be lowered to improve stacking of dishes. � Loading examples (Energy test) Bowl(L) Bowl(M) WARNING Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a Bowl(S) Saucers Cups...
- Page 16 OW TO USE AND OPERATE 5. Adjusting the Upper Rack 6. Adding Detergent Your upper rack can be raised or lowered to • Detergent must be put into the detergent chamber before starting every program except cater for different sized crockery. Before the Pre Wash.
- Page 17 OW TO USE AND OPERATE 7. Refilling Push latch to open � For refilling Rinse Aid Depending on the dosage setting and the number of washes, the chamber may need to be topped up, approximately once a month. The rinse aid level can be checked by two methods.
- Page 18 OW TO USE AND OPERATE 8. Drying ■ For refilling Salt When the salt container is empty, the salt refill To assist drying, we recommend that the lamp will automatically turn on during door be fully opened after the cycle. operation.
-
Page 19: Operating Sequence
PERATING SEQUENCE Press the “Power” button Before starting, the display window shows the running time of the selected program. After starting, the display window shows Check there is rinse aid the remaining time. and salt The time in the display window will start to decrease minute by minute. -
Page 20: Program
ROGRAM ▶Running time may vary according to the water temperature, water pressure and voltage. ▶Running time doesn’t include “Cool Dry - 60min”. WASH RINSE COOL Program Heating Pre Wash Main Wash Rinse 1 Rinse 2 Rinse 3 Rinse 40℃ ℃ 60℃... -
Page 21: User Maintenance Instructions
SER MAINTENANCE INSTRUCTIONS To prevent trouble and poor operating, it is important to check filters and spray arms at regular intervals. Filters Lower Spray Arm • Remove the lower rack first. • Check that the water jet holes are not blocked. -
Page 22: Trouble Shooting Guide
ROUBLE SHOOTING GUIDE If a problem occurs check below to see whether this can be solved. In the unlikely event that the problem cannot be rectified, please contact a service engineer. Problem Possible Causes Solution • Plug is not properly inserted into the socket. - Page 23 ROUBLE SHOOTING GUIDE Problem Possible Causes Solution • Straighten hose(s). • The drain hose is kinked. The display shows "OE" • Clean the filter. • The filter is clogged. code. (Water is not • If you can not solve • Motor trouble. pumped away.) the problem, call for (Washing motor or Drain motor)
- Page 24 LD-4324W(S,M,L,T,B,D,A)H LD-4324W(S,M,L,T,B,D,A)HB 600mm 598mm 600mm 567mm 850mm 819mm LD-4324W(S,M,L,T,B,D,A)HU 598mm 567mm Capacity 14 Place settings 819mm Weight See rating label Power Supply See rating label Power Consumption See rating label Water Feed Pressure 50 ~ 800 kPa P/No.: MFL30149784...
