Notice!
For proper spacing, the antennas should be placed at either corner of the enclosure.

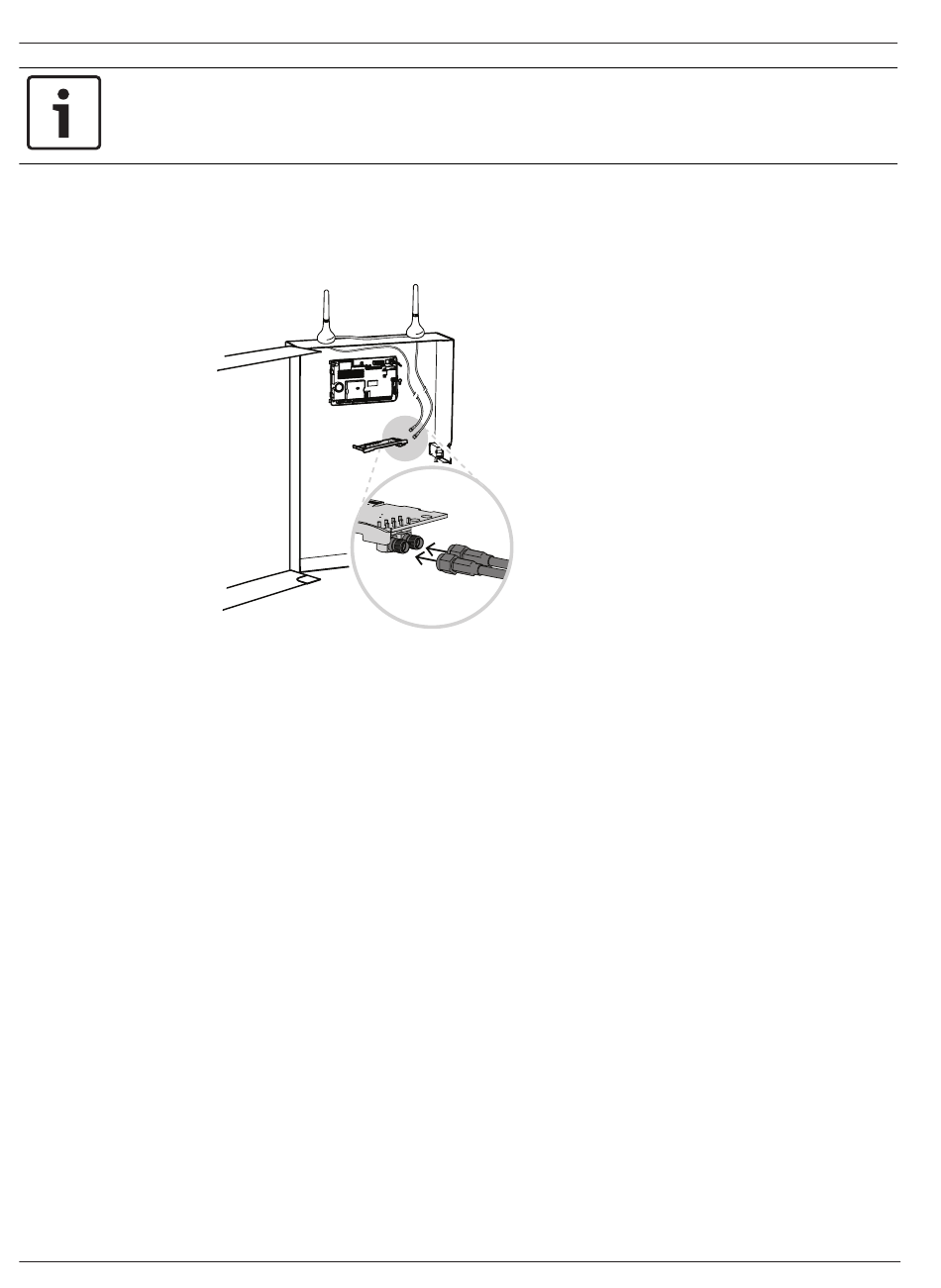

Figure 3.4: B444-A/B444-V cable connection
3.3
Install the communicator
Control panel/universal dual path communicator installation
1.
2.
3.
2020.02 | 04 | F.01U.345.070
Put the support leg into the support hole labeled X. Refer to Figure 3.3.
Align the PCB metal contacts with the on-board connector.
Push the module into place. The retention clip snaps closed and secures the module in
place.
