ASSEMBLY RATING
The Assembly Rating is a 5-point system that
shows the degree of effort needed in
assembling a specific product (with 1 being
easy and 5 being difficult). For some
products, two persons are recommended.
EASY

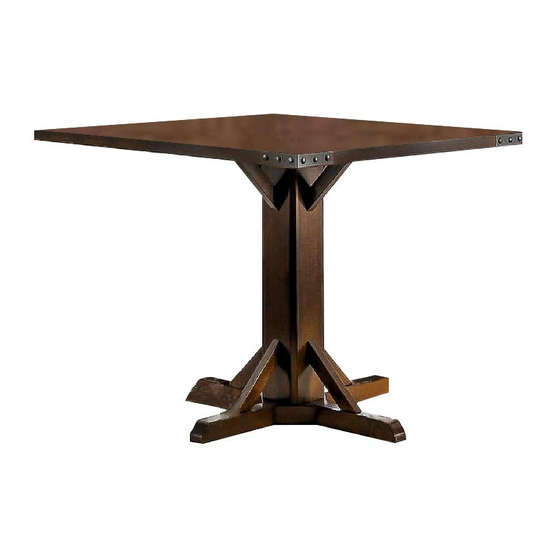

Assembly Instructions
For more information contact our team: service.ec@foagroup.com
CM3018PT
DIFFICULT
Tools Required For Assembly:
Allen Wrench
Wrench
Phillips Screwdriver
2 PERSONS RECOMMENDED
Page 1 of 6
(Included)
(Included)
(Not Included)
Rev: 16-12-14
Advertisement
Table of Contents
Related Manuals for Furniture of America CM3018PT
Summary of Contents for Furniture of America CM3018PT
- Page 1 Assembly Instructions For more information contact our team: service.ec@foagroup.com CM3018PT ASSEMBLY RATING Tools Required For Assembly: The Assembly Rating is a 5-point system that Allen Wrench shows the degree of effort needed in (Included) assembling a specific product (with 1 being Wrench easy and 5 being difficult).
- Page 2 LOOSEN OVER TIME AND MAY CAUSE THE FURNITURE TO BE WOBBLY AND UNABLE TO SUPPORT ITS INTENDED WEIGHT CAPACITY. THIS MAY LEAD TO COLLAPSE AND MAY CAUSE SERIOUS INJURY. FAILURE TO FOLLOW THE GUIDELINES ABOVE MAY RESULT IN INJURY AND/OR PROPERTY DAMAGE. FURNITURE OF AMERICA.ALL RIGHTS RESERVED. Page 2 of 6...
- Page 3 Before you begin, please read Page 2 of "Assembly and Care Advice". And remember, do not tighten until each step is completed or instructed. #1 x 1pc #A x 4pcs Table Top Bolt Ø5/16" x 2-1/2" #2 x 1pc #B x 4pcs Lower Panel Bolt Ø1/4"...
- Page 4 Insert 2 wood dowels (#J) to each side of support rails (#3). Do this 8 times. #J x 2pcs Insert the support rails (#3) to the holes of the post (#4). Secure threaded bolts by inserting flat washer (#F), then lock washer (#E) onto threaded bolts. Secure with hex nut (#H). #E x 4pcs #F x 4pcs #H x 4pcs...
- Page 5 #A x 4pcs #B x 4pcs #I x 4pcs Align base (#5) to the wood dowels of the support rails (#3). Secure with bolts (#B). Attach leveler (#I) to the base (#5). Insert the support rails (#3) to the holes of the post (#4). Secure threaded bolts by inserting flat washer (#F), then lock washer (#E) onto threaded bolts.
- Page 6 Align lower panel (#2) to the wood dowels of the support rails (#3). Secure outer holes with short bolt (#D) and inner holes with bolts (#C). #C x 4pcs #D x 4pcs Align the post (#4) to the holes of the table top (#1). Secure with short bolts (#D). #D x 8pcs Page 6 of 6...
