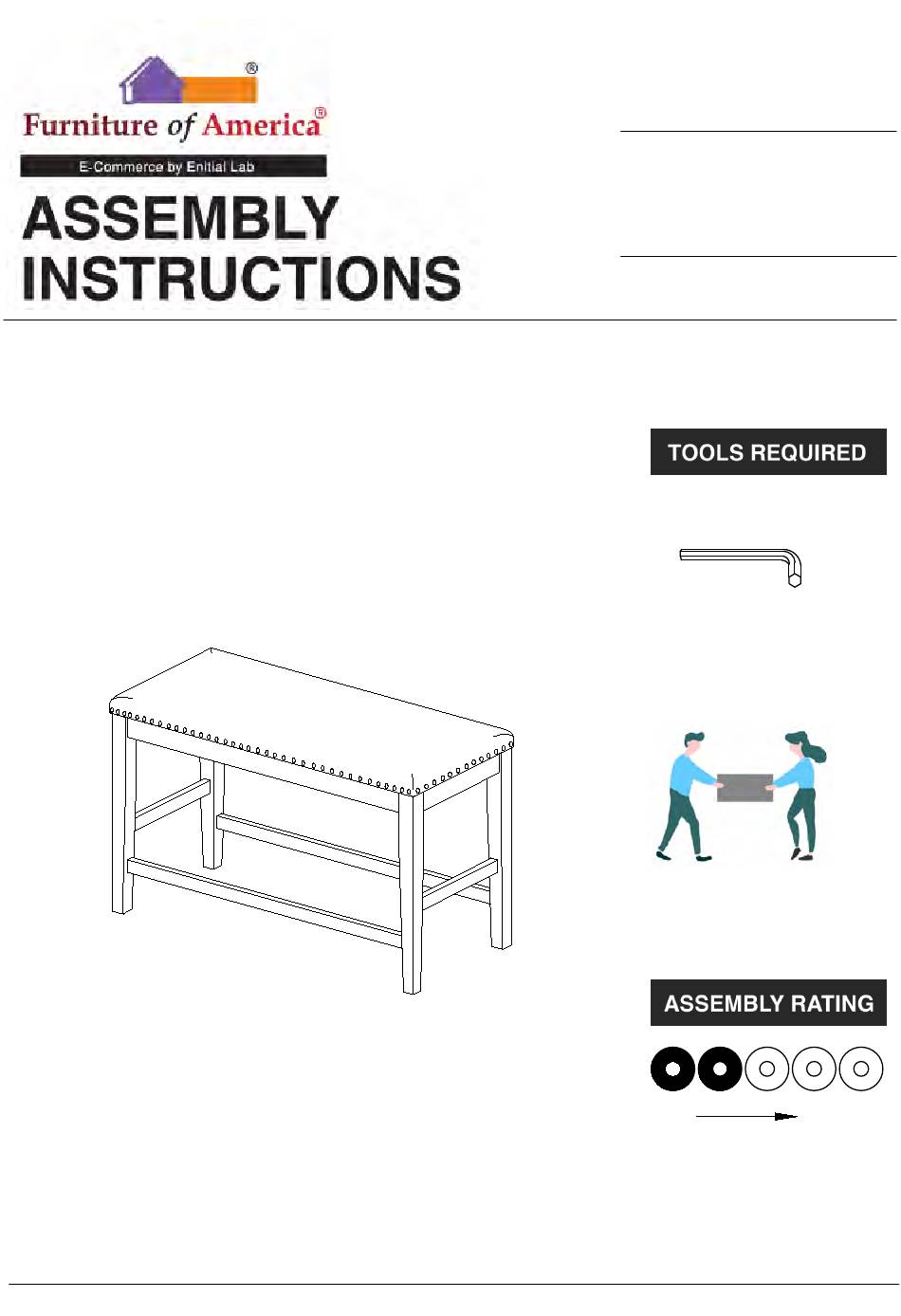

- Page 1 MODEL # CM3061PBN Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) 2 - Pe ople Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product. VERSION # 20-09-08 1 / 7...
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 7...
- Page 5 BENCH CM3061PBN #1 1pc #2 4pcs #3 2pcs #4 2pcs Seat Leg (L/R) Long Stretcher Short Stretcher #A 8pcs #B 8pcs #C 8pcs #D 1pc Flat Washer Allen Wrench M4 Lock Washer Bolt Ø5/16" x 2-3/8" Ø5/16" Ø5/16" #E 8pcs Screw #8 x 38mm 5 / 7...
- Page 6 Exploded View 6 / 7...
- Page 7 ASSEMBLY INSTRUCTIONS Part #1 x1pc Part #2 x4pcs Part #3 x2pcs Part #4 x2pcs Hardware #A x8pcs Hardware #B x8pcs Hardware #C x8pcs Align legs (#2R/L) to the bench as shown in the diagram, then secure by using bolts (#A) with washers (#B,C). Do not fully tighten bolts (#A) on each legs.
