VERSION # 20- 09-08
1 / 9
MODEL #
CM3061T
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM3061T
Summary of Contents for Furniture of America CM3061T

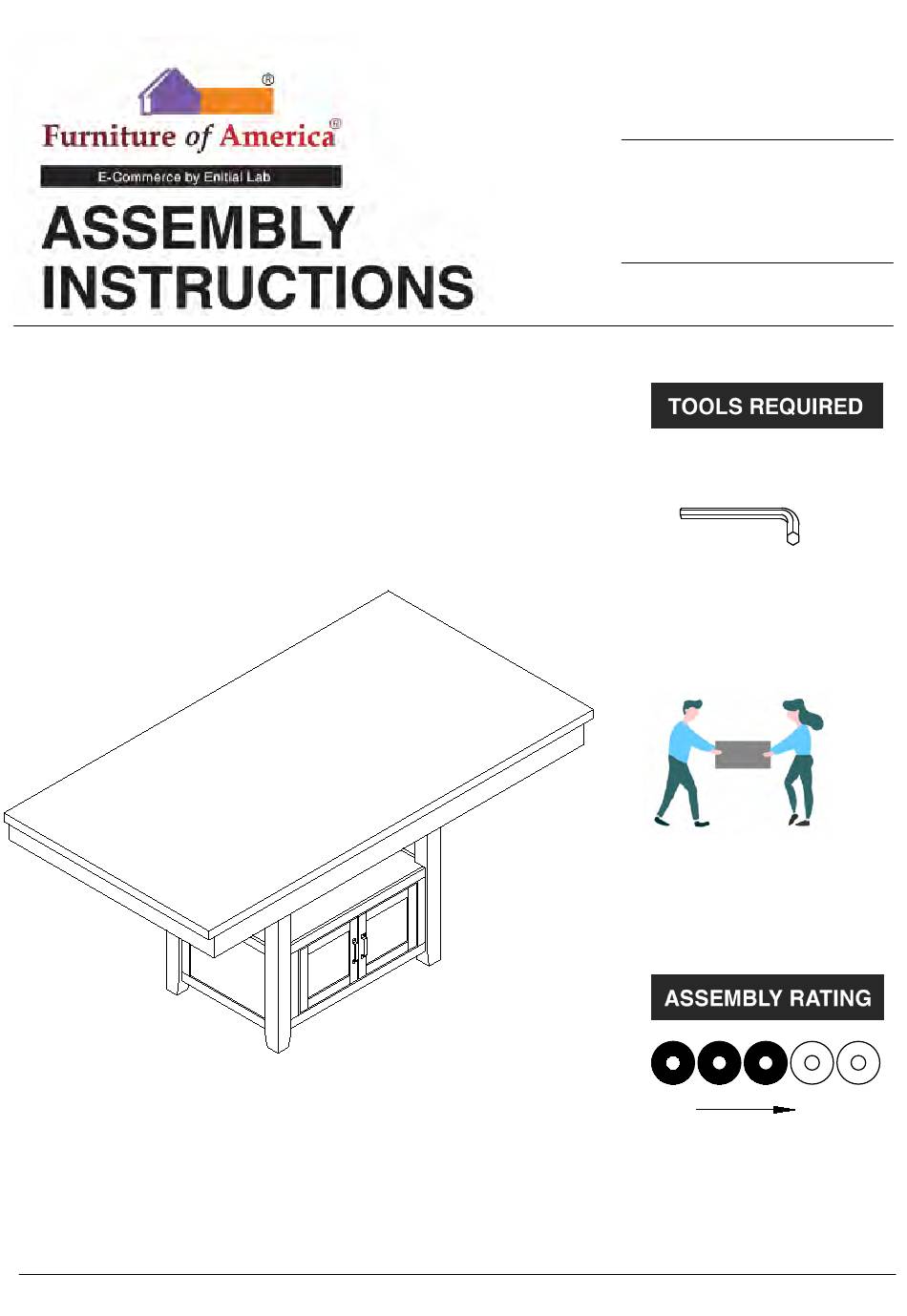

- Page 1 MODEL # CM3061T Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 9...
- Page 5 DINING TABLE CM3061T #1 1pc #2 1pc #3 1pc #4 2pcs Table Top Table Leg (L/R) Top Panel Bottom Panel #5 2pcs #6 1pc #7 2pcs Door (L/R) Back Panel Mounting Plate #A 12pcs #B 16pcs #C 12pcs #D 12pcs Flat Washer Bolt Ø5/16"...
- Page 6 #I 4pcs Bolt Ø5/32"x12mm Exploded View 6 / 9...
- Page 7 ASSEMBLY INSTRUCTIONS 1) Align top panel (#2) to the table legs (#4R/L), then secure by using bolts (#B) with washers #E #F (#E,F). Part #2 x1pc Part #4 x2pcs Part #6 x1pc Hardware #B x8pcs Hardware #E x8pcs Hardware #F x8pcs 2) Align back panel (#6) to the table legs (#4R/L), then secure by using bolts (#B) with washers (#E,F).
- Page 8 ASSEMBLY INSTRUCTIONS Align bottom panel (#3) to the legs (#4R/L), then secure by using bolts (#B) with washers (#E,F). Part #3 x1pc Hardware #B x4pcs Hardware #E x4pcs Hardware #F x4pcs Align mounting plates (#7) to table legs (#4R/L), then secure by using bolts (#A) with washers (#C,D).
- Page 9 ASSEMBLY INSTRUCTIONS Align mounting plates (#7) to table top (#1), then secure by using bolts (#A) with washers (#C,D). Hardware #A x8pcs Hardware #C x8pcs Hardware #D x8pcs Hardware #H x2pcs Hardware #I x4pcs Secure handles (#H) to the doors (#5R/L) by using screws (#I).
