Brizo RSVP 65890LF-ECO LHP Series Manual

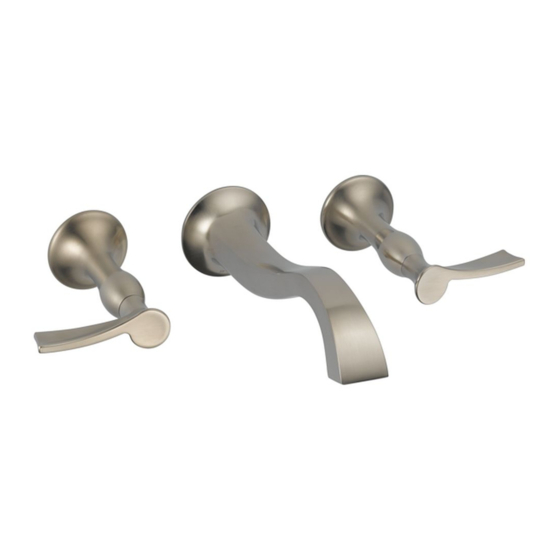

Two handle wall mounted lavatory faucets
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
Models/Modelos/Modèles
65890LFpLHP
65890LF-ECOpLHP
Series/Series/Seria
RSVP
®
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
You may need / Usted puede necesitar / Articles dont vous pouvez avoir besoin:
For easy installation of your
Brizo
®
faucet you will need:
• To READ ALL the instructions completely
before beginning.
• To READ ALL warnings, care, and maintenance
information.
• To purchase the correct water supply hook-up.
Para instalación fácil de su llave
Brizo
®
usted necesitará:
• LEER TODAS las instrucciones completamente
antes de empezar.
• LEER TODOS los avisos, cuidados, e
información de mantenimiento.
• Comprar las conexiones correctas para el
suministro de agua.
Pour installer votre robinet
Brizo
facilement, vous devez:
®
• LIRE TOUTES les instructions avant
de débuter;
• LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien;
• Acheter le bon nécessaire de raccordement.
www.brizo.com
62893

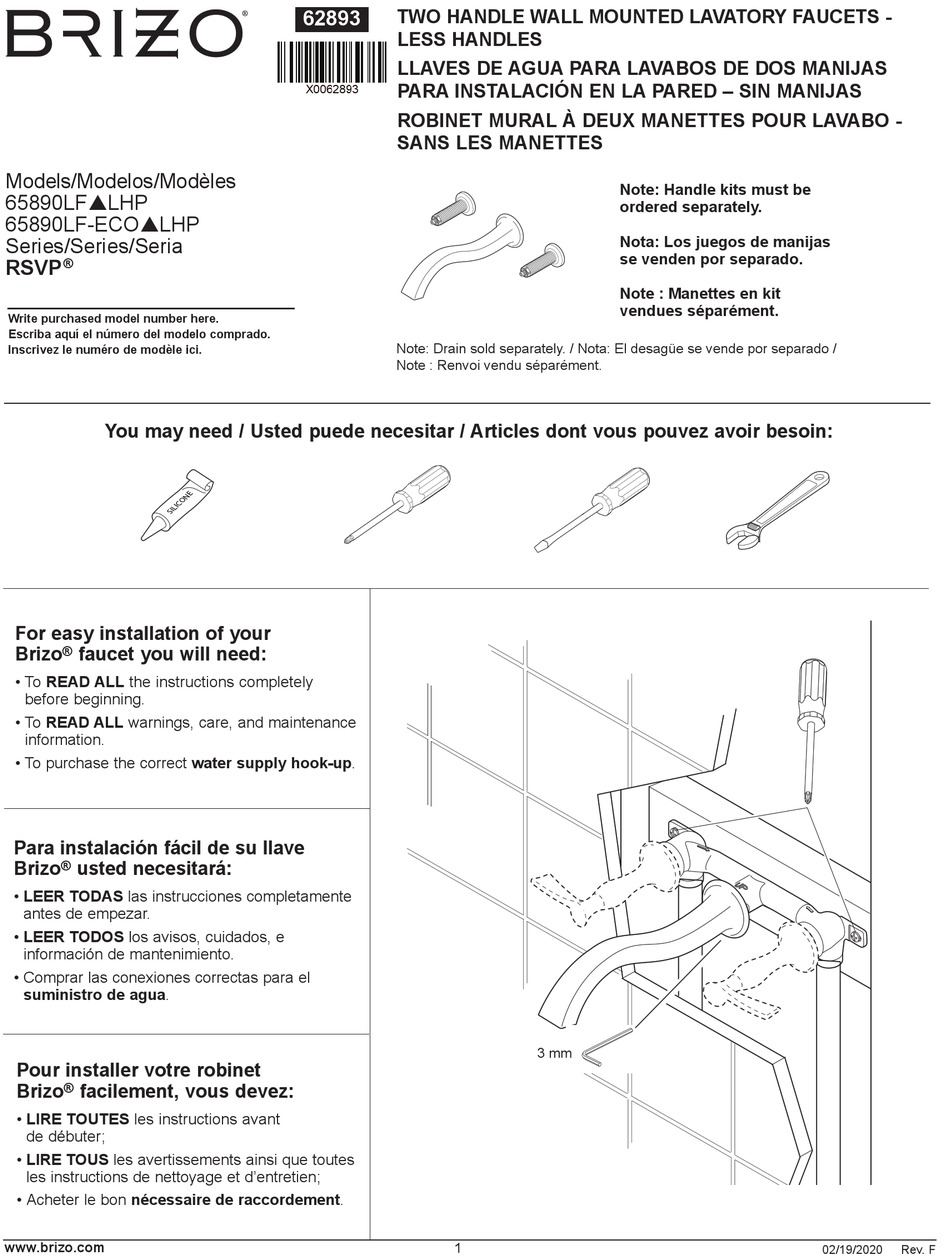

TWO HANDLE WALL MOUNTED LAVATORY FAUCETS -
LESS HANDLES
LLAVES DE AGUA PARA LAVABOS DE DOS MANIJAS
PARA INSTALACIÓN EN LA PARED – SIN MANIJAS
ROBINET MURAL À DEUX MANETTES POUR LAVABO -
SANS LES MANETTES
Note: Drain sold separately. / Nota: El desagüe se vende por separado /
Note : Renvoi vendu séparément.
1
Note: Handle kits must be
ordered separately.
Nota: Los juegos de manijas
se venden por separado.
Note : Manettes en kit
vendues séparément.
3 mm
02/19/2020
Rev. F

Advertisement

loading

Related Manuals for Brizo RSVP 65890LF-ECO LHP Series

Summary of Contents for Brizo RSVP 65890LF-ECO LHP Series

  • Page 1 Inscrivez le numéro de modèle ici. Note : Renvoi vendu séparément. You may need / Usted puede necesitar / Articles dont vous pouvez avoir besoin: For easy installation of your Brizo ® faucet you will need: • To READ ALL the instructions completely before beginning.

  • Page 2: Faucet Installation

    Min. 11 1/2" Min. 11 1/2 po 2 1/8" - 3 1/2" Min. 3" 2 1/8 po - 3 1/2 po Min. 3 po MAKE CONNECTIONS TO WATER LINES FAUCET INSTALLATION Install 1⁄2" hot and cold supply piping (1) to the valve body. Construct a suitable stud brace for mounting of the valve body.
  • Page 3 4" (100 mm) 1 1/2" (38 mm) Diameter COMPLETE WALL FINISH MOUNTING SPOUT ADAPTER Complete finish wall with 1 1⁄2" diameter holes for handle and spout Remove plaster guard (1) and foam spacer (2) from threaded center shanks. Space hole centers 4" (100 mm) apart. NOTE: To ensure proper stud on valve body.
  • Page 4 3 mm NOTE: If handles do not align to your satisfaction, unscrew one or both handles and MOUNTING HANDLES AND SPOUT body assemblies until handle disengages from stem. Rotate handle one spline up o NOTE: HANDLE KITS SOLD SEPARATELY. down and screw assembly onto threaded stud until it contacts wall surface. If handle alignment is still not satisfactory, remove one or both handle and body assemblies Remove plaster guard (1) and foam spacers (2) from threaded studs on hot and from the valve body.
  • Page 5 FLUSH YOUR SYSTEM Remove aerator (1) using plastic wrench (2) provided with your faucet. NOTE: You may need to turn on cold water slightly to help push out aer- ator. Turn both faucet handles (3) to full open position. Turn on hot and cold supplies (if not already open) and flush water lines for one minute.
  • Page 6 MAINTENANCE – VALVES MAINTENANCE – SPOUT SHUT OFF WATER SUPPLIES BEFORE SERVICING VALVE OR SHUT OFF WATER SUPPLIES BEFORE SERVICING VALVE OR SPOUT ASSEMBLIES SPOUT ASSEMBLIES If your faucet leaks out of spout or around handle body, replace valve cartridge (1). If your faucet leaks at the back of the spout, replace two o-rings (1) on spout adapter (2).

  • Page 7: Cleaning And Care

    CLEANING AND CARE Care should be given to the cleaning of this product. Although its finish is extremely durable, it can be damaged by harsh abrasives or polish. To clean, simply wipe gently with a damp cloth and blot dry with a soft towel. LIMPIEZA Y CUIDADO DE SU LLAVE Tenga cuidado al ir a limpiar este producto.
  • Page 8 BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, BREACH OF CONTRACT, TORT, OR OTHERWISE. by this warranty. Brizo Kitchen & Bath Company shall not be liable for any damage to the product resulting from BRIZO KITCHEN & BATH COMPANY SHALL NOT BE LIABLE FOR ANY DAMAGE TO THE FAUCET RE-...
