Models/Modelos/Modèles
65335LF-▲LHP, 65335LF-▲LHP-ECO
65337LF-▲LHP, 65337LF-▲LHP-ECO
Series/Series/Seria
Litze™
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
▲Specify Finish / Especifíque el Acabado / Précisez le Fini
Date of Purchase: ____________________
Fecha de compra
Date d'achat
Register Online
Regístrese en línea
S'enregistrer en ligne
www.brizo.com/customer-support/product-registration
To reference replacement parts and access additional
technical documents and product info, visit www.brizo.com
Para referencia sobre las piezas de repuesto y acceder
a documentos técnicos adicionales e información del
producto, visite www.brizo.com
Pour obtenir la référence des pièces de rechange ainsi
que pour avoir accès à d'autres documents techniques et
renseignements sur le produit, allez à www.brizo.com
?
1-877-345-BRIZO (2749)
www.brizo.com/customer-support
Read all instructions prior to installation.
CAUTION
!
Failure to read these instructions prior to installation may result in personal
injury, property damage, or product failure. Manufacturer assumes no
responsibility for product failure due to improper installation.
Lea todas las instrucciones antes de hacer la instalación.
ADVERTENCIA
!
El no leer estas instrucciones de instalación puede resultar en lesiones
personales, daños a la propiedad, o falla en el funcionamiento del producto.
El fabricante no asume ninguna responsabilidad por la falla del producto
debido a una instalación incorrecta.
Veuillez lire toutes les instructions avant l'installation.
AVERTISSEMENT
!
L'omission de lire les présentes instructions avant l'installation peut
entraîner des blessures, des dommages matériels ou le bris du produit. Le
fabricant se dégage de toute responsabilité à l'égard d'un bris du produit
causé par une mauvaise installation.
You may need:
Usted puede necesitar:
Articles dont vous pouvez avoir besoin :
04/01/2022

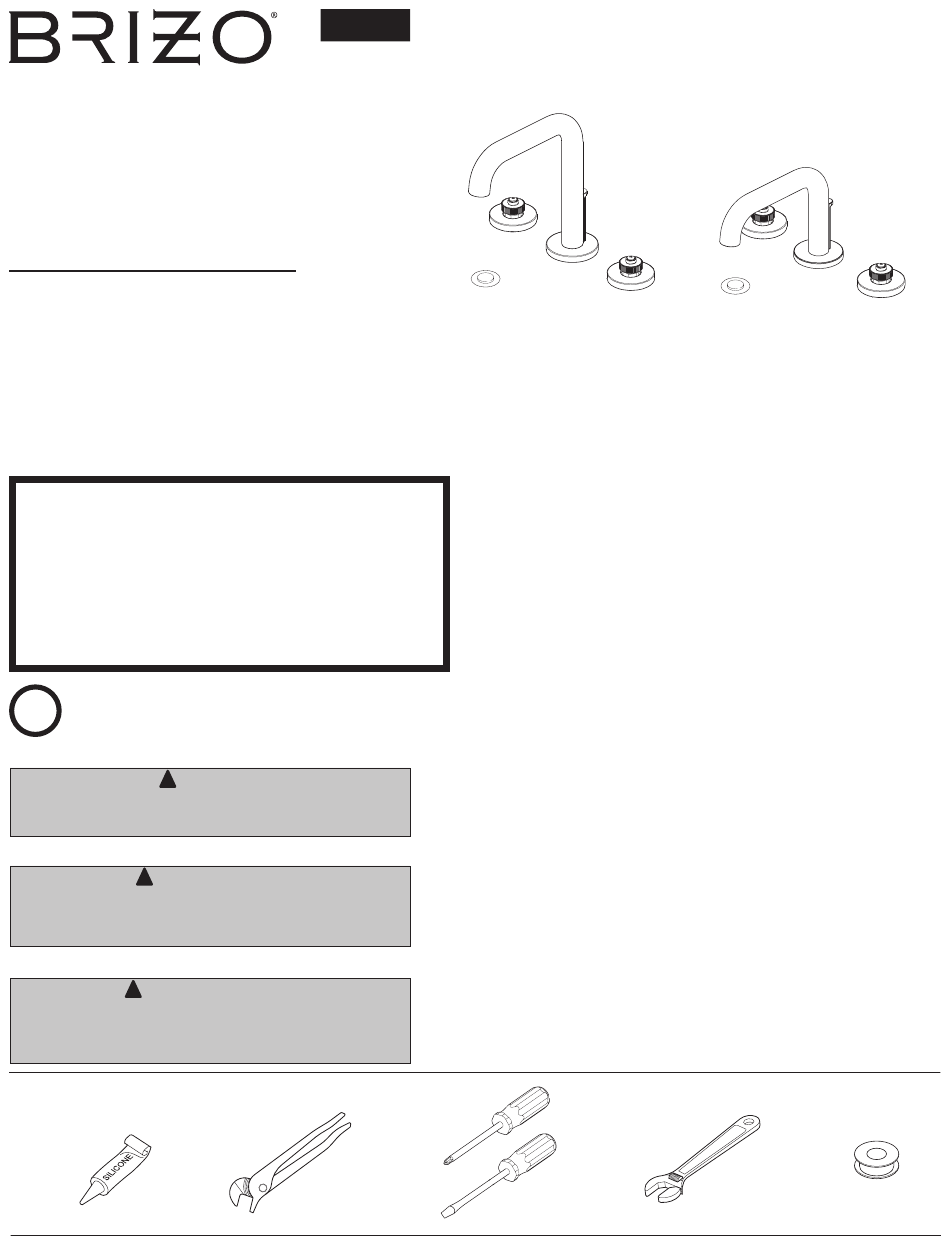

TWO HANDLE WIDESPREAD BATHROOM FAUCET
100195
DOS MANILLARES ANCHO GRIFO DE BAÑO
ROBINET DE SALLE DE BAINS À DEUX POIGNÉES
65335LF-▲LHP
65335LF-▲LHP-ECO
1
65337LF-▲LHP
65337LF-▲LHP-ECO
100195 Rev. C
Advertisement
Table of Contents
Related Manuals for Brizo Litze 65337LF LHP Series
Summary of Contents for Brizo Litze 65337LF LHP Series
- Page 1 Regístrese en línea S’enregistrer en ligne www.brizo.com/customer-support/product-registration To reference replacement parts and access additional technical documents and product info, visit www.brizo.com Para referencia sobre las piezas de repuesto y acceder a documentos técnicos adicionales e información del producto, visite www.brizo.com Pour obtenir la référence des pièces de rechange ainsi...
- Page 2 1 1/8" (29 mm) Diameter Min. INSTALLATION OF SPOUT INSTALLATION OF VALVE ASSEMBLIES & TRIM Note: When drilling holes for supply valves, it is recommended that hole size must be a Note: When drilling mounting holes for the spout it is recommended that minimum of 1 1/8"...
- Page 3 NOTE: Handles sold separately. Place spline adapters (1) over valve stems (2) and secure with screws (3). Make sure valve cartridge is in off position. Place glide ring (1) into the groove in the bottom of handle (2). Place handle over end valve spline (3) and onto escutcheon.
- Page 4 1/2" (12.7 mm) IPS MAKE CONNECTIONS TO WATER LINES: Connect flexible outlet hoses (1) to valve outlet and spout inlet ports as shown. Tighten nuts firmly with a wrench, but do not over tighten. Choose hook-ups for 1/2" I.P.S. connections: (1) Ball nose riser (3/8"...
- Page 5 Step 3e Pop-up Drain Installation and stopper (3) as removable (4) or non- Apply silicone to underside of flange (1). Insert removable (5). Hand tighten pivot nut (1). body (2) into sink. Screw flange (1) into body Remove stopper (1) and flange (2). (2).
-
Page 6: Maintenance
Maintenance SHUT OFF WATER SUPPLIES BEFORE SERVICING FAUCET. If your faucet leaks out of spout outlet or around handle body, replace valve cartridge (1). A. Pull up on handle (2) to remove. NOTE: It is best if you pull straight up on the handle. B. -
