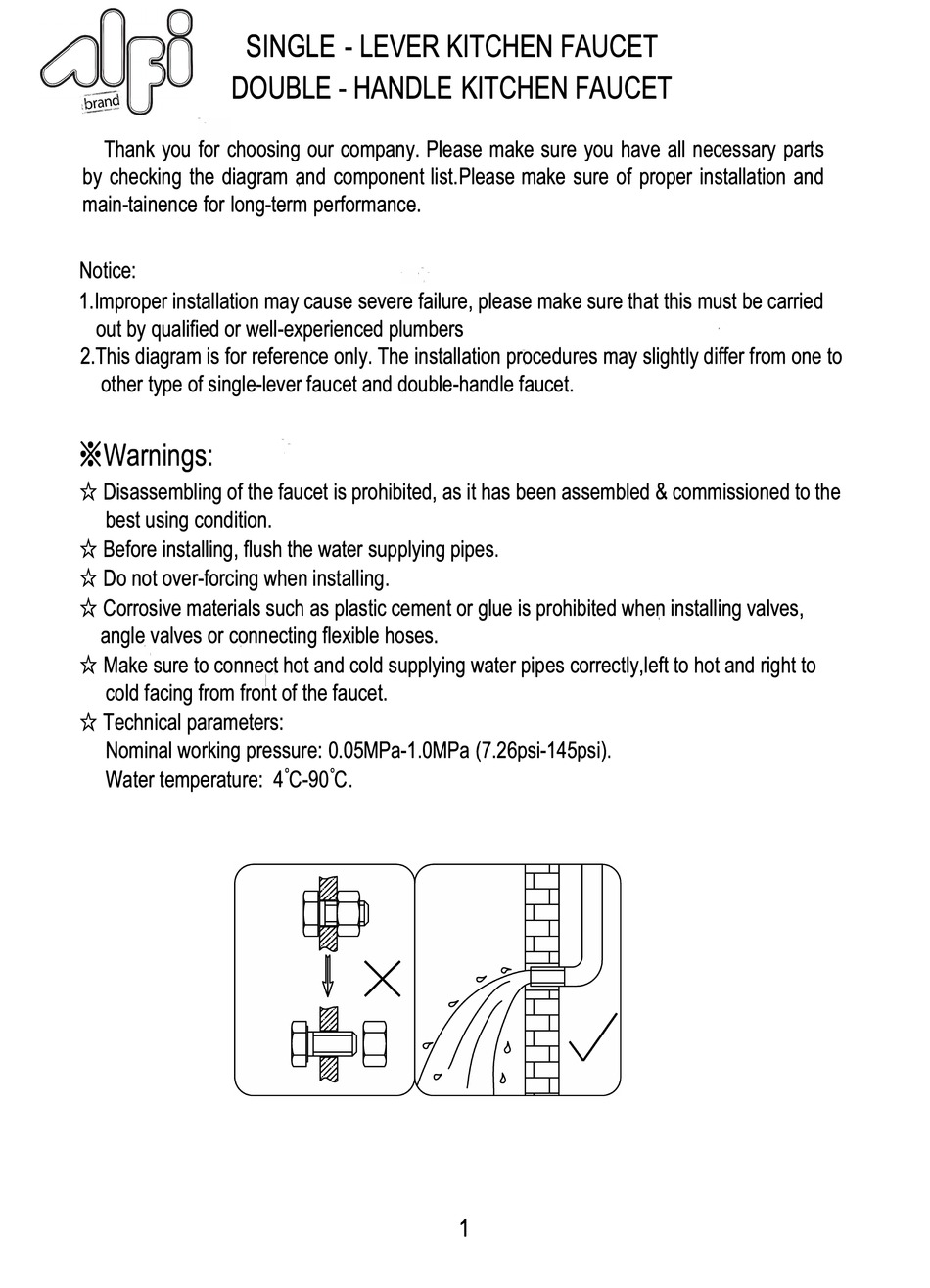

alfi AB3600PC Installation Instructions Manual

DOUBLE- HANDLE KITCHEN FAUCET
Thank you for choosing our company. Please make sure you have all necessary parts
by checking the diagram and component list.Please make sure of proper installation and
main­tainence for long-term performance.
Notice:
1.lmproper installation may cause severe failure, please make sure that this must be carried
out by qualified or well-experienced plumbers
2.This diagram is for reference only. The installation procedures may slightly differ from one to
other type of single-lever faucet and double-handle faucet.
*Warnings:
*
Disassembling of the faucet is prohibited, as it has been assembled & commissioned to the
best using condition.
*
Before installing, flush the water supplying pipes.
*
Do not over-forcing when installing.
*
Corrosive materials such as plastic cement or glue is prohibited when installing valves,
angle valves or connecting flexible hoses.
*
Make sure to connect hot and cold supplying water pipes correctly,left to hot and right to
cold facing from front of the faucet.
*
Technical parameters:
Nominal working pressure: 0.05MPa-1.0MPa (7.26psi-145psi).
Water temperature: 4
SINGLE - LEVER KITCHEN FAUCET
° °
C-90 C.
1
