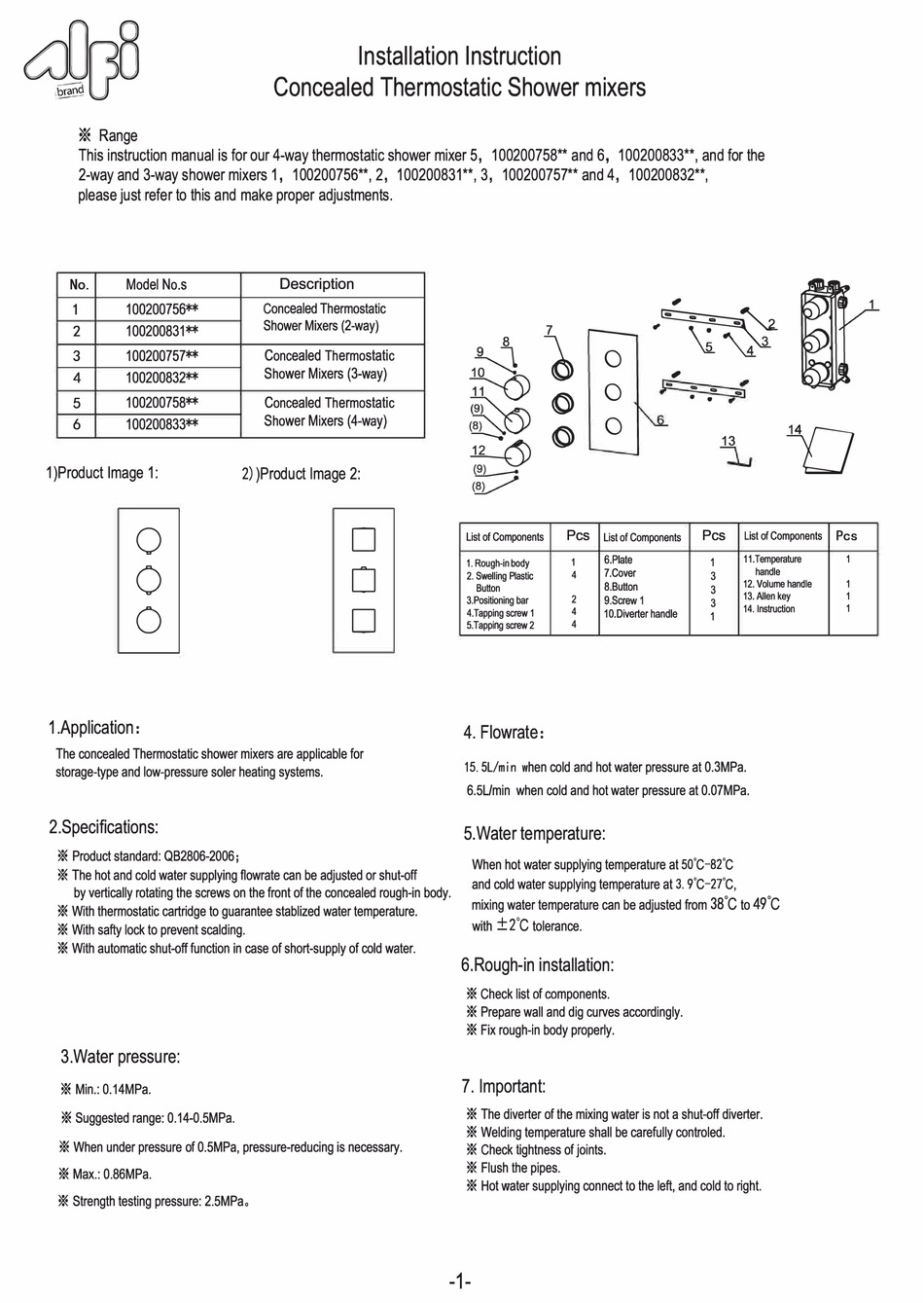

alfi 100200758 Series Installation Instruction

� Range
This instruction manual is for our 4-way thermostatic shower mixer 5, 100200758** and 6
2-way and 3-way shower mixers 1, 100200756**, 2, 100200831**, 3, 100200757** and 4, 100200832**,
please just refer to this and make proper adjustments.
Model No.s
No.
100200756**
1
100200831**
2
3 100200757**
100200832**
4
100200758**
5
100200833**
6
1 )Product Image 1:
0
0
0
1.Application:
The concealed Thermostatic shower mixers are applicable for
storage-type and low-pressure soler heating systems.

2.Specifications:

*
*
Product standard: QB2806-2006;
The hot and cold water supplying flowrate can be adjusted or shut-off
by vertically rotating the screws on the front of the concealed rough-in body.
*
*
With thermostatic cartridge to guarantee stablized water temperature.
With safty lock to prevent scalding.
*
With automatic shut-off function in case of short-supply of cold water.
3.Water pressure:
*
Min.: 0.14MPa.
*
Suggested range: 0.14-0.5MPa.
*
When under pressure of 0.5MPa, pressure-reducing is necessary.
*
Max.: 0.86MPa.
*
Strength testing pressure: 2.5MPa,
Installation Instruction
Concealed Thermostatic Shower mixers
Description
Concealed Thermostatic
Shower Mixers (2-way)
Concealed Thermostatic
Shower Mixers (3-way)
Concealed Thermostatic
Shower Mixers (4-way)
2) )Product Image 2:
D
0
D
100200833**, and for the
1
0
0
0
Pcs
List of Components List of Components
6.Plate
1
1. Rough-in body
7.Cover
4
2. Swelling Plastic
a.Button
Button
2
3.Positioning bar 9.Screw 1
4
4.Tapping screw 1
1 O.Diverter handle
4
5.Tapping screw 2
4. Flowrate:
15. SL/min when cold and hot water pressure at 0.3MPa.
6.5Umin when cold and hot water pressure at 0.07MPa.
5.Water temperature:
When hot water supplying temperature at 50'C-82'C
and cold water supplying temperature at 3. 9'C-27'C,
mixing water temperature can be adjusted from 38
±2'C
with tolerance.
6.Rough-in installation:
*
*
Check list of components.
Prepare wall and dig curves accordingly.
*
Fix rough-in body properly.
7. Important:
*
The diverter of the mixing water is not a shut-off diverter.
*
Welding temperature shall be carefully controled.
*
*
Check lightness of joints.
*
Flush the pipes.
Hot water supplying connect to the left, and cold to right.
-1-
,
,��
\;_��
,
.
.
.. ..
13
TI
4
Pcs
List of Components
11.Temperature
1
handle
3
12. Volume handle
3
13. Allen key
3
14. Instruction
1
° °
C to 49 C
Pcs
1
1
1
1
