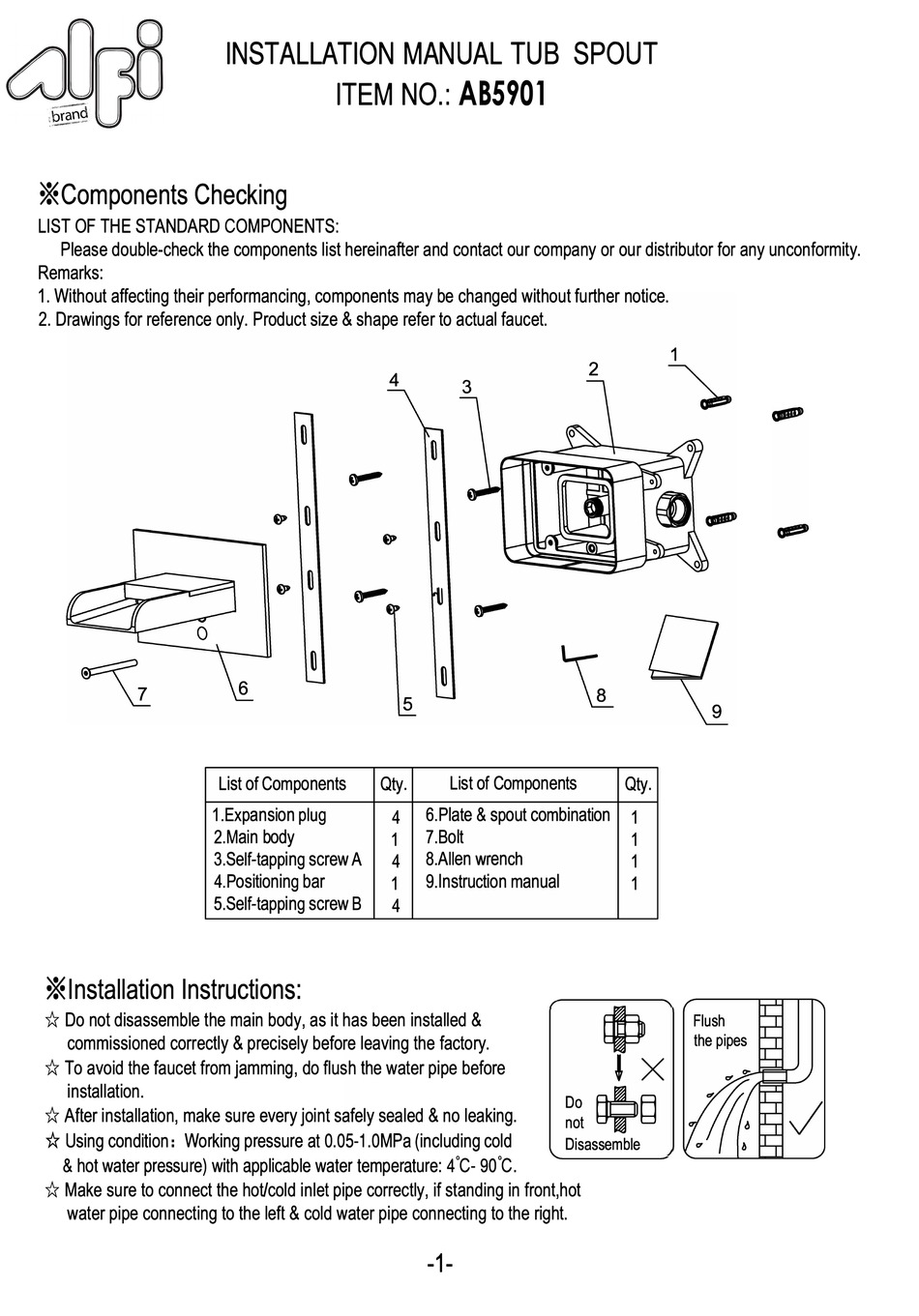

alfi AB5901 Installation Manual

* Components Checking
LIST OF THE STANDARD COMPONENTS:
Please double-check the components list hereinafter and contact our company or our distributor for any unconformity.
Remarks:
1. Without affecting their performancing, components may be changed without further notice.
2. Drawings for reference only. Product size & shape refer to actual faucet.
*Installation Instructions:
Do not disassemble the main body, as it has been installed &
i::f
commissioned correctly & precisely before leaving the factory.
To avoid the faucet from jamming, do flush the water pipe before
i::f
installation.
i::f After installation, make sure every joint safely sealed & no leaking.
"k
Using condition: Working pressure at 0.05-1.0MPa (including cold
& hot water pressure) with applicable water temperature: 4
i::f Make sure to connect the hot/cold inlet pipe correctly, if standing in front,hot
water pipe connecting to the left & cold water pipe connecting to the right.
INSTALLATION MANUAL TUB SPOUT
ITEM NO.: AB5901
0
List of Components
1.Expansion plug
2.Main body
3.Self-tapping screw A
4.Positioning bar
5.Self-tapping screw B
4
1l
0
5
List of Components
Qt y.
6.Plate & spout combination
4
7.Bolt
1
8.Allen wrench
4
9.lnstruction manual
1
4
° °
C- 90 C.
-1-
2
Qt y.
1
1
1
1
*'
r
Flush
the pipes
!
X
Do
not
��
Disassemble
�
