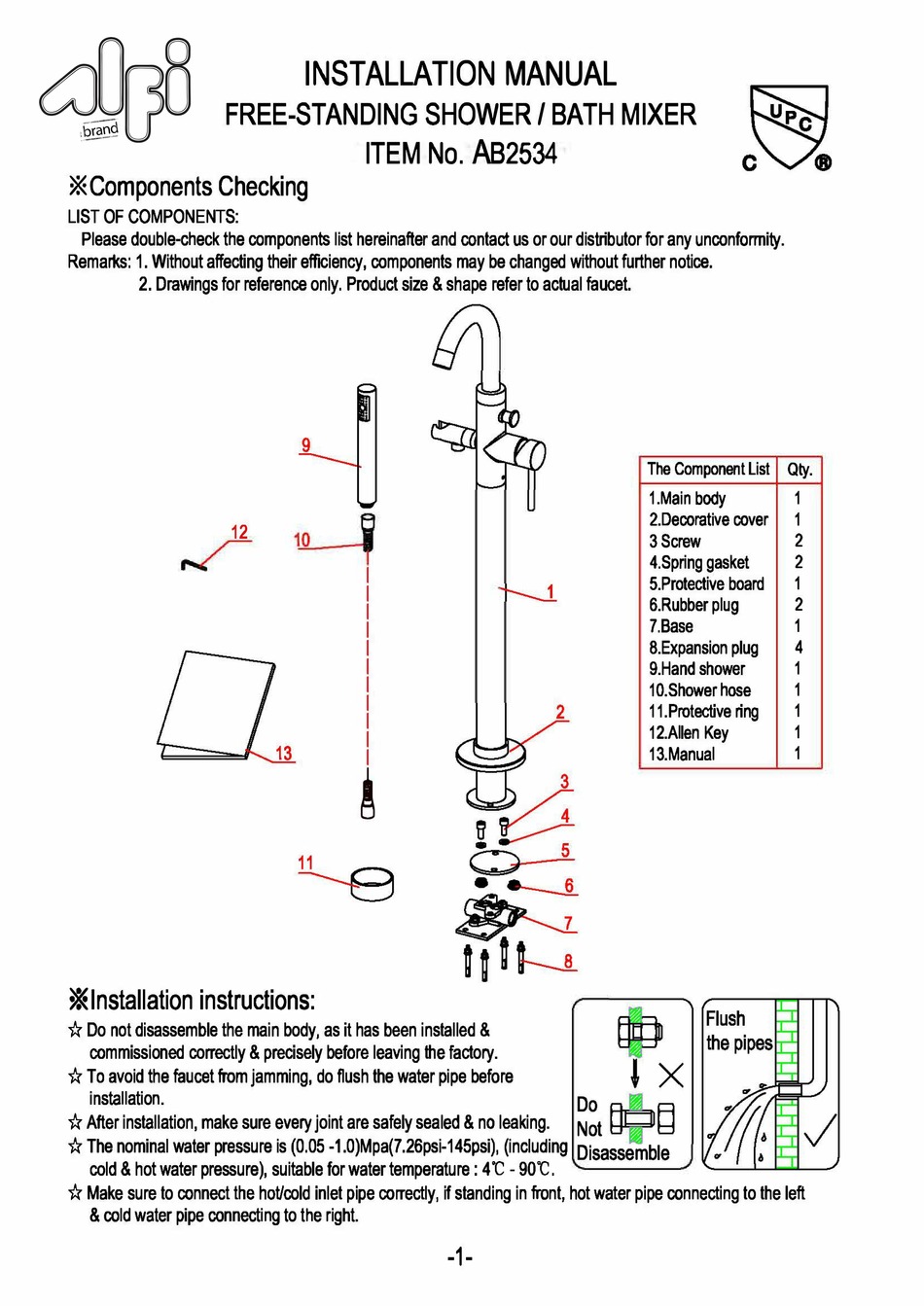

alfi AB2534 Installation Manual

FREE-STANDING SHOWER/ BATH MIXER
*

Components Checking

LIST OF COMPONENTS:
Please double - check the components list hereinafter and contact us or our distributor for any unconformi t y.
Remarks: 1. Without affecting their efficiency, components may be changed without further notice.
2. Drawings for reference only. Product size & shape refer to actual faucet.
12

*Installation instructions:

*
Do not disassemble the main body, as it has been installed &
*
commissioned correctly & precisely before leaving the factory.
To avoid the faucet from jamming, do flush the water pipe before
*
installation.
*
After installation, make sure every joint are safely sealed & no leaking.
The nominal water pressure is (0.05 -1.0)Mpa(7.26psi-145psi), (including Disassemble
*
cold & hot water pressure), suitable for water temperature : 4 "C - 90°C.
Make sure to connect the hot/cold inlet pipe correctly, if standing in front, hot water pipe connecting to the left
& cold water pipe connecting to the right.
INSTALLATION MANUAL
ITEM No. AB2534
I
I
I
I
I
I
I
I
I
I
I
�
-1-
The Component List
1.Main b ody
2.Decorative cover
3 Screw
4.Spring gasket
5.Protective board
6.Rubber plug
7.Base
8.Expansion plug
9.Hand shower
1 O.Shower hose
11.Protective ring
12.Allen Key
13.Manual
Do
Not
Qty.
1
1
2
2
1
2
1
4
1
1
1
1
1
