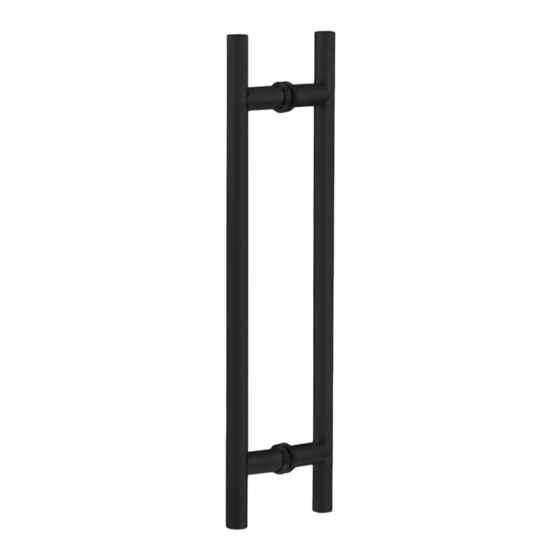

Round Ladder Handle
Code
87H2R1001912900
Measurements
*
*mm
Components
Material
SS316
*
H
(16'')
406 mm
(2-3/8'')
60 mm
#
Name
1
Exterior Handle
2
Interior Handle
3
Metal Washer dia25mm
4
Plastic Washer
5
Gasket
6
Collar
7
Set Screw M6x5mm
8
Screw M8x45mm
9
Screw M8x80mm
10
Allen Key 3mm
C/C
(12'')
304 mm
Ø (3/4'')
19 mm
Qty
1
1
4
2
4
2
4
2
2
1
Advertisement
Table of Contents
Related Manuals for Richelieu 87H2R1001912900
Summary of Contents for Richelieu 87H2R1001912900
- Page 1 Round Ladder Handle Code Material (16’’) (12’’) 87H2R1001912900 SS316 406 mm 304 mm (2-3/8’’) Measurements 60 mm Ø (3/4’’) 19 mm Components Name Exterior Handle Interior Handle Metal Washer dia25mm Plastic Washer Gasket Collar Set Screw M6x5mm Screw M8x45mm Screw M8x80mm...
- Page 2 Round Ladder Handle Installation Install the exterior handle as shown with one gasket and metal washer on each side of the glass. *Philips screwdriver not included *Use the 45mm screw for glass doors 8-12mm thick *Use the 80mm screw fo wood doors 35-50mm thick Install the interior handle onto the collars.
- Page 3 Poignée échelle ronde Code Matériel (16’’) (12’’) 87H2R1001912900 SS316 406 mm 304 mm (2-3/8’’) Dimensions 60 mm Ø (3/4’’) 19 mm Composantes Qté Poignée extérieure Poignée intérieure Rondelles en métal 25mm Rondelles en plastique Joints Collier Vis M6x5mm Vis M8x45mm Vis M8x80mm Clé...
- Page 4 Poignée échelle ronde Installation Installez la poignée extérieure comme illustré avec un joint et une rondelle métallique de chaque côté du verre. *Tournevis Philips non inclus *Utilisez la vis de 45 mm pour les portes en verre de 8-12 mm *Utilisez la vis de 80 mm pour les portes en bois de 35-50 mm Installez la poignée intérieure sur les colliers.
