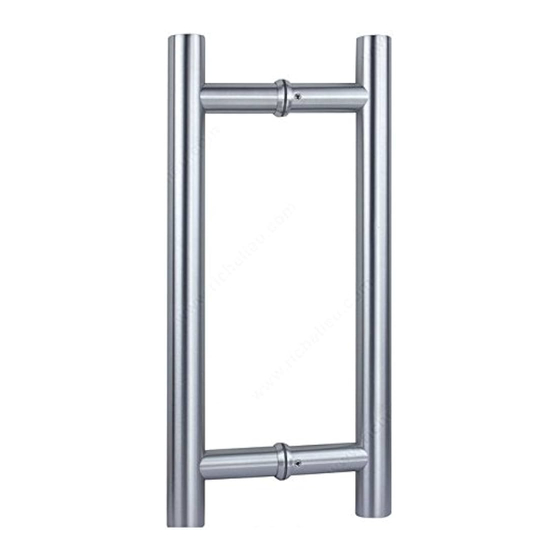

Round Ladder Handle
Code
87H2R196ORB
Measurements
*
*mm
Components
Material
SS316
*
H
(10'')
254 mm
(2-3/8'')
60 mm
#
Name
1
Exterior Handle
2
Interior Handle
3
Metal Washer dia25mm
4
Plastic Washer
5
Gasket
6
Collar
7
Set Screw M6x5mm
8
Screw M8x45mm
9
Screw M8x80mm
10
Allen Key 3mm
C/C
(6'')
152 mm
Ø (3/4'')
19 mm
Qty
1
1
4
2
4
2
4
2
2
1
