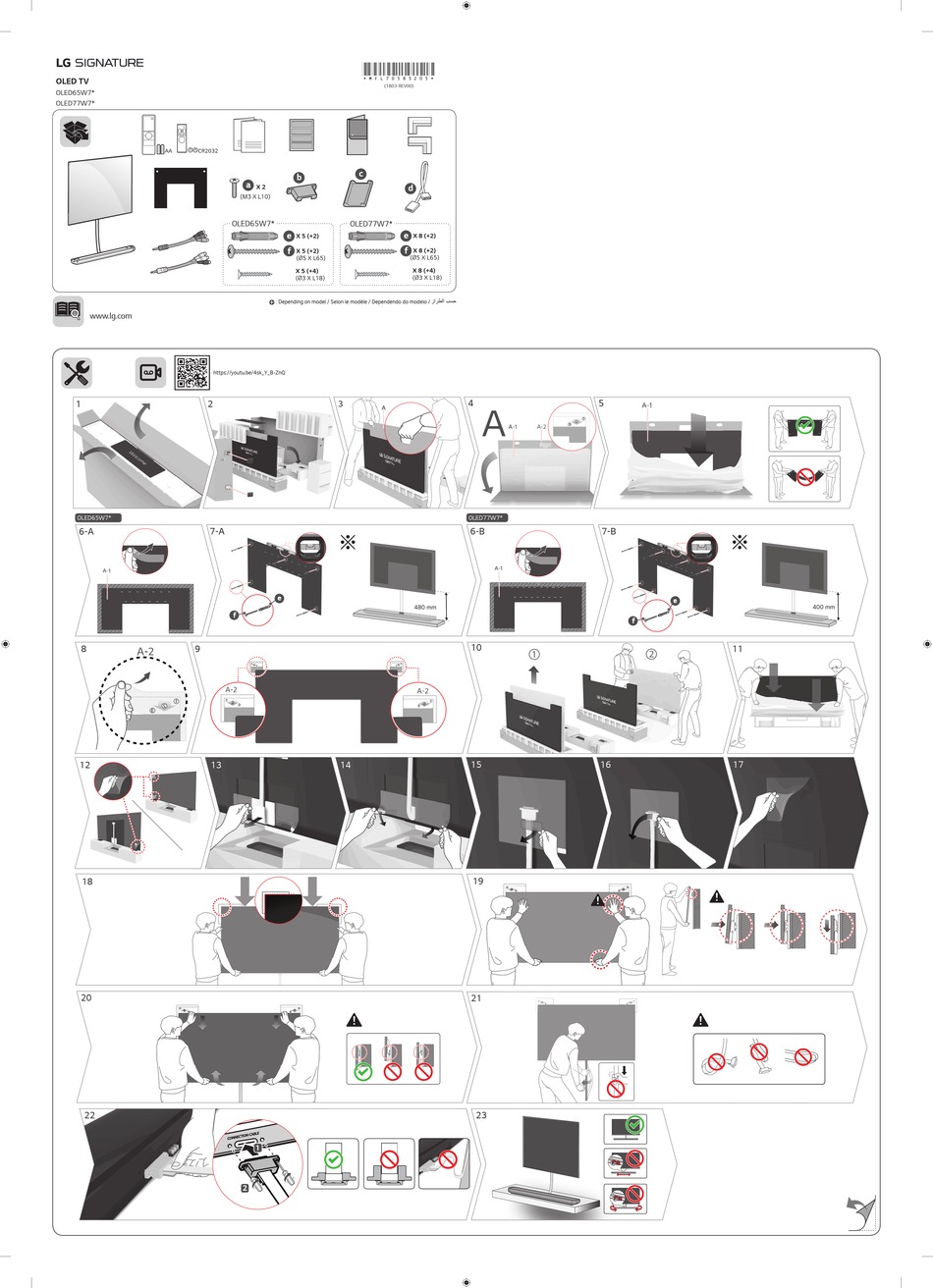

OLED TV
OLED65W7*
OLED77W7*
AA
AA
CR2032
OLED65W7*
www.lg.com
https://youtu.be/4sk_Y_B-ZnQ
1
2
OLED65W7*
6-A
7-A
8
9
12
13
18
20
22
*MFL70583205*
(1803-REV00)
c
b
a
X 2
d
(M3 X L10)
OLED77W7*
e
e
X 5 (+2)
f
f
X 5 (+2)
(Ø5 X L65)
X 5 (+4)
(Ø3 X L18)
: Depending on model / Selon le modèle / Dependendo do modelo /
e
f
14
1
2
X 8 (+2)
X 8 (+2)
(Ø5 X L65)
X 8 (+4)
(Ø3 X L18)
4
OLED77W7*
6-B
480 mm
10
15
19
21
23
5
7-B
e
f
11
16
17
400 mm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Signature OLED77W7 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for LG Signature OLED77W7 Series

  • Page 1 X 5 (+2) (Ø5 X L65) (Ø5 X L65) X 8 (+4) X 5 (+4) (Ø3 X L18) (Ø3 X L18) : Depending on model / Selon le modèle / Dependendo do modelo / www.lg.com https://youtu.be/4sk_Y_B-ZnQ OLED65W7* OLED77W7* 480 mm 400 mm...
  • Page 2 ANTENNA / ANTENNA / AV IN COMPONENT IN CABLE IN CABLE IN HDMI IN HDMI IN HDMI IN/ARC HDMI IN/ARC USB IN USB IN VIDEO L/MONO AUDIO R AUDIO VIDEO AUDIO OUT/ AUDIO OUT/ H/P OUT H/P OUT Satellite IN Satellite IN OPTICAL DIGITAL OPTICAL DIGITAL...
  • Page 3 Safety and Reference Please read this manual carefully before operating your set and retain it for future reference. www.lg.com *MFL69708743* P/NO : MFL69708743 (1712-REV04) Copyright ⓒ 2017 LG Electronics Inc. All Rights Reserved.
  • Page 4 Warning! Safety instructions • Ensure the power cord does not come into contact with hot objects such as a heater. This may cause a fire or an electric shock hazard. • Do not place a heavy object, or the product itself, on power cables. Otherwise, this may result in fire or electric shock.
  • Page 5 • Only use an authorized AC adapter and power cord approved by It may cause mechanical failure or could give an electric shock. LG Electronics. Otherwise, this may result in fire, electric shock, • Please follow the installation instructions below to prevent the malfunction or product deformation.
  • Page 6 Preparing • Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it, as it may cause damage to screen. • If the TV is turned on for the first time after it was shipped from the •...
  • Page 7: Lifting And Moving The Tv

    Lifting and moving the TV • When supported cable is not long enough to connect TV set with Companion Box (AV Box), you can use an extension cable. (Only OLED65/77W7T, Please note the following advice to prevent the TV from being scratched OLED65/77W7V, OLED65/77W7Y) or damaged and for safe transportation regardless of its type and size.
  • Page 8: Using The Button

    Basic functions • Avoid touching the screen at all times, as this may result in damage to the screen. Power On (Press) • Do not move the TV by holding the cable holders, as the cable holders may break, and injuries and damage Power Off (Press and hold) to the TV may occur.
  • Page 9: Mounting On A Wall

    LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with cables connected. When you do not use LG’s wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices.
  • Page 10: Separate Purchase (Wall Mounting Bracket)

    Separate purchase (Wall mounting bracket) • Fold the AV box and attach the AV box fixing supporter / Wall mount spacer to the AV box before installing the product on a wall mount. (Only when the item of the following form is provided) Model OLED65G7* OLED77G7*...
  • Page 11: Tools You Will Need

    (Only OLED65/77W7T, OLED65/77W7V, OLED65/77W7Y) Provided item Wall • When installing the wall mount, check the positions of the wooden studs using a stud finder. Then, fasten the screws on at least two Wall mount Punching Guide separate studs before proceeding. Stud Wall mounting screw Wall mounting anchor...
  • Page 12: How To Attach To Masonry Walls

    How to attach to masonry walls • Make sure that children do not climb on or hang on Please follow the below direction. the TV. • Use a platform or cabinet that is strong and large 1 Use a drill bit Ø 8 mm to drill a hole for the anchor location within a enough to support the TV securely.
  • Page 13: Connections (Notifications)

    Using the kensington security • In PC mode, some resolution settings may not work properly depending on the graphics card. system • If ULTRA HD content is played on your PC, video or audio may become disrupted intermittently depending on your PC’s performance. (Only OLED65W7*) •...
  • Page 14: Usb Connection

    Slim remote control USB connection Some USB Hubs may not work. If a USB device connected through a USB The descriptions in this manual are based on the buttons on the remote Hub is not detected, connect it directly to the USB port on the TV. control.
  • Page 15: Battery Installation

    Magic remote functions Selects menus or options and confirms your input. Navigation buttons (up/down/left/right) Press the up, down, left or right button to scroll the menu. When the message “Magic remote battery is low. Change the battery.” is * To use the button, press and hold for more than 3 seconds. displayed, replace the battery.
  • Page 16: Registering Magic Remote

    Supported licenses may differ by model. For more information about If you press buttons while the pointer is in use, the pointer licenses, visit www.lg.com. will disappear from the screen and Magic Remote will operate like a general remote control. To display the pointer on the screen again, shake Magic Remote to the left and right.
  • Page 17: Open Source Software Notice Information

    This phenomenon also occurs in third-party products and is not LG Electronics will also provide open source code to you on CD-ROM subject to exchange or refund. for a charge covering the cost of performing such distribution (such •...
  • Page 18: Specifications

    Specifications Analogue TV Digital TV (Depending on (Depending on country) country) Wireless module specifications • As band channels can vary per country, the user cannot change or PAL B/B, PAL B/G, adjust the operating frequency. This product is configured for the PAL D/K, PAL-I DVB-T/T2 Television...
  • Page 19 Regulatory WARNING! Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: • Using cabinets or stands recommended by the manufacturer of the television set. •...
  • Page 20 Refer to the label on the back cover and quote this information to your dealer when requiring 080 100 54 54 in Morocco any service. 19960 in Egypt 021 36 54 54 in Algeria MODEL Other countries, Please contact our local dealer or log into SERIAL http://www.lg.com...
  • Page 21: External Control Device Setup

    OWNER’S MANUAL EXTERNAL CONTROL DEVICE SETUP Please read this manual carefully before operating the set and retain it for future reference. www.lg.com...
  • Page 22: Key Codes

    KEY CODES KEY CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) CH +, PR + R/C Button List R/C Button CH -, PR - R/C Button Exit R/C Button Volume + R/C Button PIP(AD) R/C Button...
  • Page 23 (TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter RS-232C IN which is not made nor provided by LG. (CONTROL & SERVICE) (PC) (TV) • It can be purchased from computer stores that carry accessories for IT support professionals.
  • Page 24 EXTERNAL CONTROL DEVICE SETUP (TV) (PC) (TV) (PC) Phone jack Type RS-232C IN • You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and (CONTROL & SERVICE) (PC) (TV) the TV, which is specified in the manual. RS-232C IN (CONTROL &...
  • Page 25: Communication Parameters

    EXTERNAL CONTROL DEVICE SETUP Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list (Depending on model) DATA...
  • Page 26: Transmission / Receiving Protocol

    EXTERNAL CONTROL DEVICE SETUP Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99.
  • Page 27 EXTERNAL CONTROL DEVICE SETUP * Commands may work differently depending on model and signal. 01. Power (Command: k a) Ack [d][ ][Set ID][ ][OK/NG][Data][x] ► To control Power *On or Off of the set. * In case of video mute on only, TV will display On Transmission[k][a][ ][Set ID][ ][Data][Cr] Screen Display(OSD).
  • Page 28 EXTERNAL CONTROL DEVICE SETUP 08. Color/Colour (Command: k i) 13. Treble (Command: k r) ► To adjust the screen Color(Colour). ► To adjust treble. You can also adjust colour in the PICTURE menu. You can also adjust in the AUDIO menu. Transmission [k][i][ ][Set ID][ ][Data][Cr] Transmission [k][r][ ][Set ID][ ][Data][Cr] Data Min : 00 to Max : 64...
  • Page 29 EXTERNAL CONTROL DEVICE SETUP 18. Equalizer (Command : j v) * Analog Antenna/Cable ► Adjust EQ of the set. [Data 00][Data 01] Channel Data Transmission [j][v][ ][Set ID][ ][Data][Cr] Data 00 : High byte channel data Data 01 : Low byte channel data - 00 00 ~ 00 C7 (Decimal : 0 ~ 199) Data 02 : Input Source (Analog) - 00 : Antenna TV (ATV)
  • Page 30 EXTERNAL CONTROL DEVICE SETUP * Analog Antenna/Cable 2. Tune to the digital antenna (ATSC) channel 30-3. Set ID = All = 00 Data 00 : Physical Channel Number Data 00 = Don’t know Physical = 00 - Antenna (ATV) : 02~45 (Decimal: 2 ~ 69) Data 01 &...
  • Page 31 11 11 EXTERNAL CONTROL DEVICE SETUP 2. Tune to the BS (ISDB-BS) channel 30. 24. Input select (Command: x b) Set ID = All = 00 (Main Picture Input) Data 00 = Don’t know Physical = 00 ► To select input source for main picture. Data 01 &...
  • Page 32 EXTERNAL CONTROL DEVICE SETUP * [Data 02], [Data 03] functions depend on model 3) When [Data 00] is 06, 07 and signal. 00 : Off 01 : On * If [Data 00] is 00 (3D On), [Data 03] has no meaning.
