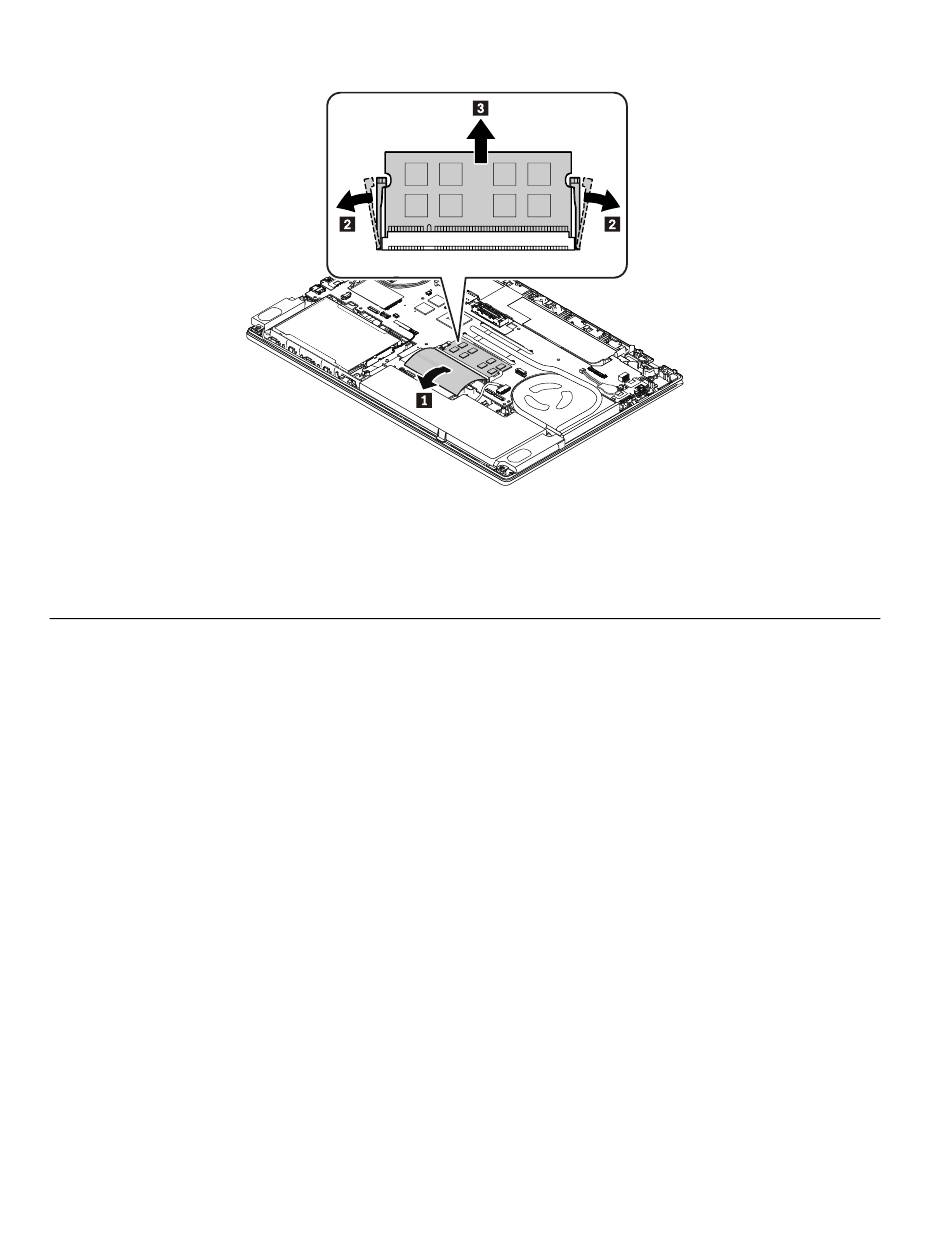

Removal steps of the memory module
When installing:
Insert the notched end of the memory module into the memory slot. Press the memory module in firmly, and
pivot it downward until it snaps into place. Ensure that the memory module is firmly installed in the slot and
does not move easily.
1050 Internal storage drive
Note: Before you start the servicing, disable the built-in battery. See "Disabling the built-in battery" on page
68.
For access, remove these FRUs in order:
• "1010 Removable battery" on page 68
• "1030 Base cover assembly" on page 69
Attention:
• Do not drop the drive or apply any physical shock to it. The drive is sensitive to physical shock. Improper
handling can cause damage and permanent loss of data.
• Before removing the drive, have the user make a backup copy of all the information on it if possible.
• Never remove the drive while the system is operating or in suspend mode.
72
T470 Hardware Maintenance Manual
