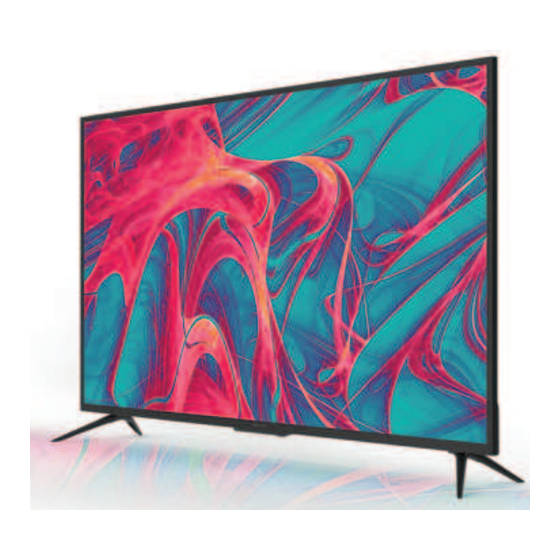

- Page 1 ” MODEL: ATV50UHDS-0820 User Manual...
-
Page 2: Welcome
Welcome Congratulations on your purchase! This manual tells you all you need to know about using your new BAUHN ® product. Please take special note of any important safety and usage information presented with the symbol. All products brought to you by BAUHN ®... -
Page 3: Table Of Contents
Contents Welcome TV Setting Menus Recording Recording Live TV Unpack and Prepare Picture Scheduled Recording What's in the box Sound Playback Important Tips Network Pause Live TV (Time-shift) Attaching the stand System USB Mode Wall-mounting the TV Lock Set up Connect to power Connect your antenna Troubleshooting... -
Page 4: Unpack And Prepare
Unpack and Prepare What's in the box Before installing your new TV, check you have everything needed. See the top of the box for how to handle the TV In the box you will find: without damaging it! A. 50"4K Ultra HD Smart TV B. -
Page 5: Important Tips
Important Tips • Place the TV on a level surface. • Place the TV away from any source that may generate heat or vibrations. • Make sure there is enough space around vents for airflow. • The remote control works up to 5 metres away from the TV. •... -
Page 6: Attaching The Stand
Attaching the stand • This TV is heavy! We recommend asking someone to help you lift it. • Unplug the TV from the power outlet before installing or removing the stand. • DO NOT place the TV standing upright without its stand attached;... -
Page 7: Wall-Mounting The Tv
Wall-mounting the TV • Unplug the TV from the power outlet before wall-mounting. • Contact a professional for assistance with wall-mounting the TV. Required 200mm • VESA Mounting Bracket • 4 x M6*10mm screws (or longer as required) The TV comes with holes on the back panel for use with wall-mounting brackets (bracket not included). -
Page 8: Connect To Power
Connect to power Don't forget to plug in the TV to the power outlet. Leave the power switched off until installation is finished. Make sure the TV is switched off at the power outlet until you have finished connecting your cables. Connect your antenna Free-to-air TV in HD (High Definition) High Definition (HD) channels... -
Page 9: Controls And Connections
Controls and Connections Get to know your TV On/Standby indicator and Remote sensor Front view Buttons on the TV (ON/Standby): Switch the TV to On or Standby. 5. SOURCE: Select the input source. 2. VOL - / VOL + : Decrease/increase the volume level. 6. -
Page 10: Ports On The Tv
Ports on the TV HDMI All-digital connection between the TV and any HDMI device. Use a high-speed Supports Ultra HD resolution. Requires a high-speed HDMI cable HDMI cable for best picture and (not included). sound quality. Antenna Connect your antenna for live TV. (Antenna cable not included). Plug in a USB stick/drive to PVR record and pause live TV. - Page 11 DIGITAL AUDIO L - AUDIO - R OUT (OPTICAL) AUDIO IN DIGITAL AUDIO Connect an external digital audio device. Use an Optical cable (not included) to connect the unit with an amplifier, soundbar OUT (OPTICAL) or other audio decoding device for digital audio signal output. Connect to your broadband modem using an Ethernet cable (not included) for best streaming experience.
-
Page 12: Remote Control
Remote Control Setup Insert two AAA size batteries according to the polarity markings (+ / -) inside the compartment. Make sure the batteries are correctly aligned and properly pushed into AAA size place. batteries included Precautions When Using Batteries • Do not use old and new batteries together. •... -
Page 13: Using The Remote Control
Using the Remote Control To use the remote, point it towards the remote sensor at the front of the TV. The remote will not operate if its path is blocked. The remote has a range of up to about 5 metres from Remote Hints and Tips the TV at an angle of up to 30 degrees to either side of the sensor, as illustrated below. -
Page 14: Standard Remote
Standard Remote ON: Switch the TV to On or Standby NUMBER BUTTONS: Key in a TV channel number SOURCE: Select the input source INFO: Display program information SUBT. : Enable/Disable subtitles : Launch the Amazon Prime Video : Launch the YouTube app : Launch the Netflix app HOME: Go to the HOME page (Smart TV) - Page 15 RED/GREEN/ GUIDE : Launch TV Guide YELLOW/BLUE: Functions are according to the on-screen display : Go to the next or previous channel : Mute or restore sound (STOP) :Stop playback : Turn the volume up or down / TIMESHIFT: Pause live TV : Play selected video : Record live TV : Restart current track...
-
Page 16: Easy Remote
Easy Remote : Switch the TV to On or Standby (SOURCE): Switch the input source : Press the UP/ DOWN/LEFT/RIGHT buttons to navigate OK: Confirm your selection / BACK: Return to previous / EXIT: Exit/Quit the current screen/menu screen HOME / HOME: Access streaming apps, : Go to the next or input source list and TV settings... -
Page 17: On-Screen Set Up
On-Screen Set Up Make sure equipment is properly connected (as shown on pages 10-11) before connecting the TV to power. Make sure the TV is plugged in at the power socket and switched on. Press the (ON) button to On/Standby light is turn on the TV. -
Page 18: Tv Setting Menus
TV Setting Menus Menu Navigation Buttons Press the MENU button to display the TV settings menu. See the guide below for all the other buttons you'll need Once you have programmed any to use to adjust and change your settings. MENU MENU settings, the unit will retain them in... - Page 19 Network • Aspect Ratio • WiFi: Auto Scan, Manual (Personal Video Recording) • Backlight Input • PVR File System: (Select • Colour Temperature • Wired: Configuration, Disk, Select Partition, Time Connect • HDR Shift Size, Format, Speed) • Wake on LAN •...
- Page 20 Option Description Automatically scans all available free-to-air TV channels. Adjust settings (default Auto Scan settings are set for Australia), select 'Search' and press OK. DTV Manual Manually select and scan digital TV channels. Scan ATV Manual Manually select and scan analog TV channels. (Analog TV is no longer supported in Scan Australia).
-
Page 21: Picture
Picture Picture Mode : Picture settings for general viewing purposes. Home Standard : Brighter and clearer picture settings for bright viewing environments. Bright Room Movie : Brighter and clearer picture settings for ultra bright viewing environments such as store fronts. Dynamic : Adjust settings to best suit your viewing environment and content. - Page 22 Aspect Ratio This item is used to adjust the video size. Sizes may differ between input sources. Backlight Adjust the screen brightness by adjusting the backlight. The closer to 100, the brighter the screen. Option Description Colour Adjust the on-screen colour temperature. Temperature Select high-dynamic range setting (TV must be receiving an HDR signal for this setting to be active.)
-
Page 23: Sound
Sound Option Description Standard Music Movie Sport Personal Sound Mode Adjust selected frequencies. These options are available when sound mode Equalizer is set to personal. Balance Adjust the audio output between the left and right speakers. Adjust the increase or decrease of audio when you change channels, video sources or content. - Page 24 Digital Output Type Select digital output type. Audio Type Select audio type. S/PDIF Delay: Synchronize the sound from the external speakers (when using Optical Audio Out connection) with the TV picture. Speaker delay: Synchronize the sound from the TV speakers with the TV Audio Delay picture.
-
Page 25: Network
Network You can set up your TV so that it can access the Internet through your home network using a wired or wireless connection. Make sure you have an ethernet cable Option Description connected to the TV Wi-Fi See below for more information. Wired See next page for more information. - Page 26 Wired Network Settings Option Description DHCP: Automatically receive network addresses from the W-Fi router. Configuration Static: Manually enter IP, Netmask, Gateway, DNS network addresses. Connect Select to connect. Keep it simple for easy setup! If an item isn't required, just leave it on the default setting.
-
Page 27: System
System Option Description Language Select your preferred On screen display, Audio and Subtitle language. OSD Time Set the preferred amount of time for the OSD to be displayed on the screen. Auto, 1.4 (2K), 2.0 (4K). HDMI-EDID Select 2.0 (4K) when the source signal is transferred by HDMI 2.0 Specification. Select 1.4 (2K) when the source signal is transferred by HDMI 1.4 Specification. - Page 28 HDMI-CEC This feature allows for your TV and your connected HDMI device to be controlled by one remote control. It also means you can turn them both on or off simultaneously. Make sure to select the correct HDMI input source. Option Description HDMI-CEC...
- Page 29 Time Option Description On: Automatically syncs TV clock according to the DTV broadcasting time. Auto Sync Off: Manually adjust the clock. Clock Displays the DTV signal time or set the time manually. Off Time Set the time and day to turn off the TV. On Time Set the time and day to turn on the TV.
-
Page 30: Lock
Lock 0000 Factory Password: Enter the factory password '0000' using the number buttons 4711 Master Password: on the remote and select 'OK' on-screen. If you changed your password but forgot it, you can still use the master password. Option Description Lock System Turn system lock on/off. -
Page 31: (Personal Video Recording)
PVR (Personal Video Recording) To make changes to PVR (Personal Video Recording), ensure your USB drive is inserted into the TV. Check the troubleshooting section if you're having problems setting up your USB device. Option Description Enter submenu in DTV mode. •... -
Page 32: About
About Option Description Enter Netflix submenu. • Netflix Deactivate: Select to deactivate Netflix. Netflix • Terminate Netflix: Select to terminate Netflix. • Netflix ESN: Display the Netflix ESN information. • Netflix Version: Display the Netflix version. View End-User License Read and accept/decline the End-User-License Agreement Agreement (EULA). -
Page 33: Qmenu
QMenu The QMenu gives you access to selected menu settings without the hassles of navigating through the full menu. Press the Q.MENU button once on your remote to access this. Option Description Picture Mode Select the picture best suited to the content you are viewing. Sound Mode Select the sound mode best suited to the content you are viewing. -
Page 34: High Dynamic Range (Hdr)
High Dynamic Range (HDR) About the HDR feature High Dynamic Range (HDR) is a picture feature on your TV that attempts to mimic the way visuals are perceived in real life by the human eye. By using this feature, the TV can reproduce greater dynamic range of luminosity by capturing and then combining several different exposures. -
Page 35: Smart Tv
Smart TV Smart TV Applications • Netflix • Yahoo! Weather Before you start using apps, your TV must be • YouTube • Screencast connected to the internet. • Amazon Prime Video • Toon Goggles The speed of your internet connection determines •... -
Page 36: Screencast
Screencast App Portals The Screencast feature enables you to echo the display The NetRange app portal gives you access to other from a compatible Android device like a smartphone content and service providers. or tablet on the TV screen by connecting your mobile Some apps may require a paid subscription. -
Page 37: Web Browser
Web Browser Refresh Address bar Add to Bookmark Go Forward Home Using the web browser, you can surf the Internet on the TV similar to how Go Back Settings you would do on a PC. NOTE: Use a wired or wireless keyboard and mouse (not provided) for an easier web browsing experience. -
Page 38: Tv Guide
TV Guide (Free to air TV) TV Guide Functions To access the TV guide, press the GUIDE button on the remote. GUIDE Function Remote Button To activate the TV Channels use the buttons to select a channel in Switch between TV Guide/ Schedule the left column, then press OK to List, Channel List and Program List confirm. -
Page 39: Recording
Recording Important Tips: • Back-up your personal data before plugging in your USB to the TV. We do not assume liability for any loss of data due to misuse or malfunction. • You cannot change channels while in recording mode. •... -
Page 40: Recording Live Tv
Recording, scheduled recording and pause Before you can record with this TV live TV functions only work in DTV mode (including time-shift recording), you must (free-to-air). insert your USB storage device into the USB port. Recording Live TV Playback Start Recording Press the MENU button then navigate to System then PVR File System then Record List Press... -
Page 41: Pause Live Tv (Time-Shift)
Pause Live TV (Time-shift) Temporarily pause the live TV signal, then resume playback at your convenience. Before you can record with this TV (including time-shift recording), you must insert your USB storage device into the USB port. Start Time-shift Press the / TIMESHIFT button on the remote to enter time-shift mode. -
Page 42: Usb Mode
USB Mode You can only play Photos in the Photo category and Music in the Music category. Make sure you select the correct category for the file you wish to play. Set up Insert your USB into a USB port on the TV. Press the SOURCE button to select 'USB' mode. - Page 43 Playback Functions Music Function Remote Button Playback of different media types have different controls. Navigate to a folder or file Photo Play your track Function Remote Button Navigate to a folder or file Fast forward or rewind the track Skip or restart the current track Display your photo Change advanced settings MENU...
-
Page 44: Troubleshooting
Troubleshooting If you experience problems with your TV, check below for advice. If you don't find a solution here, contact After Sales Support on 1300 886 649. Problem Solution Make sure that the batteries are installed with their poles (+/–) in the correct direction. Remove any obstacles between the remote control and remote control sensor on the TV. - Page 45 Problem Solution Ensure that connection to the device is correct and that all cables are fully inserted. Remove and reconnect all cables connected to the TV and the external devices. Try new cables if possible. There is no picture/ sound or distorted Restart the connected devices by unplugging each device's power cord and then plugging it in again.
- Page 46 Problem Solution If you are using Wi-Fi, make sure the Wi-Fi password is entered correctly. Turn off the access point. Wait for 2 minutes and then turn them back on. Ensure that there are no obstacles between the TV and the access point. (The Wi-Fi strength can be decreased by appliances, cordless phones, stone walls/fireplaces, etc.) Reduce interference by not using or turning off other wireless devices.
-
Page 47: Specifications
Specifications With stand: 1126.4 x Active screen size 125.73cm 226.3 x 711.5 mm (diagonal) Dimensions (W x D x H) Without stand: 1126.4 x Resolution 3840 x 2160 92.4 x 660.3 mm Refresh rate 60Hz 9.5 kg Aspect ratio 16:9 Weight Gross 12.5 kg... -
Page 48: Compliance And Responsible Disposal
Compliance and Responsible Disposal Packaging The packaging of your product has been selected from environmentally friendly materials and can usually be recycled. Please ensure these are disposed of correctly. Plastic wrapping can National Television and Computer Recycling be a suffocation hazard for babies and young children, please ensure all packaging materials are out of Scheme reach and are safely disposed of. -
Page 49: Warranty Information
Warranty Information The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and labour. -
Page 50: Repair And Refurbished Goods Or Parts Notice
Repair and Refurbished Goods or Parts Notice Unfortunately, sometimes faulty products are manufactured, which need to be returned to the supplier for repair. Please be aware that if your product is capable of retaining user-generated data (such as files stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs stored on a portable media player, games saved on a games console or files stored on a USB memory stick) during the process of repair, some or all of your stored data may be lost. - Page 51 Notes...
- Page 52 Online support Visit www.bauhn.com.au for software updates to keep your TV up-to-date, as well as the latest User Manual for information on the updated features. Warranty returns Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product.
