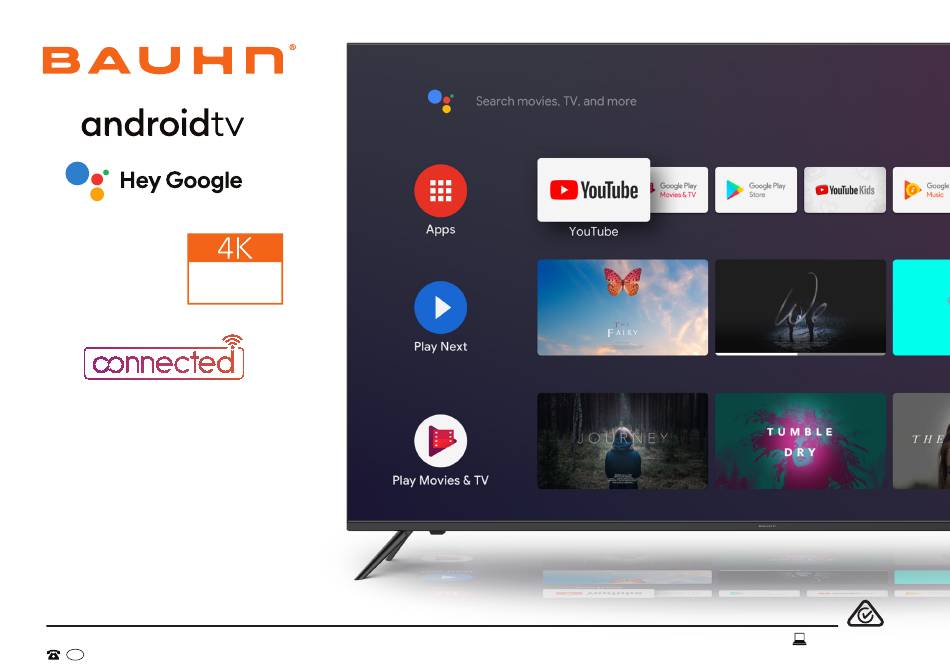

- Page 1 ” ™ QLED Android TV ™ ATV58UHDG-0121 User Manual AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: ATV58UHDG-0121 PRODUCT CODE: 704547 01/2021...
-
Page 2: Welcome
Welcome Congratulations on your purchase! This manual tells you all you need to know about using your new BAUHN product. ® Please take special note of any important safety and usage information presented with the symbol. All products brought to you by BAUHN are manufactured to the highest standards of performance and safety and, ®... -
Page 3: Table Of Contents
Contents Welcome How to play personal videos, Accessibility photos and music Reset Unpack and Prepare Smart TV Remote & Accessories What's in the Box High Dynamic Range (HDR) Download or Delete Apps Important Tips Stream using Chromecast- TV Guide Attaching the Stand enabled Apps Recording Wall-Mounting the TV... -
Page 4: Unpack And Prepare
Unpack and Prepare What's in the Box Before installing your new TV, check you have everything See the box flap for how needed. to handle the TV without damaging it! In the box you will find: A. 58"4K QLED Android TV B. -
Page 5: Important Tips
Important Tips • Place the TV on a level surface. • Place the TV away from any source that may generate heat or vibrations. • Make sure there is enough space around vents for airflow. • The remote control works up to 5 metres away from the TV. •... -
Page 6: Attaching The Stand
Attaching the Stand • This TV is heavy! We recommend asking someone to help you lift it. • Unplug the TV from the power outlet before installing or removing the stand. • DO NOT place the TV standing upright without its stand attached;... -
Page 7: Wall-Mounting The Tv
Wall-Mounting the TV • Unplug the TV from the power outlet before wall-mounting. • Contact a professional for assistance with wall-mounting the TV. Required 400mm • VESA Mounting Bracket • 4 x M6*12mm screws (or longer as required) The TV comes with holes on the back panel for use with wall-mounting brackets (bracket not included). -
Page 8: Connect To Power
Connect to Power Don't forget to plug in the TV to the power outlet. Leave the power switched off until installation is finished. Make sure the TV is switched off at the power outlet until you have finished connecting your cables. Connect your Antenna Free-to-air TV in HD (High Definition) High Definition (HD) channels... -
Page 9: Controls And Connections
Controls and Connections Get to Know your TV On/Standby light and Remote sensor Control Joystick on the TV : Select the next channel or move up. 2. + : Increase the volume level or move right. : Decrease the volume level or move left. : •... -
Page 10: Ports On The Tv
Ports on the TV • Plug in a USB stick to PVR record and pause live TV. • Play media files stored on your USB storage device (supported file codecs and extensions may vary). • Update the TV software via USB. HDMI IN All-digital connection between the TV and any HDMI device. - Page 11 Connect to your broadband modem using a network cable (not included) for best steaming experience. However, the TV also has built-in wifi. DIGITAL Connect an external digital audio device. Use an Optical cable (not included) to AUDIO OUT connect the unit with an amplifier, soundbar or other audio decoding device for digital audio signal output.
-
Page 12: Remote Control
Remote Control Setup Insert two AAA size batteries according to the polarity markings (+ / -) inside the compartment. Make sure the AAA size batteries are correctly aligned and properly pushed into batteries place. included Precautions When Using Batteries • Do not use old and new batteries together. •... -
Page 13: Using The Remote Control
Using the Remote Control Remote Hints and Tips To use the remote, point it towards the remote sensor • Do not drop, step on or otherwise at the front of the TV. The remote will not operate if its impact the remote control. This path is blocked. -
Page 14: Remote Overview
Remote Overview (ON): Switch the TV to On or Standby NUMBER BUTTONS (0-9): Press to select a TV channel directly when Microphone (lights up when active) watching TV : Switch between input signal : Jump to last viewed channel sources : Launch the Netflix app : Enter ( ) character P.MODE: Switch between preset Picture... - Page 15 : Turn the volume up or down : Go to the next or previous channel (Google Assistant) : Summon the Google Assistant (MUTE): Mute or restore sound : Display additional information : Fast forward GUIDE: Launch the TV Guide : Pause : Rewind : Stop /REC: Record a TV program...
-
Page 16: On-Screen Set Up
On-Screen Set Up 1. Press and hold the MENU and LEFT buttons at the same Make sure equipment is properly connected (as shown on page time for 5 seconds and let go. 10-11) before connecting the TV to power. 2. When "SmartTV-RC" appears on the top-right corner of the screen, press the OK button to initiate pairing. -
Page 17: How To Access Other Devices Connected To The Tv
How to access other devices connected to the TV button on the remote control, select your desired input sources and press the OK button. 1. Press the 2. (OR) select the icon from the Android TV home screen. You can rename the inputs to easily identify the device connected to it by going to: Settings >... -
Page 18: Smart Tv
Smart TV Function Remote Button Before you start using apps, your TV must be Display the Android TV home connected to the internet. screen The speed of your internet connection determines the quality of your audio/video experience when you Change the order of apps / remove an app from favourites Press and hold watch streaming content. -
Page 19: Download Or Delete Apps
Download or Delete Apps You can download apps and games for your Android TV through the Google Play Store app. Download apps 1. From the Android TV Home screen, Select the Google Play Store app. 2. Browse or search for apps and games. To browse: Move up or down to view different categories. -
Page 20: Stream Using Chromecast-Enabled Apps
Stream using Chromecast-enabled Apps With chromecast built-in, you can cast content from chromecast-enabled apps and chrome browser on your phones, tablets or laptops to your TV. Make sure to turn "Chromecast built-in always available"to On during the first time setup process. 1. -
Page 21: Using Voice Interaction
To get started, get the Google Home app from your favourite app store. Sign in to your Google account, the same one that you used to sign in to the TV. Proceed to add your devices. Your Android TV "BAUHN 4K Android TV" should already be there. Make sure to set it up as your default display device. -
Page 22: Tv Setting Menus
TV Setting Menus Menu Navigation Buttons See the guide below for all the other buttons you'll need to use to adjust and change your settings. Once you have programed any settings, the unit will retain them in its memory until you change them, Function Remote Button even after turning the TV off. - Page 23 Sound Google Assistant Inputs • Sound Style • Searchable Apps • Inputs User Mode Settings: • SafeSearch Filter • HDMI Control Balance, Sound Surround, Equalizer Detail, Speakers, Digital Output, • Block Offensive Words • Device Auto Power Off SPDIF Delay, Auto Volume Control, Apps •...
-
Page 24: Picture
Picture To access picture settings, navigate from Settings > Device Preferences > Picture Picture Mode : Basic picture suitable for home use. Standard : Enhanced brightness with lower contrast, colour depth and edges for standing out in very bright places such as storefronts. : Settings are optimised for watching sports. - Page 25 Gamma Advanced Video Settings Adjust the mid level brightness of the picture. Option Description Colour Temperature Reduce screen noise to make the image DNR (Digital clean. Adjust the on-screen colour temperature. Noise In user mode, you can individually adjust white balance by changing Options: Off, Low, Medium, Strong, Reduction) R/G/B gain settings.
-
Page 26: Sound
Sound To access sound settings, navigate from Settings > Device Preferences > Sound Option Description Select your preferred sound mode. Sound Style Balance Adjust the balance between the left and right speakers. Sound Surround Turn surround sound effect On/Off. Equalizer Detail Adjust equalizer detail frequencies to your liking. -
Page 27: Channel
Channel To access channel settings, navigate from Settings > Channel Option Description Channels > Channel Scan Automatically scan DTV channels. Channels > Single RF Scan Manually scan DTV channels one frequency at a time. Channels > Channel Skip Hide channels from the channels list. Channels >... -
Page 28: Network & Internet
Network & Internet To access network settings, navigate from Settings > Network & Internet You can set up your TV so that it can access the Internet through your home network using a wired or wireless connection. Make sure you have an When you connect an ethernet cable, the TV automatically accesses the Internet. - Page 29 Wireless Network Settings Make sure that you have the wireless router's SSID (name) and password settings before attempting to connect. Option Description Wi-Fi Switch Wireless connectivity On/Off. Available Select a wireless network to connect to. Networks Keep it simple for easy setup! Add New Manually connect to a Wi-Fi network by entering the name of the If an item isn't required, just...
-
Page 30: Accounts And Sign-In
Accounts and Sign-in To manage account settings, navigate from Settings > Accounts & Sign-in and click on the account Option Description Add Account Add your Google account to your TV. Choose Synced Manage which apps are synced with your Google account. Apps Remove Remove your Google account from your TV. -
Page 31: Apps
Apps To access app settings, navigate from Settings > Apps Option Description Recently Displays your most recently opened apps. Opened Apps See All Apps View all installed apps on your TV. Set app permissions for your installed apps. Permissions Security & Control installation of apps from unknown sources and disallow/warn Restrictions before installation of apps that may cause harm. -
Page 32: About
About To access about settings, navigate from Settings > Device Preferences > About Option Description System Update Check if a system software update is available. Restart Restart your TV. Status View information on IP address, MAC address, Bluetooth address Legal Read up on legal notices and opt out of personalised ads. -
Page 33: Date & Time
Date & Time To access date & time settings, navigate from Settings > Device Preferences > Date & Time Option Description Automatic Date & Use network provided date and time or enable setting update and Time time manually. Set Date Manually set the date. -
Page 34: Inputs
Inputs To access input settings, navigate from Settings > Device Preferences > Inputs Option Description Inputs Select the input source to customize the input name. Allow your TV remote to control other devices (that support CEC) HDMI Control connected via HDMI. Device Auto Power off connected HDMI devices when you switch off your TV. -
Page 35: Power
Power To access power settings, navigate from Settings > Device Preferences > Power Option Description Sleep Timer Select the desired Auto Sleep (Standby) duration. Turn off the screen while sound continues. Press the OK button to turn on Picture Off the screen again. -
Page 36: Screen Saver
Screen Saver To access screen saver settings, navigate from Settings > Device Preferences > Screen Saver Option Description When To Start Set the screen saver start time. Put Device To Sleep Set the time interval for the TV to go to into standby mode. Location To access location settings, navigate from Settings >... -
Page 37: Accessibility
Accessibility To access accessibility settings, navigate from Settings > Device Preferences > Accessibility Option Description Audio Description Turn Audio Description On/Off. Captions Enable closed captions, to see audio as text on the screen. High Contrast Text Turn high contrast text On/Off. Reset To access reset settings, navigate from Settings >... -
Page 38: Remote & Accessories
Remote & Accessories To access remote and accessories settings, navigate from Settings > Remote & Accessories In this menu,you can pair Bluetooth speakers, keyboards and other devices. ® To pair the TV remote: 1. Press the MENU and LEFT button for 5 seconds. 2. -
Page 39: High Dynamic Range (Hdr)
High Dynamic Range (HDR) About the HDR feature High Dynamic Range (HDR) is a picture feature on your TV that attempts to mimic the way visuals are perceived in real life by the human eye. By using this feature, this QLED TV can reproduce greater dynamic range of luminosity by capturing and then combining several different exposures. -
Page 40: Tv Guide
TV Guide (Free to air TV) To access the TV guide, press the GUIDE button on the remote. TV Guide Functions To activate the TV Channels use the Function Remote Button buttons to select a channel in the left column, then press the OK Select a Channel button to confirm. -
Page 41: Recording
Recording Important Tips: • Back-up your personal data before plugging in your USB to the TV. We do not assume liability for any loss of data due to misuse or malfunction. • You cannot change channels while in recording mode. •... -
Page 42: Recording Live Tv
Before you can record with this TV (including time-shift recording), you must Recording, scheduled recording and pause insert your USB storage device into the live TV functions only work in DTV mode USB port. (free-to-air). Recording Live TV Playback Press the MENU button then press the Start Recording DOWN button to go to Record section, and Record List to display the list of recorded... -
Page 43: Pause Live Tv (Time-Shift)
Pause Live TV (Time-shift) Recording, scheduled recording and pause Temporarily pause the live TV signal, then resume live TV functions only work in DTV mode playback at your convenience. (free-to-air). Before you can record with this TV (including time-shift recording), you must insert your USB storage device into the USB port. -
Page 44: Troubleshooting
Troubleshooting If you experience problems with your TV, check below for advice. If you don't find a solution here, contact After Sales Support on 1300 886 649. Problem Solution Make sure that the batteries are installed with their poles (+/–) in the correct direction. Remove any obstacles between the remote control and remote control sensor on the TV. - Page 45 Problem Solution Ensure that connection to the device is correct and that all cables are fully inserted. Remove and reconnect all cables connected to the TV and the external devices. Try new cables if possible. There is no picture/ Restart the connected devices by unplugging each device's power cord and then plugging it in again. sound or distorted If "No Signal"...
- Page 46 Problem Solution When using Wi-Fi, make sure the Wi-Fi password is entered correctly. Turn off the access point. Wait for 2 minutes and then turn them back on. Ensure that there are no obstacles between the TV and the access point. (The Wi-Fi strength can be decreased by appliances, cordless phones, stone walls/fireplaces, etc.) Reduce interference by not using or turning off other wireless devices.
-
Page 47: Specifications
Specifications Active screen size USB output DC 5V 500mA 146cm (diagonal) Power source 100-240V, 50/60Hz Resolution 3840 x 2160 Power consumption MAX. 150W Refresh rate 60Hz With stand: 1289 x 269 x Aspect ratio 16:9 811 mm Dimensions (W x D x H) 3GP, HDR, H264, Without stand: 1289 x 63 H265, MKV,... -
Page 48: Compliance And Responsible Disposal
Compliance and Responsible Disposal Packaging The packaging of your product has been selected from environmentally friendly materials and can usually be recycled. Please ensure these are disposed of correctly. Plastic wrapping can National Television and Computer Recycling be a suffocation hazard for babies and young children, please ensure all packaging materials are out of Scheme reach and are safely disposed of. -
Page 49: Warranty Information
Warranty Information The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and labour. -
Page 50: Repair And Refurbished Goods Or Parts Notice
Repair and Refurbished Goods or Parts Notice Unfortunately, sometimes faulty products are manufactured, which need to be returned to the supplier for repair. Please be aware that if your product is capable of retaining user-generated data (such as files stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs stored on a portable media player, games saved on a games console or files stored on a USB memory stick) during the process of repair, some or all of your stored data may be lost. - Page 51 Notes...
- Page 52 Online support Visit www.bauhn.com.au for software updates to keep your TV up-to-date, as well as the latest User Manual for information on the updated features. Warranty returns Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product.
