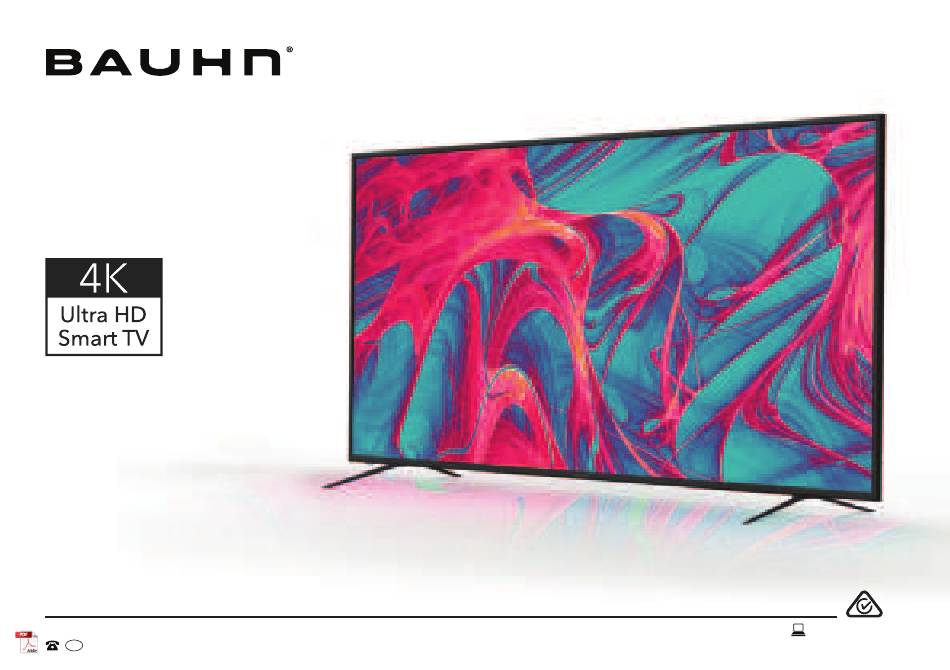

- Page 1 ” MODEL: ATV55UHDS-0920 User Manual AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: ATV55UHDS-0920 PRODUCT CODE: 702170 09/2020...
-
Page 2: Welcome
Welcome Congratulations on your purchase! This manual tells you all you need to know about using your new BAUHN ® product. Please take special note of any important safety and usage information presented with the symbol. All products brought to you by BAUHN ®... -
Page 3: Table Of Contents
Contents Welcome TV Setting Menus Recording Picture Recording Live TV Unpack and Prepare Sound Scheduled Recording What's in the box Setting Playback Important Tips Time Pause Live TV (Time-shift) Attaching the stand Lock USB Mode Wall-mounting the TV PVR Option Set up Connect to power (Personal Video Recording) -
Page 4: Unpack And Prepare
Unpack and Prepare What's in the box See the flap of the box Before installing your new TV, check you have everything needed. for how to handle the TV without damaging it! In the box you will find: A. 55" 4K Ultra HD Smart TV B. -
Page 5: Important Tips
Important Tips • Place the TV on a level surface. • Place the TV away from any source that may generate heat or vibrations. • Make sure there is enough space around vents for airflow. • The remote control works up to 5 metres away from the TV. •... -
Page 6: Attaching The Stand
Attaching the stand • This TV is heavy! We recommend asking someone to help you lift it. • Unplug the TV from the power outlet before installing or removing the stand. • DO NOT place the TV standing upright without its stand attached;... -
Page 7: Wall-Mounting The Tv
Wall-mounting the TV • Unplug the TV from the power outlet before wall-mounting. • Contact a professional for assistance with wall-mounting the TV. Required 400mm • VESA Mounting Bracket • 4 x M6*10mm screws (or longer as required) The TV comes with holes on the back panel for use with wall-mounting brackets (bracket not included). -
Page 8: Connect To Power
Connect to power Don't forget to plug in the TV to the power outlet. Leave the power switched off until installation is finished. Make sure the TV is switched off at the power outlet until you have finished connecting your cables. Connect your antenna Free-to-air TV in HD (High Definition) High Definition (HD) channels... -
Page 9: Controls And Connections
Controls and Connections Get to know your TV On/Standby light and Remote sensor Buttons on the TV 1. SOURCE: Change the input source 2. MENU: Enter the settings menu 3. VOL+: Increase the volume level 4. VOL-: Decrease the volume level 5. -
Page 10: Ports On The Tv
Ports on the TV ANTENNA IN ANTENNA IN Connect your antenna for live TV. (Antenna cable not included). • PVR record and pause live TV • Play your stored media files (supported file codecs and extensions may vary) • Software updates 10 | CONTROLS AND CONNECTIONS... - Page 11 HDMI 3 (CVBS) DIGITAL AUDIO HDMI 1 HDMI 2 (ARC) VIDEO IN OUT (OPTICAL) Connect to your broadband modem using an Ethernet cable (not included) for best streaming experience. However, the TV also has built-in WiFi. DIGITAL AUDIO Connect an external digital audio device. Use an Optical cable (not included) to connect the unit with an amplifier, soundbar OUT (OPTICAL) or other audio decoding device for digital audio signal output.
- Page 12 You can use this to connect your DVD player. Supports VIDEO IN Standard Definition (SD) picture quality. Requires an AV cable (not included). AUDIO IN You can use this to connect Audio to your TV for AV or Component video inputs. Requires an AV cable (not included). 12 | CONTROLS AND CONNECTIONS...
-
Page 13: Remote Control
Remote Control Setup Insert two AAA size batteries according to the polarity markings (+/-) inside the compartment. Make sure the batteries are correctly aligned and properly pushed into AAA size place. batteries included Precautions When Using Batteries • Do not use old and new batteries together. •... -
Page 14: Using The Remote Control
Using the Remote Control To use the remote, point it towards the remote sensor at the front of the TV. The remote will not operate if its path is blocked. The remote has a range of up to about 5 metres from Remote Hints and Tips the TV at an angle of up to 30 degrees to either side of the sensor, as illustrated below. -
Page 15: Standard Remote
Standard Remote (ON): Switch the TV to On or Standby (MUTE) :Mute or restore sound NUMBER BUTTONS: Key in a TV channel number :Enter teletext* EPG: Display Electronic Program Guide :Go to the next or previous program (SOURCE): Select the input source :Enter the Home page + V - : Increase/decrease volume level * Teletext is no longer available... - Page 16 : Access TV settings, Menu (INFO): Display program information : Press the UP/DOWN/ LEFT/RIGHT buttons to navigate OK: Confirm your selection BACK: Return to the previous screen/ EXIT: Exit/quit the current screen menu : Launch the YouTube app : Launch the Netflix app USB : Enter USB mode : Launch the Amazon Prime Video : Fast forward the track...
-
Page 17: Easy Remote
Easy Remote (POWER): Switch the TV to On SOURCE: Switch the input or Standby source : Press the UP/ OK: Confirm your selection DOWN/LEFT/RIGHT buttons to navigate EXIT: Exit/Quit the current BACK: Return to previous screen screen/menu HOME HOME: Access streaming apps, TV settings : Turn the volume up or : Go to the next or... -
Page 18: On-Screen Set Up
On-Screen Set Up Make sure equipment is properly connected (as shown on pages 10-12) before connecting the TV to power. Make sure the TV is plugged in at the power socket and switched on. Press the (ON) button to turn on the TV. On/Standby light is WHITE in standby mode. -
Page 19: Networking
Networking You can set up your TV so that it can access the Internet through your home network using a wired or wireless connection. Connecting to a Wireless Network • Press the button on the remote to select TV Settings >... -
Page 20: Connecting To A Wired Network
Connecting to a Wired Network • Connect an ethernet cable to the LAN port on the back of the TV. • Press the button on your remote to select TV Settings > Network. • Change the Network Type setting to 'Wired'. The TV will automatically pick up the network setting Make sure you have an ethernet from the modem and connect to the network. -
Page 21: Tv Setting Menus
TV Setting Menus Menu Navigation Buttons Once you have programmed any settings, the unit will retain them in its memory Press the button and select TV Settings. See the until you change then, even guide below for all the other buttons you'll need to use after turning the TV off. - Page 22 Sound Lock About • Sound Mode • Lock System • Netflix: • Equalizer • Set Password • Netflix Deactive, Terminate Netflix, Netflix • Balance • Parental Guidance ESN, Netflix Version • Auto Volume Limit PVR Option • View End-User License •...
-
Page 23: Picture
Picture Picture Mode Dynamic : Enhanced brightness with lower contrast, colour depth and edges. Dynamic Dynamic Standard : Default picture settings suitable for a dark room. Dynamic Movie : Settings are optimised for viewing movies. : Adjust settings to best suit your viewing environment and content. User User Mode settings Option... - Page 24 Option Description Adjust the screen brightness by adjusting the backlight. The closer to 100, the Backlight brighter the screen. Colour Adjust the on-screen colour temperature. Temperature Aspect Ratio This item is used to adjust the video size. Sizes may differ between input sources. Noise Reduces screen noise/static.
-
Page 25: Sound
Sound Option Description Sound Mode Standard Music Movie Sport User Equalizer Adjust selected frequencies. These options are available when sound mode is set to personal. Balance Adjust the audio output between the left and right speakers. Auto Volume Limit Adjust the increase or decrease of audio when you change channels, video sources or content. Surround Sound Adjust surround sound effect from your TV speakers. -
Page 26: Setting
Setting Option Description Language Select your preferred On screen display, Audio and Subtitle language. OSD Time Set the preferred amount of time for the OSD to be displayed on the screen. Auto, 1.4 (2K), 2.0 (4K). HDMI-EDID Select 2.0 (4K) when the source signal is transferred by HDMI 2.0 Specification. Select 1.4 (2K) when the source signal is transferred by HDMI 1.4 Specification. - Page 27 Link (HDMI-CEC) Setup This feature allows for your TV and your connected HDMI device to be controlled by one remote control. It also means you can turn them both on or off simultaneously. Make sure to select the correct HDMI input source. Option Description Link (HDMI-CEC)
-
Page 28: Time
Time Option Description On: Automatically syncs TV clock according to the DTV broadcasting time. Auto Sync Off: Manually adjust the clock. Clock Displays the DTV signal time or set the time manually. Off Time Set the time and day to turn off the TV. On Time Set the time and day to turn on the TV. -
Page 29: Lock
Lock 0000 Factory Password: Enter the factory password '0000' using the number buttons on the remote and select 'OK' on-screen. If you changed your 8899 Master Password: password but forgot it, you can still use the master password. Option Description Lock System Turn system lock on/off. -
Page 30: Pvr Option
PVR Option (Personal Video Recording) To make changes to PVR (Personal Video Recording), ensure your USB drive is inserted into the TV. Check the troubleshooting section if you're having problems setting up your USB device. Option Description Enter submenu in DTV mode. •... -
Page 31: Program
Program Option Description Automatically tunes all available free-to-air TV channels. Adjust settings (default Auto Tuning settings are set for Australia), select 'Search' and press OK. DTV Manual Manually select and tune digital TV channels. Tuning ATV Manual Manually select and tune analog TV channels. (Analog TV is no longer supported in Australia). -
Page 32: Network
Network You can set up your TV so that it can access the Internet through your home network using a wired or wireless connection. Make sure you have an ethernet cable Option Description connected to the TV Wi-Fi See below for more information. Ethernet See next page for more information. - Page 33 Wired Network Settings Option Description Protocol Change Internet protocol from IPv4 > IPv6 DHCP: Automatically receive network addresses from the W-Fi router. Configuration Static: Manually enter IP, Netmask, Gateway, DNS network addresses. Connect Select to connect. Keep it simple for easy setup! If an item isn't required, just leave it on the default setting.
-
Page 34: About
About Option Description Enter Netflix submenu. • Netflix Deactivate: Select to deactivate Netflix. Netflix • Terminate Netflix: Select to terminate Netflix. • Netflix ESN: Display the Netflix ESN information. • Netflix Version: Display the Netflix version. View End-User License Read and accept/decline the End-User-License Agreement (EULA). -
Page 35: High Dynamic Range (Hdr)
High Dynamic Range (HDR) About the HDR feature High Dynamic Range (HDR) is a picture feature on your TV that attempts to mimic the way visuals are perceived in real life by the human eye. By using this feature, the TV can reproduce greater dynamic range of luminosity by capturing and then combining several different exposures. -
Page 36: Smart Tv
Smart TV Smart TV Applications • Netflix • Smart TV Apps Before you start using apps, your TV must be • YouTube • Yahoo connected to the internet. • Prime Video • Youtube Kids The speed of your internet connection determines •... -
Page 37: Screencast
Screencast App Portals The Screencast feature enables you to echo the display The NetRange app portal gives you access to other from a compatible Android device like a smartphone content and service providers. or tablet on the TV screen by connecting your mobile Some apps may require a paid subscription. -
Page 38: Web Browser
Web Browser Refresh Address bar Add to Bookmark Go Forward Home Using the web browser, you can surf the Internet on the TV similar to how Go Back Settings you would do on a PC. NOTE: Use a wired or wireless keyboard and mouse (not provided) for an easier web browsing experience. -
Page 39: Tv Guide
TV Guide (Free to air TV) TV Guide Functions Function Remote Button Select a channel or program Schedule selected program for recording Display program guide of previous day GREEN To access the TV guide, press Display program guide for next day. YELLOW the EPG button on the remote. -
Page 40: Recording
Recording Important Tips: • Back-up your personal data before plugging in your USB to the TV. We do not assume liability for any loss of data due to misuse or malfunction. • You cannot change channels while in recording mode. •... -
Page 41: Recording Live Tv
Recording, scheduled recording and pause Before you can record with this TV live TV functions only work in DTV mode (including time-shift recording), you must (free-to-air). insert your USB storage device into the USB port. Recording Live TV Playback Start Recording Press the button then navigate to System then PVR File System then Record List to... -
Page 42: Pause Live Tv (Time-Shift)
Pause Live TV (Time-shift) The USB storage device won't retain recorded data Temporarily pause the live TV signal, then resume after you exit the time-shift function. playback at your convenience. Before you can record with this TV (including time-shift recording), you must insert your USB storage device into the USB port. -
Page 43: Usb Mode
USB Mode You can only play Photos in the Photo category, Music in the Music category and so on. Make sure you select the Set up correct category for the file you wish to play. Insert your USB into a USB port on the TV. Press the button to select 'Media' mode. - Page 44 Playback Functions Playback of different media types have different controls. Photo Music Function Remote Button Function Remote Button Navigate to a folder or file Navigate to a folder or file Select files Select tracks Display a photo Play a track Fast forward or rewind the track Return to file list BACK...
-
Page 45: Troubleshooting
Troubleshooting If you experience problems with your TV, check below for advice. If you don't find a solution here, contact After Sales Support on 1300 886 649. Problem Solution Check the power outlet is turned on. If using a multi-outlet, check if it is working properly. To check whether a power strip is working properly, plug the No power TV’s power plug directly to a wall outlet and observe its operation. - Page 46 Problem Solution Ensure that the equipment is connected properly. Ensure that the input setting for the TV is correct. Ensure audio settings on the external device are set correctly. Ensure the volume is not muted. If it is, press the MUTE button to restore the sound. Sound issues If earphones are connected, unplug them.
- Page 47 Problems relating to your USB media storage device Problem Solution First, refer to the instructions describing how to use USB devices with this TV. If the problem still occurs, your USB device may not be compatible. My TV does not This TV has been tested with the majority of Flash memory-based devices and hard disks (media players with recognise my HDD) on the market;...
-
Page 48: Specifications
Specifications Active screen size With stand: 1242 x 251 138.8cm (diagonal) x 789 mm Dimensions (W x D x H) Resolution 3840 x 2160 Without stand: 1242 x 96 x 717 mm Aspect ratio 16:9 12kg Refresh rate 60Hz Weight Gross 15.1kg HDMI version... -
Page 49: Compliance And Responsible Disposal
Compliance and Responsible Disposal Packaging The packaging of your product has been selected from environmentally friendly materials and can usually be recycled. Please ensure these are disposed of correctly. Plastic wrapping can National Television and Computer Recycling be a suffocation hazard for babies and young children, please ensure all packaging materials are out of Scheme reach and are safely disposed of. -
Page 50: Warranty Information
Warranty Information The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and labour. -
Page 51: Repair And Refurbished Goods Or Parts Notice
Repair and Refurbished Goods or Parts Notice Unfortunately, sometimes faulty products are manufactured, which need to be returned to the supplier for repair. Please be aware that if your product is capable of retaining user-generated data (such as files stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs stored on a portable media player, games saved on a games console or files stored on a USB memory stick) during the process of repair, some or all of your stored data may be lost. - Page 52 Online support Visit www.bauhn.com.au for software updates to keep your TV up-to-date, as well as the latest User Manual for information on the updated features. Warranty returns Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product.
