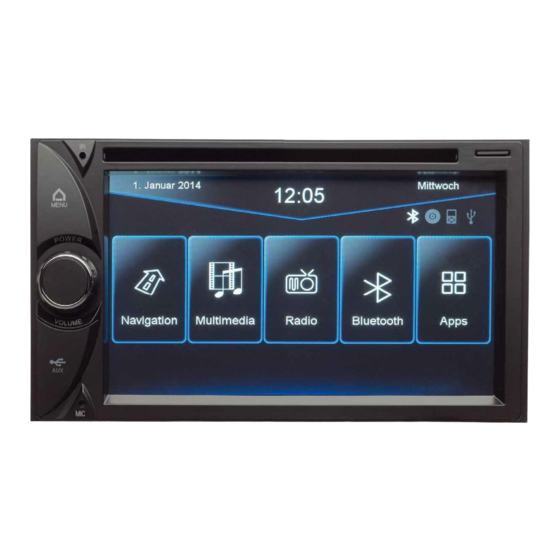

ESX Vision Naviceiver VN620W Owner's Manual

15,7 cm (6.2”) double-din touchscreen naviceiver, 15,7 cm (6.2”) double-din touchscreen naviceiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
VN620W
15,7 CM (6.2") DOUBLE-DIN
TOUCHSCREEN NAVICEIVER
VN620D
15,7 CM (6.2") DOUBLE-DIN
TOUCHSCREEN NAVICEIVER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vision Naviceiver VN620W and is the answer not in the manual?

Questions and answers

Related Manuals for ESX Vision Naviceiver VN620W

Summary of Contents for ESX Vision Naviceiver VN620W

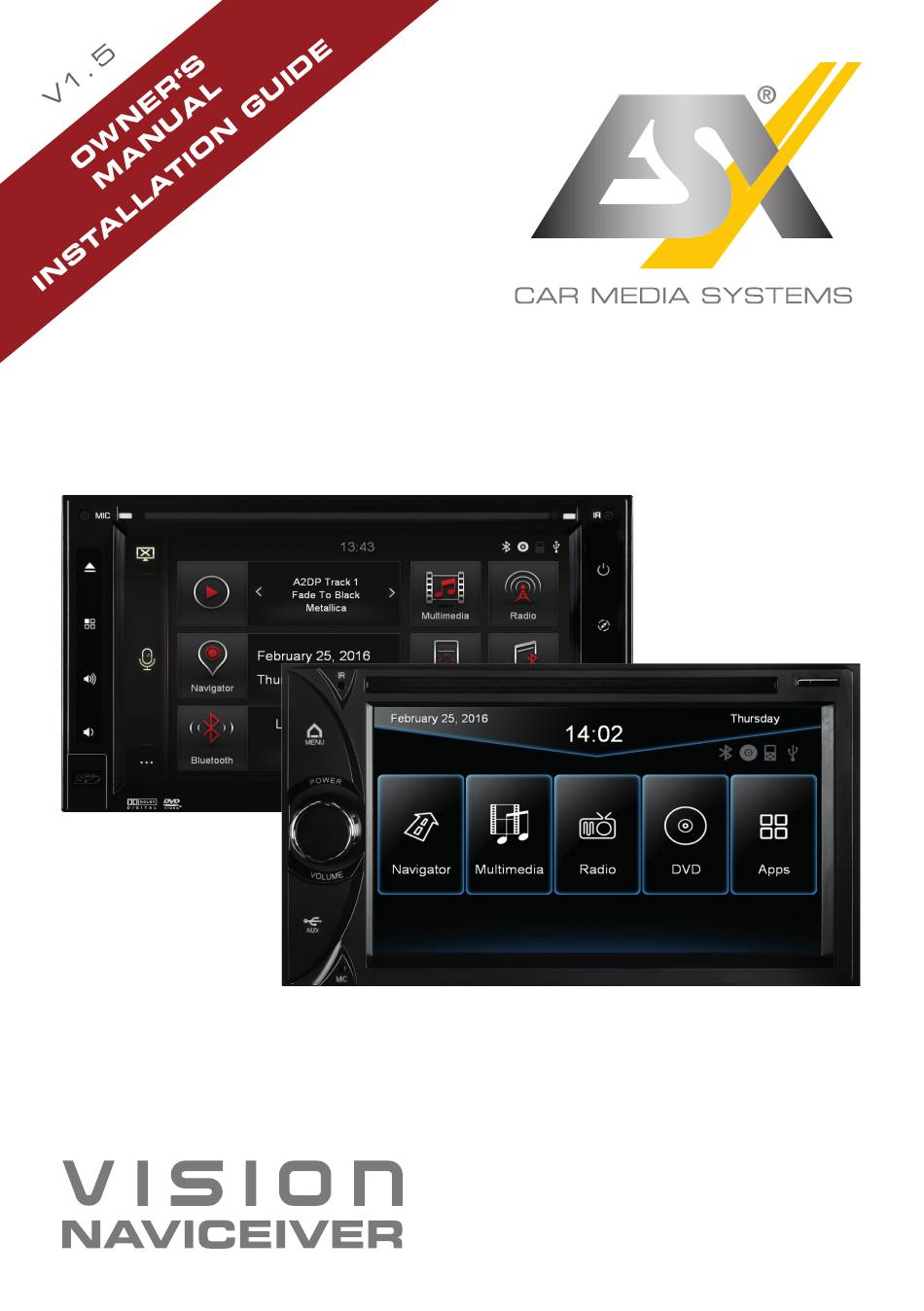

  • Page 1 VN620W 15,7 CM (6.2”) DOUBLE-DIN TOUCHSCREEN NAVICEIVER VN620D 15,7 CM (6.2”) DOUBLE-DIN TOUCHSCREEN NAVICEIVER...
  • Page 2 INTRODUCTION Always follow the instructions in this manual before using the device. Please keep this manual easily accessible in the vehicle for future reference. Features • iGo Primo, 3D Navisoftware with TMC on 8GB SD card, 46 countries including Turkey with Points of Interests display and search function, 3D building views, TTS voice output, warnings, over 25 system and prompt languages.

  • Page 3: Table Of Contents

    INDEX Scope of delivery .............................4 Safety Information ...........................6 Basic functions ............................8 Operating elements ..........................8 Main menu ............................10 Navigation ............................11 Multimedia player ..........................12 Radio ..............................14 DVD (DVD/CD player) ..........................17 Applications ............................18 – Bluetooth™ ............................19 – LinkPod .............................21 – AV/TV ..............................23 – A2DP ..............................24 –...

  • Page 4: Scope Of Delivery

    SCOPE OF DELIVERY Item Figure Quantity Main device Stylus MicroSD 8GB incl. Navigations Software Remote Control G71-POW0422 System Connector on ISO M6241 System Connector on open cables G71-AUD0119 Audio / Video / AV Inputs G71-MNV0010 Audio Output with Remote Turn-On G71-MIC0008 External BT-Microphone G71-CCD0037...
  • Page 5 SCOPE OF DELIVERY Item Figure Quantity G71-MNV0009 Audio / Video Outputs VN620-D: G71-USB0055 VN620-W: USB Port G71-WHE0063 Var. System Connections GPS Antenna TMC Wire Antenna Double DIN Mounting Frame Double DIN Radio Decoration Panel Unlock Device Clamps...

  • Page 6: Safety Information

    SAFETY INFORMATION • In general, the assembly and installation of the device must be performed by a trained and technically skilled specialists, as the installation and connection of the device requires complex knowledge. • This device is only suitable for the operation in a vehicle with an on-board voltage of 12 volts, negative ground.
  • Page 7 SAFETY INFORMATION • The device supports only DVD/CD standard disk size of diameter with 12 cm. Do not attempt to insert disks with a different size or any other object into the disk slot. Be sure to load only one disk at the same time. •...

  • Page 8: Basic Functions

    BASIC FUNCTIONS OPERATING ELEMENTS VN620-W Internal Bluetooth™ microphone Opens main menu. Slot for CD/DVD disks (Ø 12 cm). Opens navigation system. Infrared sensor for the remote control Turns volume up Eject the inserted CD/DVD. Starts media playback from USB 10. Turns volume down Press briefly: Mute Press and hold: the device switches to 11.
  • Page 9 BASIC FUNCTIONS OPERATING ELEMENTS VN620-D Infrared sensor for the remote control Behind the cover (open to the left), the reset button, the 3,5 mm AUX- and front USB input Slot for CD/DVD disks (Ø 12 cm). are located MicroSD card slot Internal Bluetooth™...

  • Page 10: Main Menu

    BASIC FUNCTIONS MAIN MENU After power on, the device starts with the main menu. By pressing the „ “ button (VN620-W) or „Menu “ (VN620-D) on the device, you can always get to the main menu too. Depending on the selected design theme (Skin), the current date and time will be displayed here. The four function icons are (depending on the skin) is highlighted in white and thus activated when the corresponding function is in use, such as „Bluetooth connection“, „CD / DVD in the drive“, „iPod con- nection“...

  • Page 11: Navigation

    „NAVI“ buttons on the device. Note: If you have accidentally changed the path and want to use the original ESX iGO software, the path must be always „\Storage Card\NaviOne\Navione.exe“. The unit receives GPS satellite signals automatically. In poor weather conditions or for example while passing a tunnel, these signals may be disturbed.

  • Page 12: Multimedia Player

    BASIC FUNCTIONS MULTIMEDIA PLAYER By tapping „Multimedia“ in the main menu or by pressing the „ “ button on the device (only VN620-W), the source selection USB or SD for audio and video playback opens. Refer to page 17 for CD Audio playback. 10.
  • Page 13 BASIC FUNCTIONS FOLDER PLAYBACK Tap on the folder icon in the multimedia menu on the bottom left (see page 9, #9) and the currently playing folder appears. Now you can scroll through the list and select another song by taping directly or with „go back“...

  • Page 14: Radio

    BASIC FUNCTIONS RADIO Open the radio application by tapping „Radio“ in the main menu . 11. With the arrows you can quick-start the search Tap here to enter the main menu without inter- rupting the radio playback. for a station from the current frequency up or down.
  • Page 15 BASIC FUNCTIONS Settings and station presets Tap on the „gear“ icon to open the settings and then: „Rename Station“ to rename the current radio station. „Delete Station“ to delete the current radio station from the presets. „Delete All Stations“ to delete all radio stations from the pre- sets.
  • Page 16 BASIC FUNCTIONS RDS functions This device supports RDS (Radio Data System) in the frequency range 87.5 - 107.9 MHz FM. The follow- ing RDS functions are only available if they are supported by the selected radio station. AF (Alternative Frequency) The AF function enables the automatic switching of the receiv- ing frequency when leaving the reception range of a transmitter.

  • Page 17: Dvd (Dvd/Cd Player)

    BASIC FUNCTIONS (DVD/CD-Player) The DVD player supports the following formats: DVD, DVD-R/RW, DVD+R/RW, VCD, CD, CD-R/RW, MP3. Open the DVD application by tapping „DVD“ in the main menu. Tap during DVD playback on any spot on the display to open the DVD menu. When you playback a CD or MP3-CD, the user interface is different.

  • Page 18: Applications

    BASIC FUNCTIONS APPS Open the application menu by tapping on „Apps“ in the main menu. The device offers a variety of applications that can be used as described below. Some of these func- tions require the appropriate accessories. Tap here to switch off the display. To switch on Tap here to open the VirtualDisk menu.

  • Page 19: Bluetooth

    BASIC FUNCTIONS BLUETOOTH™ Open the Bluetooth™ application by tapping „Bluetooth“ in the main menu or by pressing the „ “ (only VN620-W) button on the device. PAIRING At first pair the devices, if necessary refer to the manual of your mobile phone.
  • Page 20 BASIC FUNCTIONS CONTACTS AND CALL HISTORY Once your mobile phone has been connected via Bluetooth to the device, the synchronization of your contacts and call history starts automatically. Tap on „Contacts“. Tap on a name to start a phone call. Tap on the white search field to search for Tap on „History“.
  • Page 21 BASIC FUNCTIONS Tap on „Dialled“ to display the already trans- To synchronize your contacts and call history acted phone calls. tap on „Sync. Now“. KEYPAD Tap on „Keypad“ to enter phone numbers manually. Then enter the desired number and then tap the green phone icon to start dialing.

  • Page 22: Linkpod

    BASIC FUNCTIONS LinkPod (optional) Connect your iPod™ or iPhone™ via USB with the ESX device. When the iPod™ icon is highlighted in white (top next to the time display), the connection is active. The battery charging function is carried out when the unit is turned on.

  • Page 23: Av/Tv

    Please refer for operation, installation and functionality to the instruction manual of the connected device. Note: AV is not available when the external DAB receiver „VNA- TM-DAB“ from ESX is used. The connections are as follows: = Cable AV 1 (3 x RCA)

  • Page 24: A2Dp

    Bluetooth, which works with the streaming A2DP standard, there is the possibility, to playback audio stream over the ESX device. Connect this device as described on page 15 and select a music source A2DP under Apps. If the message „A2DP is not connected“ appears, your BT device it is not connected or the audio playback is not (yet) enabled.

  • Page 25: Audio

    BASIC FUNCTIONS Audio You can open the audio settings in the main menu by tapping on „Apps“ and „Audio“ or by pressing the right rotary control (except while DVD/TV playback) on the device. Tap on one of the control bars to change the sound adjust- ment.
  • Page 26 BASIC FUNCTIONS Tap on one of the control bars to change the equalizer preset. Tap on „Advance“ to open the advanced audio settings. On the left under „Channel Pre-Volume“ you can set the indi- vidual volume for each application. Just tap on the arrow icons to change the value upward or downward.
  • Page 27 BASIC FUNCTIONS Scroll the right field down to see all settings under „MISC“. Under the section „Loudness“ you can set the bass/treble boost from 0 - 20dB regardless of the equalizer settings. Note: This can lead to high distortion for the speakers. Under „Subwoofer“...

  • Page 28: Files

    BASIC FUNCTIONS Files With the file manager, it is possible to manage and open com- puter specific file formats. The system supports the following file formats: Photo: BMP, JPEG, GIF, PNG Video: MPEG (*.mpg, *.mpeg), AVI, RM (*.rm. *.rmvb), WMV, MP4 (*.mp4, *.mov), MKV (*.mkv) Audio: MP3, WMA, WAV, FLAC, AAC, Monkey Audio (*.ape) Tap once to highlight a particular file.

  • Page 29: Virtual Disk

    BASIC FUNCTIONS Once you have open an image file, you can start a slideshow of all the pictures stored in the directory. Tap on the image and the playback options are displayed. Tap on „Info“ to view the memory information of each storage locations.
  • Page 30 BASIC FUNCTIONS Note: When using multiple USB sticks, the stick with the desired RIPs must have been always connected first! If you can not access the RIPs, remove all USB sticks and connect the appropriate stick via USB. If you con- nect a USB Stick with contained CD RIPs while is Virtual Disk opened, they will not appear immediately.

  • Page 31: E-Link

    USB debug mode. Please note that the procedure for any Android device may vary. Connect your Android device via USB to the ESX Naviceiver and tap on „Detect Phone“. The first time you connect to an Android device, the device will automatically install the „Drive Mode“...

  • Page 32: Quick Charge

    BASIC FUNCTIONS Under „Choose Application“ you can select the desired appli- cation. By tapping on the transparent „>“ arrow on the bottom left, a further window opens in the lower third of the screen. There you find more options such as „Back“, „Home“, „Set- tings“...
  • Page 33 Please note that the USB data function is deactivated when the USB connection is used for the quick charging. The ESX device provides in „Quick Charge“ function a charging current of 1A - 2.1A (depending on the connected equipment). Note: Please note that the „Quick Charge“ function only works with USB port 1.
  • Page 34 BASIC FUNCTIONS Date/Time Tap on „Date/Time“. Select the desired time zone. Set the current date. Set the current time. Tap on the checkbox right to set on daylight Tap on „Apply“. saving time. Tap on the checkbox left to set the time for- mat to 12-hours (AM / PM).
  • Page 35 BASIC FUNCTIONS Display Tap on „Display“. Set the desired brightness level for the dis- play (only with vehicle headlights on). The checkbox „CCD Camera“, enables the With the checkbox „Pause Media Whilst Re- optional rear view camera function. As soon verse“, the media playback will be paused as reverse gear is engaged, the transmission when the reverse gear is engaged.
  • Page 36 BASIC FUNCTIONS Key illumination of the device (only in night driving mode) Tap on „Display“. Set the key Illumination brightness by mov- ing the status bar to a desired position. Note: This is only possible when the light of the vehicle is switched on. Under „LED Backlight Color“...
  • Page 37 BASIC FUNCTIONS Under „Voice Volume“ you can adjust the If „Play Bluetooth Status Voice“ is activated, volume of the speech output (0-10). an audible confirmation of the Bluetooth™ connection is issued whenever you connect The unit will inform you after the activation of or disconnect a paired Bluetooth™...
  • Page 38 BASIC FUNCTIONS Operating System Under „System“ you find information about the system. Shell: Version number of the user interface Version number of the operating system Check under www.esxnavi.de if an operating system update is available or ask your retail dealer. Then follow the installation instructions that come with the update.

  • Page 39: Custom Settings

    CUSTOM SETTINGS Menu assignment You have the possibility to arrange the main menu or apps menu to your liking. To change the position of a control panel, press and hold for 5 seconds the regarding panel in the main or apps menu until the dashed lines are visible.

  • Page 40: Wallpaper

    CUSTOM SETTINGS Wallpaper You have the possibility to customize the background image to your liking. First, copy the desired wallpaper file to the microSD card or on a USB stick. Tap on „Apps“. Tap on „Option“. Tap at „Wallpaper“ on „Browse“ Select a file by double click.

  • Page 41: Bootlogo

    Copy the image file from your PC to the SD card. It must be located in no folder. Insert the SD card into the ESX device and restart the device by pressing the reset button. The device now automatically installs the desired boot logo.

  • Page 42: Additional Functions

    ADVANCED OPERATIONS INFRARED REMOTE The included remote control allows you to control some basic functions on the device. Point directly with the front of the remote control to the screen of the device.The distance should not be more than 3 meters. If you use the remote control for the first time, you have to remove the safety foil in the battery compartment on the back.

  • Page 43: Multifunction Steering Wheel

    Note for other Audio/Video outputs: By using the cable G71-MNV0009 (see page 5) it is possible to playback audio and video signals on other devices. The media source is always the same, which is played on ESX device.

  • Page 44: Troubleshooting

    TROUBLESHOOTING If the following troubleshooting tips do not solve the problem and the malfunction persists, please contact an authorized repair or installation service. Do not open the device or attempt to repair it by yourself. This may cause serious damages to the electronic components of the device and in your vehicle or may void the war- ranty of the device.
  • Page 45 TROUBLESHOOTING Problems Causes Remedy CD/DVD playback The DVD menu can not be opened. The disc does not support menus or is Insert another disc. plagiarism. The picture quality during playback is Brightness, contrast and color saturation Check the DVD player settings and correct insufficient.
  • Page 46 TROUBLESHOOTING Problems Causes Remedy Navigation The navigation application will not start. The software is not compatible with the Check the compatibility of software with device. Windows CE 6, or get yourself a compatible version. The software was not installed on the Check the settings under Apps - Options device properly.
  • Page 47 TROUBLESHOOTING Problems Causes Remedy Bluetooth/Phone No connection or pairing of the devices. Bluetooth function of the phone is not Enable Bluetooth function in the phone enabled. settings. Bluetooth enabled but the phone is not Enable „visible“ in the phone settings. visible.

  • Page 48: Installation

    INSTALLATION NOTES Important Notes For safety reasons, leave the installation to skilled professionals. Consult your car audio dealer. This guide is an installation aid for a proper installation of the device. Please read the following instructions prior installation: This device can only be used with a 12 V/DC power supply with negative ground. Follow under all circumstance the regulations of the vehicle manufacturer and do not make any modifi- cations on the vehicle, which could interfere the driving safety.
  • Page 49 INSTALLATION NOTES Dashboard installation Dashboard Connect all required connections (5-16) with the Main Device Double DIN Mounting Frame Main Device Double DIN Radio Decoration Panel Bend the appropriate tabs to hold the mounting frame firmly in place. Please cut off the sprue of the radio decoration panel Recommended accessories: (18) on the four marked...

  • Page 50: Interconnection

    INTERCONNECTION Important note: Usually this devices requires a double-DIN installation slot and standard ISO power/speaker terminals. Check before connecting the correct assignment of constant plus (ISO chamber A4), ignition plus (ISO chamber A7) and ground (ISO chamber A8), even with on existing ISO connections! Use appropriate vehicle-specific adapters from the accessories trade if necessary.
  • Page 51 INTERCONNECTION Assignment of the System Connector on ISO ISO CONNECTOR OPEN CABLES PIN COLOR FUNCTION COLOR FUNCTION Gelb can-high (needs additional accessory) yellow battery +12V Gelb/Schwarz can-low (needs additional accessory) blue ant.cont. 12V output (max. 100ma) Grün input for reverse signal orange illumination Pink...
  • Page 52 Ground wire to +12V OUT TV-CONT-OUT brown Control cable for special ESX devices, please do not use. BRAKE IN pink Connect to the parking brake signal to the device. The cable provides ground when the parking brake is operated.
  • Page 53 RCA red V-OUT2/ZONE-2 RCA yellow Important Note: Connection for e.g. headrest monitors in the rear. The audio/video outputs is always the same signal to which will be played just on the ESX device. An independent input source selection is not possible.

  • Page 54: Installation Hints

    In general, the cable should be long enough to reach a desired mounting point at the A-pillar (driver‘s side) while laying the cable over the the pas- senger‘s side. A possibly existing factory microphone is not compatible with the ESX device.
  • Page 55 INSTALLATION HINTS Handbrake connection: The handbrake signal needs to be connected with the included cable (5 or 6, BRAKE IN). The signal must be connected to ground with the handbrake closed. Please contact for a correct and safe in- stallation your automotive service center! Accor- dance to legal regulations the device must only playback a DVD or video may on the main screen only with the handbrake closed.

  • Page 56: General Notes

    GENERAL INFORMATION Care and Maintenance This device is equipped with high precision and sensitive technique and should always be treated with caution. Please note the following tips to avoid endangering the warranty and extend the life of the appliance. • Children under 12 should not operate the device. Keep the device and all accessories away from small children.
  • Page 57 GENERAL INFORMATION Legal Notice • ESX or Audio Design GmbH are in no way affiliated with the Volkswagen AG or any of its subsidiaries or af- filiated companies connected to, or is acting on its behalf or with its authorization.
  • Page 58 NOTES...
  • Page 59 NOTES...
  • Page 60 ESX Car Media Systems · Audio Design GmbH Am Breilingsweg 3 · D-76709 Kronau/Germany Tel. +49 7253 - 9465-0 · Fax +49 7253 - 946510 www.esxnavi.de - www.audiodesign.de ©2017 All Rights Reserved...
