Operation

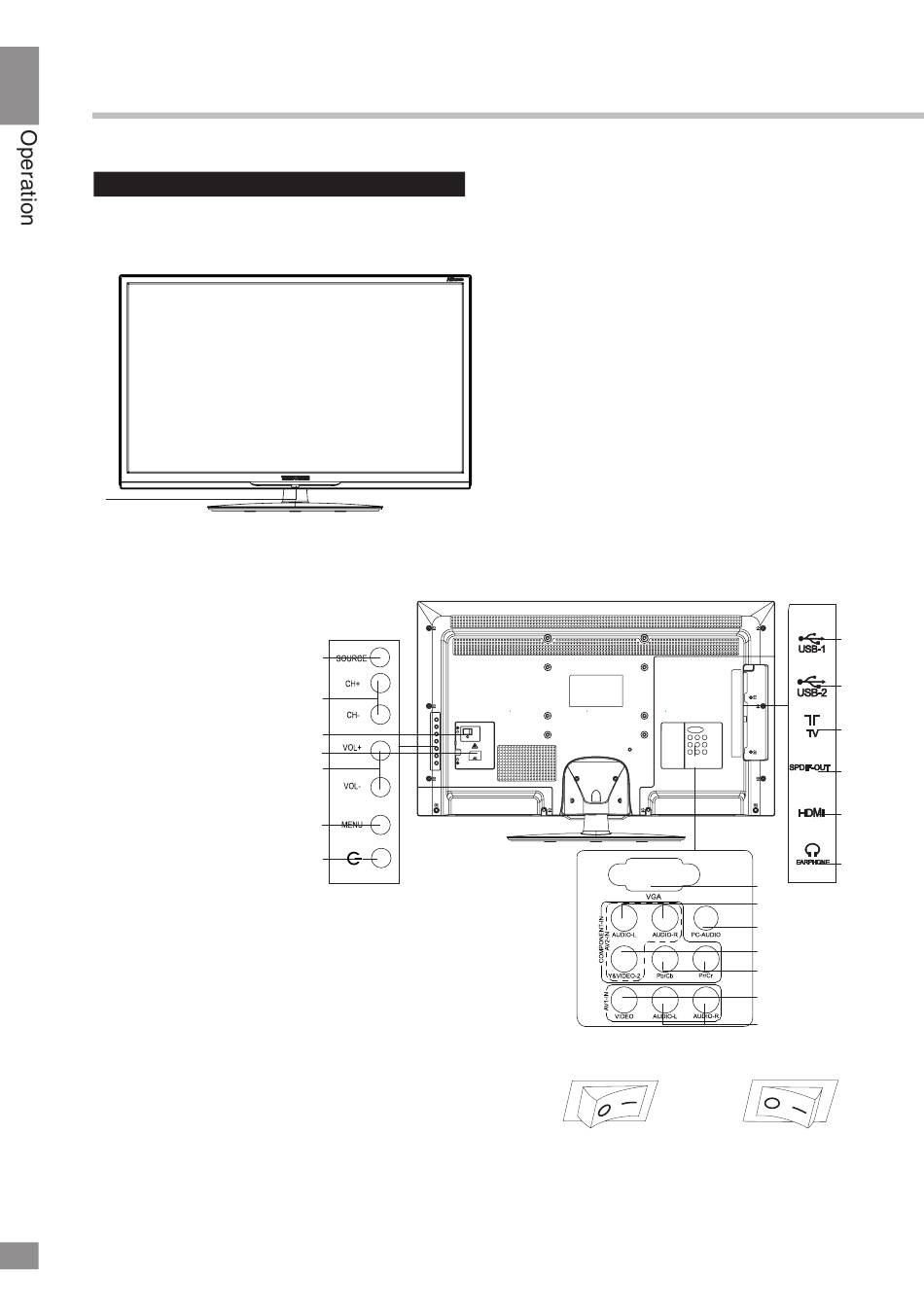

Control elements

Front panel

1

Back panel

1. SOURCE button
2. CH+/CH- buttons
3. Power switch*
4. Power cord
5. VOL+/VOL- buttons
6. MENU button
7. STANDBY button
8. USB-1 port
9. USB-2 port
10. Antenna jack
11. SPDIF digital output
12. HDMI input
13. Headphone output
14. VGA input
15. Audio stereo input for Component video
and for Composite video input-2
16. PC audio input
17. Y jack of Component input/Composite
input-2
18. Pb/Cb and Pr/Cr jacks of Component input
19. Video output
20. Audio stereo output
6
6
1
2
3
4
5
6
7
1. IR sensor and Power indicator
*Positions of the Power switch:
power on
8
9
10
11
12
13
14
15
16
17
18
19
20
power off
