Fitting Instructions for Basic Carrier
Revision No: 10J
x 2
x 8
x 2
x 2
x 4
x 1
1
Fitting Kit
x 4
x 4
K328W
x 4
x 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K328W and is the answer not in the manual?

Questions and answers

Summary of Contents for Whispbar K328W

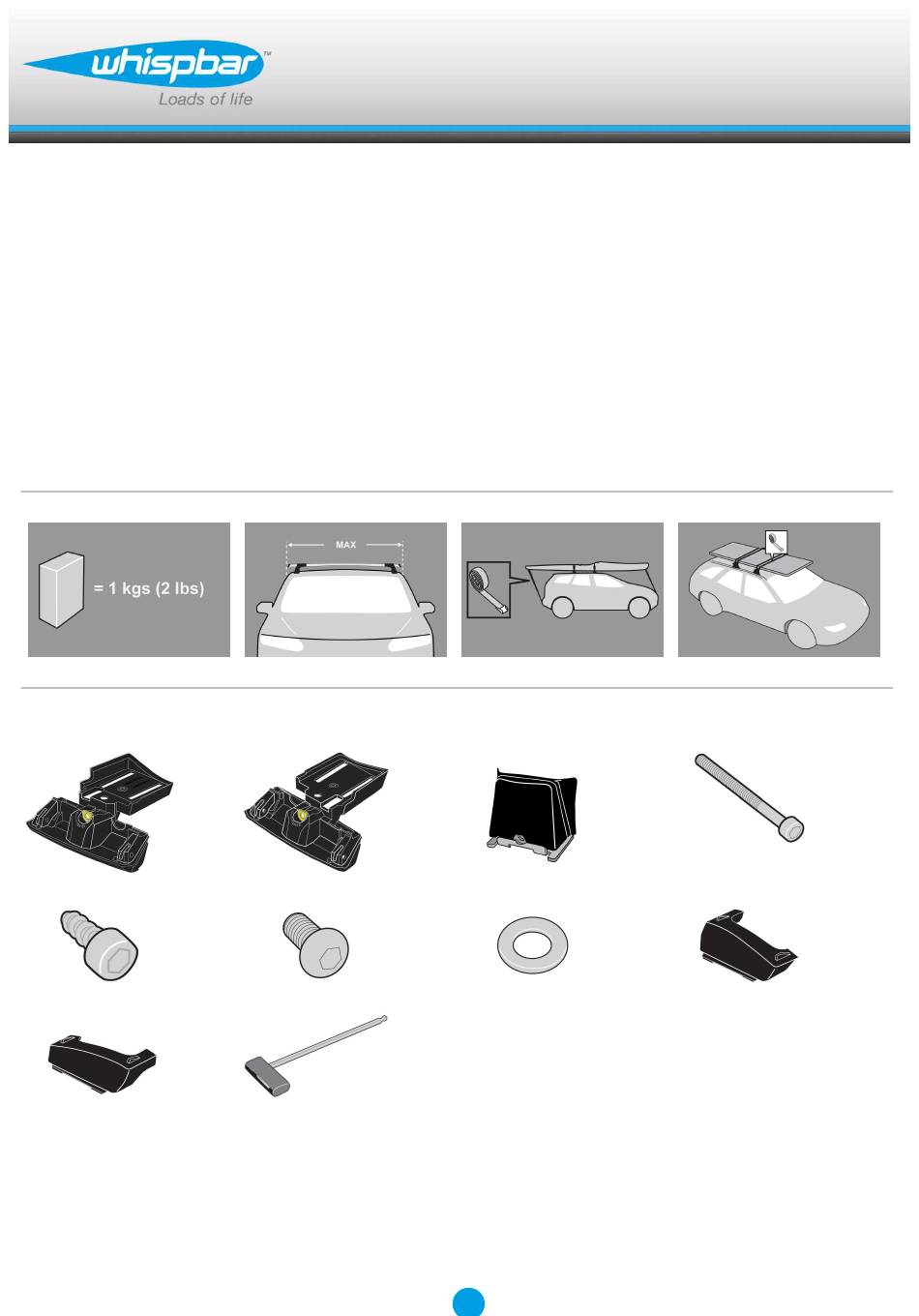

  • Page 1 K328W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 10J...
  • Page 2: First Time Installation

    Fitting Kit K328W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type B crossbar fitted. They also apply to type A, C and D.
  • Page 3 Fitting Kit K328W Use hex screwdriver to reverse adjusting screw 10 turns. Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Remove both pins from each leg. Use tapered end of spanner located inside left hand cover to assist.
  • Page 4 Fitting Kit K328W Detach foot from leg. Store loose parts in a safe place. Ensure that part A is inserted into part B as shown. Note: There is a left hand and right hand side.
  • Page 5 Fitting Kit K328W Select rail mount assemblies and match left and right assemblies to the left and right crossbar legs. Assemble foot from kit into leg by pressing it down. Ensure foot interlocks with leg. Using short capscrew and washer, secure...
  • Page 6 Fitting Kit K328W Use two M5 x 12 mm self tapping screws to secure the assembly onto the leg. Do not over tighten. Repeat for all legs. Slide clamp back towards centre of crossbar. Insert M6 x 70 mm capscrew through square brass washer and rail mount assembly.
  • Page 7 Fitting Kit K328W Bolt should sit in groove as shown. Use 5mm Hex Key to start thread. Repeat for all legs. For type C and D crossbars only. When attaching this fitting kit to type C and D crossbars, a gap will exist.
  • Page 8 Fitting Kit K328W Attach the fairings (supplied with this kit) to the back of the leg. Note: There is a left hand and right hand side. Ensure the fairings 'click' into place and sit flush. Fitment Adjust crossbar in or out to suit vehicle.
  • Page 9 Fitting Kit K328W Use 5mm Hex Key to tighten clamp and secure crossbar to rail. Correctly installed crossbars. Side rails may vary to those pictured. Ensure that all legs clamp securely to the roof rails. Tighten adjusting screw to 2 Nm (1.5 ft lb)
  • Page 10 Fitting Kit K328W Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
  • Page 11: Maintenance

    Fitting Kit K328W Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order.
  • Page 12 Fitting Kit K328W Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
  • Page 13: Warranty And Disclaimer

    Make a claim as soon as practicable by contacting the Whispbar dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au...
  • Page 14 Yakima or the Whispbar dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Whispbar dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
