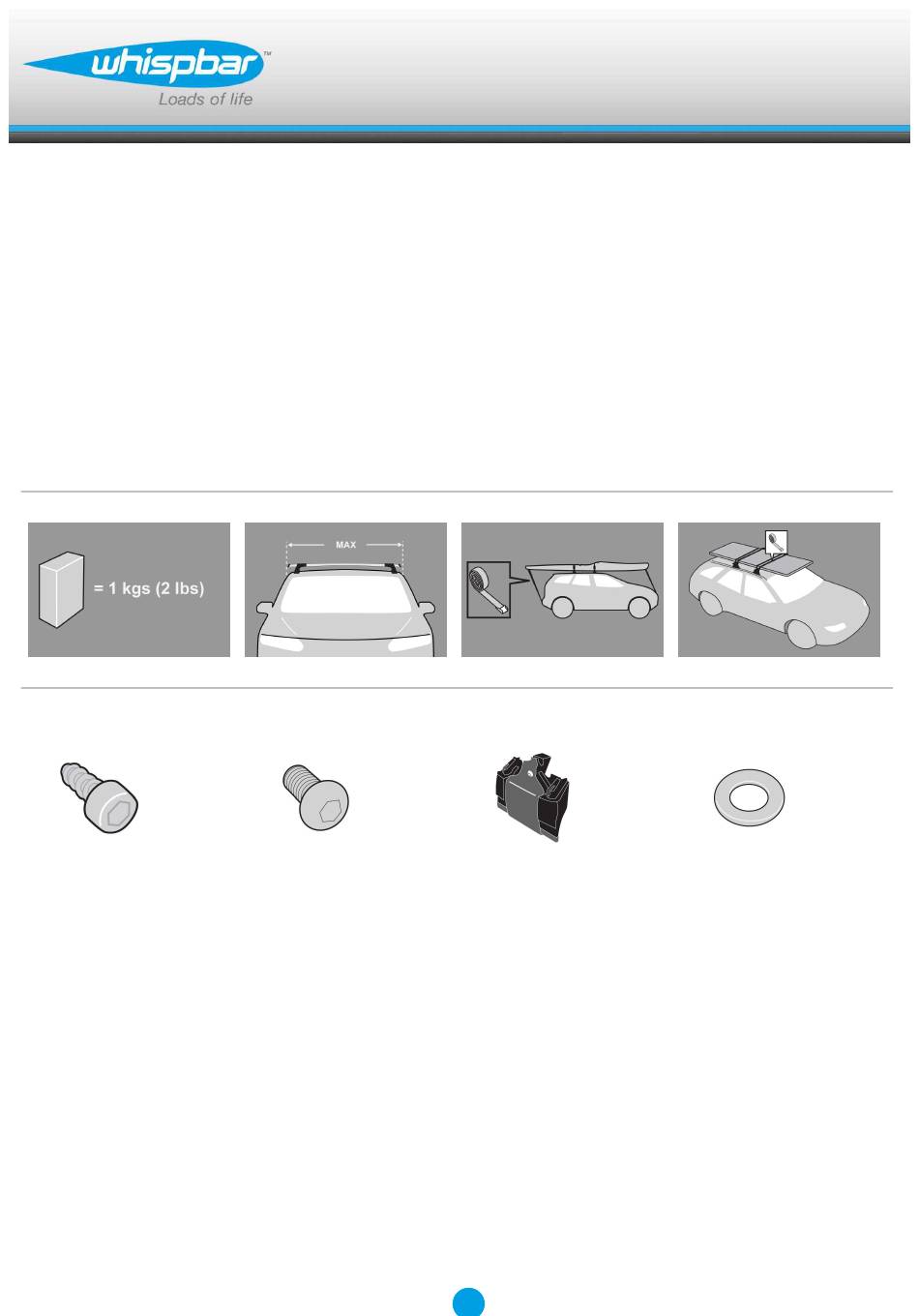

- Page 1 K324W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 6F...
-
Page 2: First Time Installation
Fitting Kit K324W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 3 Fitting Kit K324W Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Remove plastic clamp block by gripping bar...

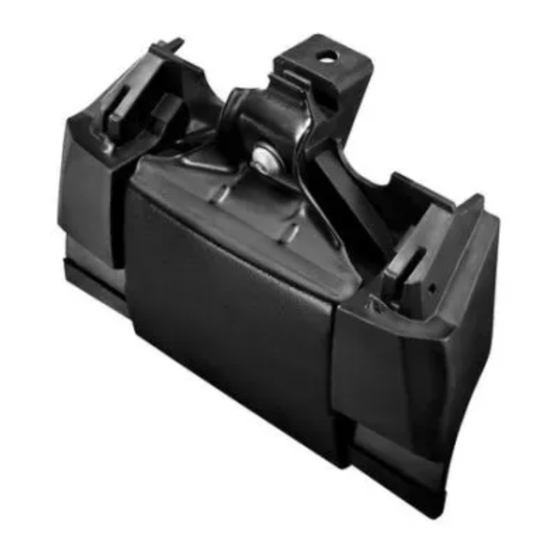

- Page 4 Fitting Kit K324W Remove both pins from each leg. Use tapered end of spanner located inside left hand cover to assist. Detach foot from leg. Store loose parts in a safe place. Repeat for all legs. Select a guttermount assembly from fitting...
- Page 5 Fitting Kit K324W Assemble guttermount assembly into leg (ensure guttermount blade interlocks with leg). Using short capscrew and washer, secure assembly onto leg (use Hex Screwdriver supplied with crossbar to assist) Tighten firmly (3Nm). Use two M5 x 12mm self tapping screws to secure the leg to the guttermount blade.
- Page 6 Fitting Kit K324W Fitment Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated). Place crossbar into gutter of vehicle. Adjust crossbar in or out to suit vehicle. Refer to the crossbar instructions for crossbar adjustment.
- Page 7 Fitting Kit K324W Loosely line up clamp over the vehicle gutter. Use same capscrew and washer to secure clamp onto leg. Once crossbars are in position, tighten screw to 3 Nm (2.2 ft lb). Repeat for all legs. Check crossbar is securely attached to the vehicle.
- Page 8 Fitting Kit K324W CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 9: Maintenance
Fitting Kit K324W Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 10 Fitting Kit K324W Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
Page 11: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Whispbar dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 12 Yakima or the Whispbar dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Whispbar dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
