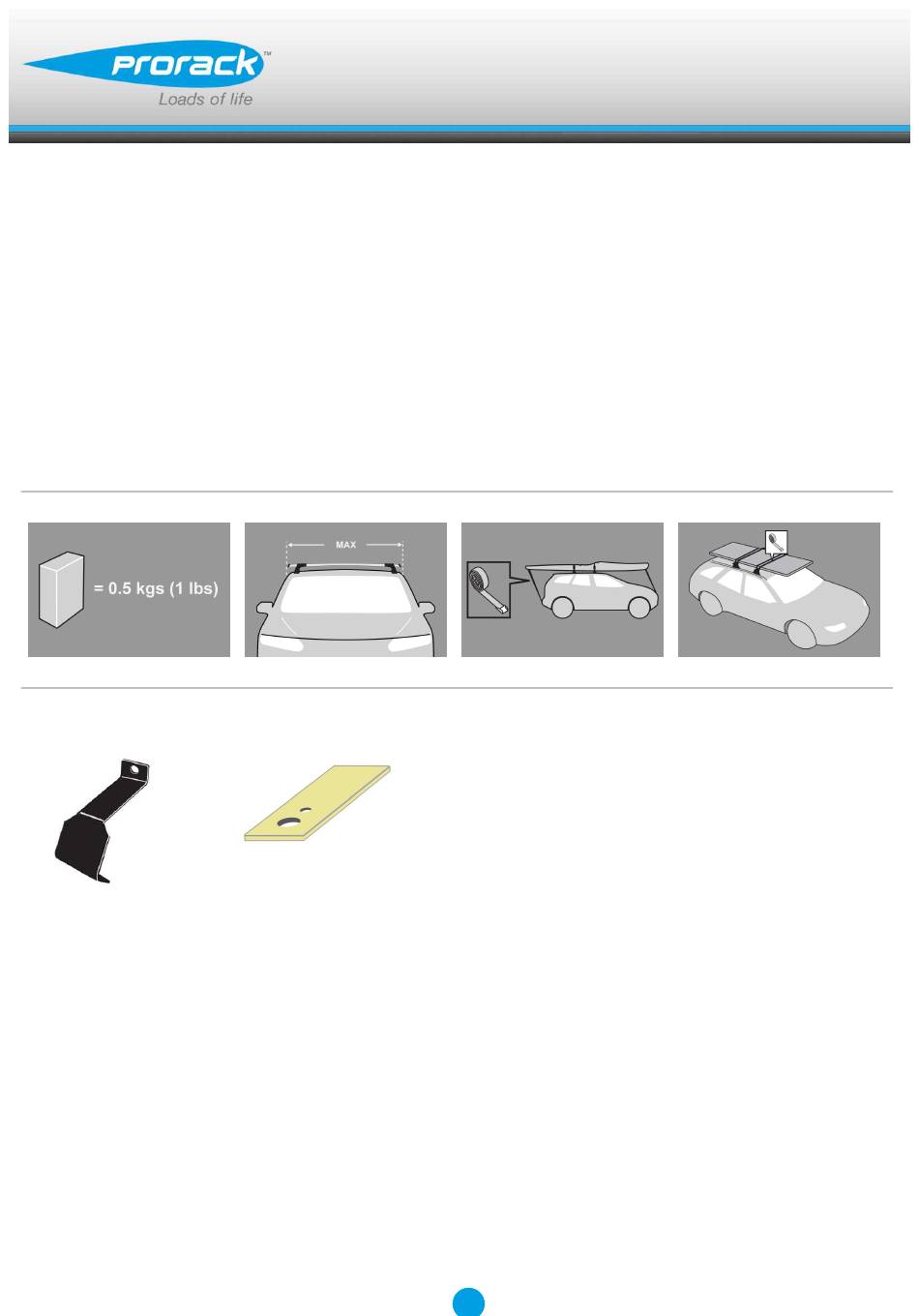

- Page 1 K377 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 6F...
- Page 2 Fitting Kit K377 MAX kgs (lbs) Audi A4, 4dr Sedan 01-07 75 kgs (165 lbs) 75 kgs (165 lbs) A4, 4dr Sedan 01-08 75 kgs (165 lbs) 75 kgs (165 lbs) A4, 4dr Sedan 01-08 75 kgs (165 lbs) 75 kgs (165 lbs)
- Page 3 Fitting Kit K377 A4, 4dr Sedan 01-07 (ZA) -335mm 360mm 855mm 820mm -13 -3/16ths" 14 3/16ths" 33 11/16ths" 32 5/16ths" A4, 4dr Sedan 01-08 (EU) -335mm 360mm 855mm 820mm -13 -3/16ths" 14 3/16ths" 33 11/16ths" 32 5/16ths" A4, 4dr Sedan 01-08 (AU)
-
Page 4: First Time Installation
Fitting Kit K377 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 5 Fitting Kit K377 Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is...
- Page 6 Fitting Kit K377 Remove locking screw. Apply protective strip as shown. Trim if required. Attach clamp to each leg. NOTE; clamps may have labels showing their positions on the vehicle (For example; "Front Right").
- Page 7 Fitting Kit K377 Refit locking screw so that it goes through the hole in the clamp. Do not begin to tighten the locking screw. Fit rubber pad (supplied with crossbar) to foot. Make sure the pad fits into the holes...
- Page 8 Fitting Kit K377 Fitment Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated). Please check the front of this manual for information relating specifically to your vehicle. Locate vehicle's fixed points. Clamps directly to edge of roof under the...
- Page 9 Fitting Kit K377 Tighten locking screw on both legs evenly. Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers...
- Page 10 Fitting Kit K377 CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 11: Maintenance
Fitting Kit K377 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 12 Fitting Kit K377 Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
