Opening the charging station and any changes to the configuration must be done by a qualified electrician and must comply with local
regulations and laws for safety in the use of electricity. Failure to comply with the regulations in this manual will result in the end the
warranty period.
NON-CONTRACTUAL PICTURES | DOC. VERSION 16122021
TECHNICAL
DOCUMENTATION
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Green motion Range XT 22

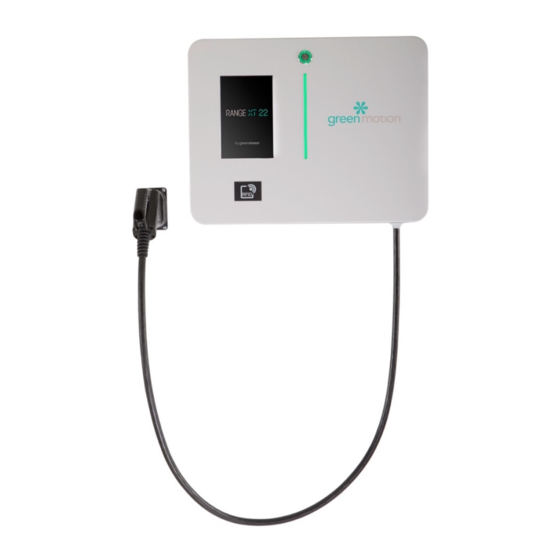

Summary of Contents for Green motion Range XT 22

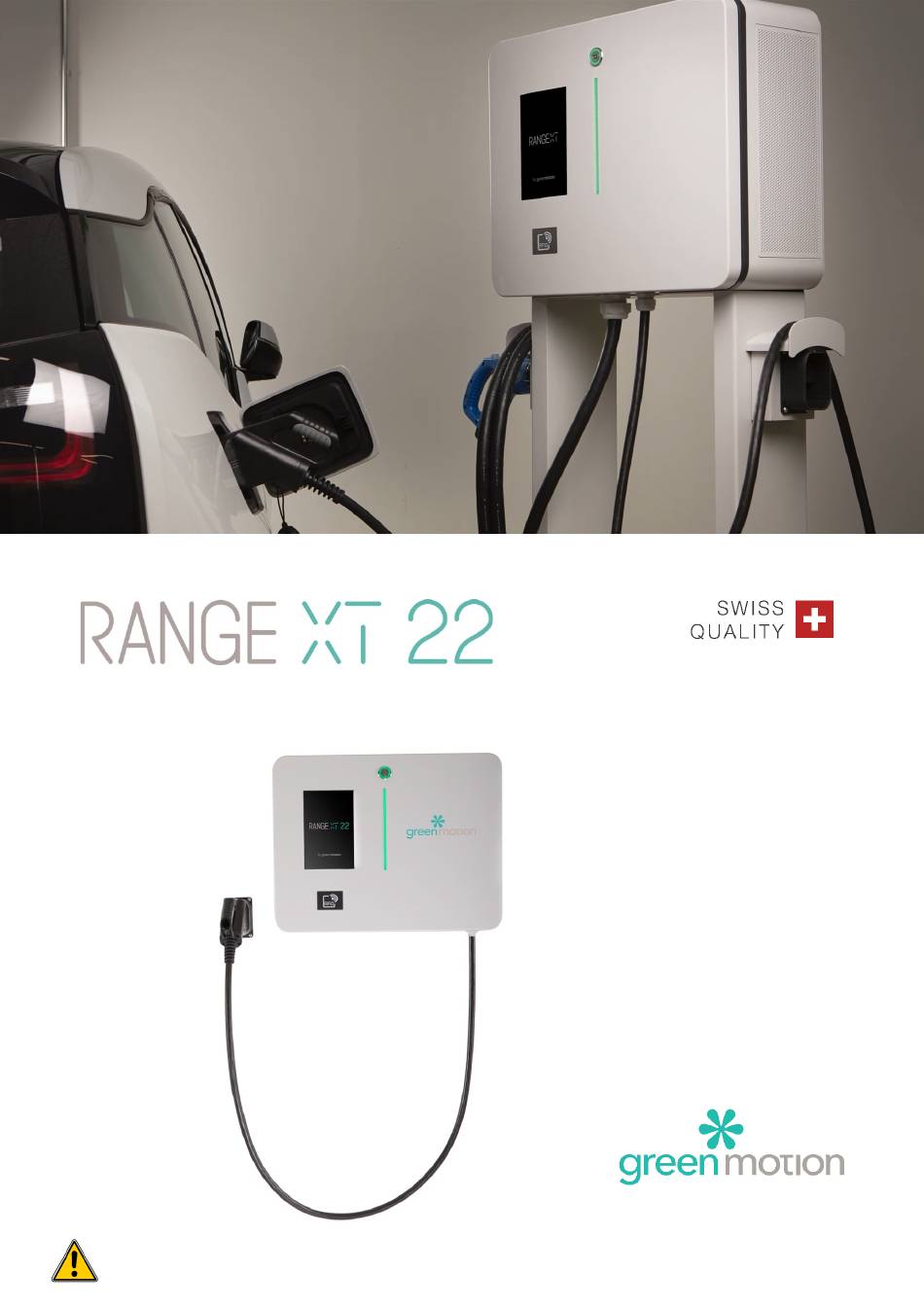

- Page 1 NON-CONTRACTUAL PICTURES | DOC. VERSION 16122021 TECHNICAL DOCUMENTATION Opening the charging station and any changes to the configuration must be done by a qualified electrician and must comply with local regulations and laws for safety in the use of electricity. Failure to comply with the regulations in this manual will result in the end the warranty period.
-
Page 2: Table Of Contents
Technical Specifications Dimensions and weights INSTALLATION Mounting Site design Wiring COMMISSIONING Opening the Range XT 22 housing Changing the charging current Charging station configuration Emobility Cockpit connection USAGE OF THE STATION Description of the station Sockets and Cables Charging states... -
Page 3: Introduction
RANGEXT 22 – TECHNICAL DOCUMENTATION Page 3 1 INTRODUCTION Technical Specifications POWER INPUT DC RANGE XT EV CHARGER Input voltage 3 x 400 V 50 Hz Input current 3 x 32 A (22 kW) Power factor > 0.99 Standby consumption <... -
Page 4: Installation
RANGEXT 22 – TECHNICAL DOCUMENTATION Page 4 2 INSTALLATION Mounting Mounting on the wall Recommended mounting height above: 1600 mm Paste the 4 seals on the back of the charging station Fixing with 4 stainless steel screws M6 according to the following diagram and depending on the material of the wall: Screw through the charging station. - Page 5 Page 5 The Range XT 22 has an air inlet on the left side and outlet on the right side. Keep left and right side with at least 300mm in order to guarantee an unimpeded airflow. If necessary, take precautions to have a free air flow and to prevent snow or objects from blocking the in- and outlet.
- Page 6 RANGEXT 22 – TECHNICAL DOCUMENTATION Page 6 Mounting on the column (Optional) Fix the charging station on the column requires a minimum of two people. Fix the column on the concrete base with 4 threaded rods M10 according to the following diagram. Do not forget the flat washers.
- Page 7 RANGEXT 22 – TECHNICAL DOCUMENTATION Page 7 Front view: Paste the 4 seals on the back of the charging station Fix the charging station on the column with 4 stainless steel screws M6x10 and flat washers Drill 2x Ø7 hole or push the pre-cutting hole under the cabinet and clean the metal shavings Fix with 2 stainless steel screws M6x10 with 4 serrated lock washers, 4 flat washers and 2 prevailing torque type hex lock nuts Emergency button...
-
Page 8: Site Design
22 charging stations with respect to parking spaces. Optimal placement As show in the figure here below we recommend installing the Range XT 22 front and center of the parking space and each charging station should serve one parking space. -
Page 9: Wiring
RANGEXT 22 – TECHNICAL DOCUMENTATION Page 9 Wiring Connect the station to the electrical panel with the following protections: Model 22 kW Input voltage 400 V Input current 32 A Power cable min cross section 1 5 x 10 mm Power supply terminal block max section 16 mm Circuit breaker at panel 2... - Page 10 RANGEXT 22 – TECHNICAL DOCUMENTATION Page 10 Circuit diagram Connection Diagram:...
-
Page 11: Commissioning
Electric shock hazard! Any operation requiring opening of the main converter box can lead to electric shock hazards. Please make sure to carefully read instructions. In case of a doubt, please immediately contact Green Motion support. Opening the Range XT 22 housing Use a TR20 screwdriver to unscrew the 2 screws located on the top and the bottom right side of the Range XT front door. -
Page 12: Changing The Charging Current
RANGEXT 22 – TECHNICAL DOCUMENTATION Page 12 Changing the charging current Electric shock hazard! Please make sure that the main power supply is turned off before trying to connect the power to the charging station. In any case, working under voltage shall be avoided. -
Page 13: Charging Station Configuration
RANGEXT 22 – TECHNICAL DOCUMENTATION Page 13 Charging station configuration The following configuration are possible via DIP switch on the GMCU MPb board. The board is located on the door of the converter enclose, in front of the screen. Offline/Online Offline Online RFID Reader CAN slave... -
Page 14: Emobility Cockpit Connection
Range XT implement’s a 3G/4G/LAN router to enable the IoT connection.U The router is located on the Range XT door Router Configuration The configuration is performed on the Green Motion Manufacturing Plan Teltonika RUTX09 modem router configuration Default settings: - IP: 192.168.1.1... - Page 15 Go to the Network> WAN menu • Activate and edit the MOB1S1A1 network • If necessary, enter the APN and the PIN code of the SIM card (APN: shared.m2m.ch) • Press Save & Apply (*) Please contact Green Motion SA support for the password.
- Page 16 Authorize the management of the router from the WAN (Only if in a private network) Go to System> Administration> Access control § • Check Enable Remote HTTP and Enable Remote HTTPS (*) Please contact Green Motion SA support for the password...
-
Page 17: Usage Of The Station
RANGEXT 22 – TECHNICAL DOCUMENTATION Page 17 4 USAGE Description of the station 1. Button indicator 2. Touch screen display 3. RFID reader 4. LED display 5. Emergency stop button To start a charge, simply connect the car to the appropriate socket. To switch on the Model either via the button (offline charging station), via the RFID card (offline and online), via the mobile app (online stations only) or via a SMS (online stations only). -
Page 18: Sockets And Cables
Option 1 (standard) Range XT 22 Option 2 Option 3 When you have authenticated on the Range XT 22, for the CHAdeMO plug, you must select the plug icon on the screen, it is mandatory. Plug type icon shows as below:... - Page 19 RANGEXT 22 – TECHNICAL DOCUMENTATION Page 19 LED display The LED display indicates the charge status. 50 % of charge 100 % of charge 100 % 50 % LED Display Status display Comments Green light on Ready to be use Flashing green light Start-up stage Breathing green light...
- Page 20 RANGEXT 22 – TECHNICAL DOCUMENTATION Page 20 Touch screen display As the touch screen display is the user interface and implements a lot of screen, please take time to read what is described and write on the screen before to operate. In this section you will find the information to start your experience.
-
Page 21: Maintenance
Page 21 MAINTENANCE In order to prevent any technical failure, Green Motion is performing maintenance services. Please contact Green Motion Support for more information on maintenance contracts. Electric shock hazard! Please make sure that the main power supply is turned off before trying to open the charging station. -
Page 22: Cleaning Or Replacing The Filters
Filters can be replaced They are accessible as described below. Using a 2.5 mm hex key, remove the 2 screws attaching each filter cartridge to the unit: The filters are located inside the filter cartridge. Contact Green Motion support for spare filter parts. Filter reference is:... -
Page 23: Support
RANGEXT 22 – TECHNICAL DOCUMENTATION Page 23 Support Green Motion telephone support is available Monday to Friday from 08:00 to 12:00 and from 13:00 to 17:00 (16:00 on Friday) CET Email: support@greenmotion.ch Tel: +41 21 544 04 46 Green Motion Ltd...
