Opening the charging station and any changes to the configuration must be done by a qualified electrician and must comply with local regulations
and laws for safety in the use of electricity. Failure to comply with the regulations in this manual will result in the end the warranty period.
NON-CONTRACTUAL PICTURES | DOC. VERSION 19012021
TECHNICAL
DOCUMENTATION
Advertisement
Table of Contents
Related Manuals for Green motion RangeXT 44
Summary of Contents for Green motion RangeXT 44

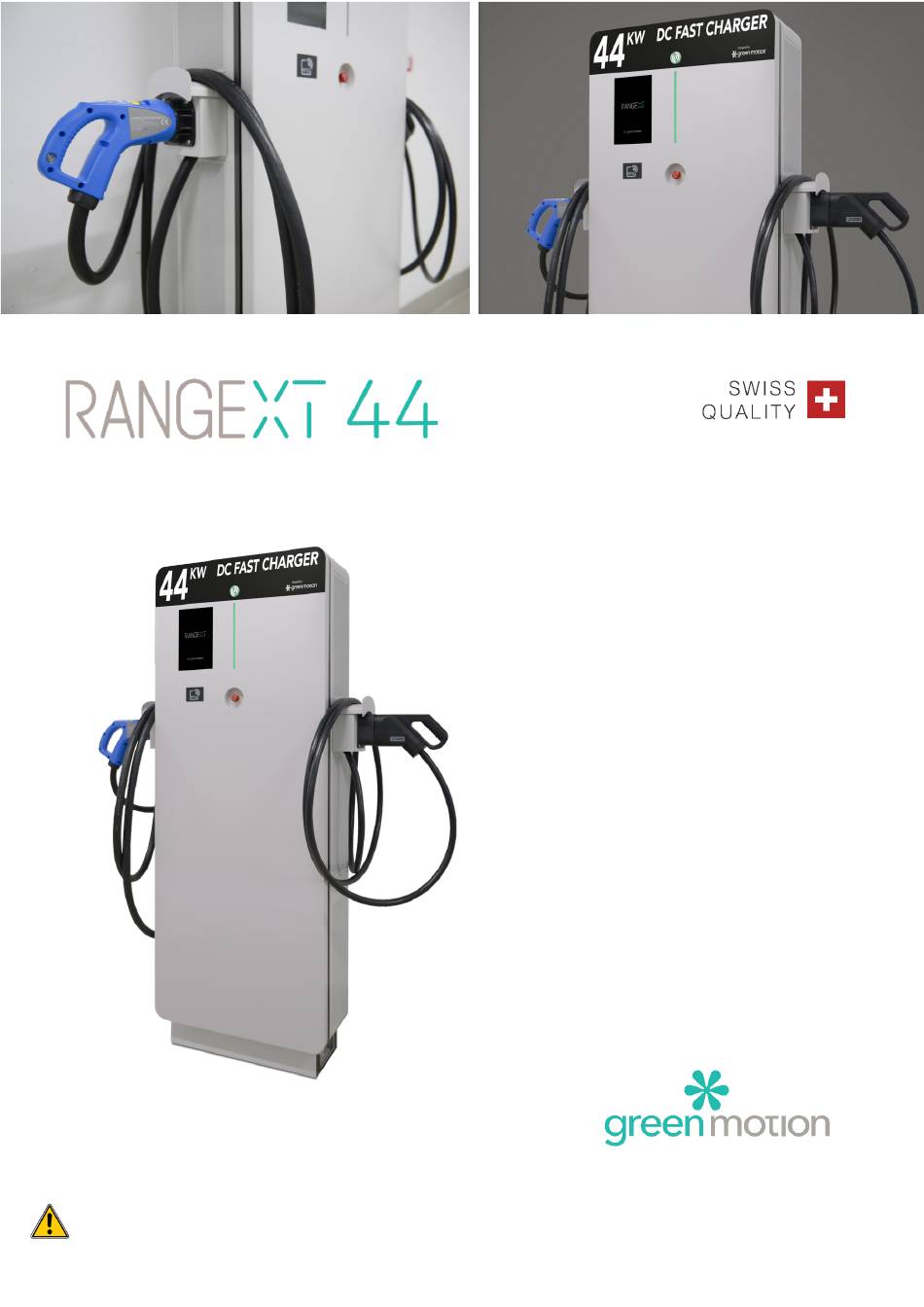

- Page 1 NON-CONTRACTUAL PICTURES | DOC. VERSION 19012021 TECHNICAL DOCUMENTATION Opening the charging station and any changes to the configuration must be done by a qualified electrician and must comply with local regulations and laws for safety in the use of electricity. Failure to comply with the regulations in this manual will result in the end the warranty period.
-
Page 2: Table Of Contents
RANGEXT 44 – TECHNICAL DOCUMENTATION Page 2 CONTENT INTRODUCTION Technical Specifications Dimensions and weights INSTALLATION Mounting Site design Wiring COMMISSIONING Opening the Range XT 44 housing Electrical connection Charging station configuration Emobility Cockpit connection USAGE OF THE STATION Description of the station... -
Page 3: Introduction
RANGEXT 44 – TECHNICAL DOCUMENTATION Page 3 1 INTRODUCTION Technical Specifications POWER INPUT DC RANGE XT EV CHARGER Input voltage 3 x 400 V 50 Hz Input current 3 x 64 A (44 kW) Power factor > 0.99 Standby consumption <... -
Page 4: Installation
RANGEXT 44 – TECHNICAL DOCUMENTATION Page 4 2 INSTALLATION Mounting The Range XT has an air inlet on the left side and outlet on the right side. Keep left and right side with at least 300mm to guarantee an unimpeded airflow. If necessary, take precautions to have a free air flow... - Page 5 RANGEXT 44 – TECHNICAL DOCUMENTATION Page 5 Front view: Bottom view:...
- Page 6 RANGEXT 44 – TECHNICAL DOCUMENTATION Page 6 Concrete Support Mounting Fix the column on the concrete base with 4 threaded rods M10 according to the following diagram. Do not forget the flat washers. Concrete base 800 x 450 x 250 mm:...
- Page 7 RANGEXT 44 – TECHNICAL DOCUMENTATION Page 7 Fixation point Fixation point can be accessed via a removal trap door on the sheet metal casing.
- Page 8 RANGEXT 44 – TECHNICAL DOCUMENTATION Page 8 Lifting Anchor...
-
Page 9: Site Design
RANGEXT 44 – TECHNICAL DOCUMENTATION Page 9 Site design A site for Electric Vehicles (EV) equipped with Range XT 44 charging stations can be designed in different setups. This section is intended to provide some valuable information on the placement of the Range XT 44 charging stations with respect to parking spaces. -
Page 10: Wiring
RANGEXT 44 – TECHNICAL DOCUMENTATION Page 10 Wiring Connect the station to the electrical panel with the following protections: Model 44 kW Input voltage 400 V Input current 64 A Power cable min cross section 1 5 x 35 mm... - Page 11 RANGEXT 44 – TECHNICAL DOCUMENTATION Page 11 Circuit diagram Connection Diagram:...
-
Page 12: Commissioning
Electric shock hazard! Any operation requiring opening of the main converter box can lead to electric shock hazards. Please make sure to carefully read instructions. In case of a doubt, please immediately contact Green Motion support. Opening the Range XT 44 housing Use a M3 Imbus screwdriver to unscrew the 6 screws located on the top and the bottom right side of the Range XT front door. -
Page 13: Electrical Connection
RANGEXT 44 – TECHNICAL DOCUMENTATION Page 13 Electrical connection Electric shock hazard! Please make sure that the main power supply is turned off before trying to connect the power to the charging station. In any case, working under voltage shall be avoided. -
Page 14: Charging Station Configuration
RANGEXT 44 – TECHNICAL DOCUMENTATION Page 14 Charging station configuration The following configuration are possible via DIP switch on the GMCU MPb board. The board is located on the door of the converter enclose, in front of the screen. Offline/Online... -
Page 15: Emobility Cockpit Connection
Range XT implement’s a 3G/4G/LAN router to enable the IoT connection.U The router is located on the Range XT door Router Configuration The configuration is performed on the Green Motion Manufacturing Plan Teltonika RUTX09 modem router configuration Default settings: - IP: 192.168.1.1... - Page 16 Go to the Network> WAN menu • Activate and edit the MOB1S1A1 network • If necessary, enter the APN and the PIN code of the SIM card (APN: shared.m2m.ch) • Press Save & Apply (*) Please contact Green Motion SA support for the password.
- Page 17 Authorize the management of the router from the WAN (Only if in a private network) Go to System> Administration> Access control § • Check Enable Remote HTTP and Enable Remote HTTPS (*) Please contact Green Motion SA support for the password...
-
Page 18: Usage Of The Station
RANGEXT 44 – TECHNICAL DOCUMENTATION Page 18 4 USAGE Description of the station Ç Ç Ç Ç Ç 1. Button indicator 2. Touch screen display 3. RFID reader 4. LED display 5. Emergency stop button To start a charge, simply connect the car to the appropriate socket. To switch on the Model either via the button (offline charging station), via the RFID card (offline and online), via the mobile app (online stations only) or via a SMS (online stations only). -
Page 19: Sockets And Cables
RANGEXT 44 – TECHNICAL DOCUMENTATION Page 19 Sockets and Cables The Range XT 44 is available in different configurations depending on the available charging cables. CCS (EU) CHAdeMO Option 1 (standard) Range XT 44 Option 2 Option 3 When you have authenticated on the Range XT 44, for the CHAdeMO plug, you must select the plug... - Page 20 RANGEXT 44 – TECHNICAL DOCUMENTATION Page 20 LED display The LED display indicates the charge status. 50 % of charge 100 % of charge 100 % 50 % LED Display Status display Comments Green light on Ready to be use...
- Page 21 RANGEXT 44 – TECHNICAL DOCUMENTATION Page 21 Touch screen display As the touch screen display is the user interface and implements a lot of screen, please take time to read what is described and write on the screen before to operate.
-
Page 22: Maintainace
Page 22 5 MAINTENANCE In order to prevent any technical failure, Green Motion is performing maintenance services. Please contact Green Motion Support for more information on maintenance contracts. Electric shock hazard! Please make sure that the main power supply is turned off before trying to open the charging station. -
Page 23: Cleaning Or Replacing The Filters
Filters can be replaced They are accessible as described below. Using a 2.5 mm hex key, remove the 2 screws attaching each filter cartridge to the unit: The filters are located inside the filter cartridge. Contact Green Motion support for spare filter parts. Filter reference is:... -
Page 24: Support
RANGEXT 44 – TECHNICAL DOCUMENTATION Page 24 Support Green Motion telephone support is available Monday to Friday from 08:00 to 12:00 and from 13:00 to 17:00 (16:00 on Friday) CET Email: support@greenmotion.ch Tel: +41 21 544 04 46 Green Motion Ltd...
