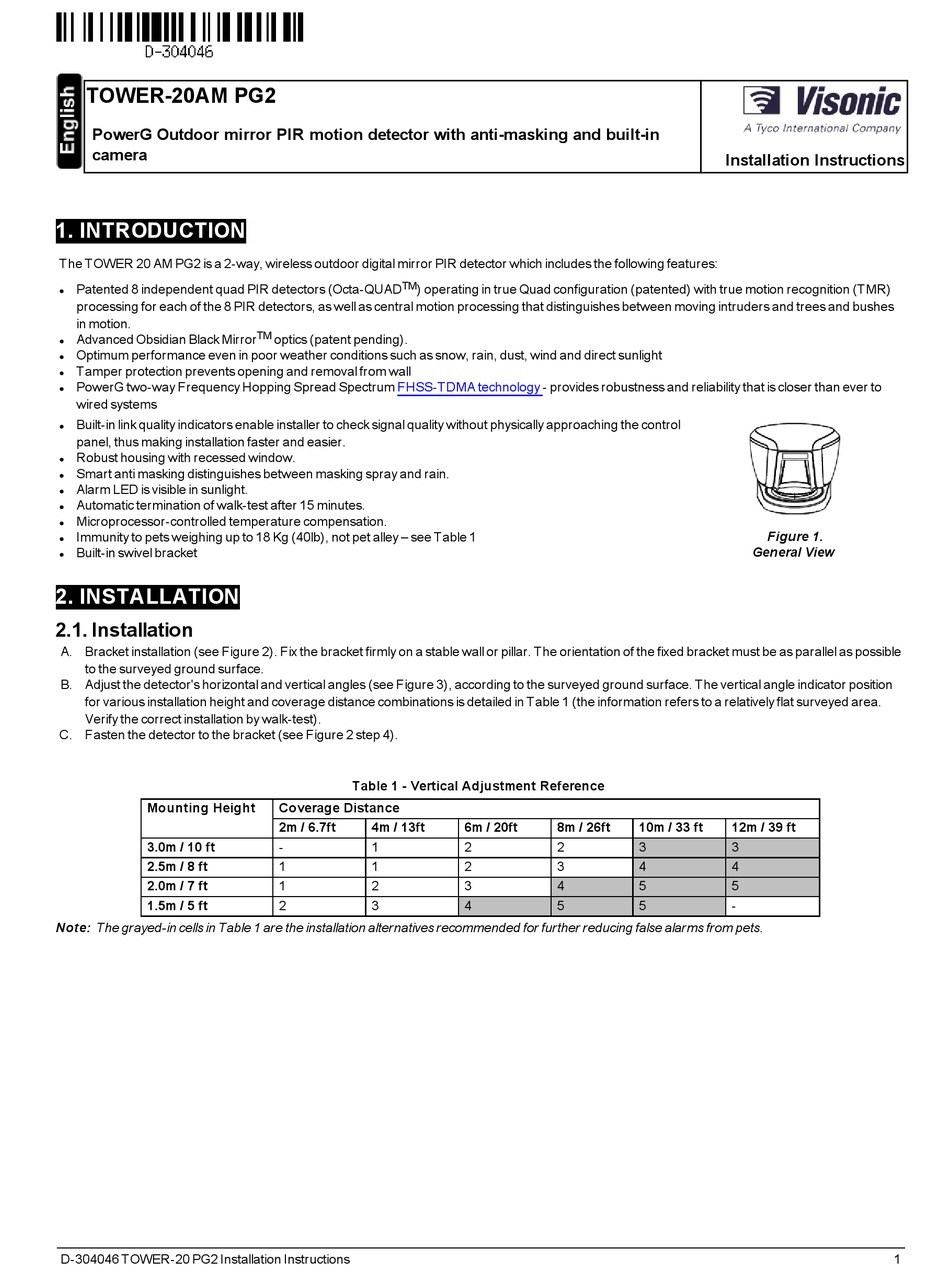

Visonic TOWER-20AM PG2 Installation Instructions Manual

TOWER-20AM PG2
PowerG Outdoor mirror PIR motion detector with anti-masking and built-in
camera

1. INTRODUCTION

The TOWER 20 AM PG2 is a 2-way, wireless outdoor digital mirror PIR detector which includes the following features:
Patented 8 independent quad PIR detectors (Octa-QUAD
l
processing for each of the 8 PIR detectors, as well as central motion processing that distinguishes between moving intruders and trees and bushes
in motion.
Advanced Obsidian Black Mirror
l
Optimum performance even in poor weather conditions such as snow, rain, dust, wind and direct sunlight
l
Tamper protection prevents opening and removal from wall
l
PowerG two-way Frequency Hopping Spread Spectrum
l
wired systems
Built-in link quality indicators enable installer to check signal quality without physically approaching the control
l
panel, thus making installation faster and easier.
Robust housing with recessed window.
l
Smart anti masking distinguishes between masking spray and rain.
l
Alarm LED is visible in sunlight.
l
Automatic termination of walk-test after 15 minutes.
l
Microprocessor-controlled temperature compensation.
l
Immunity to pets weighing up to 18 Kg (40lb), not pet alley – see Table 1
l
Built-in swivel bracket
l

2. INSTALLATION

2.1. Installation

A. Bracket installation (see Figure 2). Fix the bracket firmly on a stable wall or pillar. The orientation of the fixed bracket must be as parallel as possible
to the surveyed ground surface.
B. Adjust the detector's horizontal and vertical angles (see Figure 3), according to the surveyed ground surface. The vertical angle indicator position
for various installation height and coverage distance combinations is detailed in Table 1 (the information refers to a relatively flat surveyed area.
Verify the correct installation by walk-test).
C. Fasten the detector to the bracket (see Figure 2 step 4).
Mounting Height
3.0m / 10 ft
2.5m / 8 ft
2.0m / 7 ft
1.5m / 5 ft
Note: The grayed-in cells in Table 1 are the installation alternatives recommended for further reducing false alarms from pets.
D-304046 TOWER-20 PG2 Installation Instructions
TM
) operating in true Quad configuration (patented) with true motion recognition (TMR)
TM
optics (patent pending).
FHSS-TDMA technology
Table 1 - Vertical Adjustment Reference
Coverage Distance
2m / 6.7ft 4m / 13ft
- 1
1 1
1 2
2 3
- provides robustness and reliability that is closer than ever to
6m / 20ft 8m / 26ft 10m / 33 ft
2 2 3
2 3 4
3 4 5
4 5 5
Installation Instructions

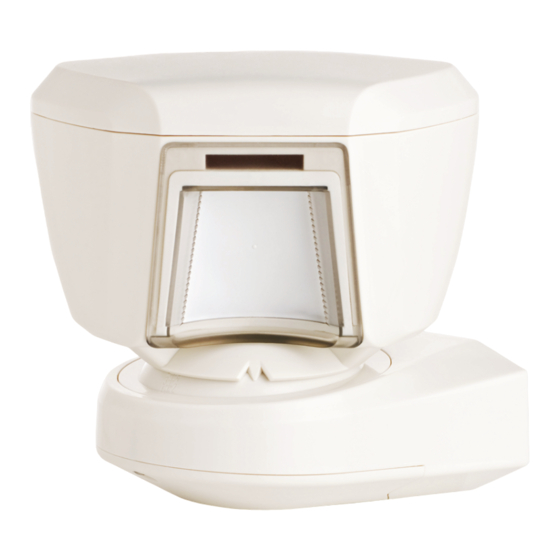

Figure 1.
General View
12m / 39 ft
3
4
5
-
1
