6. Attach the mounting bracket to the front of the rack using two M6
screws. The tabs on the front of the mounting bracket help to align it
with the front of the rack frame.

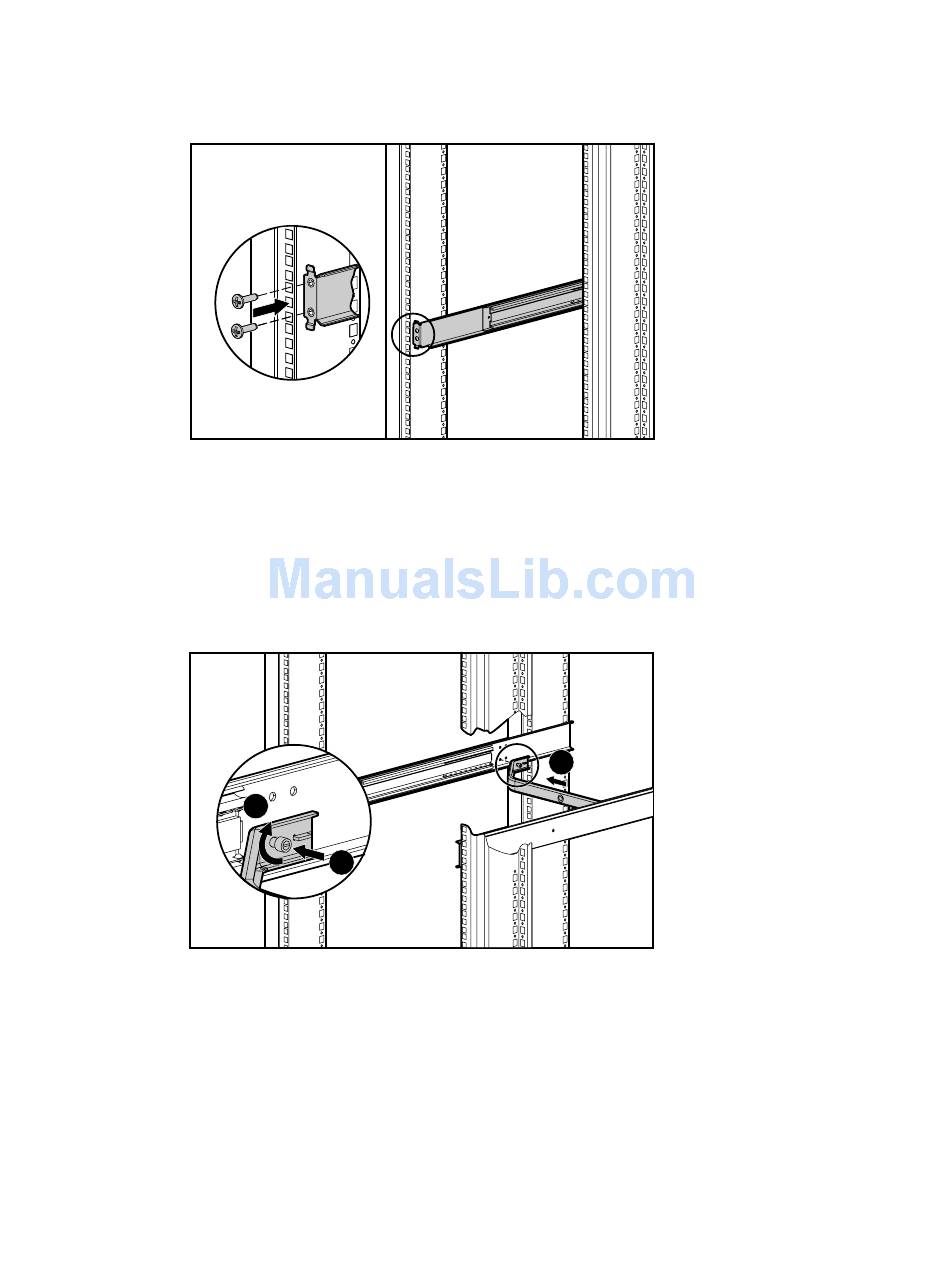

Figure 2-3. Attaching the mounting bracket to the front of the rack
7. Attach the latch bracket
receptacle (located in the center of the latch bracket) facing the front of
the rack.
8. Slide the bracket over the lower guide tab, then align the thumbscrew
with the lower hole of each rail and push in.
9. Turn the thumbscrew
3
2
Figure 2-4. Attaching the latch bracket
to each mounting bracket with the latch
to tighten.
1
Installing the Monitor 2-3
