3. Mark the rack at the top of the template to help align the next
component.
Figure 2-1. Measuring with the 2U template
4. Insert cage nuts into the rack
and the rear of the rack.
5. Insert a rail mounting bracket into the rack and hook the tabs into the
appropriate holes in the rear of the rack
the front of the rack.
1
2

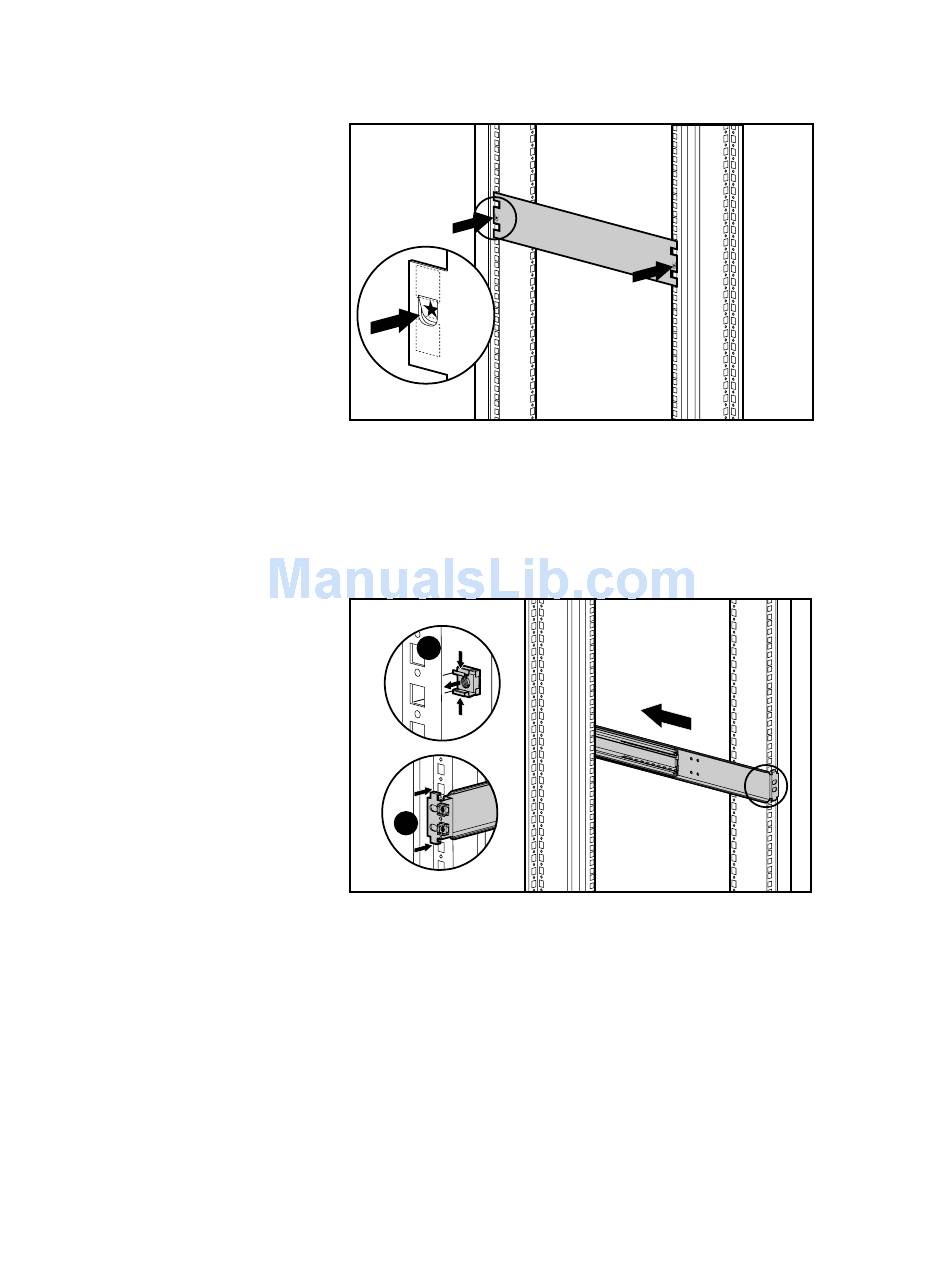

Figure 2-2. Inserting the cage nuts and attaching the rail mounting brackets
in each of the marked holes in the front
, aligning the screw holes at
