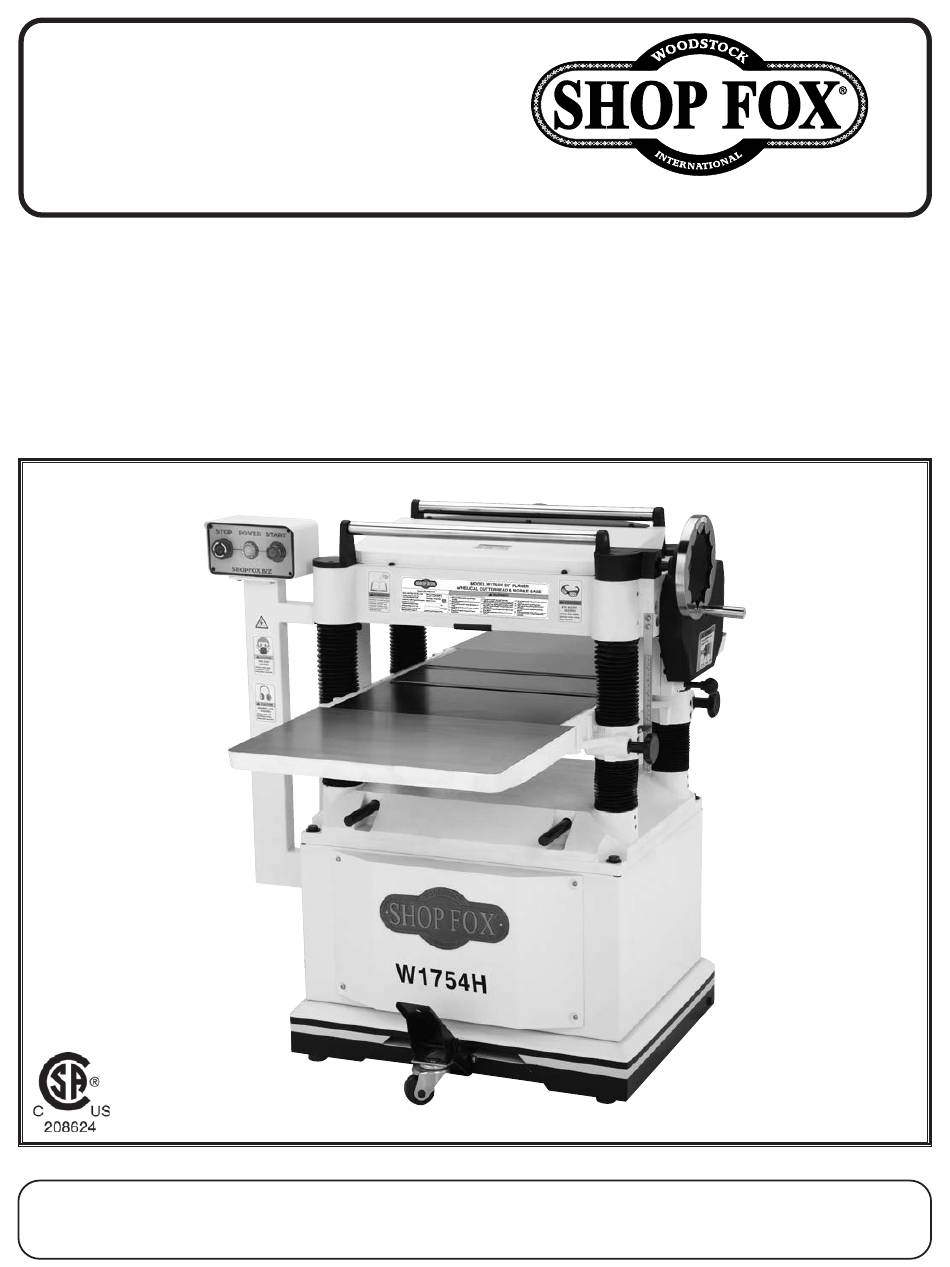

Model W1754H

20" Planer

with Helical Cutterhead

Manual Insert

Phone #: (360) 734-3482 • Tech Support: tech-support@shopfox.biz • Web: www.shopfox.biz

The Model W1754H is the same as the Model W1754, except it has a helical cutterhead. Besides the

data sheet and parts in this insert, the content in the Model W1754 owner's manual is the same for both

machines. Before operating your new machine, you MUST read and understand this insert and the entire

Model W1754 manual to reduce the risk of injury from improper use or setup.

If you have any further questions about this manual insert or the differences between the

Model W1754H and the Model W1754, contact our Technical Support at (360) 734-3482 or email

tech-support@shopfox.biz.

WARNING: NO PORTION OF THIS PUBLICATION MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT

THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.

#20639JL

Printed in China

Table of Contents

Need help?

Do you have a question about the W1754H and is the answer not in the manual?

Questions and answers

Summary of Contents for Shop fox W1754H

Page 1 Phone #: (360) 734-3482 • Tech Support: tech-support@shopfox.biz • Web: www.shopfox.biz The Model W1754H is the same as the Model W1754, except it has a helical cutterhead. Besides the data sheet and parts in this insert, the content in the Model W1754 owner's manual is the same for both machines.
Page 2 Switch Type............Magnetic Switch w/Overload Protection Motors Main Horsepower....................5 HP Phase....................Single‐Phase Amps......................19A Speed....................3450 RPM Type................. TEFC Capacitor‐Start Induction Power Transfer ................Triple V‐Belt Drive Bearings..............Sealed & Permanently Lubricated Centrifugal Switch/Contacts Type..............External Model W1754H Machine Specifications, Page 1 of 3...
Page 3 Outfeed Roller..................Knurled Paint Type/Finish................Powder Coated Other Table/Headstock Locks..................Yes Measurement Scale................Inch & Metric Number of Dust Ports..................1 Dust Port Size....................5 in. Mobile Base..................... Built‐In Gear Box....................2 Speed Model W1754H Machine Specifications, Page 2 of 3...
Page 4 Model W1754H (For Machines Mfd. Since 9/19) SAFETY SAFETY For Your Own Safety, Read Manual Before Operating Machine The purpose of safety symbols is to attract your attention to possible hazardous conditions. This manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages.
Page 5 Model W1754H (For Machines Mfd. Since 9/19) WEARING PROPER APPAREL. Do not wear FORCING MACHINERY. Do not force machine. It clothing, apparel, or jewelry that can become will do the job safer and better at the rate for entangled in moving parts. Always tie back which it was designed.
Page 6 Model W1754H (For Machines Mfd. Since 9/19) Additional Safety for Planers Amputation, serious cuts, entanglement, or death can occur from contact with rotating cutterhead or other moving parts! Flying chips can cause eye injuries or blindness. Workpieces or knives thrown by cutterhead can strike nearby operator or bystanders with deadly force. To reduce risk of these hazards, operator and bystanders MUST completely heed hazards and warnings below.
Page 7 Model W1754H For Machines Mfd. Since 9/19) ELECTRICAL Circuit Requirements This machine must be connected to the correct size and The machine must be properly set up type of power supply circuit, or fire or electrical damage before it is safe to operate. DO NOT may occur.
Page 8 Model W1754H (For Machines Mfd. Since 9/19) Grounding Requirements This machine MUST be grounded. In the event of certain The machine must be properly set up types of malfunctions or breakdowns, grounding provides before it is safe to operate. DO NOT a path of least resistance for electric current to travel—in...
Page 9 Model W1754H (For Machines Mfd. Since 9/19) Rotating/Replacing Cutterhead Inserts (W1754H) reduce risk shock accidental startup, always disconnect machine from power before adjustments, maintenance, or service. The helical cutterhead is equipped with indexable carbide inserts that can each be rotated to reveal one of four cutting edges.
Page 10 Model W1754H (For Machines Mfd. Since 9/19) 6. Rotate insert 90° and install so that a fresh cutting edge faces outward (see Figure 4). — When all four insert cutting edges have been used, replace insert with a new one. Always position new insert reference dot in same position to aid in rotational sequencing.
Page 11 Model W1754H For Machines Mfd. Since 9/19) Headstock 31-2 31-3 31-1 85-1 -11-...
Page 12 Model W1754H (For Machines Mfd. Since 9/19) Headstock Parts List PART # DESCRIPTION PART # DESCRIPTION X1754H001 HANDLE X1754H060 FLAT WASHER 6MM X1754H002 HEX NUT M12-1.75 X1754H061 PHLP HD SCR M6-1 X 12 X1754H003 FLAT WASHER 12MM X1754H062 CUT LIMIT POINTER...
Page 13 Model W1754H For Machines Mfd. Since 9/19) Gearbox PART # DESCRIPTION PART # DESCRIPTION X1754H201 GEAR BOX COVER X1754H221 PHLP HD SCR M6-1 X 8 X1754H202 CAP SCREW M6-1 X 25 X1754H222 FLAT WASHER 6MM X1754H203 SPROCKET X1754H223 COMPRESSION SPRING...
Page 14 Model W1754H (For Machines Mfd. Since 9/19) Cabinet 317-3 317-1 317-4 317-6 317-2 317-5 317-9 317-10 317-7 317-8 350-2 350-1 350-3 349A -14-...
Page 15 Model W1754H For Machines Mfd. Since 9/19) Gearbox Parts List PART # DESCRIPTION PART # DESCRIPTION X1754H301 ENCLOSED STAND X1754H332 CAP SCREW M8-1.25 X 50 X1754H302 COVER X1754H333 FLAT WASHER 8MM X1754H303 FLAT HD SCR M6-1 X 20 X1754H334 HEX NUT M8-1.25...
Page 16 Model W1754H (For Machines Mfd. Since 9/19) Table PART # DESCRIPTION PART # DESCRIPTION X1754H401 TABLE/BED X1754H408 LOCKING ROD X1754H402 ROLLER X1754H409 STAR KNOB M12-1.75 X1754H403 BALL BEARING 6201-2RS X1754H410 EXTENSION WING X1754H404 ECCENTRIC SHAFT X1754H411 LOCK WASHER 8MM X1754H405...
Page 17 Model W1754H For Machines Mfd. Since 9/19) Columns PART # DESCRIPTION PART # DESCRIPTION X1754H501 BASE X1754H518 EXT RETAINING RING 12MM X1754H502 HEX BOLT M12-1.75 X 60 X1754H519 SPROCKET X1754H503 HEX NUT M12-1.75 X1754H520 KEY 5 X 5 X 16...
Page 18 Model W1754H (For Machines Mfd. Since 9/19) Labels & Cosmetics PART # DESCRIPTION PART # DESCRIPTION X1754H600 READ MANUAL LABEL X1754H609 RESPIRATOR LABEL X1754H601 MACHINE ID LABEL X1754H610 ELECTRICITY LABEL X1754H602 SAFETY GLASSES LABEL X1754H611 CONTROL PANEL LABEL X1754H603 SPEED CHANGE LABEL...
Page 19 Woodstock International, Inc. will repair, replace, or arrange for a dealer refund, at its expense and option, the Shop Fox machine or machine part proven to be defective for its designed and intended use, provided that the original owner returns the product prepaid to an authorized warranty or repair facility as designated by our Bellingham, Washington office with proof of their purchase of the product within two years, and provides Woodstock International, Inc.
Page 21 READ THIS FIRST Model W1754/W1754S ***IMPORTANT UPDATE*** Applies to Models Mfd. Since 09/17 and Owner's Manuals Printed 04/07 Phone #: (360) 734-3482 • Tech Support: techsupport@woodstockint.com • Web: www.woodstockint.com We made the following change to these machines since the owner's manuals were printed: •...
Page 22 READ THIS FIRST Model W1754/W1754S ***IMPORTANT UPDATE*** Applies to Models Mfg. Since 7/12 and Owner's Manual April, 2007 Phone #: (360) 734-3482 • Tech Support: tech-support@shopfox.biz • Web: www.shopfox.biz The following changes were recently made to these machines since the owner's manual was printed: •...
Page 23 Model W1754/W1754S (Mfg. Since 7/12) SAFETY SAFETY For Your Own Safety, The purpose of safety symbols is to attract your attention to possible hazardous conditions. This manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages.
Page 24 Model W1754/W1754S (Mfg. Since 7/12) WEARING PROPER APPAREL. Do not wear FORCING MACHINERY. Do not force machine. It clothing, apparel, or jewelry that can become will do the job safer and better at the rate for entangled in moving parts. Always tie back which it was designed.
Page 25 Model W1754/W1754S (Mfg. Since 7/12) Additional Safety for Planers PLANER INJURY RISKS. Familiarize yourself with BODY PLACEMENT. Stand to one side of planer the main injury risks associated with planers— during the entire operation to avoid getting always use common sense and good judgement hit if kickback occurs.
Page 26 Model W1754/W1754S (Mfg. Since 7/12) ELECTRICAL Circuit Requirements This machine must be connected to the correct size and The machine must be properly set up type of power supply circuit, or fire or electrical damage before it is safe to operate. DO NOT may occur.
Page 27 Model W1754/W1754S (Mfg. Since 7/12) Grounding Requirements This machine MUST be grounded. In the event of certain The machine must be properly set up types of malfunctions or breakdowns, grounding provides before it is safe to operate. DO NOT a path of least resistance for electric current to travel—in connect this machine to the power order to reduce the risk of electric shock.
Page 28 Model W1754/W1754S (Mfg. Since 7/12) Wiring Diagram CONTROL PANEL (viewed from behind) Control Box COLOR KEY POWER START STOP BLACK WHITE Ground GREEN BLUE Ground L6-30 PLUG 240 VAC 13NO NHD C-35D 14NO NHD NTH-32 240V MOTOR Bk Wt Ground Start Capacitor 200MFD...
Page 29 High Quality Machines and Tools Woodstock International, Inc. carries thousands of products designed to meet the needs of today's woodworkers and metalworkers. Ask your dealer about these fine products:...
Page 30 MODEL W1754 20" PLANER WITH MOBILE BASE OWNER'S MANUAL Phone: (360) 734-3482 • Online Technical Support: tech-support@shopfox.biz COPYRIGHT © APRIL, 2007 BY WOODSTOCK INTERNATIONAL, INC. WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
Page 31 �� ...
Page 32: Table Of Contents
Contents INTRODUCTION ........2 MAINTENANCE ........23 Woodstock Technical Support ....2 General ...........23 Machine Specifications ......3 Cleaning ..........23 Maintenance Schedule ......23 SAFETY ..........5 V-Belts ..........24 Standard Safety Instructions ....5 Lubrication ........25 Additional Safety Instructions for Planers ... 7 SERVICE ..........26 ELECTRICAL ..........
Page 33: Introduction
W1754 20" Planer With Mobile Base INTRODUCTION Woodstock Technical Support Your new SHOP FOX 20" Planer With Mobile Base has been specially designed to provide many years of ® trouble-free service. Close attention to detail, ruggedly built parts and a rigid quality control program assure safe and reliable operation.
Page 34: Machine Specifications
W1754 20" Planer With Mobile Base �� ...
Page 35 W1754 20" Planer With Mobile Base Controls and Features Figure 1. W1754 controls and features. A. Control Box and Panel B. Return Rollers C. Table Height Handwheel D. Gearbox E. Speed Control Knob F. Table Height Scale G. Table Locks H.
Page 36: Safety
W1754 20" Planer With Mobile Base SAFETY READ MANUAL BEFORE OPERATING MACHINE. FAILURE TO FOLLOW INSTRUCTIONS BELOW WILL RESULT IN PERSONAL INJURY. Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.
Page 37 W1754 20" Planer With Mobile Base 10. NEVER LEAVE WHEN MACHINE IS RUNNING. Turn power off and allow all moving parts to come to a complete stop before leaving machine unattended. 11. DO NOT USE IN DANGEROUS ENVIRONMENTS. DO NOT use machinery in damp, wet locations, or where any flammable or noxious fumes may exist.
Page 38: Additional Safety Instructions For Planers
W1754 20" Planer With Mobile Base Additional Safety Instructions for Planers READ and understand this USE this and other machinery with caution entire instruction manual and respect. Always consider safety first, before using this machine. as it applies to your individual working Serious personal injury conditions.
Page 39: Electrical
W1754 20" Planer With Mobile Base ELECTRICAL 220V Operation The Model W1754 is wired for 220V single-phase opera- tion. This machine must be hardwired to a locking shutoff switch by a qualified electrician. Since hardwiring involves a permanent installation with conduit runs, this task can only be safely accomplished by a qualified electrician.
Page 40: Setup
The following is a description of the main components you do any assembly or adjustment tasks. If shipped with the SHOP FOX Model W1754. Lay the com- ® you ignore this warning ponents out to inventory them.
Page 41: Machine Placement
W1754 20" Planer With Mobile Base Hardware and Tools (Not Shown) • Hex Wrenches 3, 4, 5, 6mm ......4 • Wrenches 8/10, 12/14, 17/19mm ......3 • Set Screws M8-1.25 x 20 (Wings) ......6 • Hex Bolts M8-1.25 x 35 (Wings) ......6 •...
Page 42: Cleaning Machine
W1754 20" Planer With Mobile Base Cleaning Machine The table and other unpainted parts of your planer are coated with a waxy grease that protects them from corro- sion during shipment. Clean this grease off with a solvent cleaner or citrus-based degreaser. DO NOT use chlorine- based solvents such as brake parts cleaner or acetone—if you happen to splash some onto a painted surface, you will ruin the finish.
Page 43: Extension Wings
W1754 20" Planer With Mobile Base Extension Wings Hex Bolts Extension wings are heavy and could cause per- sonal injury if dropped during installation. Have an assistant hold the table while you fasten it to the planer. To attach the table extension wings, do these steps: 1.
Page 44: Handwheel, Dust Hood & Caster
W1754 20" Planer With Mobile Base Handwheel, Dust Hood & Caster To install the handwheel, do these steps: 1. Place the bushing on the handwheel shaft. 2. Insert the 4 x 4 x 20 key into the shaft keyway. Main Power Switch 3.
Page 45: Gearbox Oil Level
W1754 20" Planer With Mobile Base 4. Mount the foot pedal onto the caster and insert the pin between the two parts. Foot Pedal 5. Lock the caster and pedal in place with the E-clip and � washers, as shown in Figure 9. Gearbox Oil Level Before starting your machine for the first time, make sure the gearbox has oil.
Page 46: Test Run
W1754 20" Planer With Mobile Base Test Run Complete this test run process once you have familiarized yourself with all instructions in this manual and taken all safety precautions. The purpose of the test run is to make sure that the motor and EMERGENCY STOP button work properly before proceeding.
Page 47: Recommended Adjustments
W1754 20" Planer With Mobile Base Recommended Adjustments For your convenience, the adjustments listed below have been performed at the factory and no further setup is required to operate your machine. However, because of the many variables involved with shipping and storage, some of these adjustments may Loose hair and clothing could get need to be repeated to ensure optimum cutting results.
Page 48: Operations
W1754 20" Planer With Mobile Base OPERATIONS General The Model W1754 will perform many types of operations that are beyond the scope of this manual. Many of these operations can be dangerous or deadly if performed incor- rectly. The instructions in this section are written with the under- standing that the operator has the necessary knowledge and skills to operate this machine.
Page 49: Operation Tips
W1754 20" Planer With Mobile Base 6. Measure your workpiece thickness and adjust the table height as necessary to take a lighter or heavier pass, depending on your needs. For most wood types, " per pass is a good cutting depth. Note: Any time you switch directions with the handwheel, there will be a small amount of back- lash—so the first crank of the handwheel after...
Page 50: Feed Speed
W1754 20" Planer With Mobile Base Feed Speed The infeed and outfeed rollers power the stock through �� the planer while keeping boards flat and providing a con- sistent rate of movement. �� The power feed features high/low feed rates. The speed should only be changed when the machine is running.
Page 51: Bed Rollers
W1754 20" Planer With Mobile Base Bed Rollers Adjustment Height Range: ....0.002"–0.020" The height of the bed rollers will vary, depending on the �� type of material you intend to plane, but as a general rule keep the roller height within 0.002"–0.020" above the table (Figure 13).
Page 52: Accessories
These stands are invaluable for supporting long workpieces on your planer. D2273 D2274 The D2271 SHOP FOX Heavy-Duty Roller Table is a versatile roller ® table wherever you need extra workpiece support for up to a 1,000 lb. capacity. It features all-steel welded construction and it mea- sures 19"...
Page 53 D2829 24" Wood Rack Bars, D2830 48" Wood Rack Bars, D283112" Wood Rack Shelf Brackets, and D2832 18" Wood Rack Shelf Brackets. The W1049 SHOP FOX Large Dust Collection Separator increases ® the efficiency and capacity of standard dust collection systems.
Page 54: Maintenance
W1754 20" Planer With Mobile Base MAINTENANCE General SHOP FOX Regular periodic maintenance on your ® Model W1754 will ensure its optimum performance. Make a habit of inspecting your machine each time you use it. Check for the following conditions and repair or replace when necessary: •...
Page 55: V-Belts
W1754 20" Planer With Mobile Base V-Belts V-belt removal and replacement is simply a matter of adjusting the motor mount, rolling the belts off of the pulleys and replacing them with new belts, then reten- sioning them. Tension Always replace V-belts with a matched set of 3 belts, or belt tension may be unven among the 3 belts and may cause premature belt failure.
Page 56: Lubrication
W1754 20" Planer With Mobile Base Lubrication This planer uses sealed and pre-lubricated ball bearings that require no lubrication. The following is a list of parts that need lubrication: Column Lead screw Columns/Lead Screws: The four columns should be lubri- cated monthly with SAE 30W oil.
Page 57: Service
W1754 20" Planer With Mobile Base SERVICE General This section covers the most common service adjustments or procedures that may need to be made during the life of your machine. If you require additional machine service not included in this section, please contact Woodstock International Technical Support at (360) 734-3482 or send e-mail to: tech-support@shopfox.biz.
Page 58: Setting/Replacing Knives
W1754 20" Planer With Mobile Base Setting/Replacing Knives Setting the knives correctly is crucial to the proper opera- tion of the planer and is very important in keeping the knives sharp. If one knife protrudes higher than the oth- ers, it will do the majority of the work, and thus, dull much faster than the others.
Page 59: Chain Tension
W1754 20" Planer With Mobile Base 6. Position the knife gauge over the knife as shown in Figure 20. 7. Jack Screws—Using a 3mm hex wrench, find the jack screws through the access holes in the cutterhead (Figure 22) and rotate the jack screws to raise or lower the knife.
Page 60 W1754 20" Planer With Mobile Base Table Parallelism Table parallelism is critical to the operation of the machine. As such, it is essential that the table is parallel with the cutterhead (within 0.002") from side-to-side, as �� illustrated in Figure 25. ��...
Page 61 W1754 20" Planer With Mobile Base To adjust the table parallelism, do these steps: 1. DISCONNECT THE PLANER FROM THE POWER SOURCE! 2. Remove the motor and front access panels and locate the chain on the underside of the table. 3.
Page 62: Rollers, Breaker & Pressure Bar Heights
W1754 20" Planer With Mobile Base Rollers, Breaker & Pressure Bar Heights Depending upon the type of wood, feed rate, and depth of cut, you may have to vary the below adjustments a few thousands of an inch. No single adjustment works for all wood, feed rates or depths of cuts.
Page 63 W1754 20" Planer With Mobile Base 7. Adjust the height of the infeed roller on the same side as the Rotacator to the specification given at Infeed the beginning of this procedure, using the zero set- Roller ting of the Rotacator as a reference point. Figure 30 shows the jam nut and set screw for adjusting the roller height.
Page 64 W1754 20" Planer With Mobile Base To adjust the height of the infeed and outfeed rollers, chip breaker and pressure bar using wood blocks and a feeler gauge, do these steps: �� 1. Build the wood blocks by cutting a straight 6' long 2x4 in half.
Page 65: Spring Tension
W1754 20" Planer With Mobile Base Spring Tension Roller spring tension must be adjusted so that roller pres- sure is uniform at all four corners. Roller spring tension Tension Screws will vary, depending on the type of wood you plane. This is usually determined from trial-and-error.
Page 66: Chip Deflector Positioning
W1754 20" Planer With Mobile Base Chip Deflector Positioning The chip deflector keeps chips from falling onto the outfeed roller. Chip Deflector Chip Deflector Gap Setting ....... ⁄ " To adjust the deflector position, do these steps: 1. DISCONNECT THE PLANER FROM THE POWER SOURCE! 2.
Page 67: Anti-Kickback Fingers
W1754 20" Planer With Mobile Base Anti-Kickback Fingers The Model W1754 provides an anti-kickback system as a safety feature. The anti-kickback fingers hang from a rod suspended across the cutter headstock. The anti-kickback fingers should be inspected regularly. Check the fingers (Figure 37) to ensure that they swing freely and easily.
Page 68: Pulley Alignment
W1754 20" Planer With Mobile Base Pulley Alignment Proper pulley alignment (see Figure 38) prevents pre- mature belt wear. The pulleys are properly aligned when they are parallel and in the same plane as each other. Use a straightedge on the edge of the pulleys to judge alignment.
Page 69: W1754 Electrical Components
W1754 20" Planer With Mobile Base W1754 Electrical Components Figure 40. Motor junction box. Figure 41. Capacitors. START STOP POWER Figure 42. W1754 control panel (viewed Figure 43. W1754 magnetic switch assembly. from behind). -38-...
Page 70: W1754 Wiring Diagram
W1754 20" Planer With Mobile Base W1754 Wiring Diagram �� ...
Page 71: Troubleshooting
W1754 20" Planer With Mobile Base Troubleshooting This section covers the most common problems and corrections with this type of machine. WARNING! DO NOT make any adjustments until power is disconnected and moving parts have come to a complete stop! PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION...
Page 72 W1754 20" Planer With Mobile Base Cutting PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION 1. Lower the bed rollers (Page 20). Excessive snipe (gouge in 1. One or both of the bed rollers are the end of the board that set too high. is uneven with the rest of 2.
Page 73: Headstock Assembly Parts Breakdown
W1754 20" Planer With Mobile Base Headstock Assembly Parts Breakdown � � � � �� ...
Page 74: Headstock Assembly Parts List
W1754 20" Planer With Mobile Base Headstock Assembly Parts List REF PART�# DESCRIPTION REF PART�# DESCRIPTION HANDLE X1754051 COMPRESSION�SPRING X1754001 HEX�NUT�M12-1.75 X1754052 JACK�SCREW�M5-.8�X�12 XPN09M FLAT�WASHER�12MM X1754053 CUTTERHEAD XPW06M HAND�WHEEL XPK129M KEY�8�X�8�X�36 X1754005 COLLAR XP6206 BALL�BEARING�6206ZZ X1754006 INT�RETAINING�RING�32MM XPB83M HEX�BOLT�M6-1�X�16 XPR29M BALL�BEARING�6201 XPW03M FLAT�WASHER�6MM...
Page 75 W1754 20" Planer With Mobile Base REF PART�# DESCRIPTION REF PART�# DESCRIPTION XPW03M FLAT�WASHER�6MM X1754108 SPECIAL�BOLT X1754102 CUTTERHEAD�PULLEY XPW01M FLAT�WASHER�8MM X1754103 MOTOR�PULLEY XPN03M HEX�NUT�M8-1.25 XPW01M FLAT�WASHER�8MM X1754111 COGGED�V-BELT�MX-60 XPB07M HEX�BOLT�M8-1.25�X�25 X1754112 BELT�COVER X1754106 BELT�GUARD X1754114 STAR�KNOB�M8-1.25 XPFB09M FLANGE�BOLT�M6-1�X�10 -44-...
Page 76: Gearbox Parts Breakdown
W1754 20" Planer With Mobile Base Gearbox Parts Breakdown 500A -45-...
Page 77: Gearbox Parts List
W1754 20" Planer With Mobile Base Gearbox Parts List REF PART # DESCRIPTION REF PART # DESCRIPTION X1754201 GEAR BOX COVER XPW03M FLAT WASHER 6MM XPSB06M CAP SCREW M6-1 X 25 X1754223 COMPRESSION SPRING X1754203 SPROCKET X1754224 STEEL BALL 4MM XPW01M FLAT WASHER 8MM X1754225...
Page 78: Base Breakdown
W1754 20" Planer With Mobile Base Base Breakdown �� ...
Page 79: Base Parts List
W1754 20" Planer With Mobile Base Base Parts List REF PART # DESCRIPTION REF PART # DESCRIPTION X1754301 ENCLOSED STAND XPW01M FLAT WASHER 8MM X1754302 COVER XPN03M HEX NUT M8-1.25 XPFH06M FLAT HD SCR M6-1 X 20 XPN02M HEX NUT M10-1.5 X1754304 MOTOR PLATE XPW04M...
Page 80 W1754 20" Planer With Mobile Base Table Breakdown & List �� REF PART�# DESCRIPTION REF PART�# DESCRIPTION X1754401 TABLE/BED X1754408 LOCKING�ROD X1754402 ROLLER X1754409 STAR�KNOB�M12-1.75 XP6201 BALL�BEARING�6201 X1754410 EXTENSION�WING X1754404...
Page 81: Columns Breakdown
W1754 20" Planer With Mobile Base Columns Breakdown �� ...
Page 82: Columns Parts List
W1754 20" Planer With Mobile Base Columns Parts List REF PART�# DESCRIPTION REF PART�# DESCRIPTION X1754501 BASE X1754519 SPROCKET XPB38M HEX�BOLT�M12-1.75�X�60 XPK08M KEY�5�X�5�X�16 XPN09M HEX�NUT�M12-1.75 XPW04M FLAT�WASHER�10MM XPW06M FLAT�WASHER�12MM XPN02M HEX�NUT�M10-1.5 X1754505 COLUMN X1754523 BRACKET�ASSEMBLY XP6202ZZ BALL�BEARING�6202ZZ 523-1 X1754523-1 SHAFT XPR21M INT�RETAINING�RING�35MM 523-2 X1754523-2 BRACKET...
Page 83: Labels & Cosmetic Parts
W1754 20" Planer With Mobile Base Labels & Cosmetic Parts Safety labels warn about machine hazards and how to prevent machine damage or injury. The owner of this machine MUST maintain the original location and readability of all labels on this machine.
Page 84 Warranty SHOP FOX Woodstock International, Inc. warrants all machinery to be free of defects from work- ® manship and materials for a period of two years from the date of original purchase by the original owner. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence or accidents, lack of maintenance, or reimbursement of third party expenses incurred.
Page 86 2. How long have you been a woodworker/metalworker? _____ 0-2 Years _____ 2-8 Years ____ 8-20 Years _____ 20+ Years 3. How many of your machines or tools are Shop Fox ® _____ 0-2 _____ 3-5 ____ 6-9 _____ 10+ 4.
Page 87 FOLD ALONG DOTTED LINE Place Stamp Here WOODSTOCK INTERNATIONAL INC. P.O. BOX 2309 BELLINGHAM, WA 98227-2309 FOLD ALONG DOTTED LINE TAPE ALONG EDGES--PLEASE DO NOT STAPLE...
