Shop fox W1742H Manual Insert

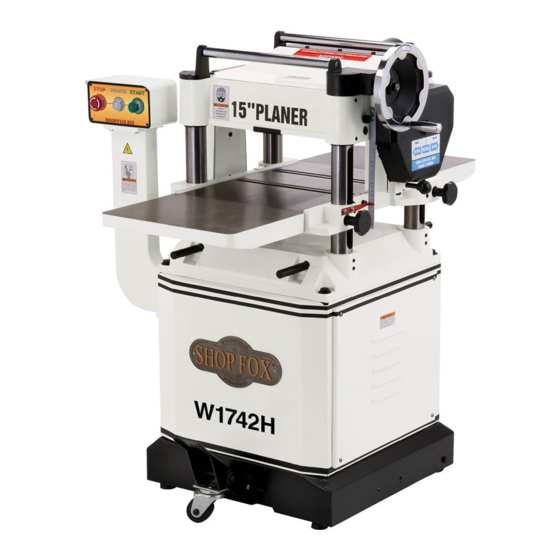

15" planer w/mobile base and helical cutterhead
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

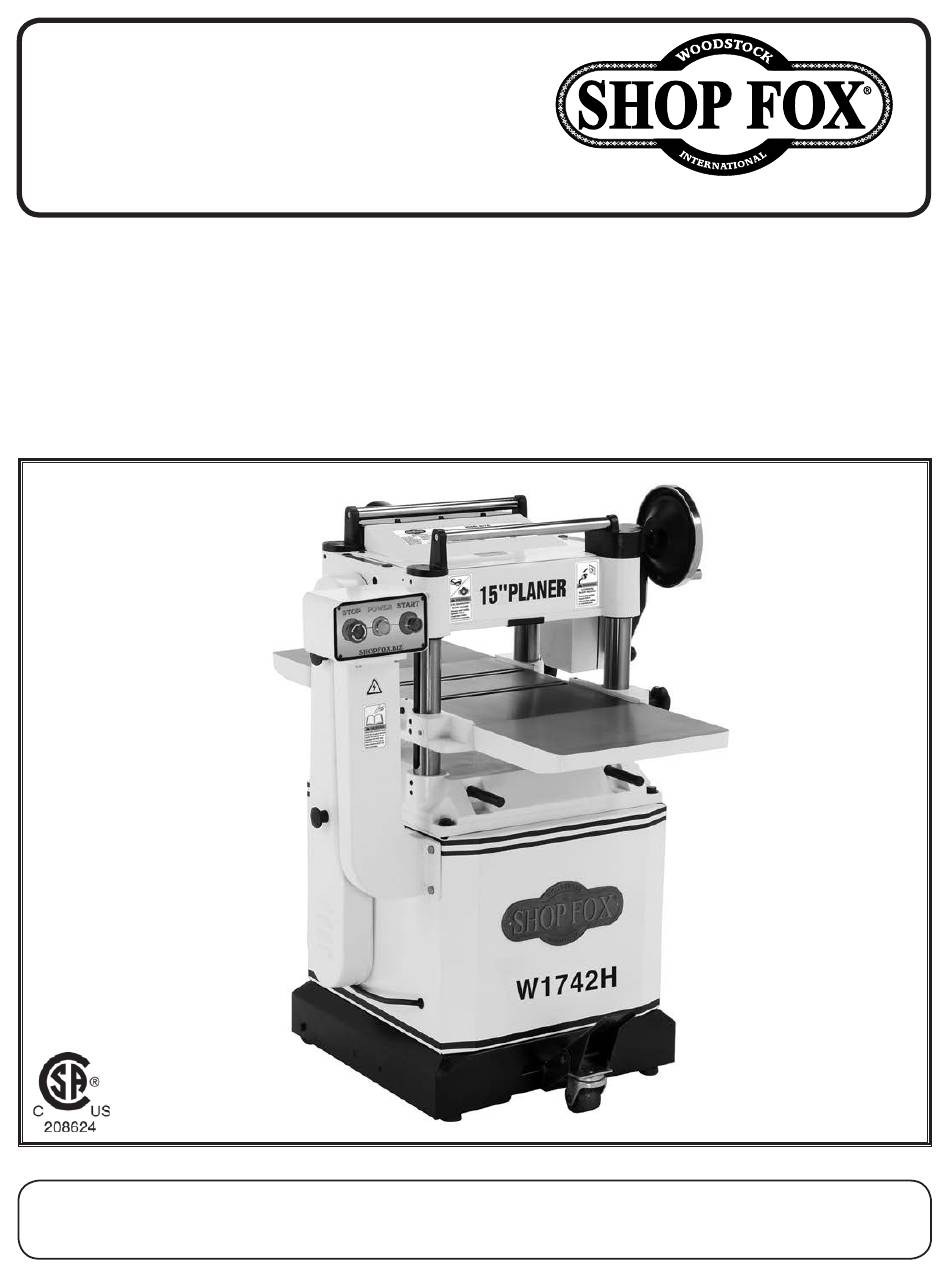

Model W1742H
15" Planer w/Mobile Base
and Helical Cutterhead
Manual Insert
Phone #: (360) 734-3482 • Tech Support: techsupport@woodstockint.com • Web: www.woodstockint.com
The Model W1742H is the same as the Model W1742, except it has a helical cutterhead. Besides
differences noted in this insert, the content in the Model W1742 owner's manual is the same for both
machines. Before operating your new machine, you MUST read and understand this insert and the entire
Model W1742 manual to reduce the risk of injury from improper use or setup.
If you have any further questions about this manual insert or the differences between the
Model W1742H and the Model W1742, contact our Technical Support at (360) 734-3482 or email
techsupport@woodstockint.com.
COPYRIGHT © MARCH, 2020 BY WOODSTOCK INTERNATIONAL, INC.
WARNING: NO PORTION OF THIS PUBLICATION MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
#20921CS
Printed in China
