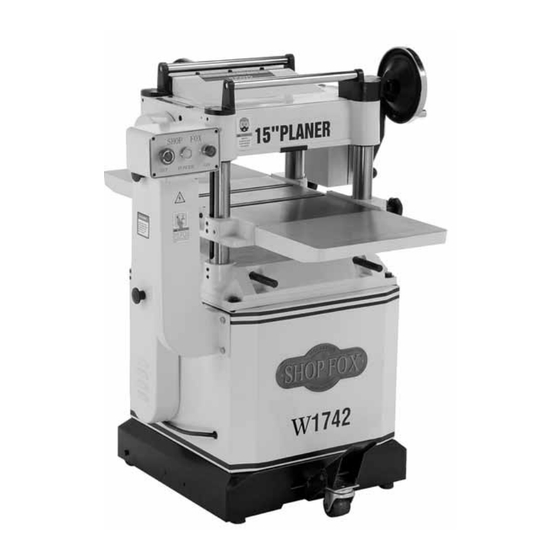

Model W1742/W1742S
***IMPORTANT UPDATE***
Applies to Models Mfg. Since 7/12
and Owner's Manual January, 2006
Phone #: (360) 734-3482 • Tech Support: tech-support@shopfox.biz • Web: www.shopfox.biz
The following changes were recently made to these machines since the owner's manual was printed:
•
Now certified to meet CSA 22.2 #71.2-10 and UL 987-7th standards.
•
Changed the motor nominal voltage from 220V to 240V and added a power cord with a plug.
This document provides relevant updates to portions of the owner's manual that no longer apply and
additional information required by CSA—aside from this information, all other content in the owner's
manual applies and MUST be read and understood for your own safety. IMPORTANT: Keep this update
with the owner's manual for future reference. If you have any further questions, contact our Technical
Support.
Changed Specifications
Electrical
Power Requirement ...................................................................240V, Single-Phase, 60 Hz
Motor
Voltage ........................................................................................................... 240V
Amps ............................................................................................................... 15A
Operation Info
Cutterhead Speed ........................................................................................ 4800 RPM

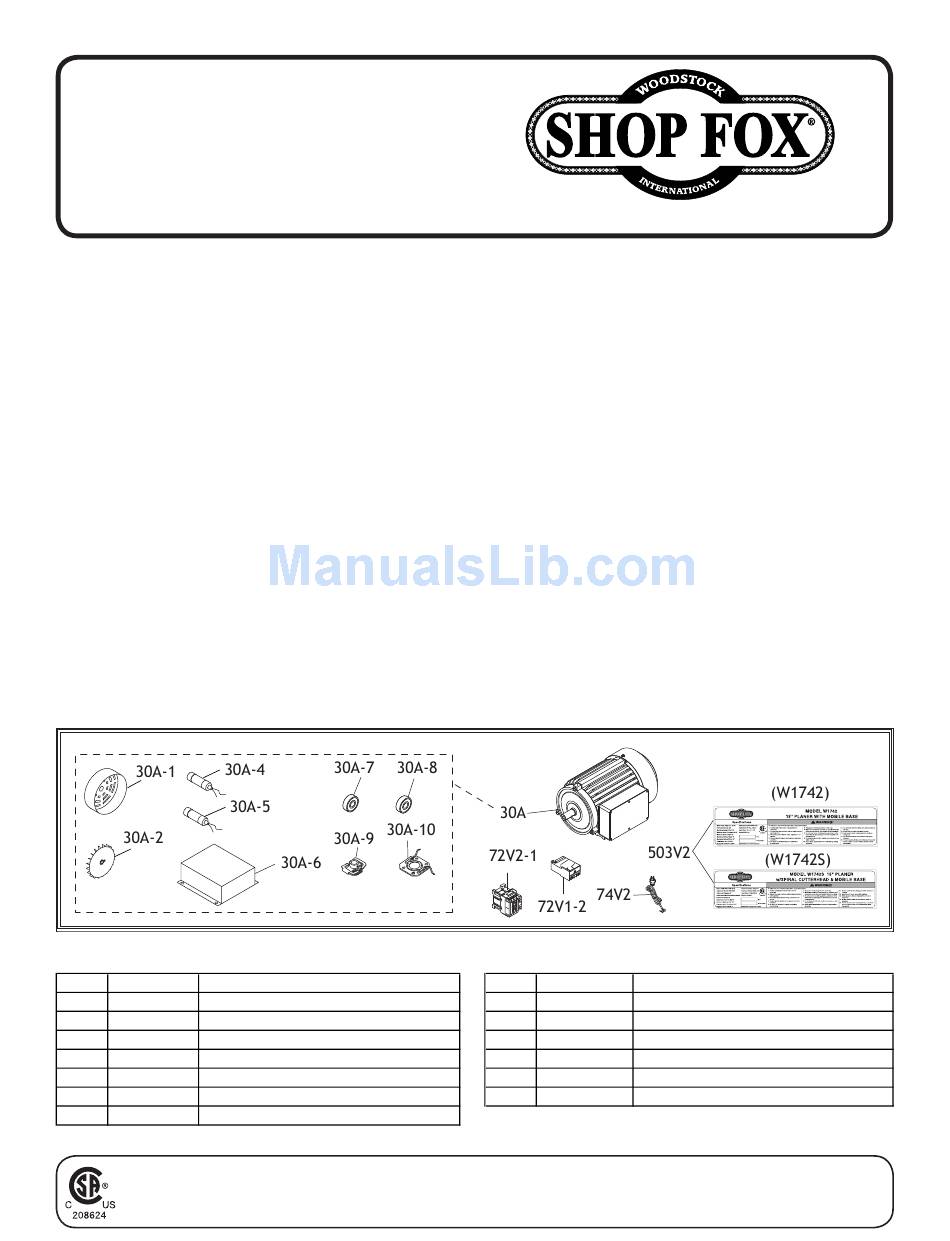

New/Revised Parts
REF
PART #
DESCRIPTION
30A
X1742030A
MOTOR 3HP 240V 1-PH V2.03.08
30A-1 X1742030A-1 MOTOR FAN COVER V2.03.08
30A-2 X1742030A-2 MOTOR FAN V2.03.08
30A-4 X1742030A-4 R CAPACITOR 20M 400V
30A-5 X1742030A-5 S CAPACITOR 200M 250V 3-7/8 X 1-1/2
30A-6 X1742030-6
MOTOR JUNCTION BOX
30A-7 XP6204ZZ
BALL BEARING 6204ZZ
30A-8 XP6203ZZ
BALL BEARING 6203ZZ
COPYRIGHT © AUGUST, 2012 BY WOODSTOCK INTERNATIONAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
READ THIS FIRST
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
REF
PART #
DESCRIPTION
30A-9 X1742030A-9 CENTRIFUGAL SWITCH 16MM 3450
30A-10 X1742030A-10 CONTACT PLATE 16MM
72V2-1 X1741035-2
CONTACTOR NHD C-09D 230V
72V1-2 X1742072V2-2 OL RELAY NHD NTH-21 17-21A
74V2
X1742074V2
PWR CORD 12G 3W 72" 6-20P V2.07.12
503V2 X1742503V2
ID LABEL CSA V2.07.12 (W1742)
503V2 X1742S503V2 ID LABEL CSA V2.07.12 (W1742S)
#15241BLTS Printed in China
