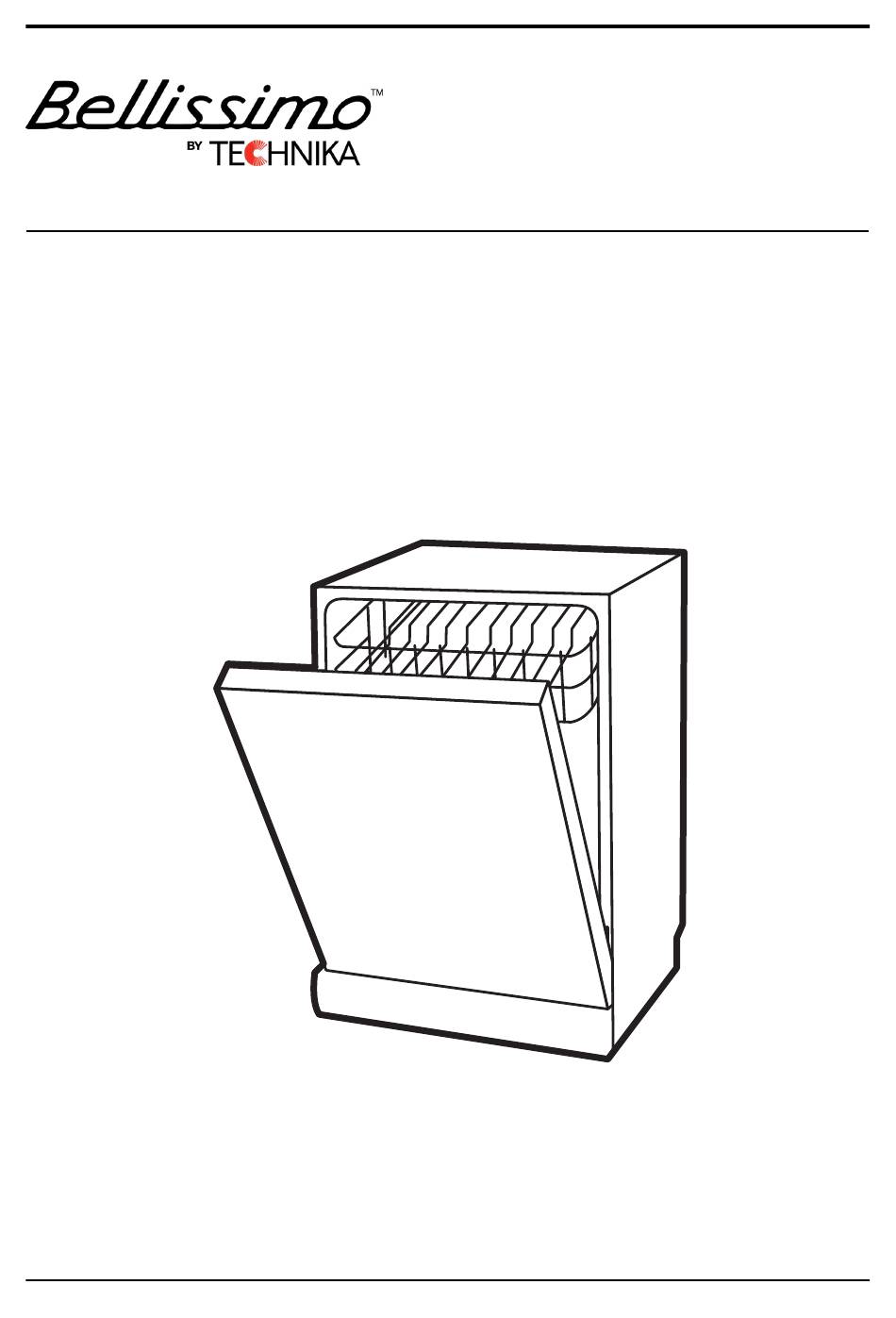

- Page 1 USER GUIDE 6 0 C M F R E E S T A N D I N G D I S H W A S H E R T B D 4 S S - 6 TECHNIKA.COM.AU...
-
Page 3: Table Of Contents
CONTENTS TABLE 1. Safety Information__________________________ 4 2. Product Overview__________________________ 7 3. Installation Instructions______________________ 8 About Power Connection_______________________ 8 Water Supplier and Drain_______________________ 9 Connection of Drain Hoses_____________________ 10 4. Using the Dishwasher_______________________ 11 Control Panel________________________________ 11 Function of the Rinse Aid and Detergent____________13 Filling the Rinse Aid Dispenser___________________ 14 Filling the Detergent Dispenser__________________ 14 Basket Use Tips______________________________ 16... -
Page 4: Safety Information
SAFETY INFORMATION Warnings When using your dishwasher , follow the precautions listed below: • Installation and repair can only be carried out by a qualified technician • This appliance is intended to be used in household and similar applications such as: - staff kitchen areas in shops, offices and other working environments;... - Page 5 SAFETY INFORMATION Earthing Instructions • This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with an earthing conductor plug. •...
- Page 6 SAFETY INFORMATION Disposal • For disposing of package and the appliance please go to a recycling center. Therefore cut off the power supply cable and make the door closing device unusable. • Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.
-
Page 7: Product Overview
PRODUCT OVERVIEW IMPORTANT: To get the best performance from your dishwasher, read all operating instructions before using it for the first time. NOTE: Pictures are only for reference, different models may be different. Please prevail in kind. PG 7... -
Page 8: Installation Instructions
INSTALLATION INSTRUCTIONS Electrical Shock Hazard Disconnect electrical power before installing dishwasher. Failure to do so could result in death or electrical shock. Attention The installation of the pipes and electrical equipments should be done by professionals. About Power Connection WARNING For personal safety: Do not use an extension cord or an adapter plug with this appliance. -
Page 9: Water Supplier And Drain
INSTALLATION INSTRUCTIONS Position the appliance Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the addjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or left sides to facilitate proper installation. -
Page 10: Connection Of Drain Hoses
INSTALLATION INSTRUCTIONS Connection of Drain Hoses Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crimping it. The height of drain pipe must be less than 1000mm. The free end of the hose must not be immersed in water to avoid the back flow of it. -
Page 11: Using The Dishwasher
USING THE DISHWASHER Control Panel PG 11 PG 11... - Page 12 USING THE DISHWASHER PG 12 PG 12...
-
Page 13: Function Of The Rinse Aid And Detergent
USING THE DISHWASHER Function Of The Rinse Aid And Detergent The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. -
Page 14: Filling The Rinse Aid Dispenser
USING THE DISHWASHER Filling The Rinse Aid Dispenser NOTE: Clean up any spilled rinse aid with an absorbent cloth to avoid excessive foaming during the next wash. Adjusting the rinse aid resorvoir Turn the rinse aid indicator dial to a number. The higher the number, the more rinse aid the dishwasher uses. - Page 15 USING THE DISHWASHER Filling The Detergent Dispenser Note: • Be aware that depending on the soiling of water, setting may be different. • Please observe the manufacturer’s recommendations on the detergent packaging. PG 15...
-
Page 16: Basket Use Tips
USING THE DISHWASHER Basket Use Tips Adjusting the upper basket Type 1: The height of the upper basket can be easily adjusted to accommodate taller dishes in either the upper or lower basket. Folding back the cup shelves To make room for taller items in the upper basket, raise the cup rack upwards. -
Page 17: Preparing And Loading Dishes
USING THE DISHWASHER Preparing and Loading Dishes • Consider buying utensils which are identified as dishwasher-proof. • For particular items, select a program with the lowest possible temperature. • To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended. - Page 18 USING THE DISHWASHER Loading the upper basket The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water.
-
Page 19: Loading The Baskets According To As/Nzs 2007.1
USING THE DISHWASHER Loading The Baskets According To AS/NZS 2007.16 1. Upper basket: 2. Lower basket: Information for comparability tests in accordance with (*AS/NZS 2007.1 ) Capacity: 12 place settings Position of the upper basket: lower position Program: ECO Rinse aid setting: 6 Detergent(Pre/main): 5/25g Door is open at the end of the drying cycle for the drying performance test (Door position: Open 50 mm) -
Page 20: Programming The Dishwasher
PROGRAMMING THE DISHWASHER Wash Cycle Table The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also show various information about the programs. )Means: need to fill rinse into the Rinse-Aid Dispenser. Note: AS/NZS 2007.1: This program is the test cycle. -
Page 21: Starting A Cycle Wash
PROGRAMMING THE DISHWASHER Starting A Wash Cycle 1. Draw out the lower and upper basket, load the dishes and push them back. It is commended to load the lower basket first, then the upper one. 2. Pour in the detergent. 3. -
Page 22: Forgot To Add A Dish
PROGRAMMING THE DISHWASHER Forget To Add A Dish A forgotten dish can be added any time before the detergent dispenser opens. If this is the case, follow the instructions below: 1. Press the Start/Pause button to pause the washing. 2. After the spray arms stop working, you can open the door completely. 3. -
Page 23: Maintenance & Cleaning
MAINTENANCE AND CLEANING Care External Care The door and the door seal Clean the door seals regularly with a soft damp cloth to remove food deposits. When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door. - Page 24 MAINTENANCE AND CLEANING WARNING Do not over tighten the filters. Put the filters back in sequence securely, otherwise coarse debris could get into the system and cause a blockage. Never use the dishwasher without filters in place. Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.
- Page 25 MAINTENANCE AND CLEANING Spray arms Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly. It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings.
-
Page 26: Caring For The Dishwasher
MAINTENANCE AND CLEANING Caring For The Dishwasher Frost precaution Please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows: 1. Cut off the electrical power to the dishwasher at the supply source. 2. - Page 27 TROUBLESHOOTING TIPS PG 27...
- Page 28 TROUBLESHOOTING TIPS PG 28...
-
Page 29: Troubleshooting Tips
TROUBLESHOOTING TIPS PG 29... - Page 30 TROUBLESHOOTING TIPS PG 30...
-
Page 31: Error Codes
ERROR CODES If there is a malfunction, the dishwasher will display error codes to identify these:se only non caustic oven cleaners purchased from hardware stores or supermarkets. WARNING: • If overflow occurs, turn off the main water supply before calling a service. •... -
Page 32: Technical Information
TECHNICAL INFORMATION PG 32... -
Page 33: Product Fiche
PRODUCT FISHE Manufacturer Bellissimo Type / Description TBD4SS-6 Standard place settings Water consumption class Standard cleaning cycle Energy consumption of the standard cleaning cycle 0.74 kWh Water consumption of the standard cleaning cycle 11 litre Program duration of the standard cleaning cycle 185 min 0.04-1.0MPa=0.4-10 bar Mounting... - Page 34 MANUFACTURER GUARANTEE This warranty is provided in Australia by Glen Dimplex Australia Pty Limited ABN 69 118 275 460 (Phone number 1300 556 816) and in New Zealand by Glen Dimplex New Zealand Limited NZBN 9429000069823 (Phone number 09 274 8265) in respect of the Bellissimo product. Bellissimo Express Warranty Subject to the exclusions below, we warrant that the product will not have any electrical or mechanical breakdowns within:...
- Page 35 MANUFACTURER GUARANTEE The product requires repairs due to damage resulting from accident, misuse, incorrect installation, insect or vermin infestation, improper liquid spillage, cleaning or maintenance, unauthorised modification, use on an incorrect voltage, power surges and dips, voltage supply problems, tampering or unauthorised repairs by any persons, use of defective or incompatible accessories or exposure to abnormally corrosive conditions, events independent of human control which occurred after the goods left the control of Glen Dimplex;...
- Page 36 MANUFACTURER GUARANTEE Warranty claims If you make a valid claim under this warranty and none of the exclusions set out in section 2 apply, we will, at our election, either repair the product or replace the product with a product of identical specification (or where the product is superseded or no longer in stock, with a product of as close a specification as possible).
- Page 37 NOTES PG 37...
- Page 38 MANUFACTURER GUARANTEE READ THE INSTRUCTION BOOKLET BEFORE INSTALLING AND USING THE APPLIANCE. The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance. The manufacturer is not responsible for any inaccuracies, due to printing or transcription errors, contained in this manual.
