Summary of Contents for Technika TDX8SS-2

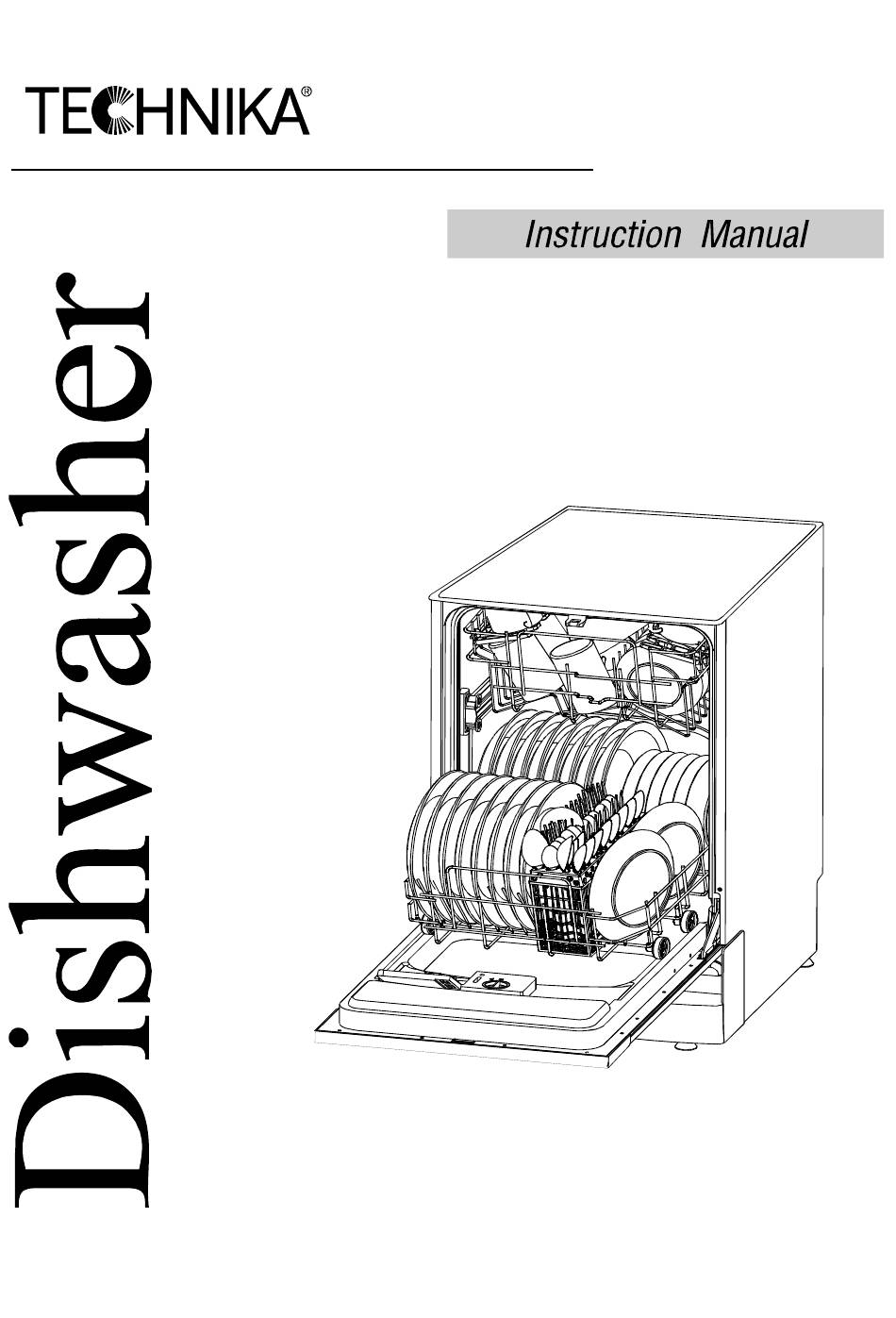

  • Page 1 TDX8SS-2...

  • Page 2: Table Of Contents

    Dear Customer, Please carefully read this manual before using the dishwasher, it will help you to use and maintain the Control Panel...........2 dishwasher properly. Dishwasher Features........2 Keep it to refer to it at a later date. Pass it on to any subsequent owner of the appliance. A、Fill the Rinse Aid Dispenser......3 This manual contains sections on safety Instructions, B、Function of Detergent .........5...
  • Page 3 WARNING! When using your dishwasher, follow the precautions listed below: This appliance must be grounded. In the event of a Improper connection of the equipment-grounding malfunction or breakdown, grounding will reduce conductor can result in the risk of an electric shock. the risk of anelectric shock by providing a path of Check with a qualified electrician or servi ce least resistance of electric current.
  • Page 4 To get the best performance from your dishwasher, read all operating instructions before using it for the first time. PROG. 3 4 5 6 7 Power on light: To come on when Power ON/OFF Delayed Start Button: Press this button to set the button is pressed down.

  • Page 5: A、Fill The Rinse Aid Dispenser

    Before using your dishwasher for the first time: Fill the rinse aid dispenser Fill in detergent Rinse Aid Dispenser The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids.
  • Page 6 RINSE AID DISPENSER To open the dispenser, turn the cap to the "open" (left) arrow and lift it out. Pour the rinse aid into the dispenser, being careful not to overfill. Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow. Be careful not to overfill the dispenser, because this could cause over sudsing.
  • Page 7 Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose. Concentrated Detergent Based on their chemical composition, detergents can be split in two basic types: conventional, alkaline detergents with caustic components low alkaline concentrated detergents with natural enzymes The use of“normal”...
  • Page 8 Fill in detergent Fill the detergent dispenser with detergent. The marki ng indicates the dosing levels , as illustrated on the right: The place of main wash cycle detergent placed , “MIN”means approximately 20g of detergent. The place of pre-wash cycle detergent placed , approximately 5g of detergent Please observe the manufacturers dosing and storage recommendations as stated on the detergent packaging.

  • Page 9: Attention Before Or After Loading The Dishwasher Baskets

    For best performance of the dishwasher, follow these loading guidelines. Features and appearance of baskets and cutlery baskets may vary from your model. Attention before or after Loading the Dishwasher Baskets Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes under running water.

  • Page 10: Loading The Lower Basket

    note ***: The upper rack has side flaps (pictured at left above basket). There are 4 (2 on each side). These can be adjusted into 2 positions = position 1 (high) and position 2 (low). To move the flaps between these positions, locate the large hinges clip each flap to the upper rack.
  • Page 11 Cutlery Basket Cutlery should be placed in the cutlery basket with the handles at the bottom. If the rack has side baskets, the spoons should be loaded separately into the appropriate slots, especially long utensils should be placed in the horizontal position at the front of the upper basket as shown in the picture.
  • Page 12 shes and items of cutlery must not lie inside one another, or cover each othe r avoid damage to glasses, they must not touch Load large items which are most difficult to clean into the lower rack he upper rack is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups Attention! Long bladed knives stored in an upri ght position are a potential hazard!
  • Page 13 For heaviest soiled crockery, Pre-wash (45℃) and normally soiled pots、 wash(50℃ /65℃ Intensive 5/25 g. 1.55 pans、dishes etc with dried 17.5 Rinse on soiling; Rinse (65℃) Drying Pre-wash Pre-wash Pre-wash For heavily soiled loads, Wash (50℃) 5/25 g. 1.25 such as pots, plates, glasses Rinse and li ghtly soiled pans.

  • Page 14: Wash Cycle Table

    Turning on the Appliance Starting a wash cycle... Draw out the lower and upper basket, load the dishes and push them back. It is commended that loading the lower basket first, than the upper one (see the section entitled “Loading the Dishwasher”). Pour in the detergent (see the section entitled “Detergent And Rinse Aid”).
  • Page 15 Switch Off the Dishwasher The buzzer of the dishwasher moos for 8 seconds, only in this case the programme has ended. 1.Switch off the dishwasher by pressing the ON/OFF button. 2.Turn off the water tap! Open the door carefully. Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes before removing from the appliance.

  • Page 16: Caring For The Dishwasher

    Filter assembly For best performance and results, the filter assembly must be cleaned. The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the filter must be cleaned regularly. For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular fi lter and cup under running water.
  • Page 17 To clean the edge around the door, you should use only a soft warm, damp cloth. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind. Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components. Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots on the stainless steel surface.

  • Page 18: Aesthetic Panel's Dimensions And Installation

    【Figure1】 90 ° 90 ° Cabinet dimensions Less than 5mm between the top 820mm of dishwasher and 580mm cabinet and the Electrical, drain and water supply line outer door aligned entrances to cabinet. Space between cabinet bottom and floor 600 mm 【Figure2】...
  • Page 19 Install the hook on the aesthetic wooden panel and put the hook into the slot of the outer door of dishwasher(see figure 4a). After positioning of the panel , fix the panel onto the outer door by screws and bolts(See figure 4b) . Hop hook 【Figure4a】...

  • Page 20: Tension Adjustment Of The Door Spring

    Tension adjustment of the door spring ● The door springs are set at the factory to the proper tension for the outer door. If aesthetic wooden panel are installed, you will have to adjust the door spring tension. Rotate the adjusting screw to drive the adjustor to strain or relax the steel cable(see figure 5).

  • Page 21: Dishwasher Installation Steps

    Dishwasher installation steps ● Install the furniture door to the outer door of the dishwasher using the brackets provided. Refer to the template for positioning of the brackets. Adjust the tension of the door springs by using an Allen key turning in a clockwise motion to tighten the left and right door springs.
  • Page 22 Dishwasher must be level for proper dish rack operation and wash performance. Place level on door and rack track inside the tub as shown to check that the dishwasher is level. level the dishwasher by adjusting the four leveling legs individually. When level the dishwasher, pl s pay attention not to let the dishwasher tip over.
  • Page 23 In order to avoid that there is more water staying in the inlet hose, please close the hydrant after using.(For the models: no safety inlet hose.) Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place.

  • Page 24: Error Codes

    Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker acted appliances sharing the same circuit with the dishwasher Power supply is not Make sure the dishwasher is turned on and the door is turned on closed securely.
  • Page 25 The dishes were not See notes in " Loading the Dishwasher Baskets ". loaded correctly. The programme was Select a more intensive programme. not powerful enough. See" Wash Cycle Table ". Not enough detergent Use more detergent, or change your detergent. was dispensed.
  • Page 26 Height : 820mm(adjustable+60mm) Width : 595mm Depth : 540mm Voltage connected Load : see rating label Water pressure: 0.04-1.0MPa Power supply: see rating label Capacity: 12 Place settings...
