Installation/Care/Use Manual
Soft Sides
Installer
To assure you install this model easily and correctly, PLEASE READ THESE SIMPLE
INSTRUCTIONS BEFORE STARTING THE INSTALLATION. CHECK YOUR
INSTALLATION FOR COMPLIANCE WITH PLUMBING, ELECTRICAL AND OTHER
APPLICABLE CODES. After installation, leave these instructions inside the fountain for
future reference. This Freeze Resistant Fountain is shipped in two separate cartons.
The second carton contains the Freeze Resistant Package LKFRB1 that is installed on
an interior heated wall. The interior space must maintain a minimum temperature of 50°
F (10° C). Refer to the Freeze Resistant Package for the rough-in dimensions for instal-
lation.
ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSON
IMPORTANT! INSTALLER PLEASE NOTE.
THE GROUNDING OF ELECTRICAL EQUIPMENT SUCH AS TELEPHONE, COMPUTERS, ETC. TO
WATER LINES IS A COMMON PROCEDURE. THIS GROUNDING MAY BE IN THE BUILDING OR MAY
OCCUR AWAY FROM THE BUILDING. THIS GROUNDING CAN CAUSE ELECTRICAL FEEDBACK
INTO A FOUNTAIN, CREATING AN ELECTROLYSIS WHICH CAUSES A METALLIC TASTE OR AN
INCREASE IN THE METAL CONTENT OF THE WATER. THIS CONDITION IS AVOIDABLE BY USING
THE PROPER MATERIALS AS INDICATED. ANY DRAIN FITTINGS PROVIDED BY THE INSTALLER
SHOULD BE MADE OF PLASTIC TO ELECTRICALLY ISOLATE THE FOUNTAIN FROM THE BUILDING
PLUMBING SYSTEM.
ECDFPW314FP
™

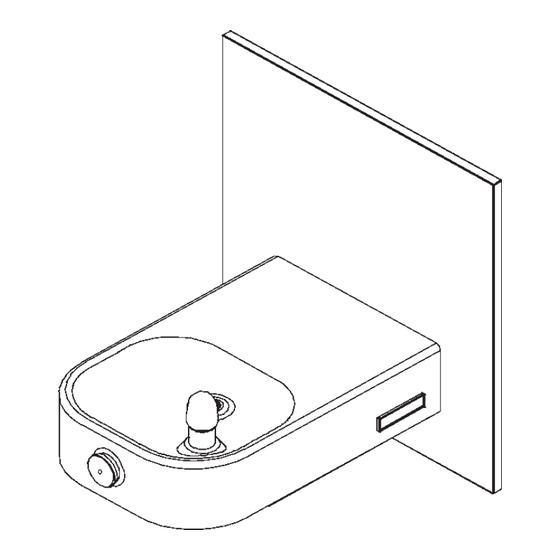

Freeze Resistant Fountain
IMPORTANT
Page 1
98011C (Rev. J - 1/08)
Advertisement
Related Manuals for Elkay Soft Sides ECDFPW314FPC
Summary of Contents for Elkay Soft Sides ECDFPW314FPC
- Page 1 ECDFPW314FP Installation/Care/Use Manual ™ Soft Sides Freeze Resistant Fountain Installer To assure you install this model easily and correctly, PLEASE READ THESE SIMPLE INSTRUCTIONS BEFORE STARTING THE INSTALLATION. CHECK YOUR INSTALLATION FOR COMPLIANCE WITH PLUMBING, ELECTRICAL AND OTHER APPLICABLE CODES. After installation, leave these instructions inside the fountain for future reference.
- Page 2 ECDFPW314FP Page 2 98011C (Rev. J - 1/08)
- Page 3 ECDFPW314FP Page 3 98011C (Rev. J - 1/08)
- Page 4 ECDFPW314FP CABLE SHEATH ADJUSTMENT To Increase Free Play To Reduce Free Play FIG. 3 FIG. 4 See Fig. 7 Note: Fountain Style May Vary FIG. 5 See Fig. 3 FIG. 6 FIG. 7 Page 4 98011C (Rev. J - 1/08)
- Page 5 ECDFPW314FP The freeze resistant package must be mounted on an interior wall in a heated area. The room temperature of the interior heated area must be 50° F (10° C) or higher. The freeze resistant package may be surface or recessed mounted. If recess mounted the surface of the cover must be flush with the interior wall surface.
- Page 6 11 13 FIG. 12 FIG. 11 FIG. 10 FIG. 13 FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.323.0620 ELKAY MANUFACTURING COMPANY • 2222 CAMDEN COURT • OAK BROOK, IL 60523 • 630.574.8484 Page 6 98011C (Rev. J - 1/08)
