USER MANUAL
TDR5-M
TDR7-M
TDR8-M
WARNING
Read the instructions before using the machine.
EN (Original Instruction)
All manuals and user guides at all-guides.com
TDR-M
9123827 / 1511

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TDR-M and is the answer not in the manual?

Questions and answers

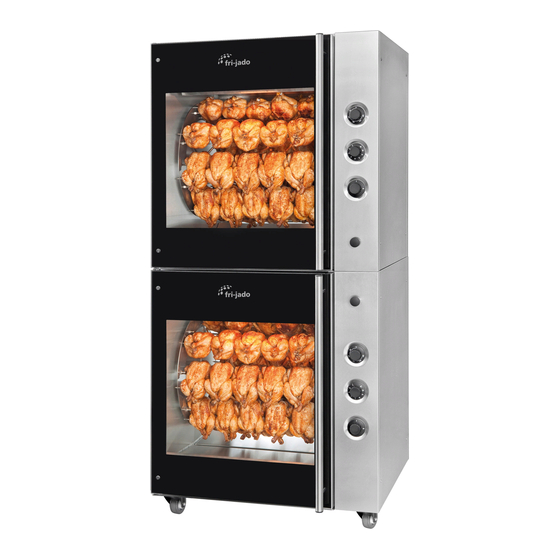

Summary of Contents for Fri-Jado TDR-M

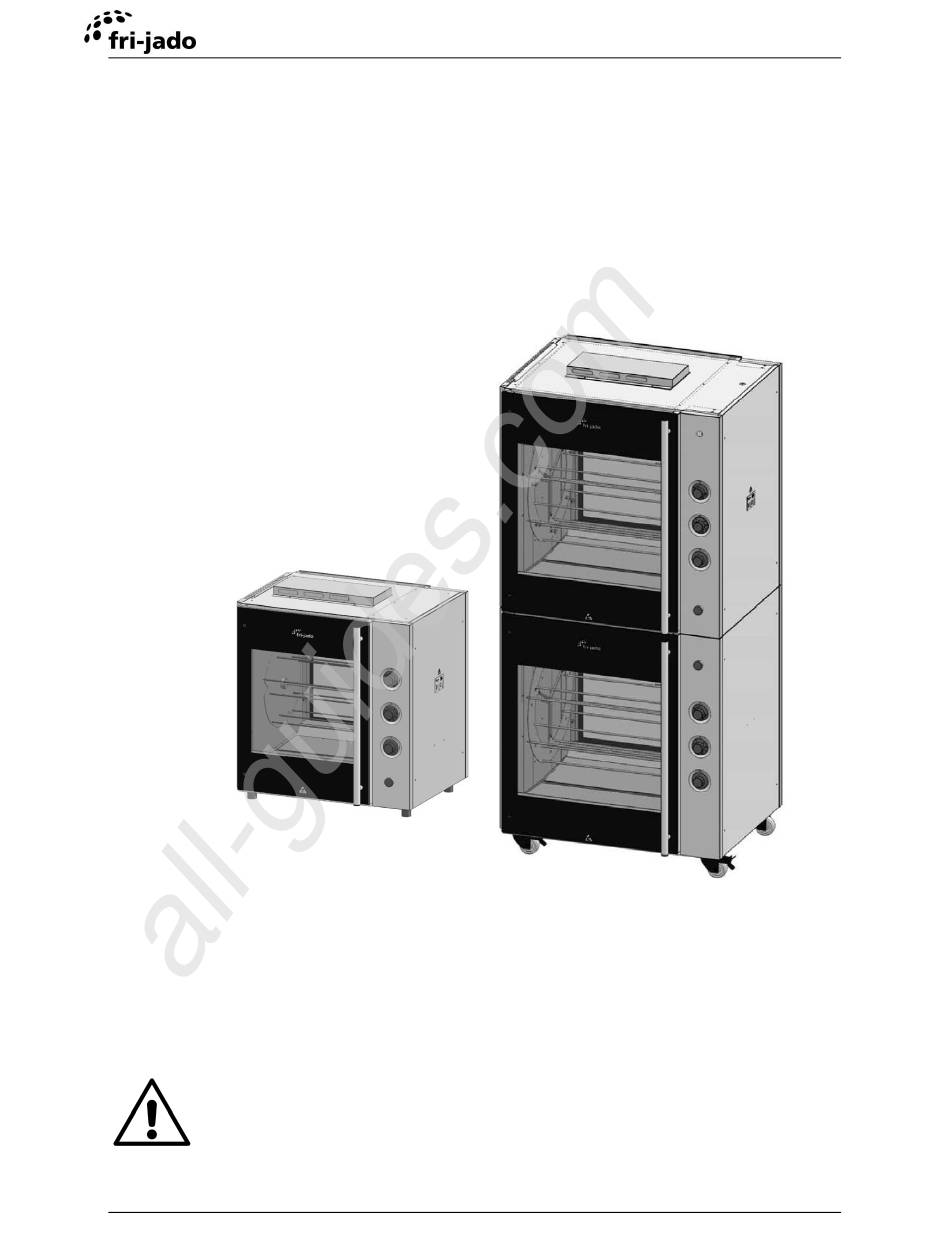

  • Page 1 All manuals and user guides at all-guides.com TDR-M USER MANUAL TDR5-M TDR7-M TDR8-M WARNING Read the instructions before using the machine. EN (Original Instruction) 9123827 / 1511...
  • Page 2 TDR-M KEEP THIS USER MANUAL FOR FUTURE USE © 2015 Fri-Jado BV, Etten-Leur, The Netherlands. We advise you to contact your supplier for the guarantee period and conditions. Further we refer to our General Terms and Conditions for Sales and Delivery that are available upon request.
  • Page 3 All manuals and user guides at all-guides.com TDR-M Empty page. 3 / 32...
  • Page 4: Table Of Contents

    All manuals and user guides at all-guides.com TDR-M CONTENTS INTRODUCTION ......................6 General ..........................6 Identification of the unit ..................... 6 Pictograms and symbols ....................6 Safety instructions ......................7 1.4.1 General ........................7 1.4.2 Moving ......................... 8 1.4.3 Outdoor use restrictions ....................8 Hygiene ..........................
  • Page 5 All manuals and user guides at all-guides.com TDR-M Switching-off the unit....................... 22 CLEANING AND MAINTENANCE ................. 23 Maintenance schedule ....................23 Daily Cleaning......................... 23 Weekly Cleaning ......................24 Monthly Cleaning ......................25 Cleaning guidelines for non-stick coated surfaces ............26 MALFUNCTIONS AND SERVICE ..................
  • Page 6: Introduction

    All pictograms, symbols and drawings in this manual apply to all TDR-M models. Identification of the unit...
  • Page 7: Safety Instructions

    All manuals and user guides at all-guides.com TDR-M Safety instructions WARNING The outside of the unit can be very hot. WARNING The maximum load on top of the unit may never exceed 50 kg (110 lbs). WARNING Risk of slippery floor: Spills may cause slippery surfaces, clean-up promptly...
  • Page 8: Moving

    All manuals and user guides at all-guides.com TDR-M 1.4.2 Moving When moving the unit:  Before moving the unit, first switch off the mains voltage by pulling the plug from the wall socket and empty the fat collecting drawer. After that, cool-down the unit for at least ten minutes.
  • Page 9: Hygiene

    All manuals and user guides at all-guides.com TDR-M Hygiene The quality of a fresh product always depends on hygiene. Especially grilling products. With the risk of salmonella contamination – especially for chicken products – you must make sure that grilled products can never be mixed with uncooked products. Also contact between grilled products and hands or tools that have been in contact with raw chicken meat, must be avoided at all times.
  • Page 10: Description Of The Unit

    All manuals and user guides at all-guides.com TDR-M DESCRIPTION OF THE UNIT Technical description The unit uses a combination of direct infra-red radiation and convection heat. The rotor is being wheeled by a maintenance-free motor with a gear box. The fan provides an equally divided heat. The glass panes are equipped with a heat reflecting layer to keep the heat inside the grill.
  • Page 11: Installation And First Use

    All manuals and user guides at all-guides.com TDR-M INSTALLATION AND FIRST USE All packing materials used for this unit are suited for recycling. After unpacking, check the state of the unit. In case of damage, store the packing material, and contact the transporter within fifteen working days after receiving the goods.
  • Page 12: Dismantling The Pallet

    All manuals and user guides at all-guides.com TDR-M Dismantling the pallet For proper unpacking the unit, the pallet must be taken apart. Installation and positioning WARNING Position the unit on a flat and horizontal surface. A temporally inclined plane of maximum 5°...
  • Page 13: First Use

    All manuals and user guides at all-guides.com TDR-M First use When using the unit for the first time, clean the interior thoroughly with soap suds and heat up the unit, see section 3.4.1. After commissioning discolouration of the cooking/grilling area can occur.
  • Page 14: Metal Odour

    All manuals and user guides at all-guides.com TDR-M  Place the bottom plates in the grilling compartment. 3.4.1 Metal odour To remove the metal odour that will appear at first use, the unit must be heated at the maximum temperature (250°C/482°F) for at least half an hour.
  • Page 15: Operation And Use

    All manuals and user guides at all-guides.com TDR-M OPERATION AND USE Control Panel Button Function Temperature selector Timer selector Mains Switch ROTOR BUTTON to Rotate the rotor 15 / 32...
  • Page 16: Switching-On The Unit

    Whole uncut chickens should always be grilled using the meat forks. This way their natural fat will baste each other, giving a perfectly slender cooking result. Refer to the You-Tube movie: “Fri-Jado instruction for binding and loading chicken”. 16 / 32...
  • Page 17 All manuals and user guides at all-guides.com TDR-M For preparing chicken or any other poultry, you can work as follows: Insert one point of the meat fork through the chest at the position of the wings. Insert the other point through the drum sticks. Don’t forget to include the wings.
  • Page 18: Loading The Rotisserie Using V-Shape Spits (Accessory)

    All manuals and user guides at all-guides.com TDR-M 4.3.2 Loading the rotisserie using V-shape spits (accessory) If you are using V-shape spits act as follows:  Place the skewer into the small outside hole on the rotor end plate on your left (as you face the oven).
  • Page 19: Loading The Rotisserie Using Chicken Racks (Accessory)

    All manuals and user guides at all-guides.com TDR-M type for TDR 7 / TDR 8 is shown 4.3.4 Loading the rotisserie using chicken racks (accessory) When using chicken racks, you can use the principle as described in section 4.3.3. For preparing chicken or any other poultry in the racks, you can use Picture 1 as an example.
  • Page 20: Loading The Rotisserie Using Two Different Accessories

    All manuals and user guides at all-guides.com TDR-M 4.3.5 Loading the rotisserie using two different accessories. WARNING After loading the rotor, at least make ONE full rotation, and check whether the rotor can spin without obstructions. If you want to load the unit using two different accessories at the same time, always fill the rotor with ONE accessory fewer than the maximum allowed quantity.
  • Page 21: Taking Out The Meat Forks

    3. Take the meat fork at its other end and take it out of the unit. 4. Remove the products from the meat fork. Refer to the You-Tube movie: “Fri-Jado instruction for unloading chicken from a rotisserie”. 4.5.2 Taking out the V-shape spit (accessory) For taking out the V-shape spit you can use the same principle as described in section 4.5.1.
  • Page 22: Emptying Grease Drawer

    All manuals and user guides at all-guides.com TDR-M Emptying grease drawer WARNING Check the grease drawer after each cooking process and empty already when about half full to avoid overflowing. Push the grease drawer completely into the unit after placing it back to prevent damage to the window.
  • Page 23: Cleaning And Maintenance

    All manuals and user guides at all-guides.com TDR-M CLEANING AND MAINTENANCE WARNING Appliance must be disconnected from the power supply during cleaning or maintenance and when replacing parts. Do not use aggressive or abrasive materials. These will damage the surface which will make it more difficult to remove dirt.
  • Page 24: Weekly Cleaning

    All manuals and user guides at all-guides.com TDR-M Rotor and bottom plates  Remove the rotor and bottom plates from the unit (no tools required).  Place the detachable parts in a wide rinsing container filled with hot water and an appropriate cleaning agent.
  • Page 25: Monthly Cleaning

    All manuals and user guides at all-guides.com TDR-M Monthly Cleaning WARNING Remove the power plug from the wall socket. Clean the fan plate and the fan blade thoroughly as described below. Fan plate:  Remove the fan plate by loosening two winged nuts. This plate hinges at two points at the sides.
  • Page 26: Cleaning Guidelines For Non-Stick Coated Surfaces

    All manuals and user guides at all-guides.com TDR-M Cleaning guidelines for non-stick coated surfaces Several parts of your rotisserie may have a non-stick coating surface. Abrasion and caustic chemicals reduce the life of the coating. With proper care, the non-stick coating surface should provide a long life of easy-to-clean service.
  • Page 27: Malfunctions And Service

    All manuals and user guides at all-guides.com TDR-M MALFUNCTIONS AND SERVICE Before you contact your supplier/dealer in case of a malfunction, there are some items you can check yourself:  Is the power supply working properly? Check fuses and differential switch.
  • Page 28: Replace A Lamp

    All manuals and user guides at all-guides.com TDR-M Replace a lamp WARNING Remove the power plug from the wall socket. WARNING Do not touch the lamps with bare hands. Use a clean cloth or paper tissues when replacing the lamp.
  • Page 29: Technical Specifications

    All manuals and user guides at all-guides.com TDR-M TECHNICAL SPECIFICATIONS WARNING Consult the identification plate to get the proper specifications of the unit. The electrical data may vary from country to country. European Models Model TDR 5 TDR 8 TDR 5+5...
  • Page 30: Accessories

    All manuals and user guides at all-guides.com TDR-M ACCESSORIES For all rotisserie models in the TDR -series mentioned in this manual, the following accessories are available: For the TDR 5 specifically: For the TDR 7/TDR 8 specifically: 30 / 32...
  • Page 31 All manuals and user guides at all-guides.com TDR-M Notes. 31 / 32...
  • Page 32 All manuals and user guides at all-guides.com TDR-M Fri-Jado Euro Products Oude Kerkstraat 2 4878 AA Etten-Leur The Netherlands Tel: +31 (0) 76 50 85 400 Fax: +31 (0) 76 50 85 444 32 / 32...
